Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

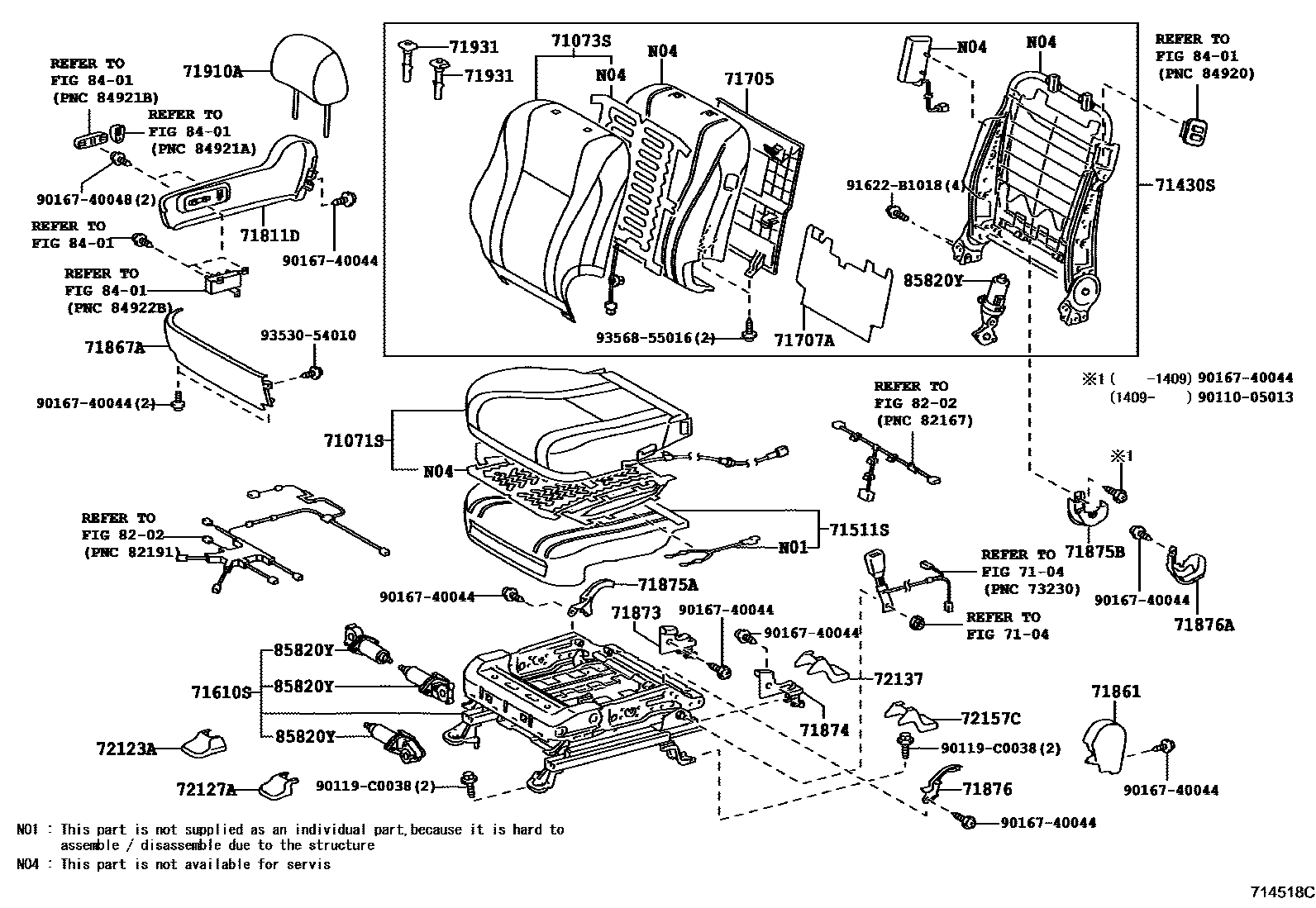

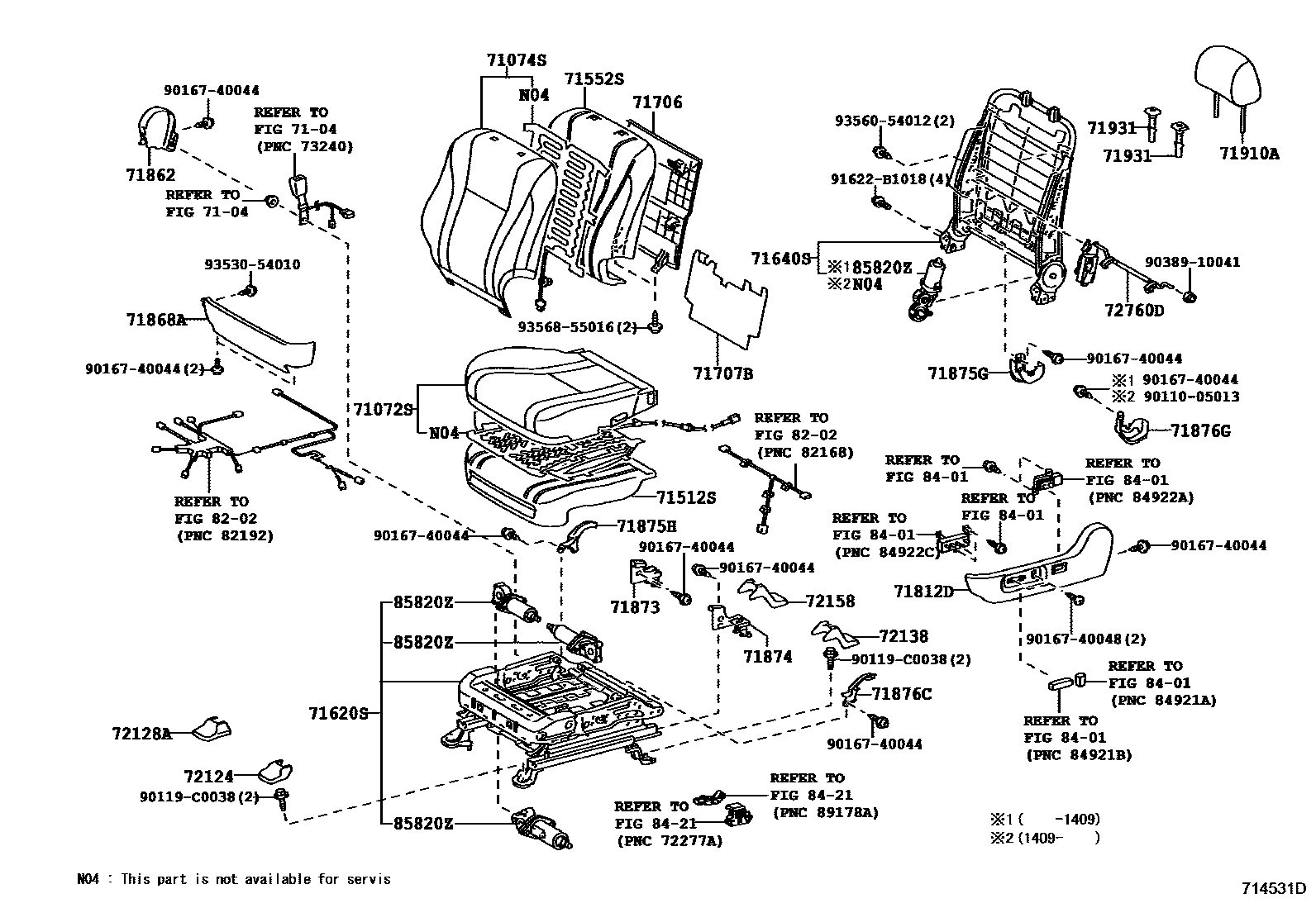

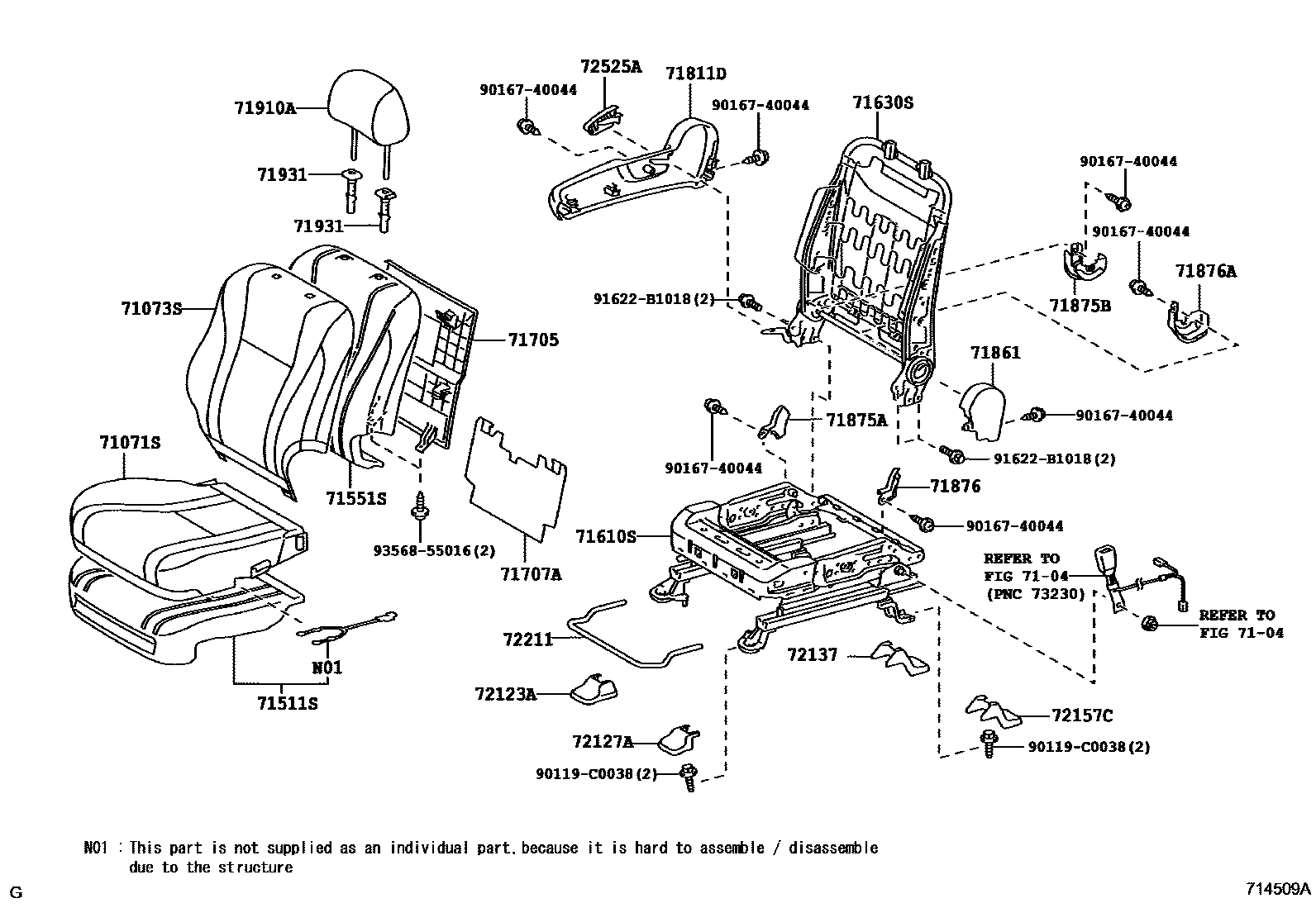

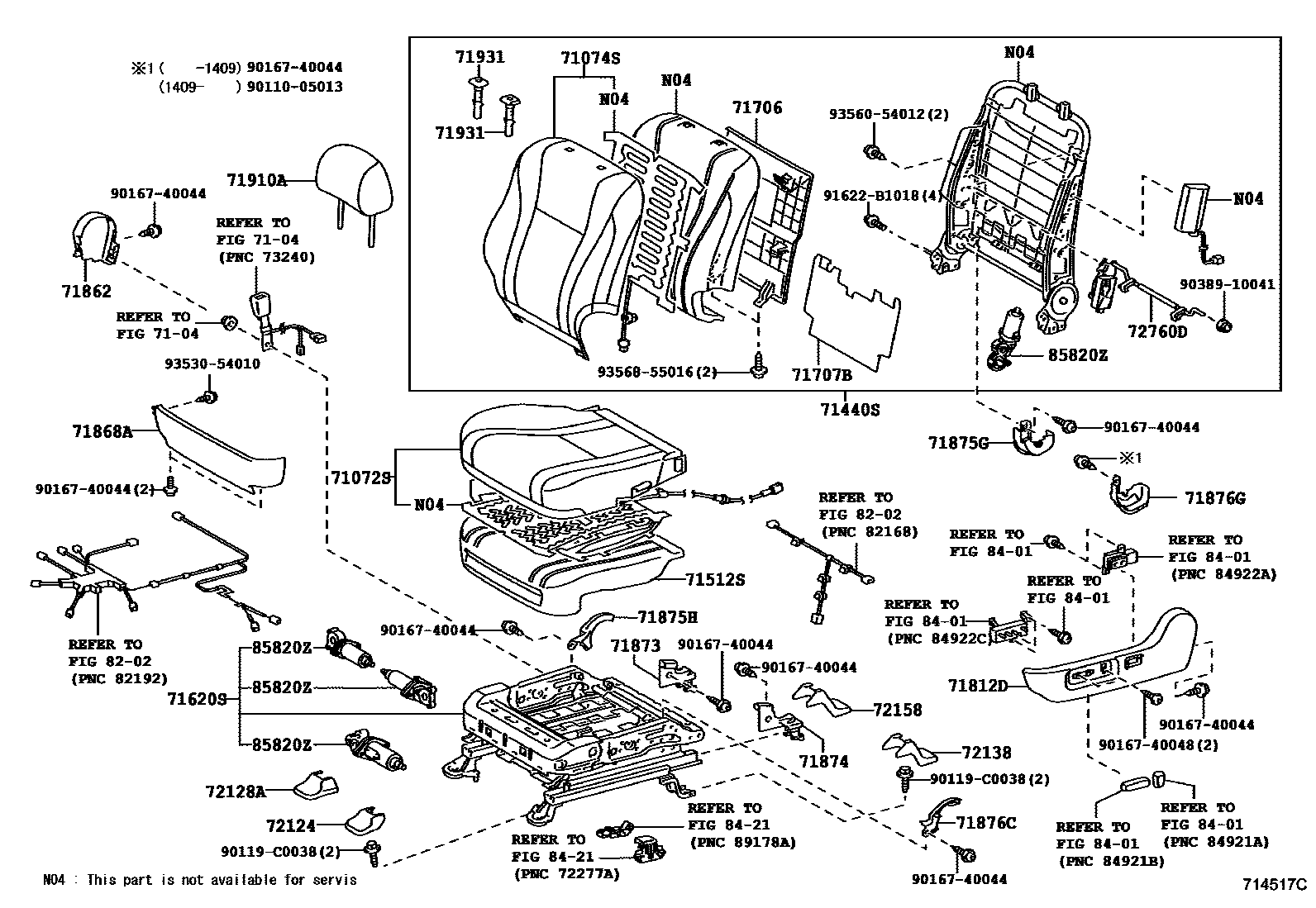

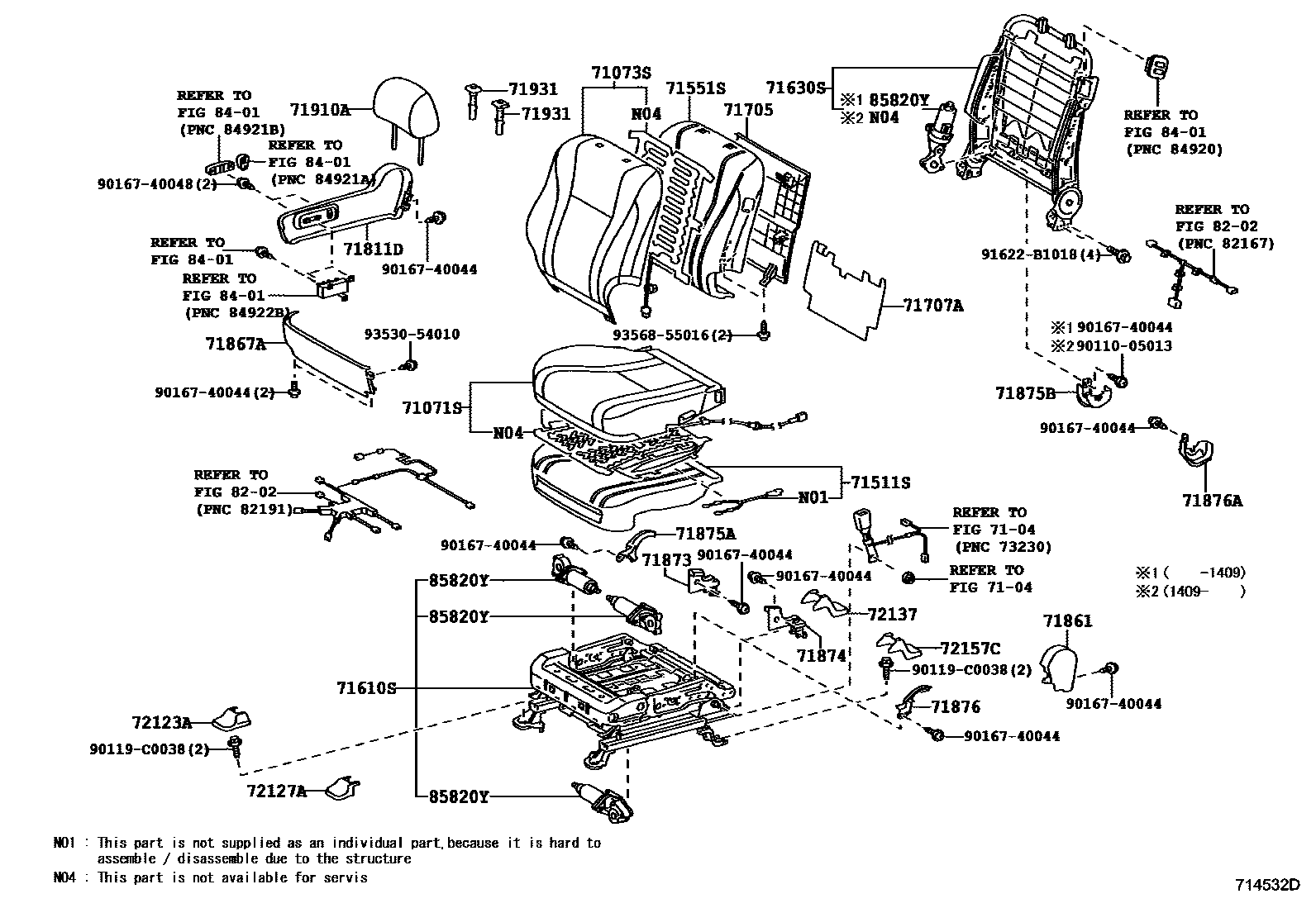

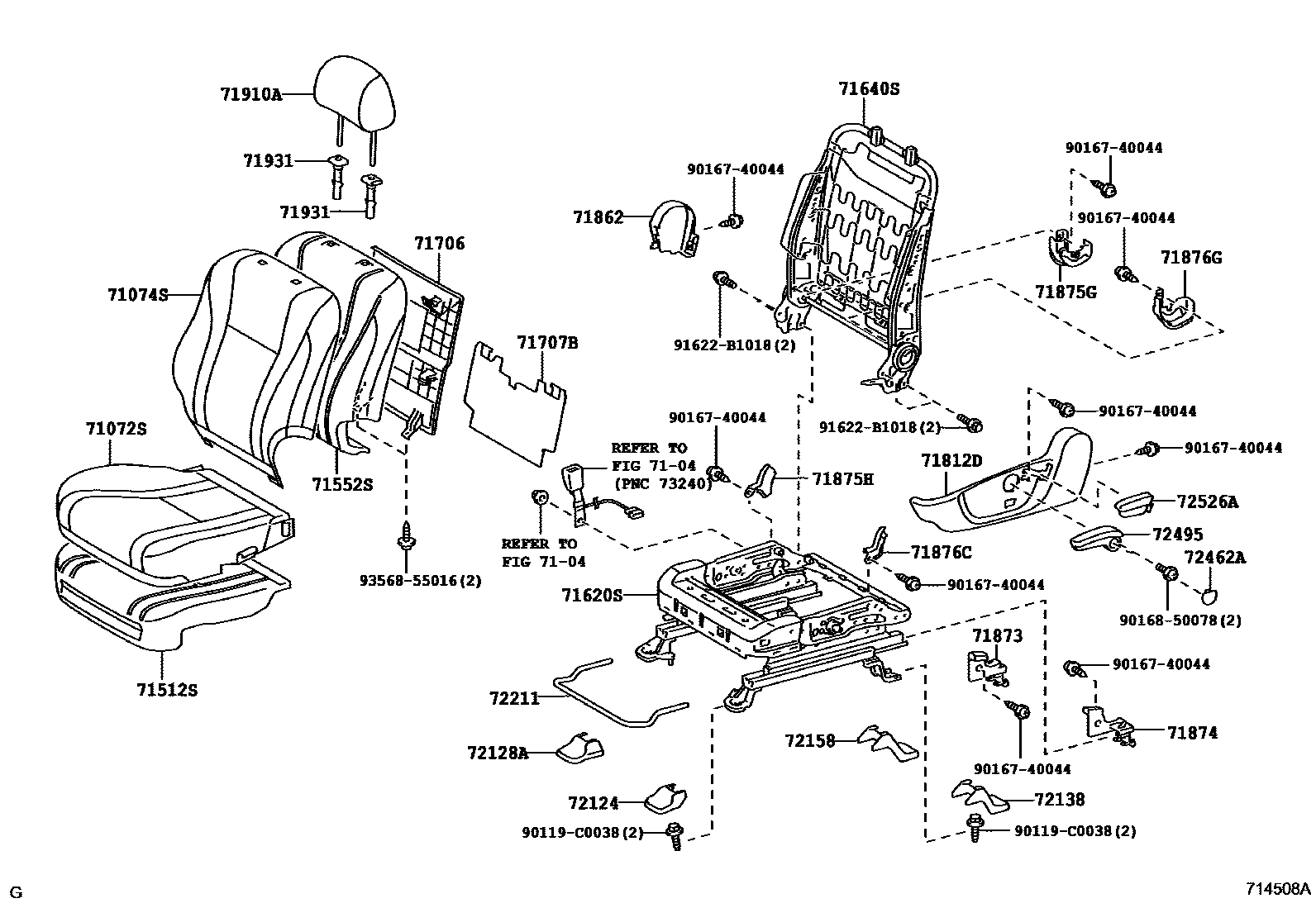

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06070 · 71501-06080 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06220 · 71512-06230 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06280 · 71551-06281 · 71551-06290 · 71551-06291 · 71551-YL010 · 71551-YL020 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06220 · 71552-06221 · 71552-YL010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06130 · 71610-06131 · 71610-06140 · 71610-06141 · 71610-06142 · 71610-06210 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06140 · 71620-06141 · 71620-06150 · 71620-06151 · 71620-06152 · 71620-06240 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06340 · 71630-06350 · 71630-YL010 · 71630-YL020 · 71630-YL030 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06280 · 71640-06290 · 71640-YL010 · 71640-YL020 · 71640-YL030 |
| 71873 | Front right seat cushion lower guard panel | 71873-06280 |
| 71874 | Front left seat cushion lower guard | 71874-06240 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06330 · 71875-06331 · 71875-06340 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06340 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-06370 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06230 · 71876-06231 · 71876-06370 |
| 72211 | Seat slide adjustment handle | 72211-06040 |
| 72760D | Left lumbar support adjuster assembly | 72760-06050 · 72760-06051 |
| 85820Y | Electric seat motor assembly | 85801-06010 · 85801-06030 · 85801-06050 · 85801-06070 |
| 85820Z | Electric seat motor assembly | 85801-06020 · 85801-06040 · 85801-06060 · 85801-06080 |
