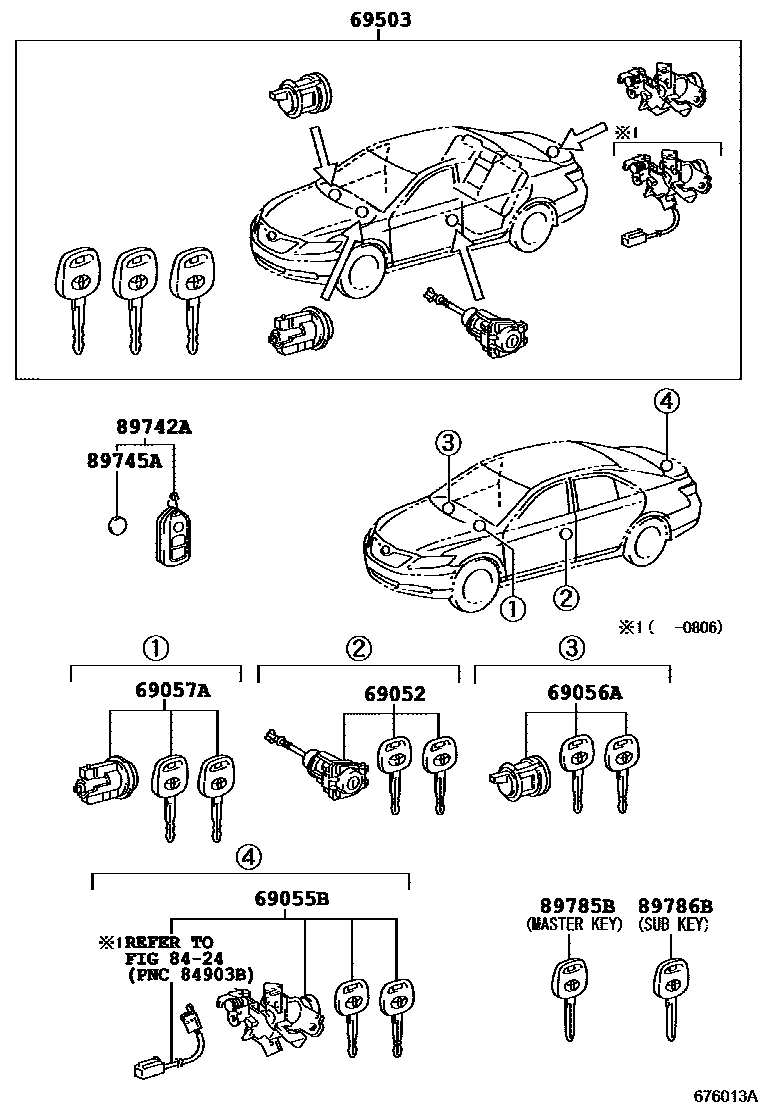

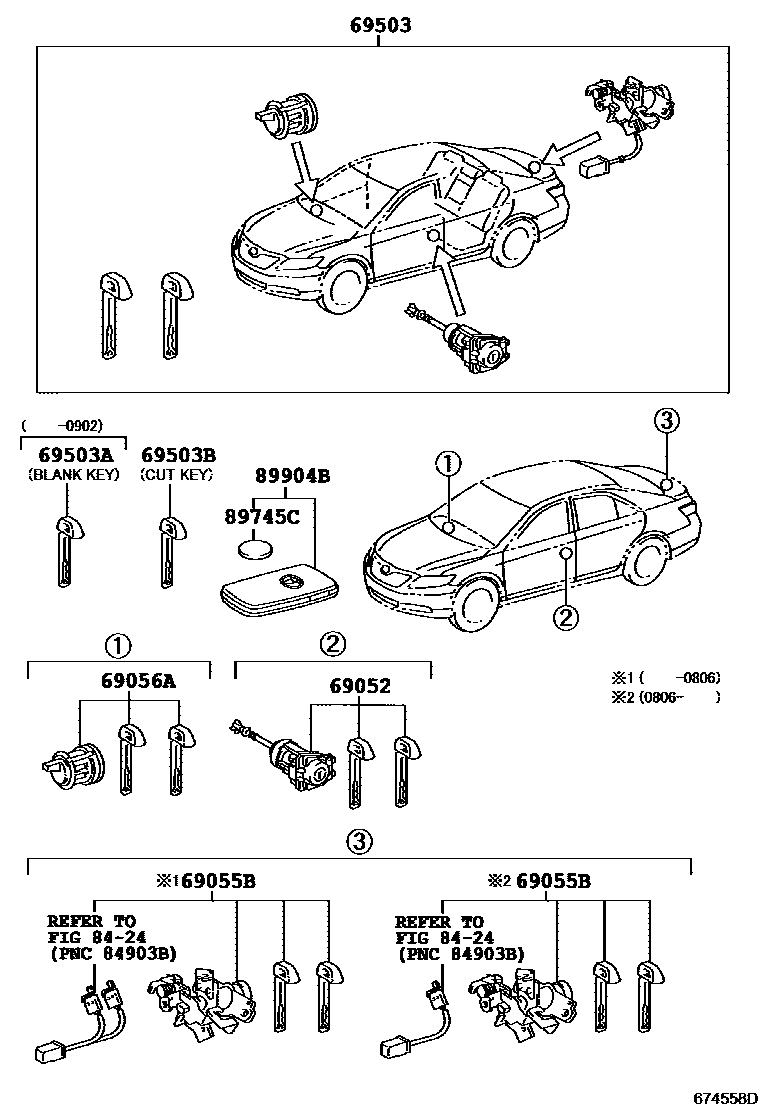

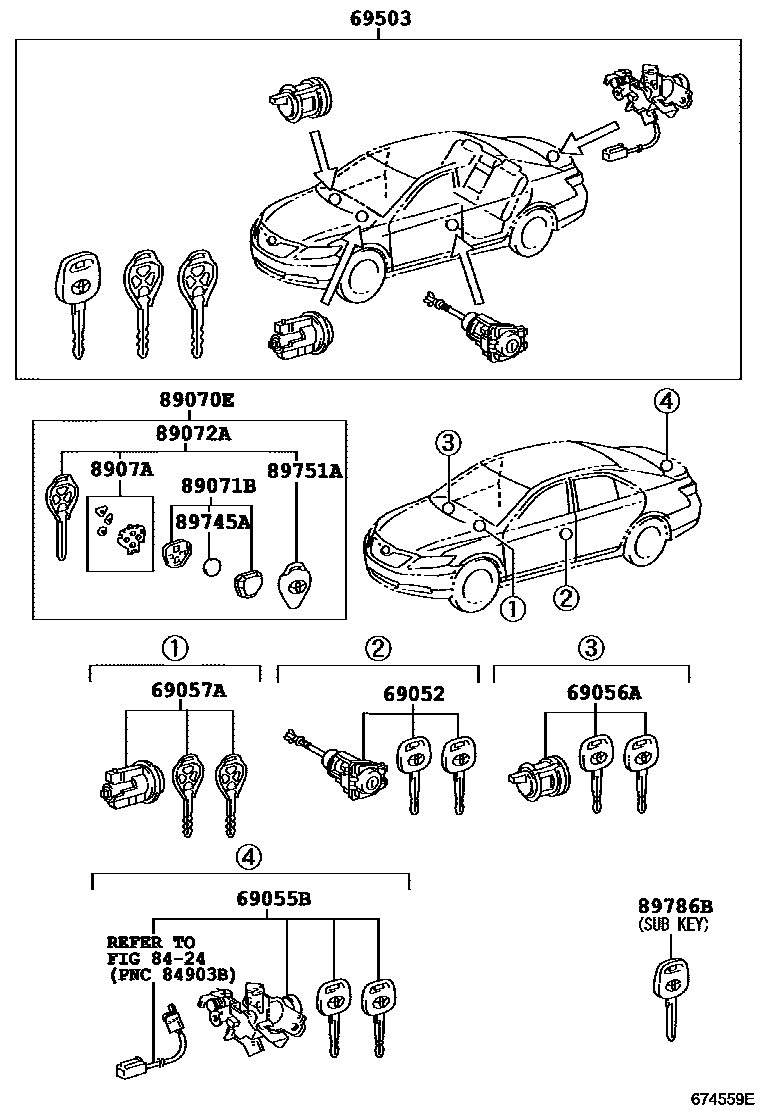

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-06090 · 69052-06100 |
| 69055B | Rear door lock cylinder and key assembly | 69055-06110 · 69055-06111 · 69055-06120 · 69055-06121 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06070 · 69056-06080 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06180 · 69057-06240 · 69057-0F030 |
| 69503 | Door lock cylinder components | 69005-06210 · 69005-06211 · 69005-06212 · 69005-06400 · 69005-06410 · 69005-06411 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 89070E | Remote key assembly | 89070-06250 · 89070-06251 |
| 89071B | Remote key sub-assembly module assembly | 89071-06020 · 89071-06021 |
| 89072A | Remote key shell assembly | 89072-33530 |
| 8907A | Transmitter switch assembly | 8907A-33020 |
| 89742A | remote key | 89742-06040 · 89742-06041 · 89742-33180 |
| 89745A | Transmitter battery | 89745-48030 · 89745-50020 |
| 89745C | Transmitter battery | 89745-52020 |
| 89751A | Transmitter housing cover | 89751-33080 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06020 · 89904-06021 · 89904-06100 |
