Toyota CAMRY 后门板和后门玻璃 — Figure 6705

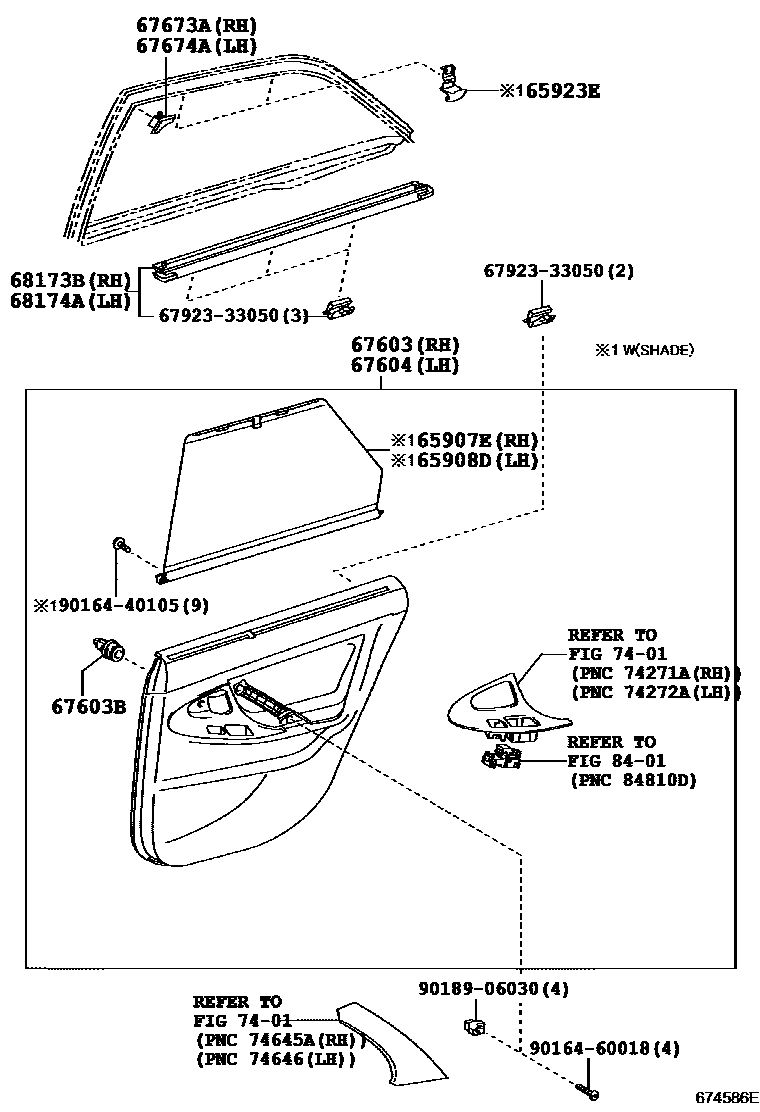

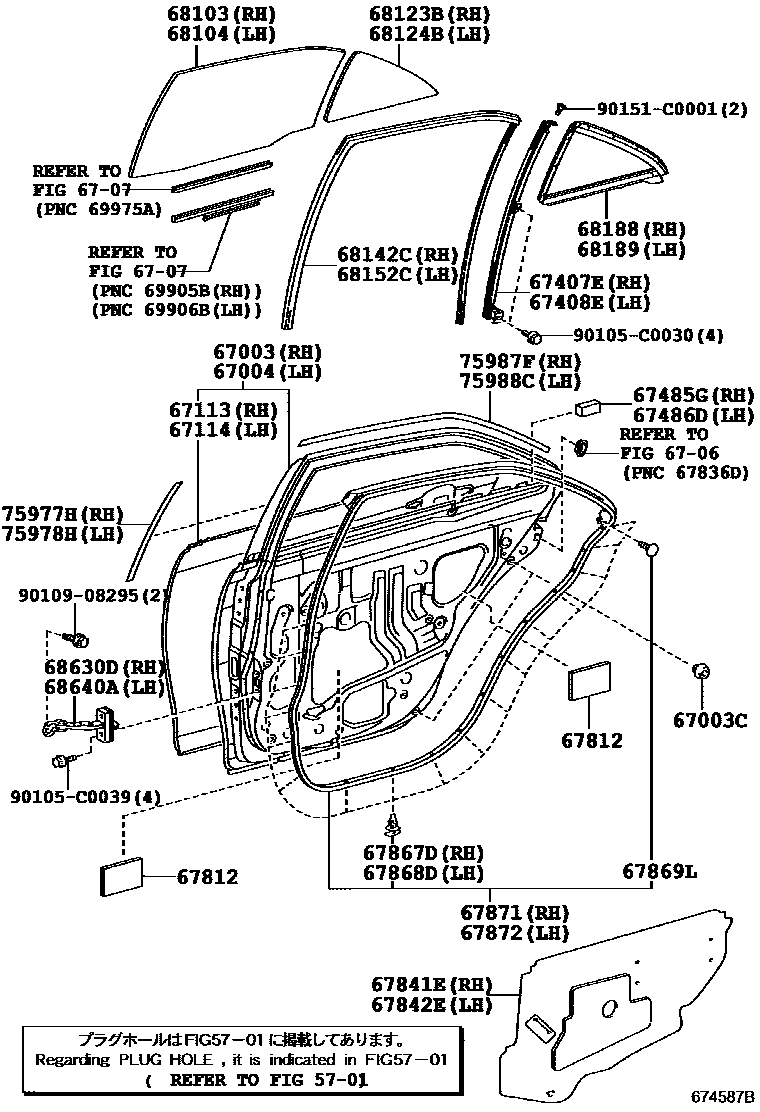

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-33020 |
| 67003 | Right rear door panel sub-assembly | 67003-06140 · 67003-06141 · 67003-06142 |
| 67003C | Rear door panel cushion | 90541-09117 |
| 67004 | Left rear door panel sub-assembly | 67004-06140 · 67004-06141 · 67004-06142 |
| 67113 | Right rear door outer panel | 67113-06090 |
| 67114 | Left rear door outer panel | 67114-06090 |
| 67407E | Right rear door window divider sub-assembly | 67407-06070 |
| 67408E | Left rear door window divider sub-assembly | 67408-06070 |
| 67485G | Right rear door rear lower door frame seal | 67482-06060 |
| 67486D | Left rear door rear lower door frame seal | 67482-06060 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-06060 |
| 67674A | Left rear door frame decorative strip | 67674-06060 |
| 67812 | Rear door silencer pad | 67811-06050 |
| 67841E | Right rear door access hole cover | 67841-06130 · 67841-06180 |
| 67842E | Left rear door access hole cover | 67842-06130 · 67842-06180 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-06080 |
| 67872 | Left rear door sealing strip | 67872-06080 |
| 68103 | Right rear door glass sub-assembly | 68113-06150 |
| 68104 | Left rear door glass sub-assembly | 68114-06150 |
| 68123B | Right rear door corner window glass | 68123-06110 |
| 68124B | Left rear door corner window glass | 68124-06110 |
| 68142C | Right rear door glass lift slot | 68142-06070 |
| 68152C | Left rear door glass lift slot | 68152-06070 |
| 68173B | Right rear door glass inner sealing strip | 68173-06070 |
| 68174A | Left rear door glass inner sealing strip | 68174-06070 |
| 68188 | Right rear door corner window seal | 68188-06060 · 68188-06061 |
| 68189 | Left rear door corner window seal | 68189-06060 · 68189-06061 |
| 68630D | Right rear door opening limiter assembly | 68630-06070 |
| 68640A | Left rear door opening limiter assembly | 68640-06070 |
| 75977H | Right rear door outer lower trim strip | 75977-06040 |
| 75978H | Left rear door outer lower trim strip | 75978-06040 |
| 75987F | Right rear door outer trim | 75987-06040 |
| 75988C | Left rear door outer trim | 75988-06040 |
