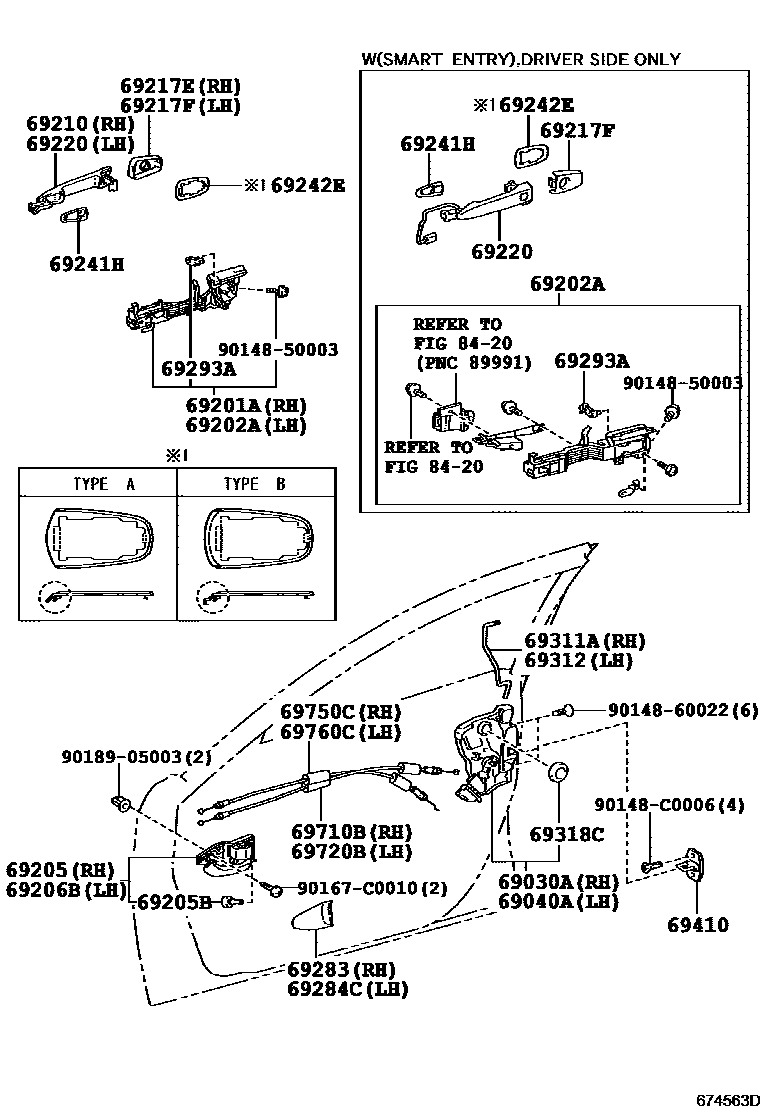

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-06220 · 69030-06221 |
| 69040A | Left front door door lock assembly with motor | 69040-06190 · 69040-06191 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-06060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-06060 · 69202-06070 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-0N010 |
| 69217E | Right front door outer handle cover | 69217-0N010 |
| 69217F | Left front door outer handle cover | 69217-0N020 |
| 69220 | Left front door outer handle assembly | 69210-0N010 |
| 69241H | Front door exterior handle pad | 69241-06040 |
| 69242E | Front door rear outer handle pad | 69242-06030 · 69242-06040 |
| 69293A | Front door outer handle buckle | 69293-0D010 · 69293-0D020 |
| 69311A | Right front door lock opening lever | 69311-06090 |
| 69312 | Left front door lock opening lever | 69312-06090 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0P010 |
| 69710B | Right front door lock remote control cable assembly | 69710-06090 |
| 69720B | Left front door lock remote control cable assembly | 69710-06090 |
| 69750C | Right front door inner lock cable assembly | 69750-06080 |
| 69760C | Left front door inner lock cable assembly | 69750-06080 |
