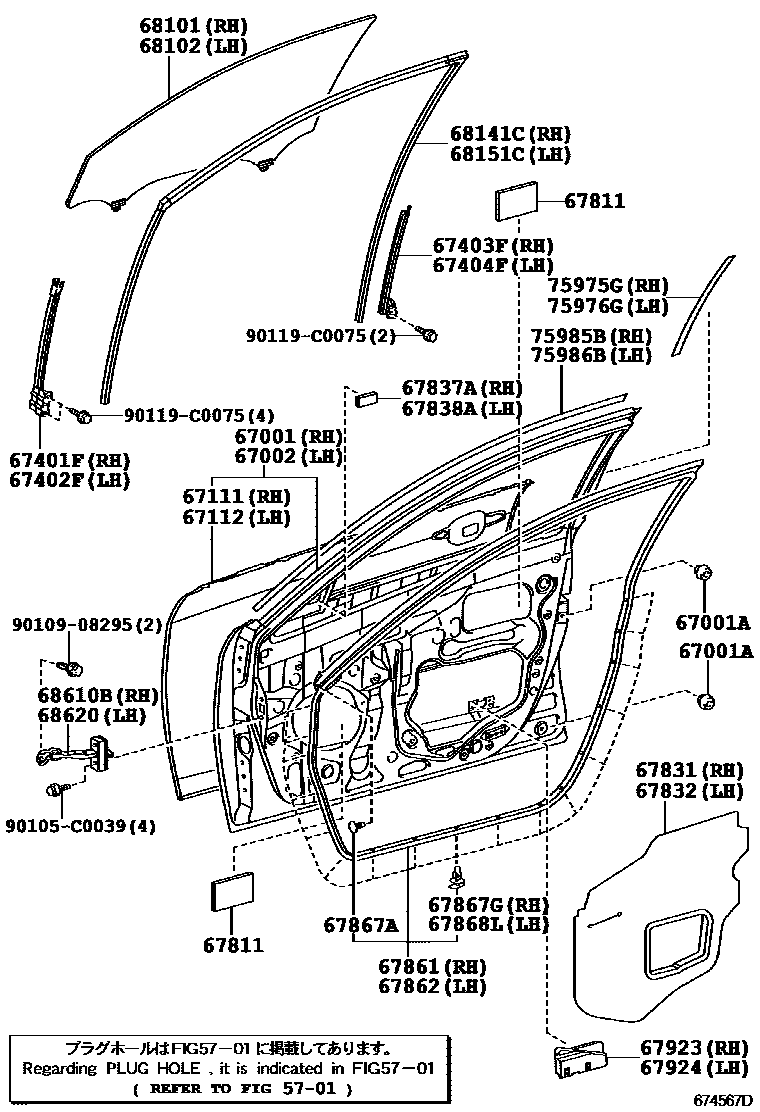

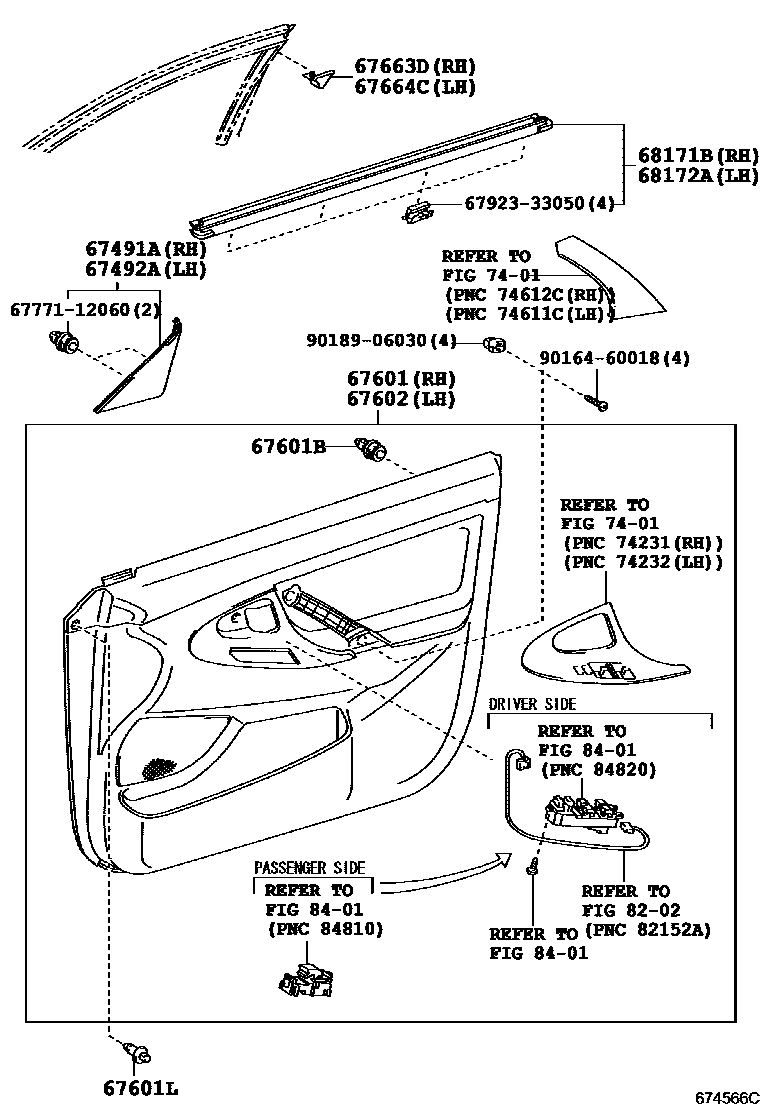

Toyota CAMRY 前门板和前门玻璃 — Figure 6701
Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-06140 · 67001-06150 |
| 67001A | Front door panel cushion | 90541-09117 |
| 67002 | Left front door panel sub-assembly | 67002-06140 · 67002-06150 |
| 67111 | Outer right front door panel | 67111-06100 |
| 67112 | Outer left front door panel | 67112-06100 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-06090 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-06090 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-06070 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-06070 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-06080 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-06080 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-06050 |
| 67664C | Left door frame decorative strip | 67664-06050 |
| 67811 | Front door silencer pad | 67811-06050 |
| 67831 | Right front door access hole cover | 67831-06100 |
| 67832 | Left front door access hole cover | 67832-06100 |
| 67837A | Right front door ventilator seal | 67837-06020 · 67837-51010 |
| 67838A | Left front door ventilator seal | 67837-06020 · 67837-51010 |
| 67861 | Right front door seal | 67861-06080 |
| 67862 | Left front door seal | 67862-06080 |
| 67867A | Door seal strip clip (for front door) | 67868-30030 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-06100 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-06030 |
| 68101 | Right front door glass sub-assembly | 68101-06140 · 68101-06150 · 68101-06160 |
| 68102 | Left front door glass sub-assembly | 68102-06140 · 68102-06150 · 68102-06160 |
| 68141C | Right front door glass lift channel | 68141-06080 |
| 68151C | Left front door glass lift channel | 68151-06070 |
| 68171B | Right front door glass inner sealing strip | 68171-06080 |
| 68172A | Left front door glass inner sealing strip | 68172-06080 |
| 68610B | Right front door opening limiter assembly | 68610-06080 |
| 68620 | Left front door opening limiter assembly | 68620-06080 |
| 75975G | Right front door trim strip No. 2 | 75975-06040 |
| 75976G | Left front door trim strip No. 2 | 75976-06040 |
| 75985B | Right front door trim strip No. 3 | 75985-06040 |
| 75986B | Left front door No. 3 trim | 75986-06040 |
