Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

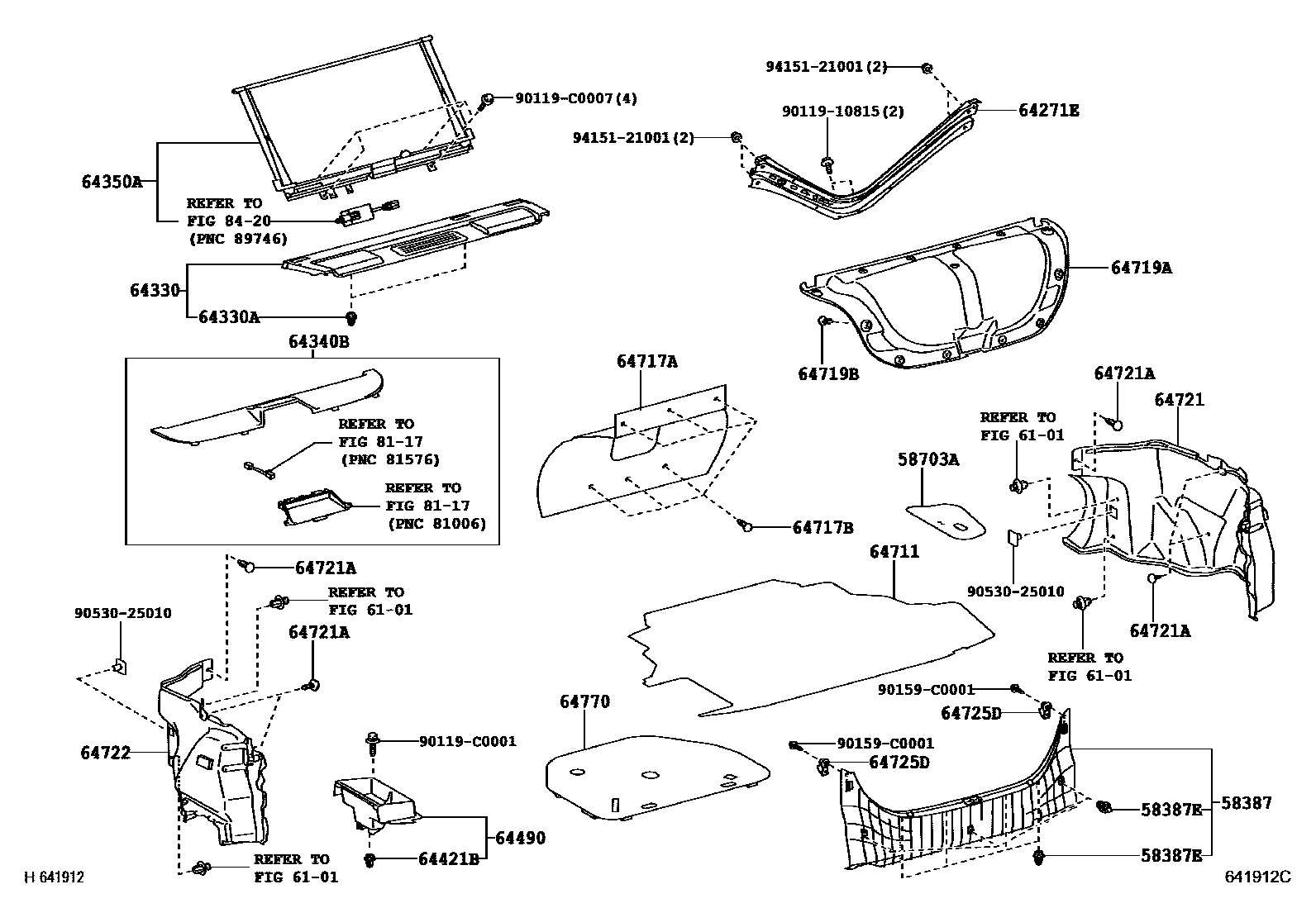

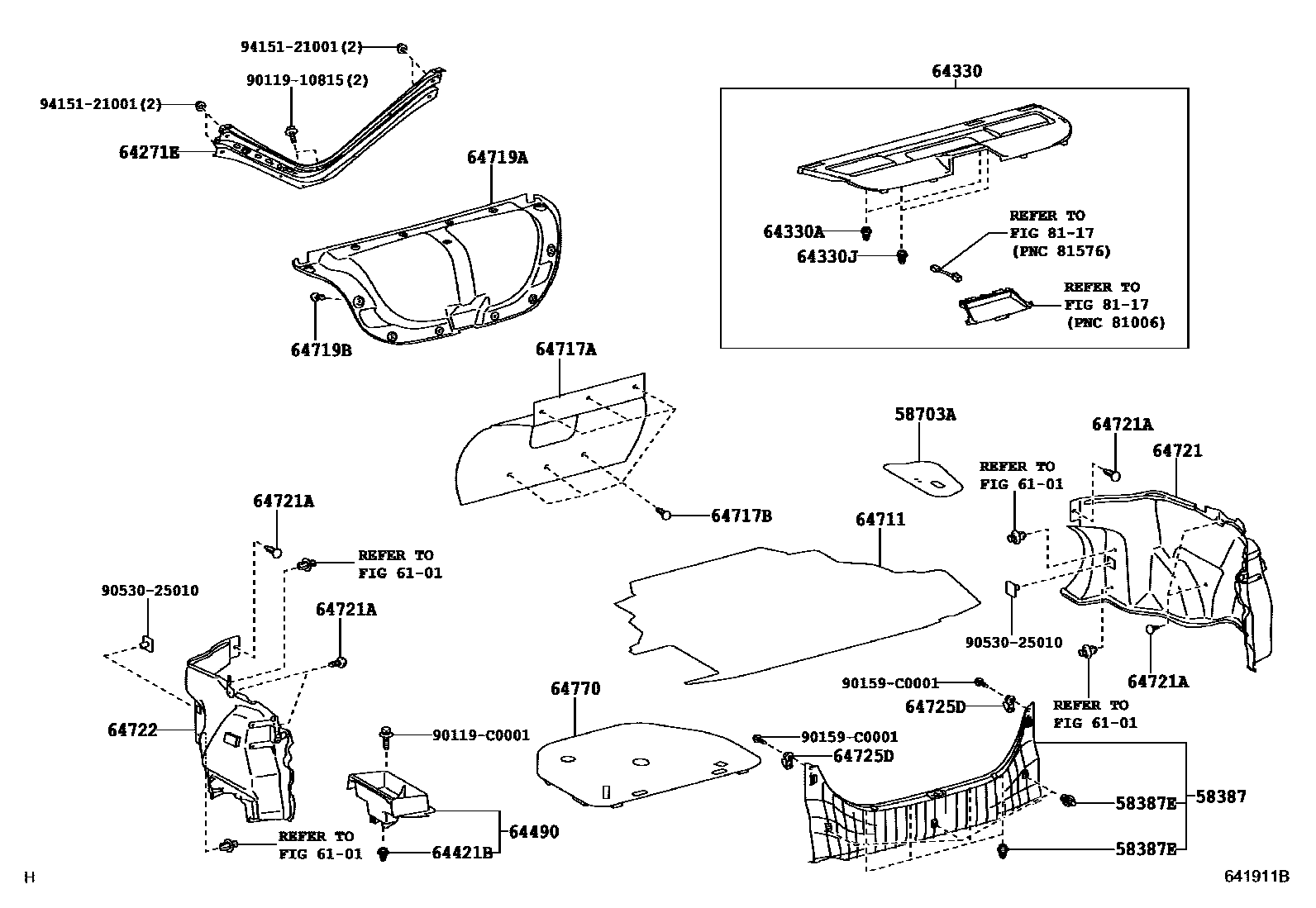

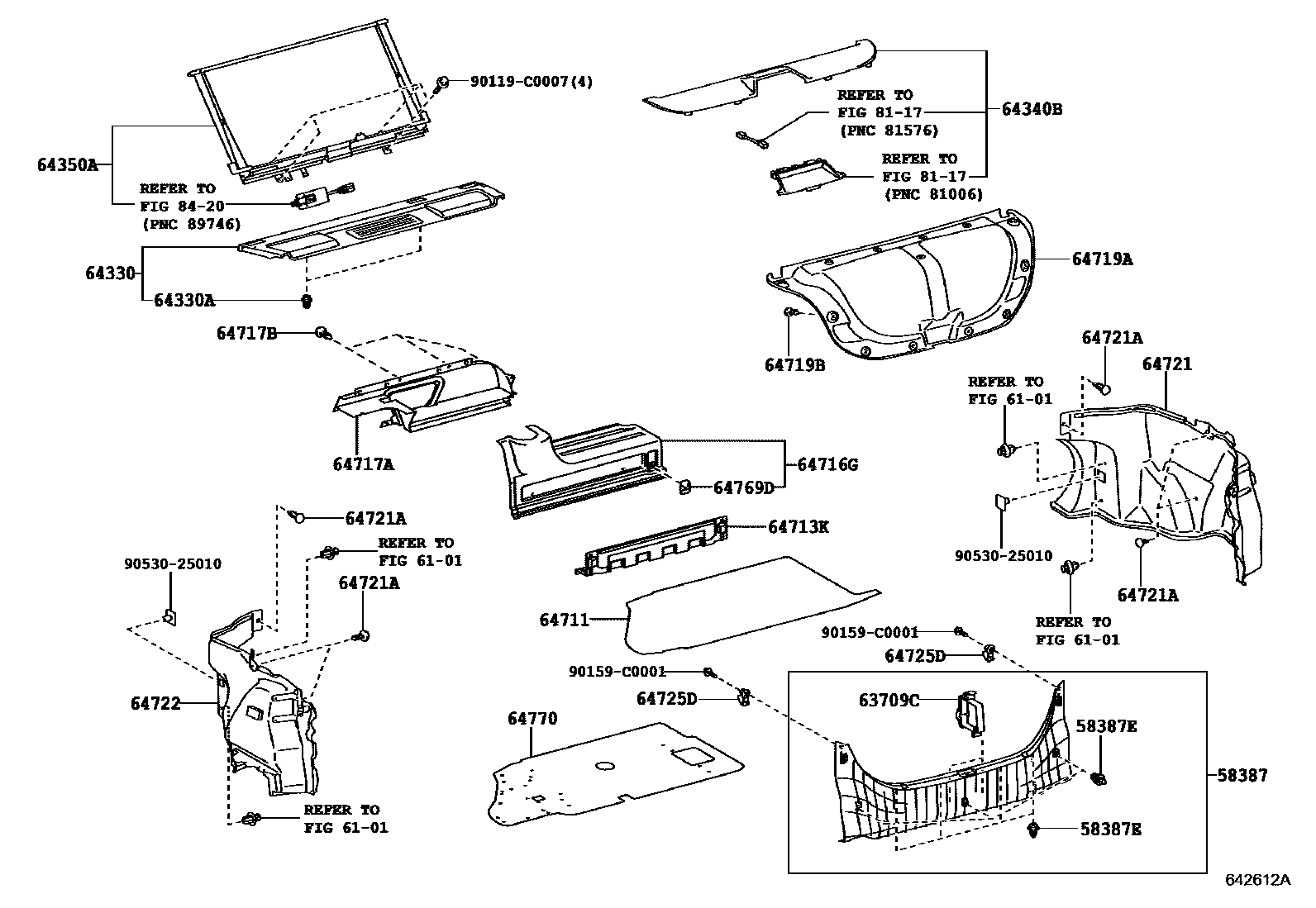

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-06110 · 58387-06130 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-06110 |
| 63709C | In-car luggage rack strap sub-assembly | 63709-06010 |
| 64271E | compartment partition | 64241-06060 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64330J | Clip (for glove box decorative panel) | 90467-10167 |
| 64350A | Rear window sun visor assembly | 64350-06080 |
| 64421B | Clip (for luggage carrier) | 90467-10161 |
| 64490 | Luggage side bracket assembly | 64490-06070 |
| 64725D | Luggage decorative hook No. 1 | 64725-33061 |
| 64770 | Spare tire cover assembly | 64770-06210 · 64770-06240 |
