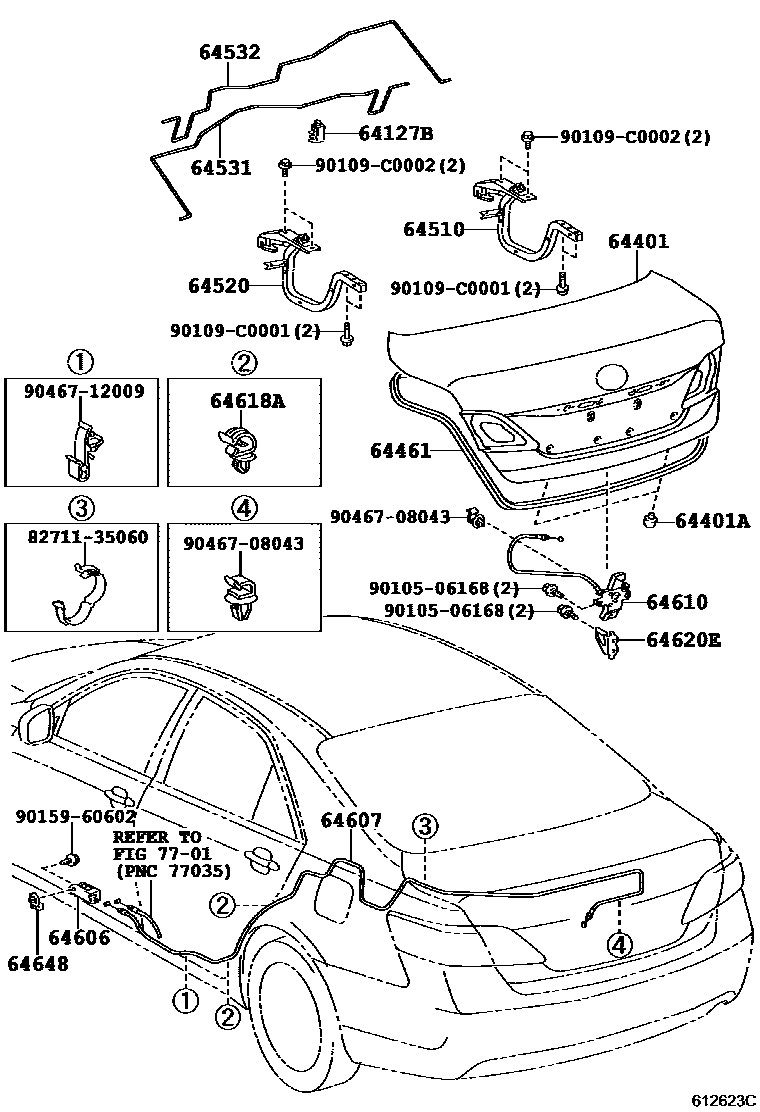

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06030 |
| 64401 | Trunk door panel sub-assembly | 64401-06440 · 64401-06450 · 64401-06520 · 64401-06530 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-06100 |
| 64510 | Trunk door right hinge assembly | 64510-33080 |
| 64520 | Trunk door left hinge assembly | 64510-33080 |
| 64531 | Trunk door right hinge torsion bar | 64531-06160 · 64531-06161 · 64531-06162 · 64531-06163 |
| 64532 | Trunk door left hinge torsion bar | 64532-06180 · 64532-06181 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-06100 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06140 |
| 64610 | Trunk door lock assembly | 64600-06030 · 64600-06031 · 64600-06032 |
| 64618A | Trunk lock control cable clip | 82711-1E260 |
| 64620E | Trunk door lock assembly | 64621-06060 |
| 64648 | Trunk door lock opener seal | 64648-02020 · 64648-0F010 · 64648-12020 |
