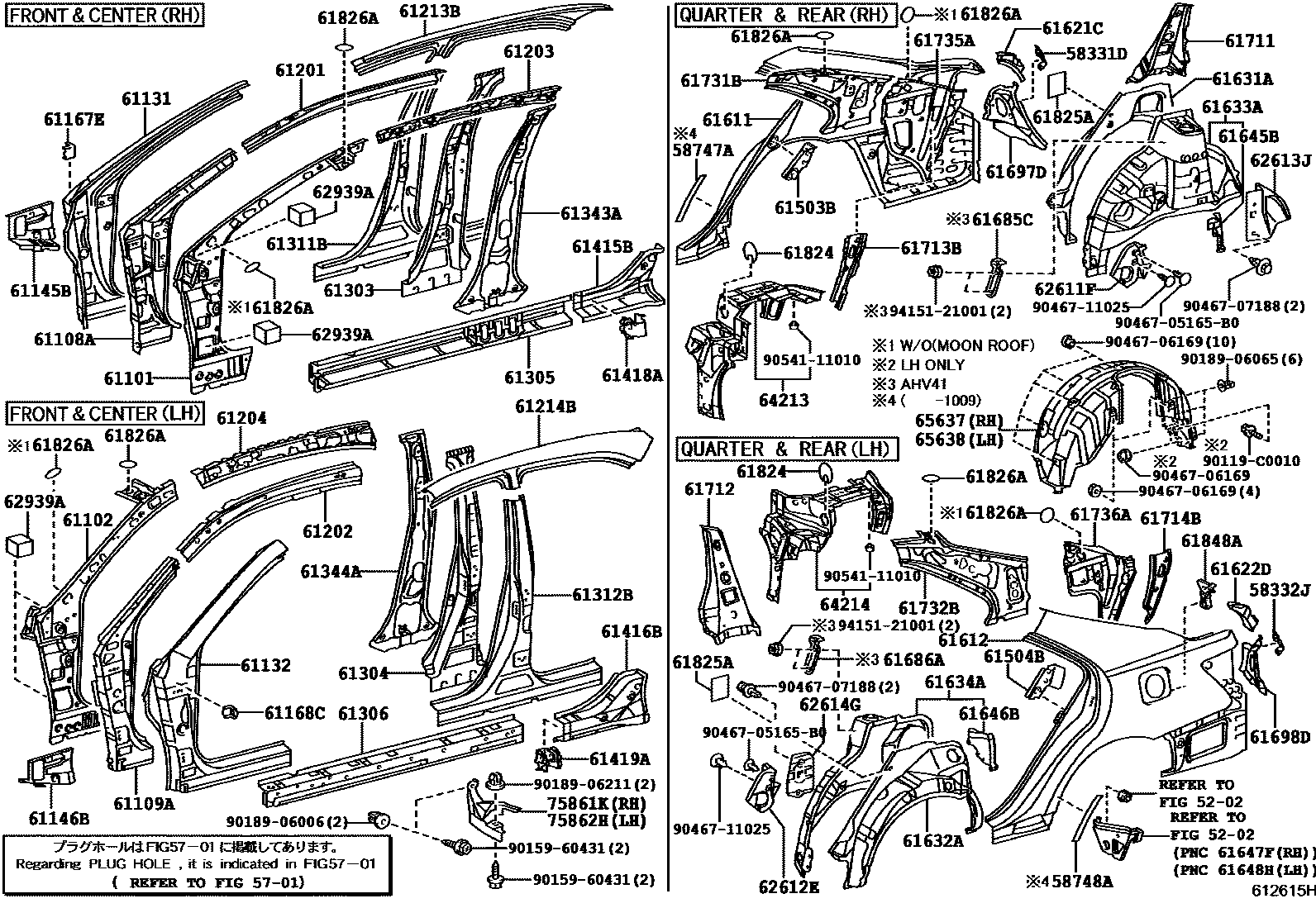

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 1 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331D | No. 1 suitcase decorative panel bracket | 58331-06050 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-06040 |
| 58747A | Right rear side panel protector | 58747-06050 |
| 58748A | Left rear side panel protector | 58748-06050 |
| 61101 | Right front wall side panel sub-assembly | 61101-06130 · 61101-06140 |
| 61102 | Left front wall side panel sub-assembly | 61102-06160 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06100 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06100 |
| 61131 | Right body outer front upper pillar | 61131-06110 |
| 61132 | Left body outer front upper pillar | 61132-06100 |
| 61145B | Right body front pillar lower corner panel | 61145-06070 |
| 61146B | Left body front pillar lower corner panel | 61146-06070 |
| 61167E | No. 6 outer column bracket | 61168-06020 |
| 61168C | No. 6 outer column bracket | 61168-06020 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-06060 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-06060 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06120 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06120 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06080 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06070 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06903 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06903 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06902 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06902 |
| 61311B | Right body outer center pillar | 61311-06070 |
| 61312B | Left body outer center pillar | 61312-06070 |
| 61343A | Right body inner center pillar | 61307-06080 |
| 61344A | Left body inner center pillar | 61308-06080 |
| 61415B | Right door outer sill extension | 61415-06070 |
| 61416B | Left door outer sill extension | 61416-06070 |
| 61418A | Right side door sill panel reinforcement | 61418-06080 |
| 61419A | Left side rocker panel reinforcement | 61418-06080 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-06100 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-06100 |
| 61611 | Right side hoarding | 61601-06180 |
| 61612 | left side panel | 61602-06170 |
| 61621C | Luggage right opening slot | 61621-33050 |
| 61622D | Rear door left opening slot | 61622-33050 |
| 61631A | Right wheel cover outer panel | 61631-06100 |
| 61632A | Left side wheel cover outer panel | 61632-06100 |
| 61633A | Right wheel housing lining panel | 61633-06903 |
| 61634A | Left side wheel housing lining panel | 61634-06903 |
| 61645B | Right rear side wheel housing corner panel | 61645-06080 |
| 61646B | Left rear side wheel housing corner panel | 61646-06080 |
| 61685C | Rear right seat backrest stop bracket | 64247-06020 |
| 61686A | Rear left seat backrest stop bracket | 64248-06020 |
| 61697D | Right side enclosure end cover | 61697-06100 |
| 61698D | Left side enclosure end cover | 61698-06100 |
| 61711 | Roof right side outer panel | 61711-06090 |
| 61712 | Roof left outer panel | 61712-06090 |
| 61713B | Roof right outer reinforcement | 61713-06080 · 61713-33020 |
| 61714B | Roof left outer reinforcement | 61714-06080 · 61714-33020 |
| 61731B | Roof right inner panel | 61731-06120 |
| 61732B | Roof left inner panel | 61732-06110 |
| 61735A | Right rear roof inner panel | 61735-06090 |
| 61736A | Left rear roof inner panel | 61736-06090 |
| 61824 | Noise Control Panel No. 1 | 61824-06060 |
| 61825A | Noise Control Panel No. 2 | 61825-06010 |
| 61826A | Noise Control Panel No. 3 | 61824-06050 |
| 61848A | Left side panel fixing | 61848-06070 |
| 62611F | Right wheel cover vibration isolation pad | 62611-06070 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-06070 |
| 62613J | No. 2 right wheel cover vibration isolation pad | 62613-06040 |
| 62614G | No. 2 left wheel cover vibration isolation pad | 62614-06040 |
| 62939A | Side ventilation silencers | 62939-06030 |
| 64213 | Glove box filter right extension | 64201-06110 |
| 64214 | Glove box filter left extension | 64202-06110 |
| 65637 | Right rear wheel house lining | 65637-06050 |
| 65638 | Left rear wheel house lining | 65638-06050 |
| 75861K | Right side door sill panel protective strip protective cover | 75861-06050 |
| 75862H | Left side door sill panel protective strip protective cover | 75862-06060 |
