Toyota CAMRY 中央扶手箱和支架 — Figure 5806

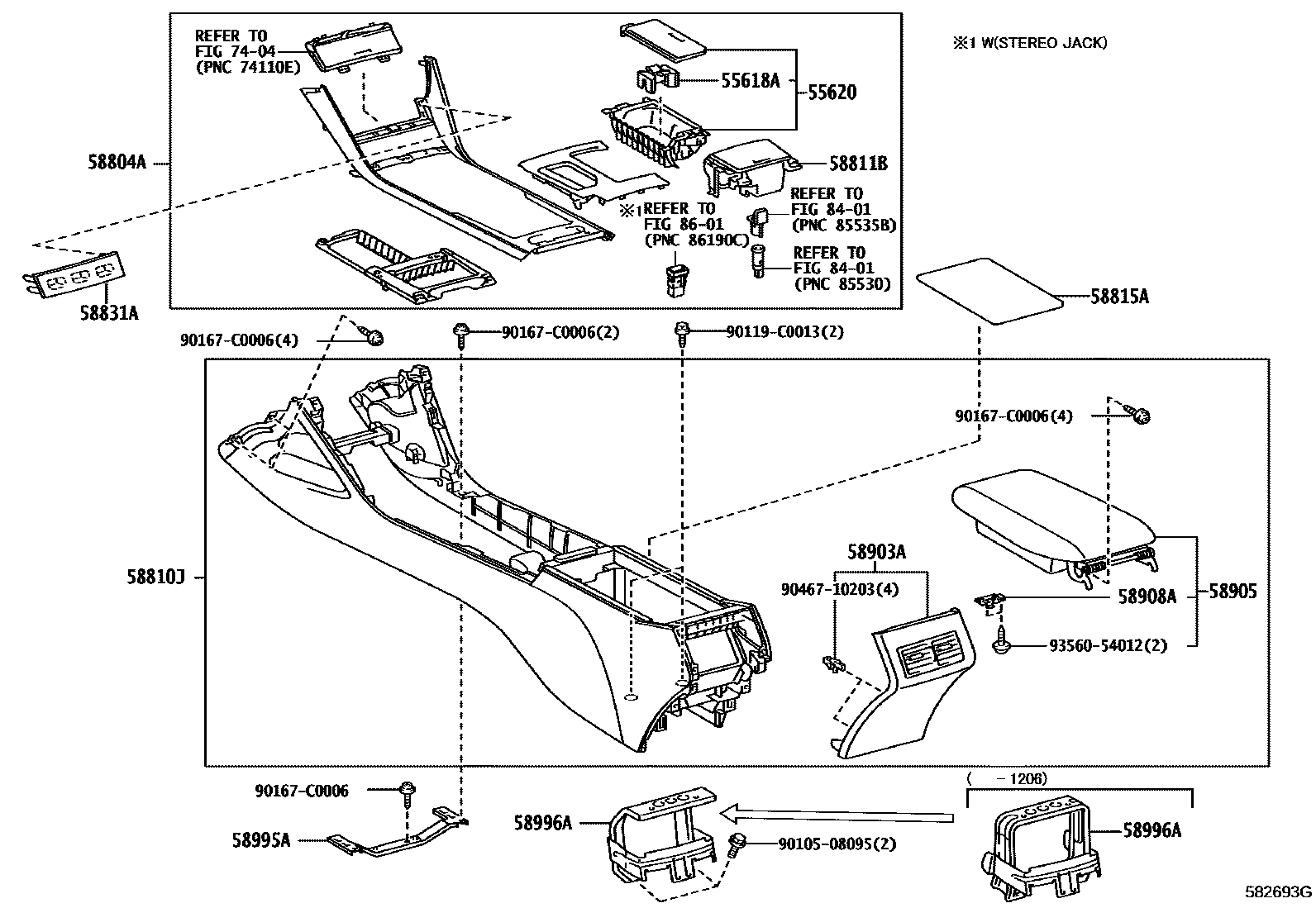

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-06100 |
| 55620 | Dashboard cup holder assembly | 55620-06220 · 55620-06230 · 55620-06280 · 55620-YL010 |
| 58811B | armrest box | 58801-06130 · 58801-06140 · 58801-06171 · 58801-YL010 |
| 58815A | Armrest box felt pad | 58815-06090 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06240 · 58831-06290 · 58831-06330 · 58831-06340 · 58831-06341 · 58831-06380 · 58831-06390 · 58831-06391 · 58831-06410 · 58831-06450 · 58831-06640 · 58831-YL010 · 58831-YL020 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06100 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06060 · 58996-06061 |
