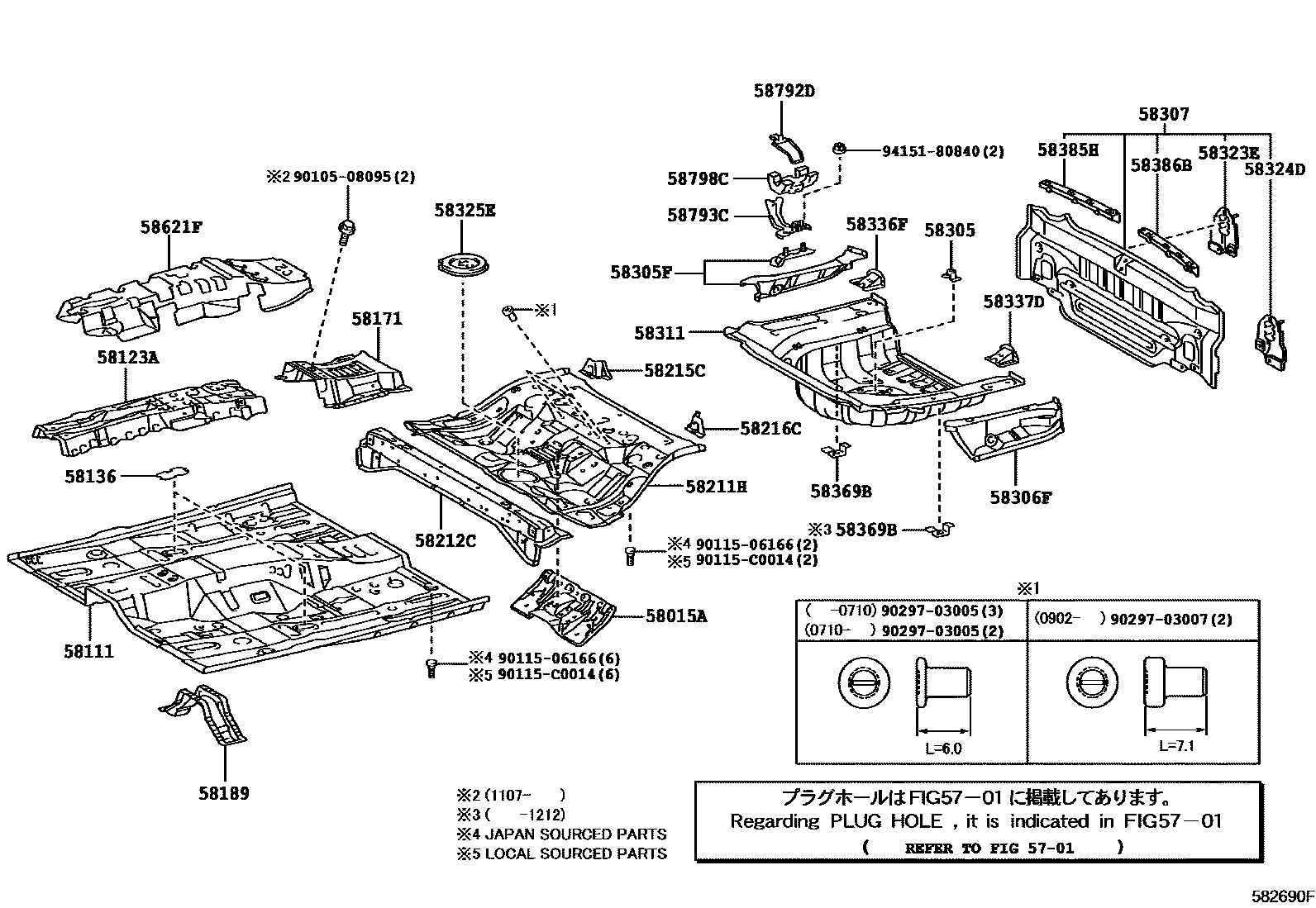

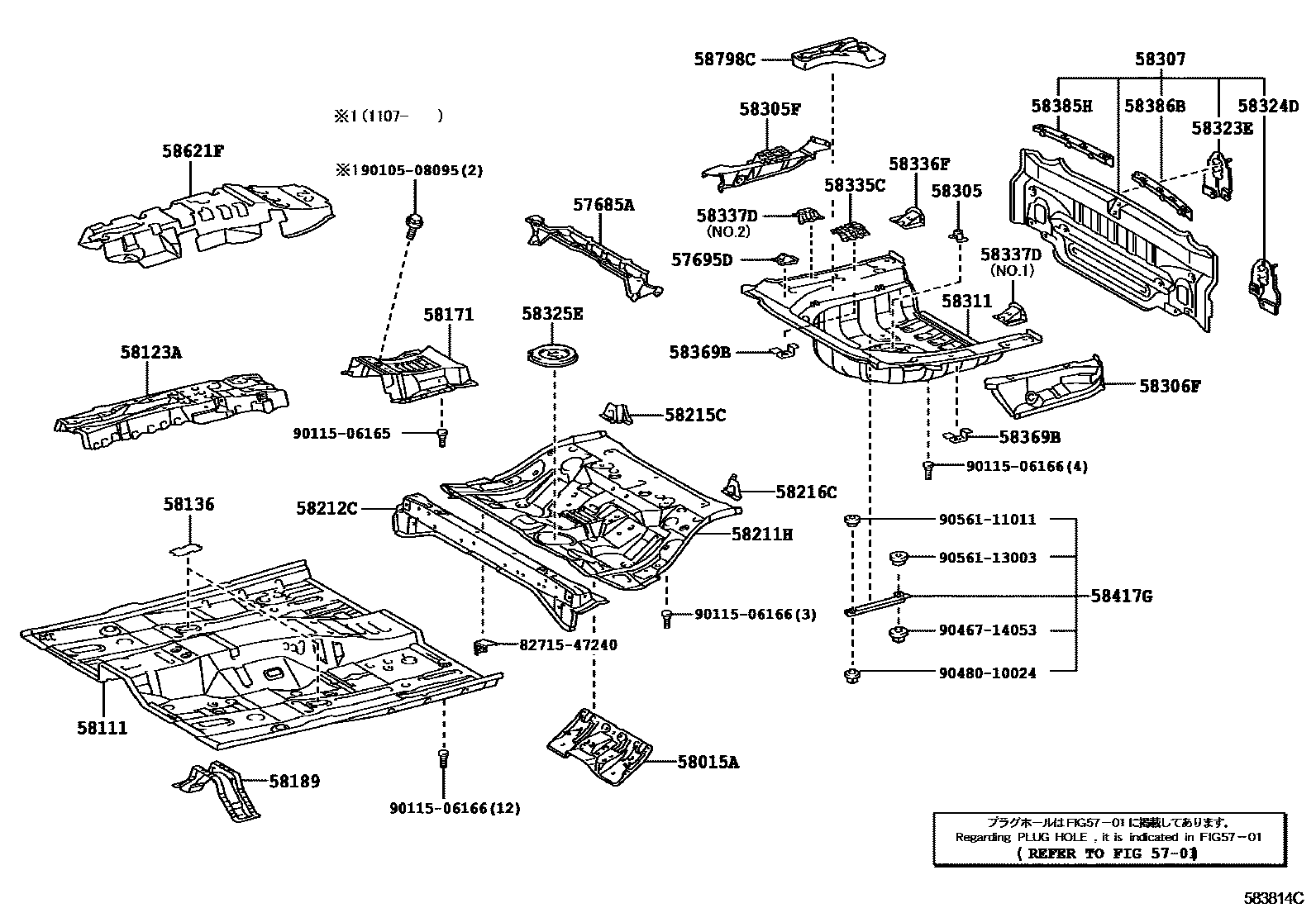

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57685A | Rear floor No. 1 right mounting bracket | 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06090 |
| 58111 | front floor pan | 58111-06120 · 58111-06121 |
| 58123A | shift lever bracket | 58013-06090 · 58013-06091 · 58013-06092 |
| 58136 | Front floor hole cover | 58136-06060 |
| 58171 | Parking brake base reinforcement | 58171-06080 · 58171-06081 · 58171-06082 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06080 · 58189-06081 |
| 58211H | central floor base | 58211-06140 · 58211-06180 |
| 58212C | Center floor front floor | 58212-06060 |
| 58215C | Center floor No. 2 right reinforcement | 58215-06050 |
| 58216C | Center floor No. 2 left reinforcement | 58216-06050 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-06020 |
| 58305F | Rear floor right side panel sub-assembly | 58305-06140 · 58305-33060 · 58305-33070 |
| 58306F | Rear floor left side panel sub-assembly | 58306-06070 · 58306-33030 |
| 58307 | Body lower back panel sub-assembly | 58307-06140 |
| 58311 | rear floor pan | 58311-06100 · 58311-06140 · 58311-06141 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-06060 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-06060 |
| 58325E | Rear floor access hole cover | 58325-06040 |
| 58335C | Front floor right panel | 58335-33020 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06060 |
| 58337D | Rear floor bottom left reinforcement | 58337-06050 · 58337-33040 |
| 58369B | No. 3 fuel pipe bracket | 58369-06030 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-06070 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-06050 |
| 58417G | Rear floor panel No. 3 | 58417-33010 |
| 58621F | Center console silencer No. 1 | 58621-06120 |
| 58792D | jack stand | 58792-33010 |
| 58793C | Jack Bracket No. 1 | 58793-06050 |
| 58798C | Jack bracket cushion | 58798-06050 · 58798-06070 |
