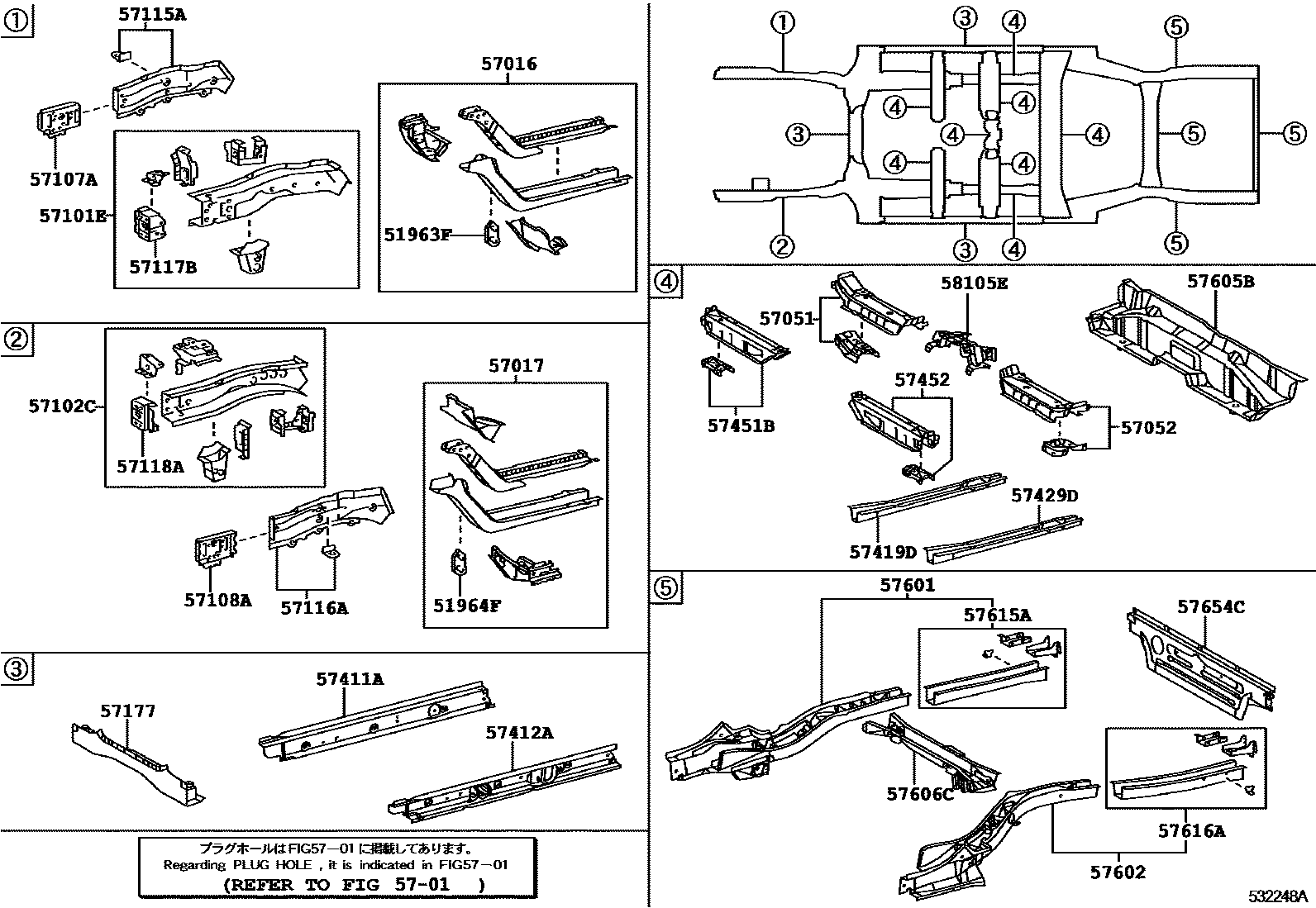

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51963-06020 |
| 51964F | left transport hook | 51964-06020 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06070 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06070 |
| 57051 | Front floor right cross member sub-assembly | 57051-06010 |
| 57052 | Front floor left cross member sub-assembly | 57052-06010 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57027-06050 · 57027-06051 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57028-06060 · 57028-06080 · 57028-06081 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06040 · 57107-06041 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06040 · 57108-06041 |
| 57115A | Right front longitudinal beam outer panel | 57025-06040 |
| 57116A | Left front longitudinal beam outer panel | 57026-06030 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06080 · 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06080 · 57118-33050 |
| 57177 | Front longitudinal beam to dash panel cross member | 57103-06080 · 57103-06081 · 57103-06110 · 57103-06111 |
| 57411A | Floor right inner longitudinal beam | 57401-06180 · 57401-06181 |
| 57412A | Floor left inner longitudinal beam | 57402-06180 · 57402-06181 |
| 57419D | Front floor right rear lower reinforcement | 57419-33050 |
| 57429D | Left rear reinforcement under front floor | 57429-33020 |
| 57451B | Front floor right cross member | 57053-06010 |
| 57452 | Front floor left cross member | 57054-06020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06240 · 57601-06241 · 57601-06280 · 57601-06281 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06190 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06110 · 57605-06140 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06100 · 57606-06140 |
| 57615A | Rear floor right rear longitudinal member | 57615-06915 · 57615-06921 |
| 57616A | Rear floor left rear longitudinal member | 57616-06917 |
| 57654C | Rear floor beam No. 3 | 57654-06060 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-06050 · 58105-06051 |
