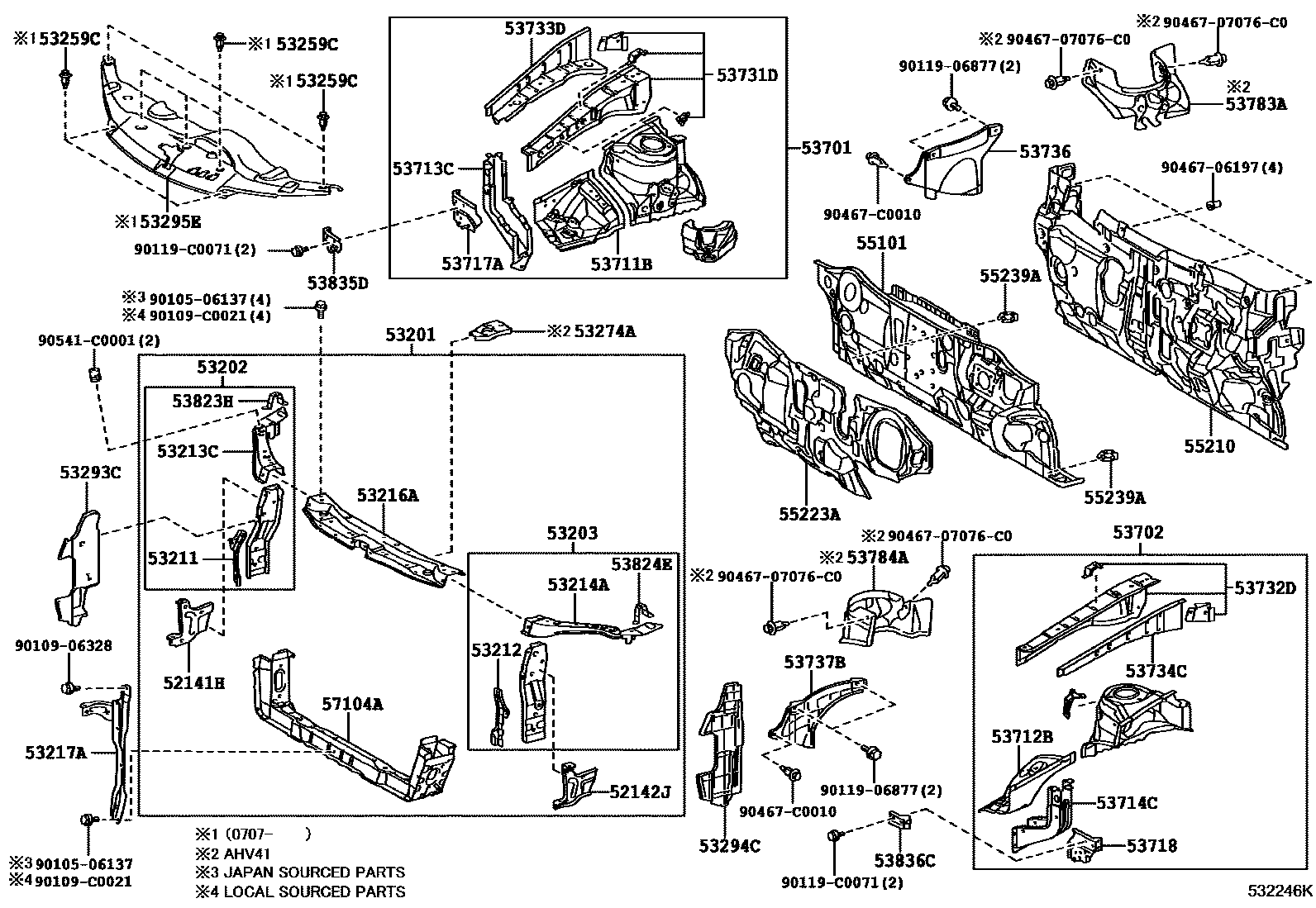

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06080 |
| 52142J | Front bumper left upper arm | 52142-06070 |
| 53201 | Radiator bracket sub-assembly | 53201-06160 · 53201-06200 · 53201-06201 · 53201-06202 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06100 · 53202-06120 · 53202-06121 |
| 53203 | Radiator left bracket sub-assembly | 53203-06130 · 53203-06150 · 53203-06151 |
| 53211 | Radiator right side support | 53211-06090 · 53211-06120 |
| 53212 | Radiator left support | 53212-06090 · 53212-06120 |
| 53213C | Radiator front upper bracket | 53213-06080 |
| 53214A | Radiator upper left bracket | 53214-06080 · 53214-06100 |
| 53216A | Radiator upper bracket | 53216-06120 |
| 53217A | engine cover lock bracket | 53208-06070 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 · 90467-07217 |
| 53274A | Radiator left bracket reinforcement | 53274-33030 |
| 53293C | Radiator right baffle | 53293-06090 · 53293-06120 · 53293-06121 · 53293-06180 |
| 53294C | Radiator left baffle | 53294-06080 · 53294-06110 · 53294-06111 · 53294-06170 |
| 53295E | Cold air intake pipe seal | 53295-06050 |
| 53701 | Right front fender fender sub-assembly | 53701-06150 |
| 53702 | Left front fender fender sub-assembly | 53702-06140 |
| 53711B | Right front fender front fender | 53711-06100 |
| 53712B | Left front fender front fender | 53712-06070 |
| 53713C | Right front fender fender front extension | 53713-06080 |
| 53714C | Left front fender fender front extension | 53714-06080 |
| 53717A | fender fender | 53717-06070 |
| 53718 | Left fender fender side panel | 53718-06070 |
| 53731D | Right front fender to cowl side upper beam | 53731-06902 |
| 53732D | Left front fender to cowl side upper beam | 53732-06902 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06080 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06080 |
| 53736 | Right front fender fender seal | 53736-06060 |
| 53737B | Left front fender fender seal | 53737-06070 · 53737-06080 |
| 53783A | Right front fender fender vibration isolation pad | 53783-33020 |
| 53784A | Left front fender fender vibration isolation pad | 53784-33030 |
| 53823H | Right front fender corner panel | 53823-06050 |
| 53824E | Left front fender corner panel | 53824-06050 |
| 53835D | Right front side panel bracket | 53835-06060 |
| 53836C | Left front side panel bracket | 53836-06060 |
| 55101 | Front apron sub-assembly | 55101-06390 · 55101-06450 |
| 55210 | Front wall insulation pad assembly | 55210-06150 · 55210-06230 · 55210-06231 |
| 55223A | Front wall outer heat insulation pad | 55223-06240 · 55223-33180 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06030 |
| 57104A | Front cross member sub-assembly | 57104-06050 · 57104-06051 |
