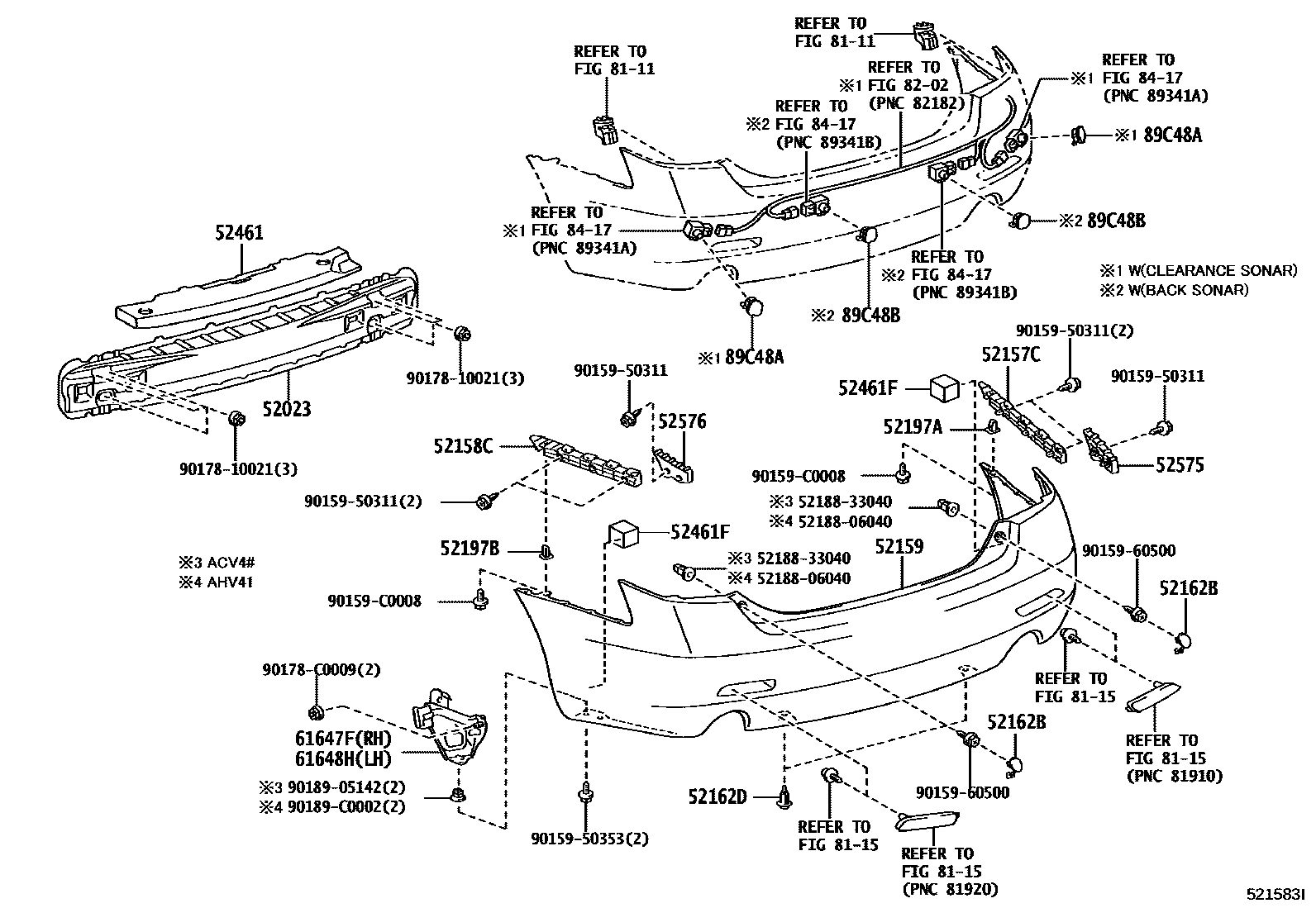

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06090 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-06040 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-06040 |
| 52159 | rear bumper cover | 52159-06923 · 52159-06924 · 52159-06953 · 52159-06955 |
| 52162B | Rear bumper No. 1 fender | 52163-06905 · 52164-06905 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52197A | Rear bumper right seal support | 52197-06010 · 52197-22020 |
| 52197B | Rear bumper left seal support | 52197-06010 · 52197-22020 |
| 52461 | Rear bumper center lining | 52461-06010 · 52461-06020 |
| 52461F | rear bumper lining | 52462-06040 |
| 52575 | Rear bumper right side fixing bracket | 52575-06070 |
| 52576 | Rear bumper left side fixing bracket | 52576-06070 |
| 61647F | Right wheel arch reinforcement | 61647-06040 |
| 61648H | Left wheel arch reinforcement | 61648-06040 |
