Toyota CAMRY 前保险杠及附件 — Figure 5201

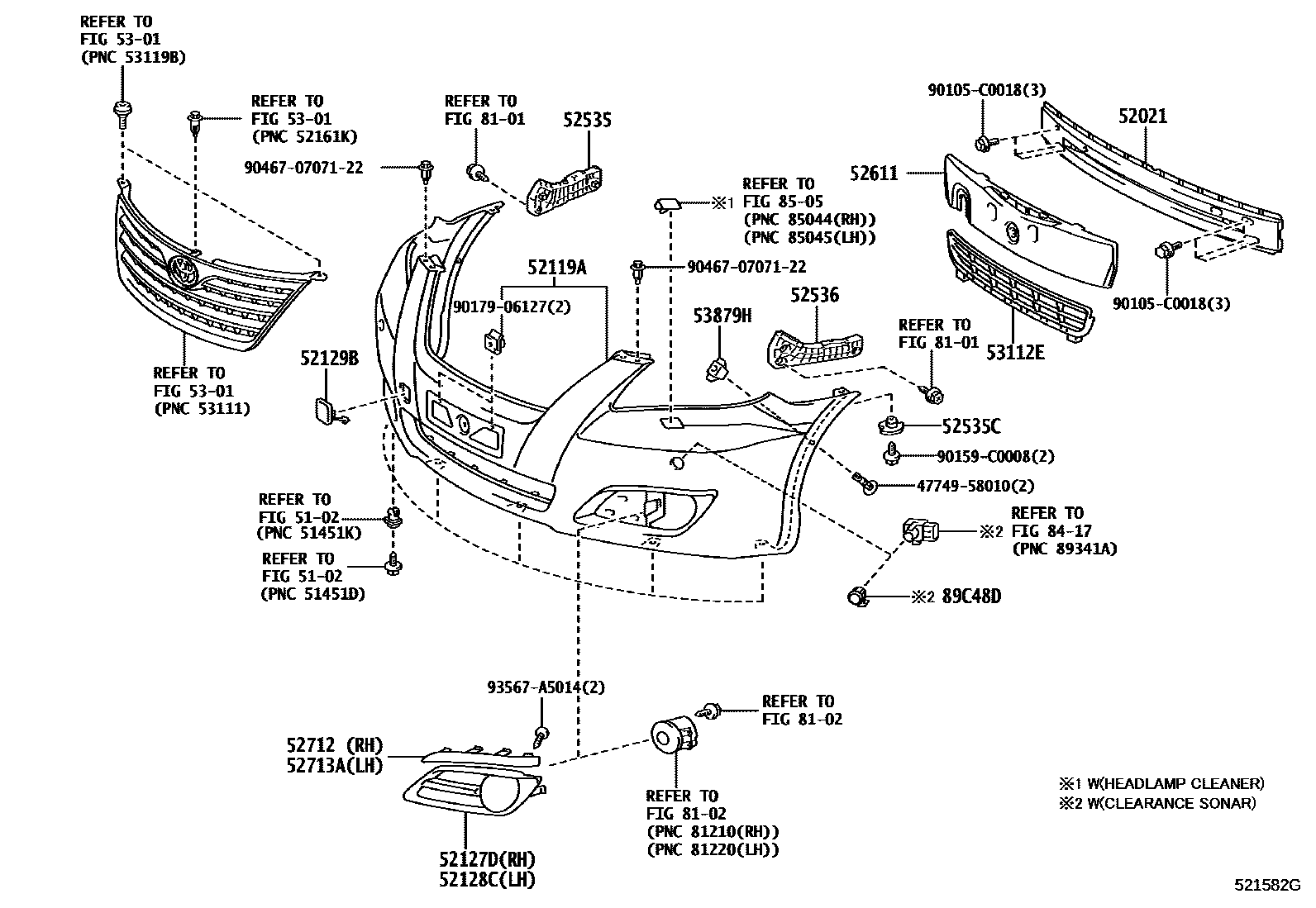

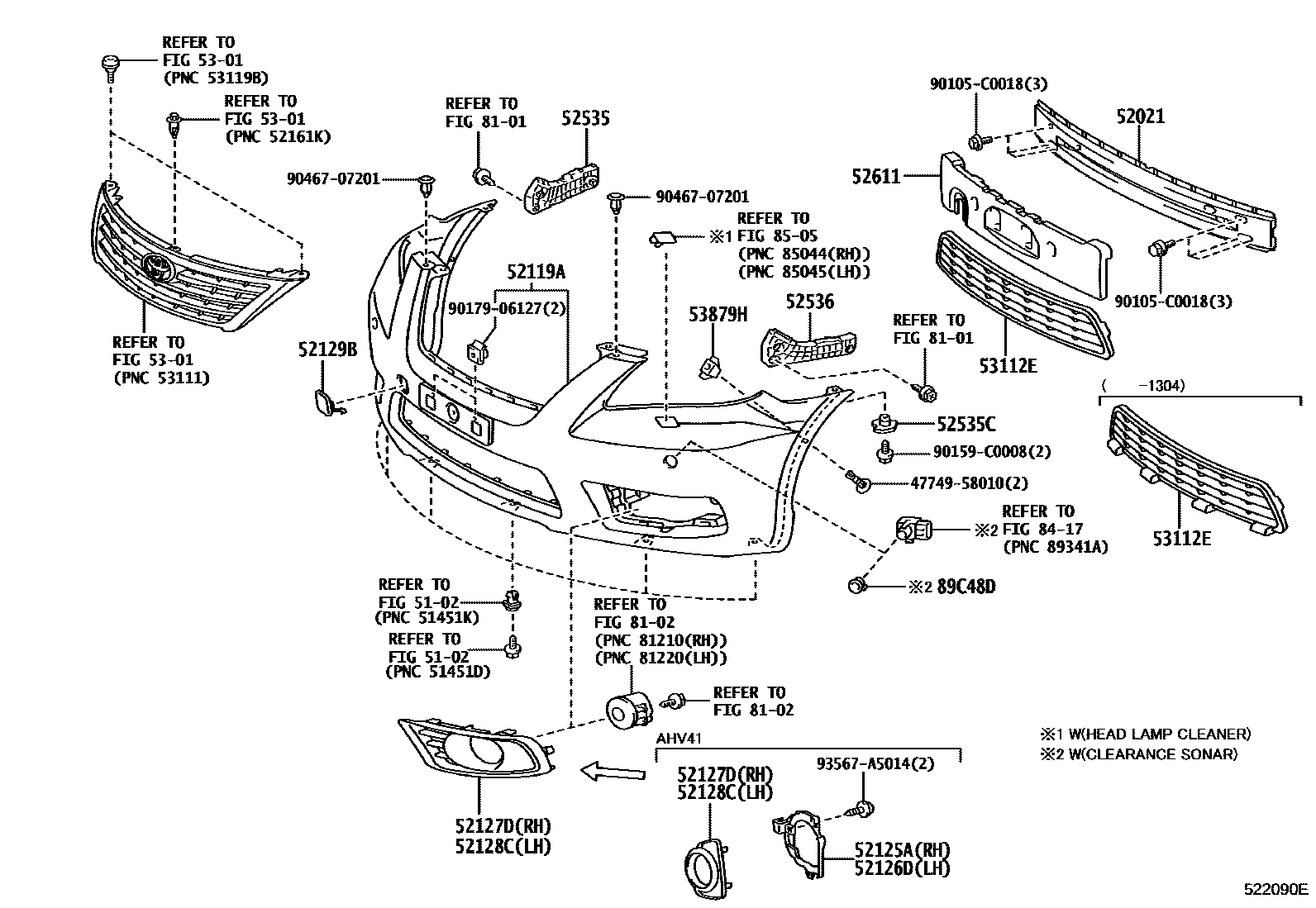

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-06080 |
| 52119A | front bumper cover | 52119-06943 · 52119-06944 · 52119-06945 · 52119-06949 · 52119-06951 · 52119-06953 · 52119-06973 |
| 52125A | Right fog light mounting bracket | 81481-06030 |
| 52126D | Left fog light mounting bracket | 81482-06030 |
| 52127D | Front bumper right hole cover | 52030-06020 · 52030-06110 · 52030-06130 · 52030-YL010 |
| 52128C | Front bumper left hole cover | 52040-06020 · 52040-06110 · 52040-06130 · 52040-YL010 |
| 52129B | Front bumper lower cover | 52129-06916 · 52129-06925 · 52129-06926 |
| 52535 | Front bumper right side fixing bracket | 52535-06070 · 52535-06120 |
| 52535C | Front bumper side fixing bracket | 52535-50060 |
| 52536 | Front bumper left fixed bracket | 52536-06060 · 52536-06110 |
| 52611 | front bumper energy absorber | 52611-06090 · 52611-06180 · 52611-06210 |
| 52712 | Front bumper right side protective strip | 52712-06020 |
| 52713A | Front bumper left protective strip | 52713-06020 |
| 53112E | No. 1 radiator lower grille | 53112-06060 · 53112-06160 · 53112-06190 · 53112-YL010 |
| 53879H | Front fender lining fixing parts | 53879-06080 · 53879-58010 |
