Toyota CAMRY 制动配管和卡箍 — Figure 4708

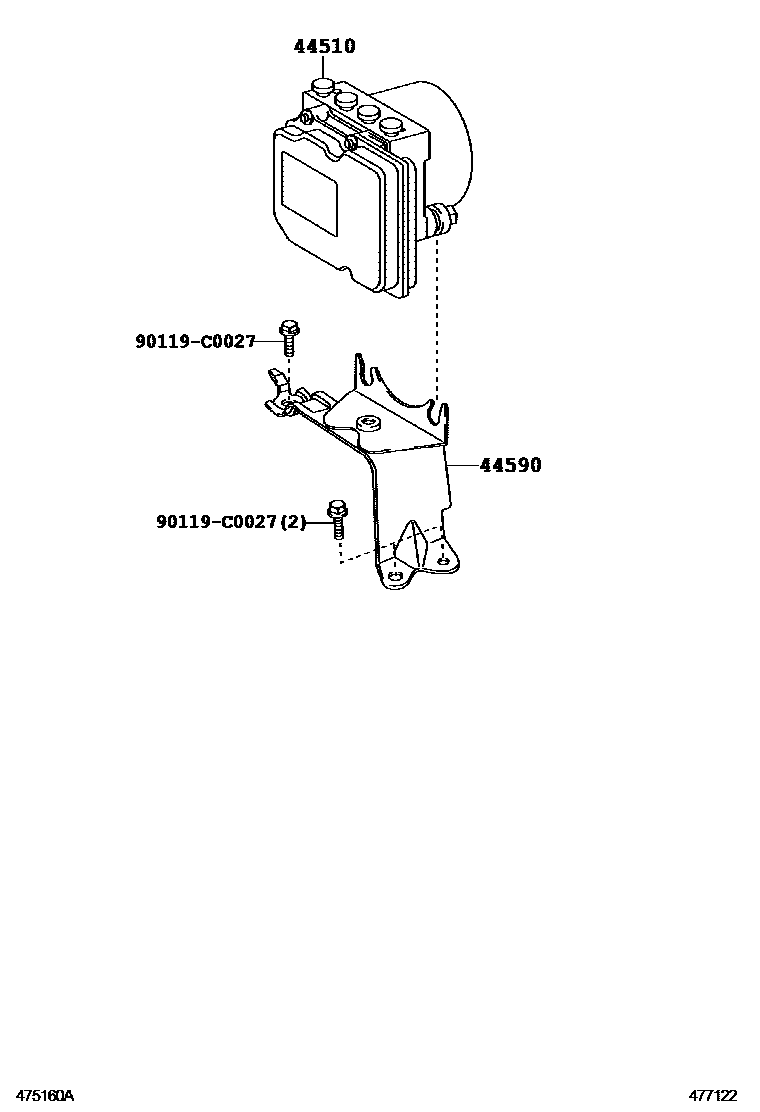

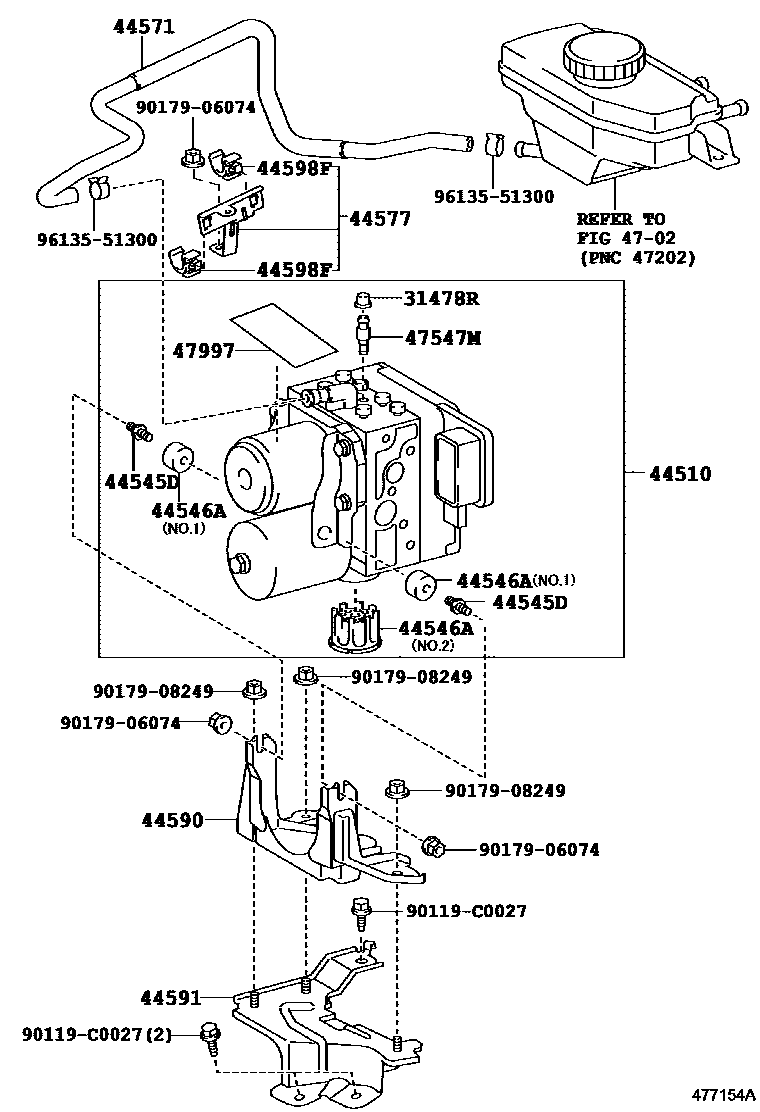

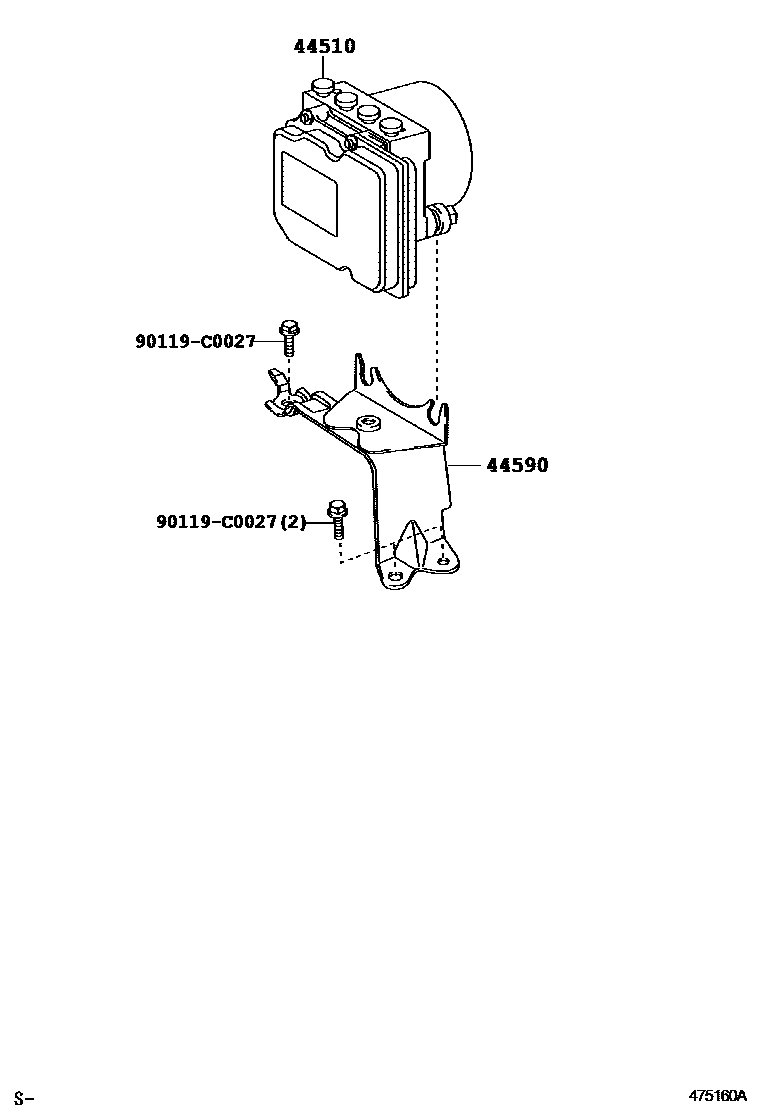

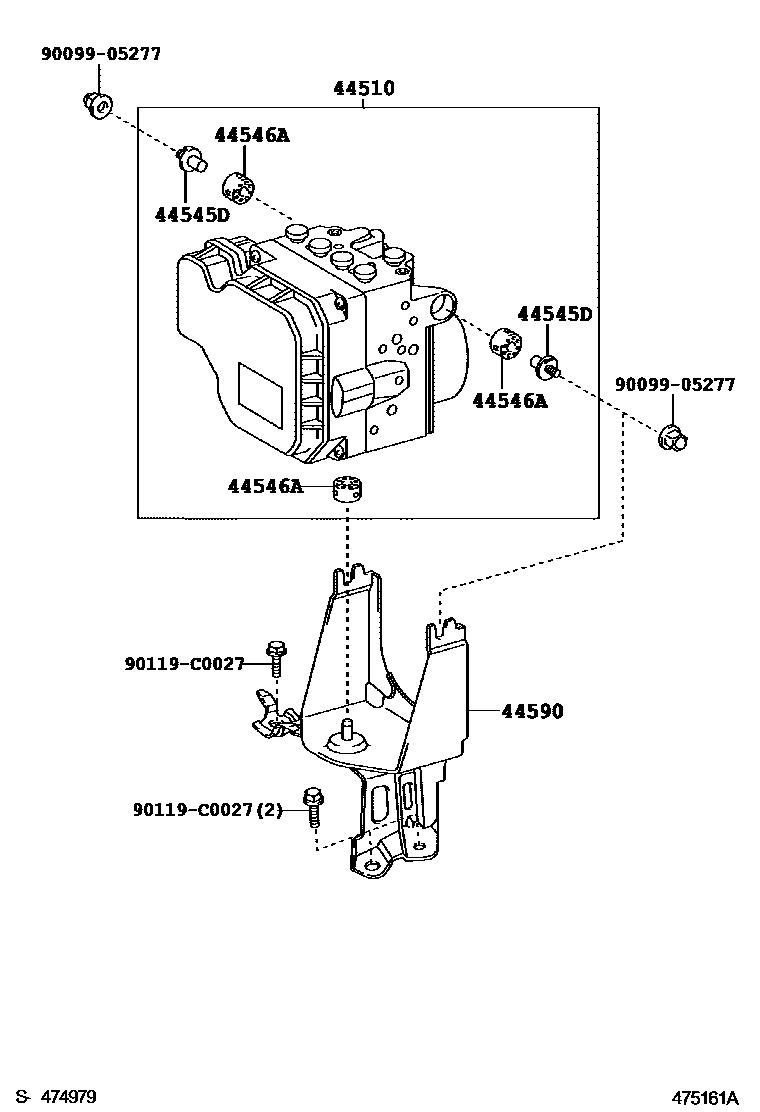

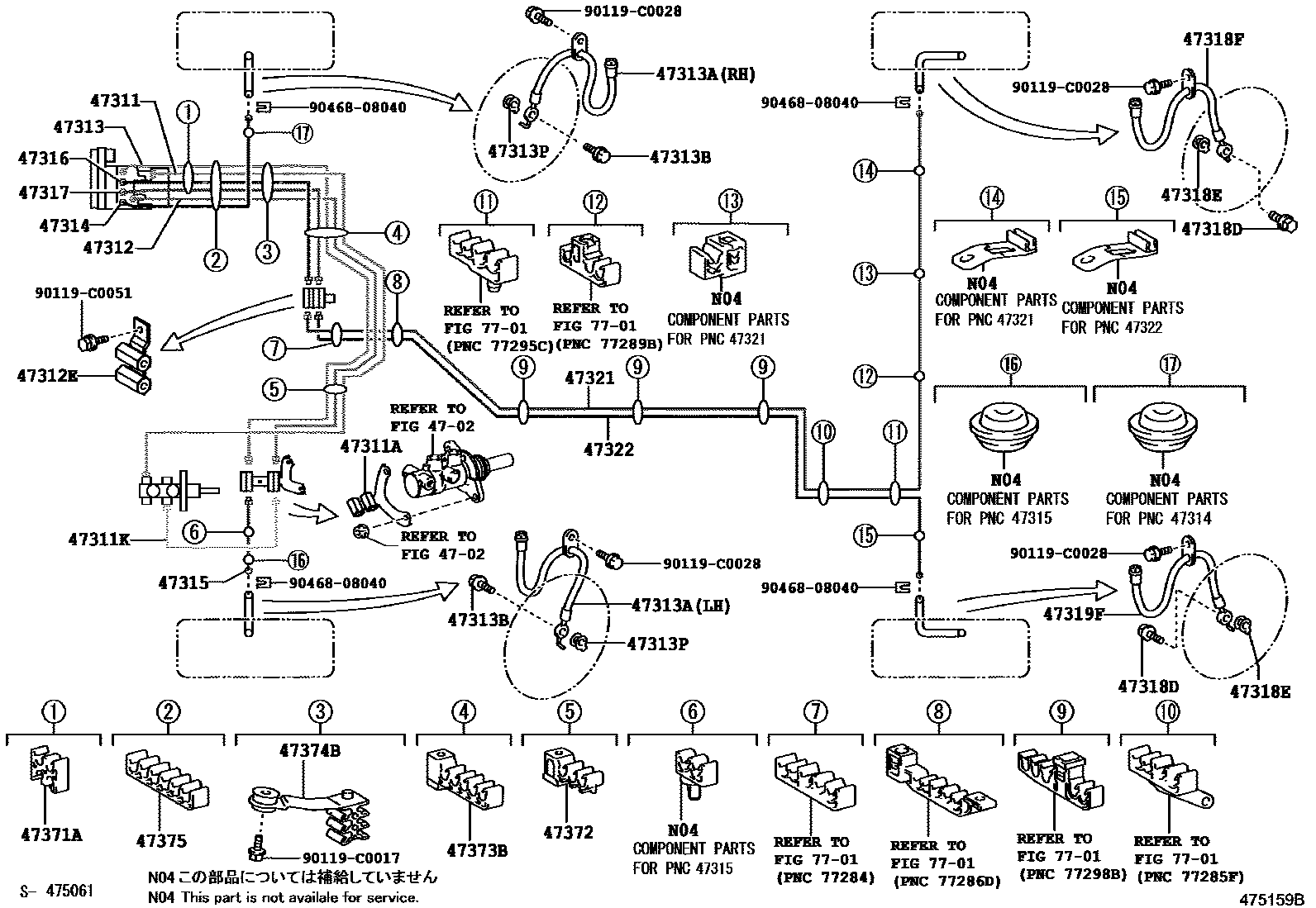

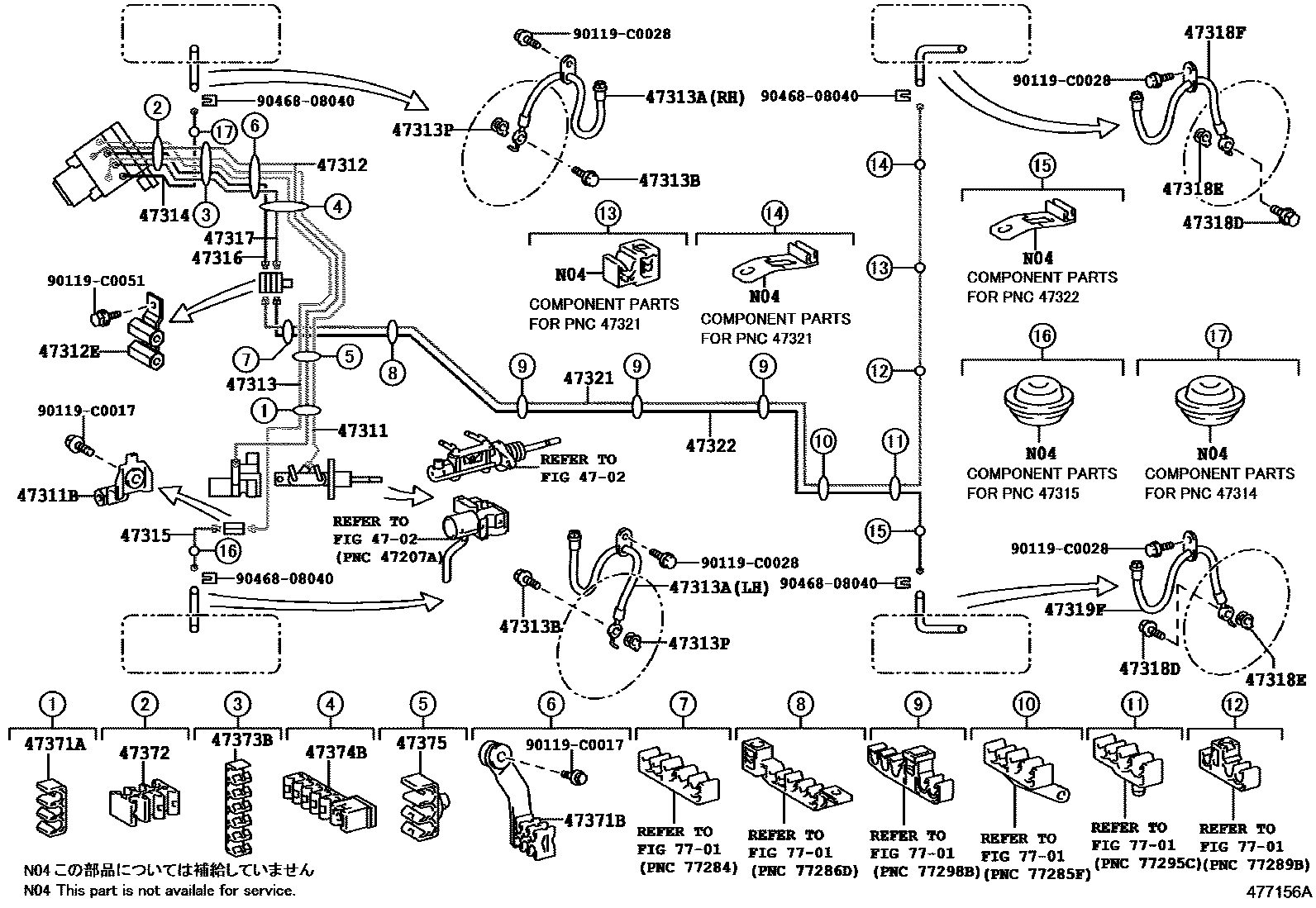

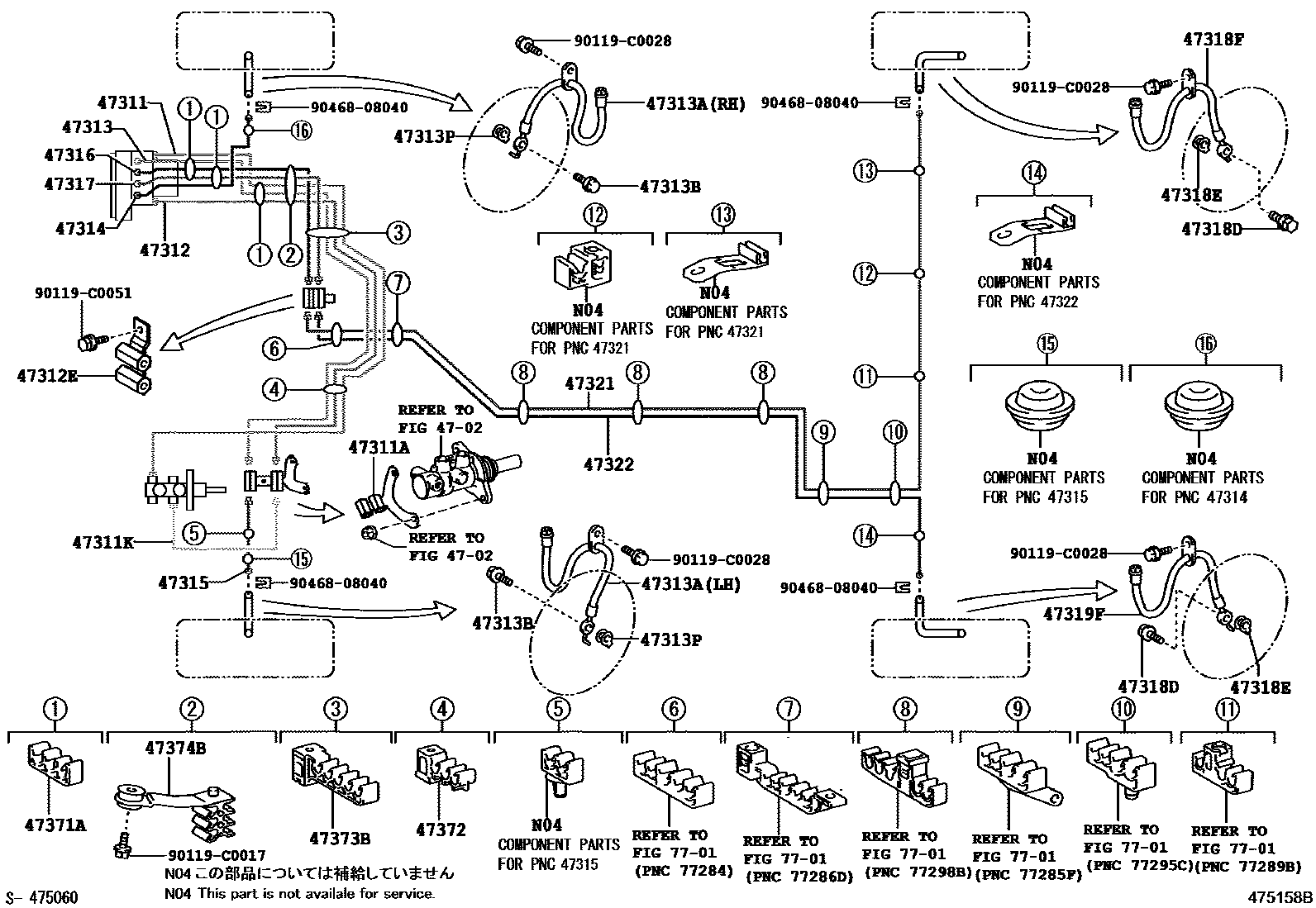

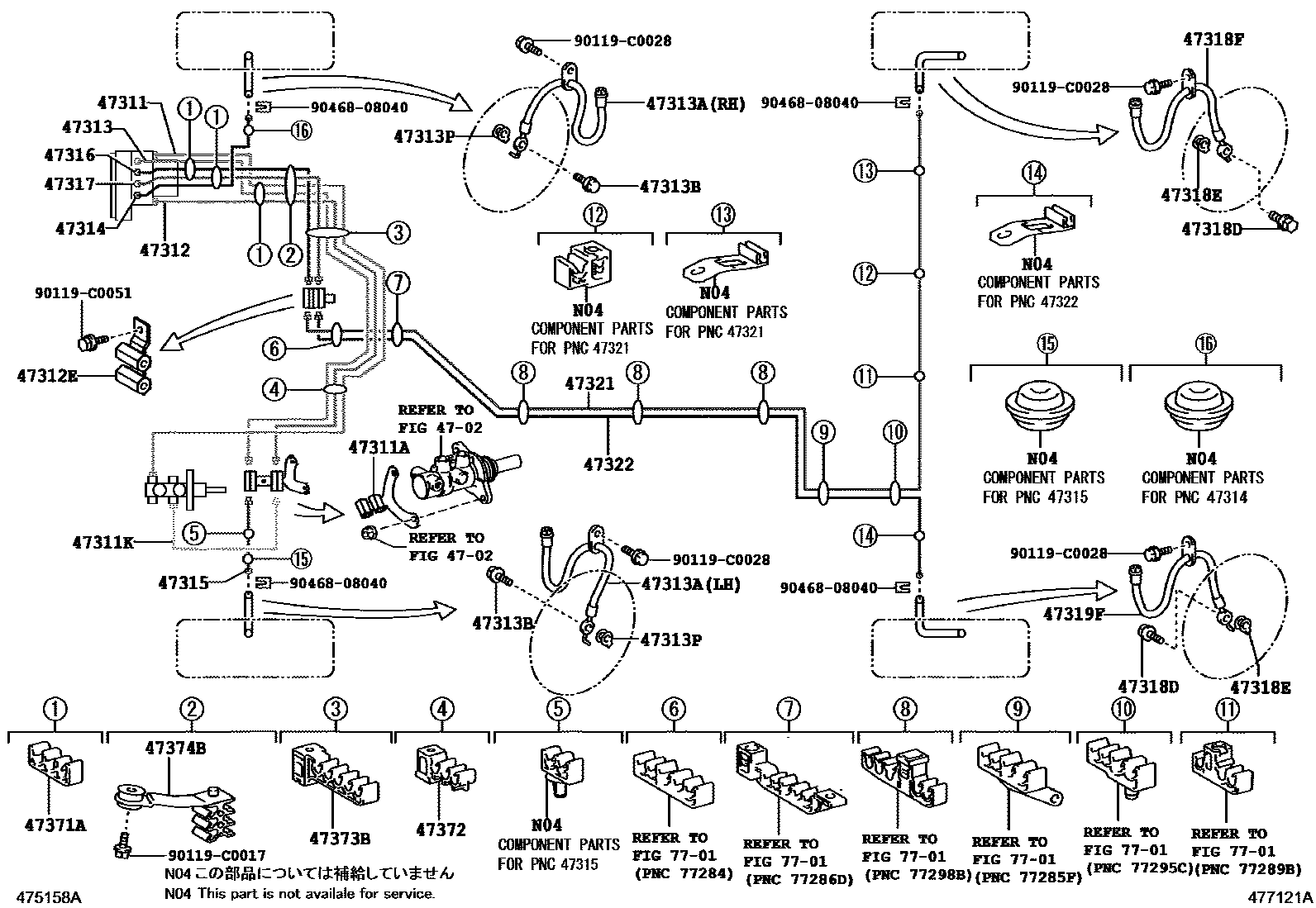

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 8 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |
| 44510 | brake actuator assembly | 44050-06090 · 44050-06120 · 44050-06140 · 44050-06160 · 44050-30300 |
| 44545D | Brake actuator bolt mount | 44545-42090 · 44545-63010 |
| 44546A | Brake actuator bolt cushion | 44546-42090 · 44546-58010 · 44546-58020 |
| 44571 | brake actuator hose | 44571-33090 |
| 44577 | Brake actuator mounting bracket | 44781-33010 |
| 44590 | Brake actuator bracket assembly | 44590-06230 · 44590-06240 · 44590-33120 |
| 44591 | No. 1 brake actuator bracket | 44590-33130 |
| 44598F | brake actuator bracket clip | 44587-33010 |
| 47311 | No. 1 front brake pipe | 47311-06290 · 47311-06340 · 47311-06380 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10262 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10271 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-06230 |
| 47312 | No. 2 front brake pipe | 47312-06190 · 47312-06210 · 47312-06310 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10246 |
| 47313 | No. 3 front brake pipe | 47313-06180 · 47313-06200 · 47313-06280 |
| 47313A | No. 1 front flexible hose | 90947-C2001 · 90947-C2002 · 90947-C2023 · 90947-C2024 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06180 · 47314-06190 · 47314-06270 |
| 47315 | No. 5 front brake pipe | 47315-06180 · 47315-06260 |
| 47316 | No. 6 front brake pipe | 47316-06250 · 47316-06260 · 47316-06330 |
| 47317 | No. 7 front brake pipe | 47317-06230 · 47317-06250 · 47317-06320 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2003 · 90947-C2025 |
| 47319F | Left rear flexible hose | 90947-C2004 · 90947-C2026 |
| 47321 | No. 1 rear brake pipe | 47321-06100 |
| 47322 | No. 2 rear brake pipe | 47322-06100 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00876 |
| 47371B | No. 6 brake pipe clamp | 90949-04035 |
| 47372 | No. 2 brake pipe clamp | 90464-00880 · 90949-01C95 |
| 47373B | No. 3 brake pipe clamp | 90949-01C85 · 90949-01D06 · 90949-01D28 |
| 47374B | No. 4 brake pipe clamp | 90949-01D06 · 90949-04035 |
| 47375 | No. 5 brake pipe clamp | 90949-01C85 · 90949-01D41 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
| 47997 | No. 1 Brake Booster Accumulator Warning Label | 47997-48010 |
