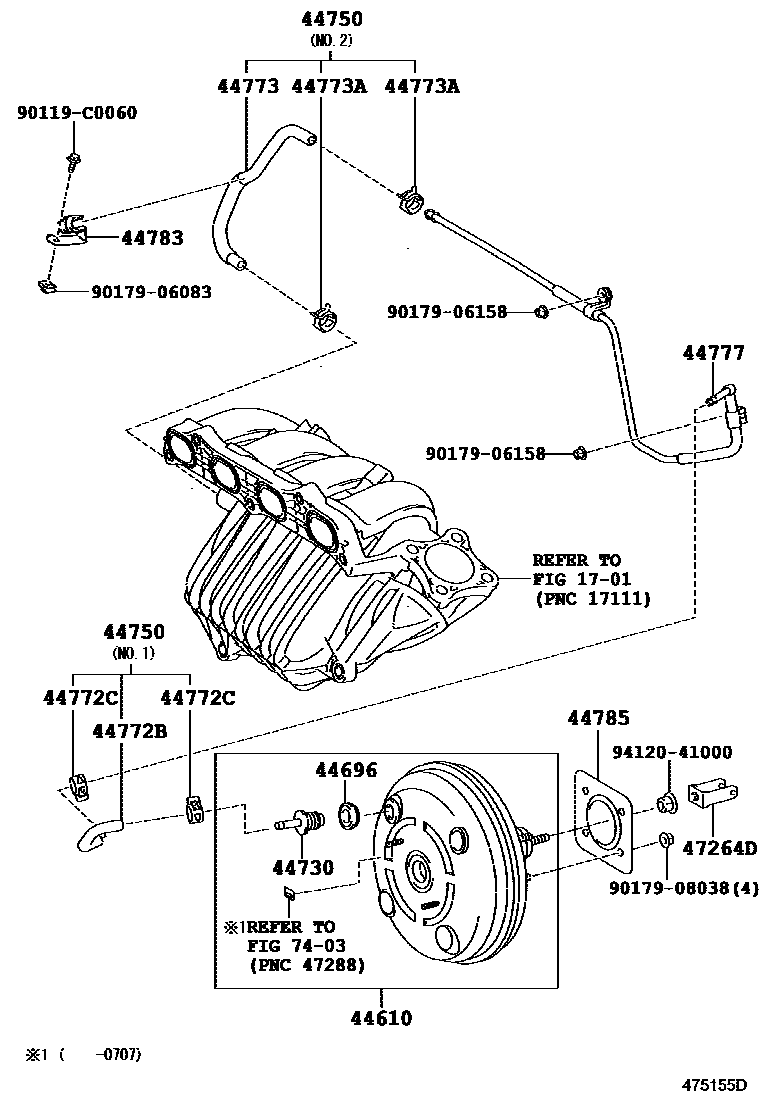

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06361 · 44610-06363 · 44610-06364 · 44610-06430 · 44610-06432 · 44610-06433 · 44610-06570 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-22150 |
| 44750 | Vacuum hose assembly | 44750-06280 · 44750-06281 · 44770-06230 · 44770-06231 |
| 44772B | Hoses (check valve to brake booster) | 44772-06300 · 44772-06301 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44773 | No. 2 vacuum hose | 44772-06310 · 44772-06311 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-06220 |
| 44783 | Vacuum hose clamp | 44783-28010 |
| 44785 | brake booster pad | 44785-06020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0P010 · 47264-63020 |
