Toyota CAMRY 制动总泵 — Figure 4702

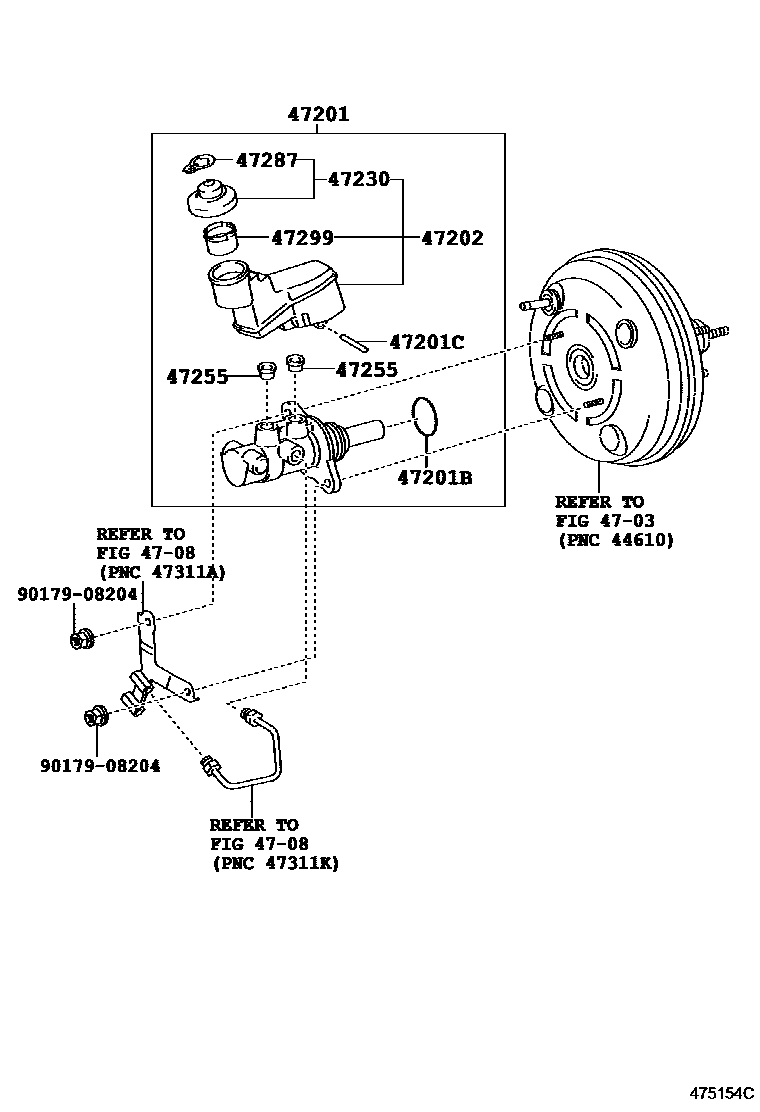

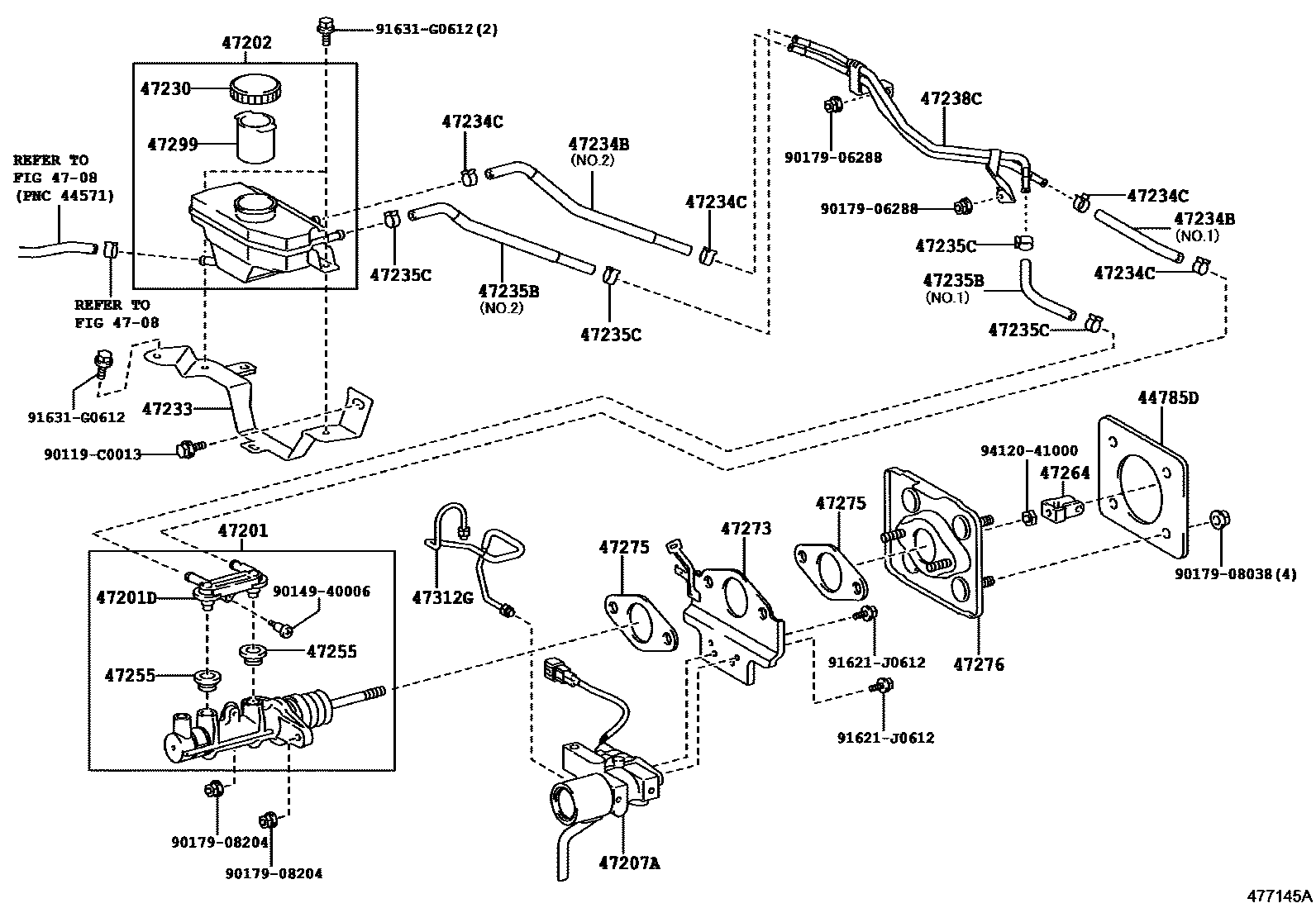

Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-47010 |
| 47201 | Brake master cylinder sub-assembly | 47028-06050 · 47201-06400 · 47201-06401 · 47201-06402 · 47201-33510 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47201D | No. 1 brake master cylinder connector | 90015-AM003 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06220 · 47220-33100 · 47220-33101 |
| 47207A | Brake master cylinder stroke simulator sub-assembly | 47207-33010 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-58010 |
| 47233 | Reservoir tank bracket | 47233-06010 |
| 47234B | Liquid storage tank pipe No. 1 | 47234-33010 · 47234-33020 |
| 47234C | Clamp (for No. 1 tube of liquid storage tank) | 96135-51300 |
| 47235B | Brake master cylinder fluid reservoir pipe No. 2 | 47235-33010 · 47235-33020 |
| 47235C | Clamp (for brake master cylinder reservoir tank No. 2 pipe) | 96135-51300 |
| 47238C | Reservoir tube | 47238-33010 |
| 47255 | Master pump reservoir seal | 47255-16010 · 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-63020 |
| 47273 | Brake master cylinder stroke simulator bracket | 47273-48010 |
| 47275 | brake master cylinder gasket | 47275-12020 |
| 47276 | brake master cylinder bracket | 47276-30040 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 · 47299-30190 |
| 47312G | Brake master cylinder stroke simulator tube | 44255-33050 |
