Toyota CAMRY Parking Brake & Cable — Figure 4601

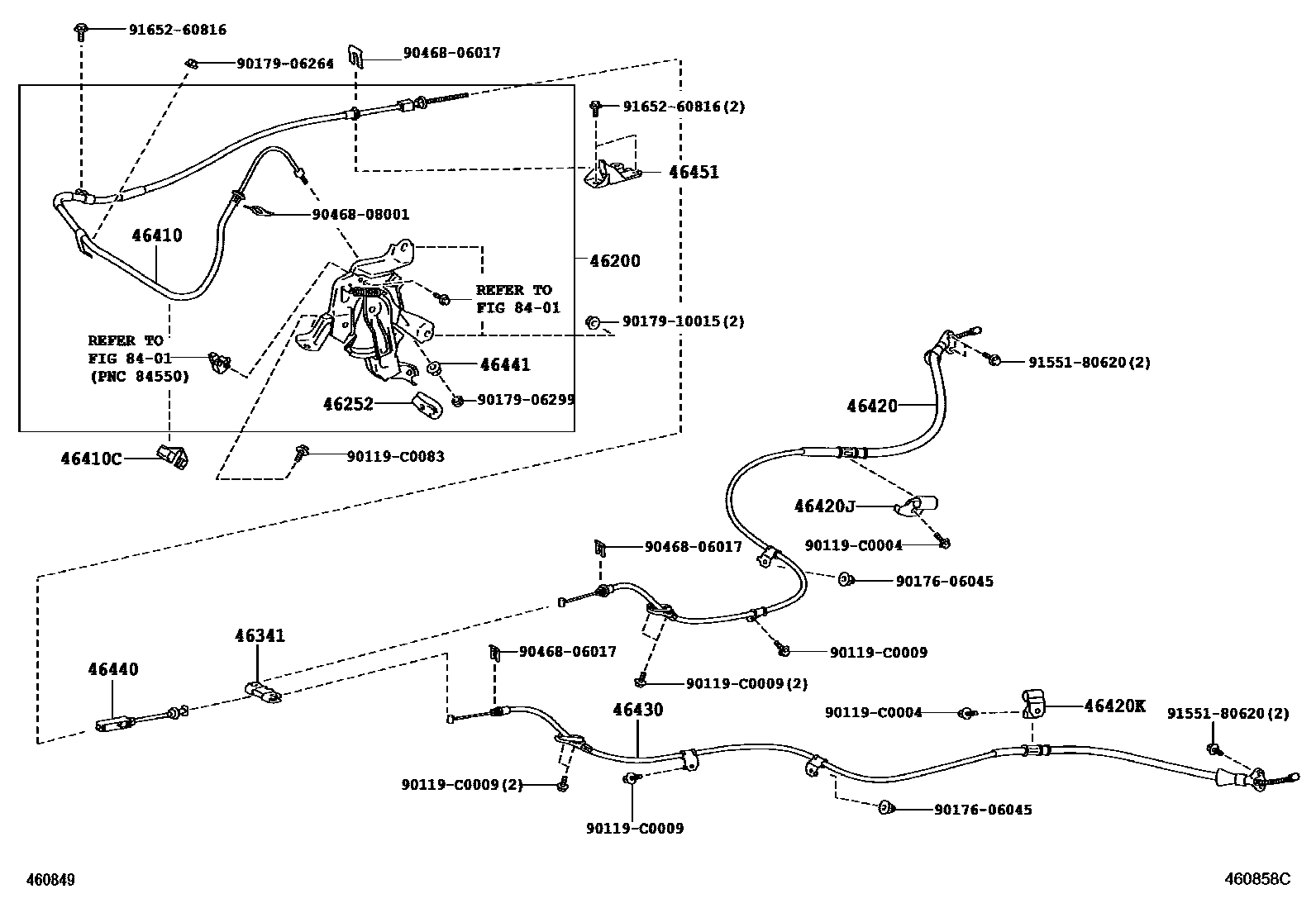

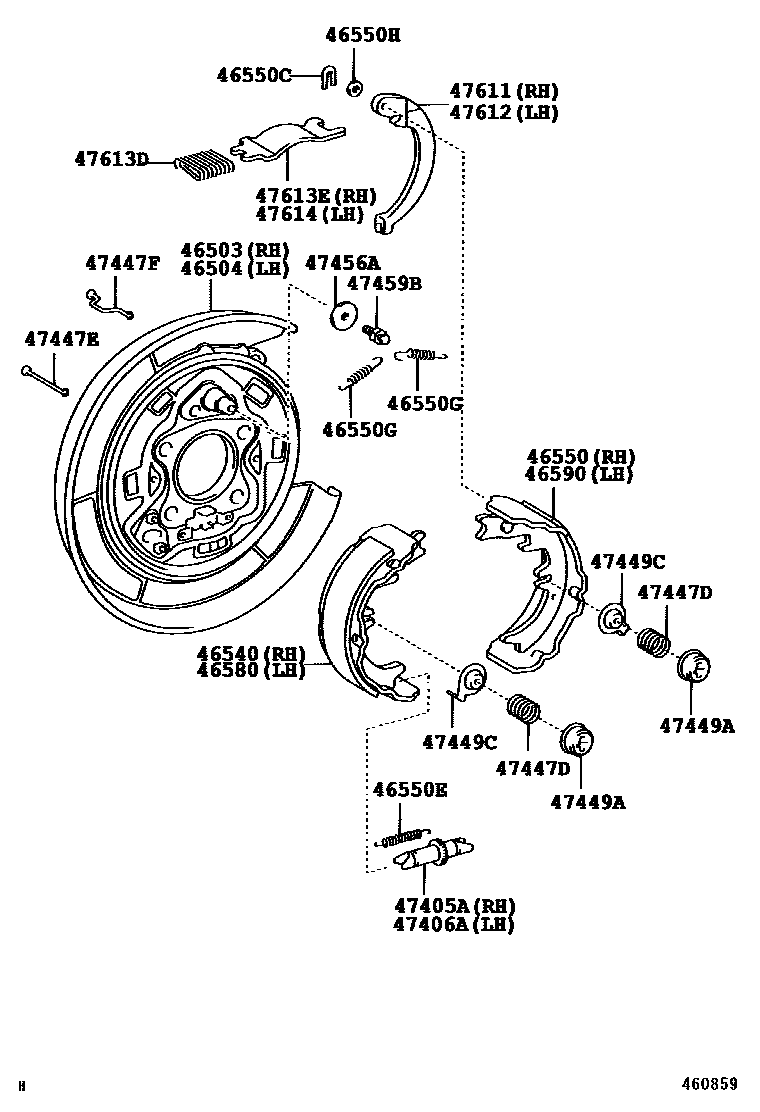

Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-06050 |
| 46252 | Parking brake pedal pad | 46252-22010 |
| 46341 | Parking brake balancer | 46341-06050 · 46341-33030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-06120 |
| 46410C | Clip (for front parking brake cable) | 46411-33010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-06140 · 46420-06141 · 46420-06190 |
| 46420J | Clamp No. 3 (for parking brake cable) | 90949-01C61 |
| 46420K | Clamp No. 4 (for parking brake cable) | 90949-01C62 |
| 46430 | Parking brake No. 3 cable assembly | 46430-06140 · 46430-06141 · 46430-06180 |
| 46440 | Parking brake No. 4 cable assembly | 46440-06060 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46451 | cable bracket | 46451-33100 |
| 46503 | Right parking brake pad sub-assembly | 46503-06070 |
| 46504 | Left parking brake pad sub-assembly | 46504-06070 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-06050 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-06060 |
| 46550C | C-shaped washer (for parking brake shoe) | 90016-AD502 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90016-AY116 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90016-AY115 |
| 46550H | Spacer (for parking brake shoe) | 90016-AX107 · 90016-AX108 · 90016-AX109 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-06050 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-06030 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-06070 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-06070 |
| 47447D | Compression spring (for parking brake shoe limit) | 90016-AY012 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 46556-06070 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 46559-06070 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 46557-06070 |
| 47449C | No. 2 brake shoe limit spring seat (for parking brake) | 46519-06070 |
| 47456A | Brake shoe guide (for parking brake) | 46553-06070 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-06070 |
| 47611 | Right parking brake shoe lever | 46611-06070 |
| 47612 | Left parking brake shoe lever | 46621-06070 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90016-AY011 |
| 47613E | Right parking brake shoe push rod | 46612-06070 |
| 47614 | Left parking brake shoe push rod | 46622-06070 |
