Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 1 images and 4 PNC and OE references.

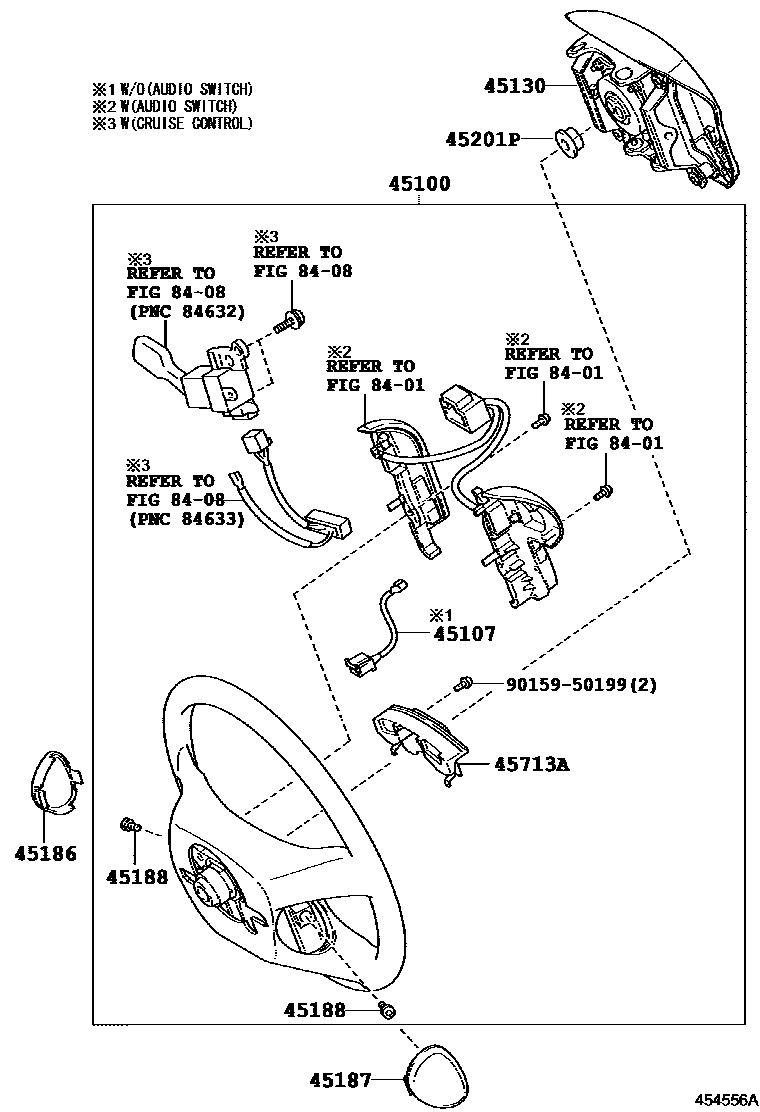

Toyota CAMRY Steering Wheel EPC diagram — 454556B
Steering Wheel — 454556B (200605 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-06020
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90178-C0025
45713Asteering damper45713-06160 · 45713-06170 · 45713-33170 · 45713-33180
