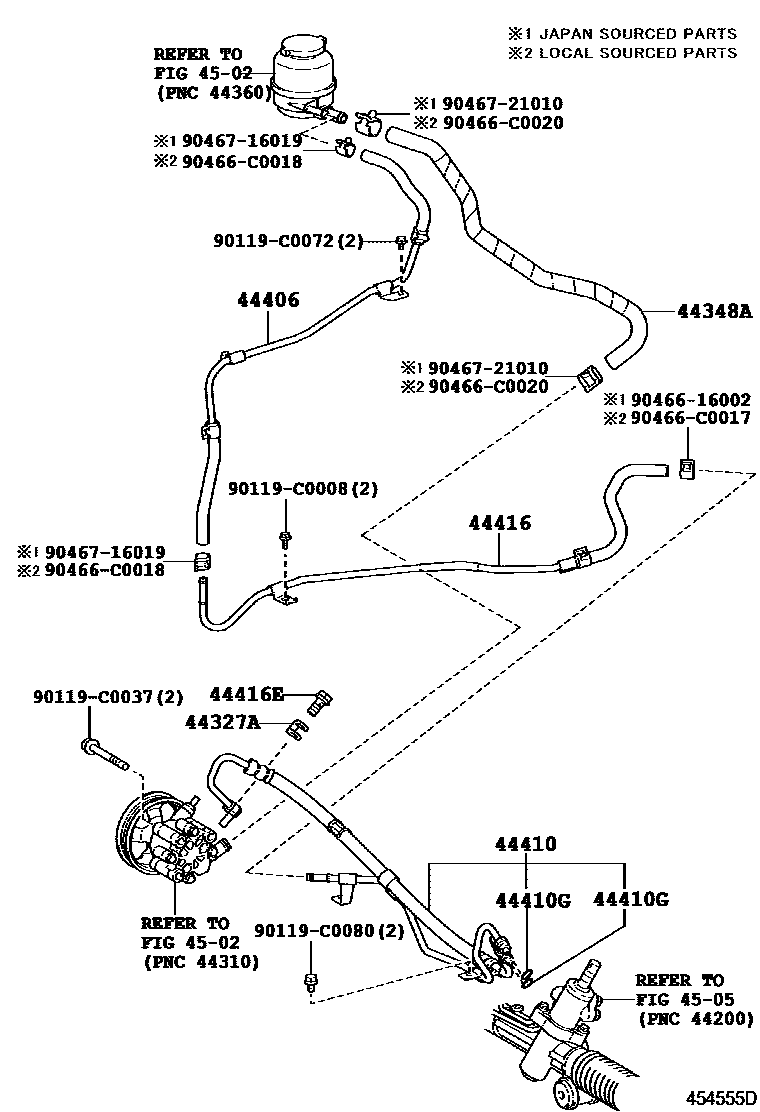

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-06340 |
| 44406 | Oil return pipe sub-assembly | 44406-06191 |
| 44410 | Pressure supply pipe assembly | 44410-06300 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06251 · 44416-06252 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
