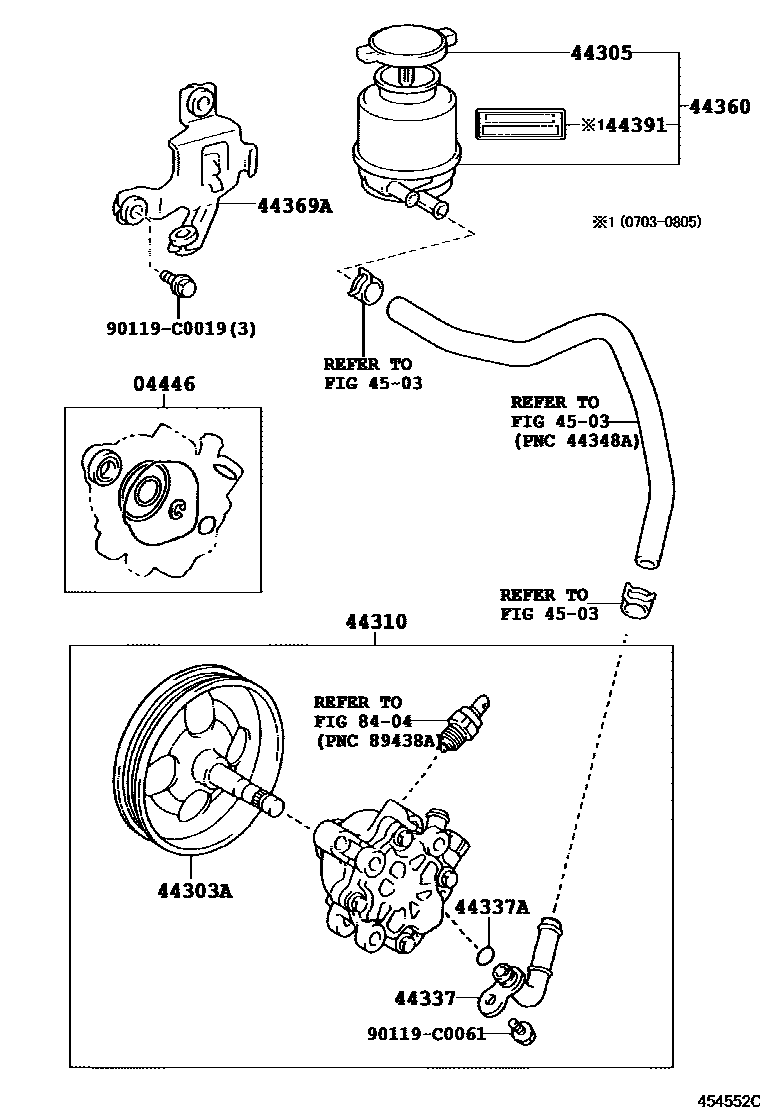

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-06090 · 04446-06091 |
| 44303A | Shaft sub-assembly with pulley | 44303-06070 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06020 · 44305-06040 |
| 44310 | Vane pump assembly | 44310-06170 · 44310-06171 |
| 44337 | Power steering suction port connector | 44337-06100 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-06050 · 44360-06051 |
| 44369A | No. 1 oil storage tank bracket | 44390-06050 |
| 44391 | Power steering oil tank warning nameplate | 44391-33010 |
