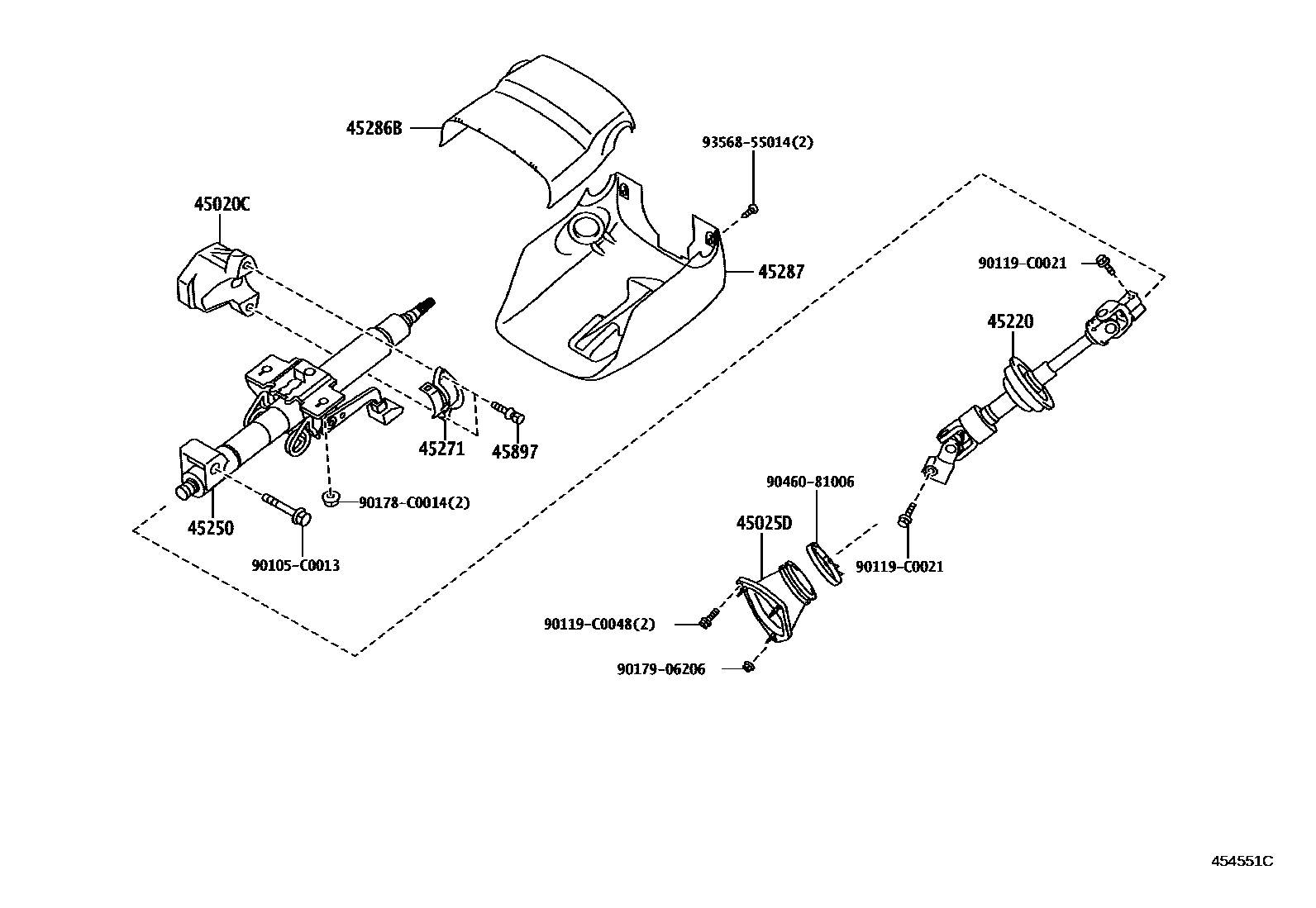

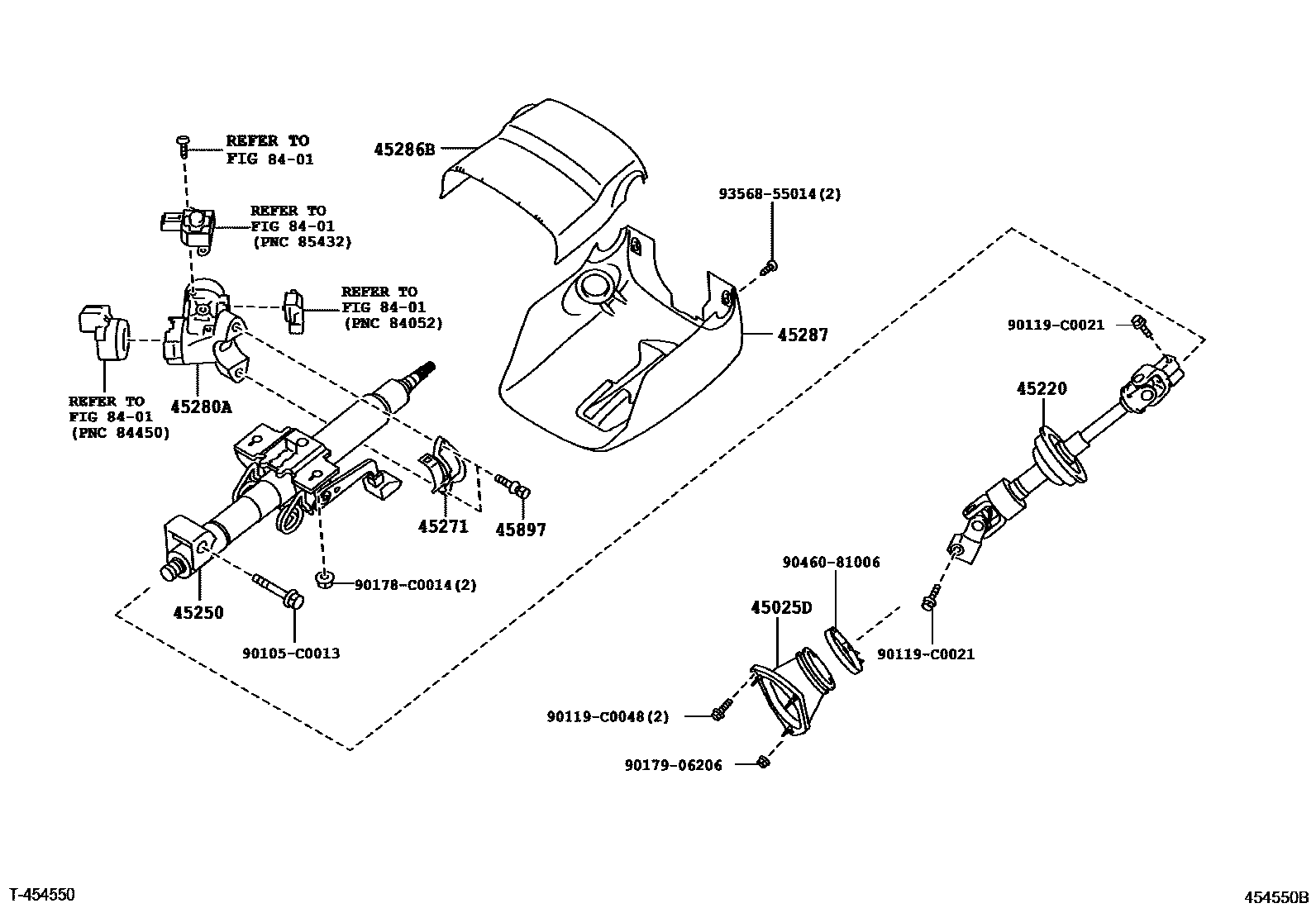

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-06110 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33110 |
| 45220 | Steering intermediate shaft assembly | 45220-06170 · 45220-06180 · 45220-33190 |
| 45250 | Steering column assembly | 45250-06460 · 45250-06470 |
| 45271 | Clamp on steering column | 45271-06030 |
| 45280A | Steering column upper bracket assembly | 45280-06090 · 45280-06091 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
