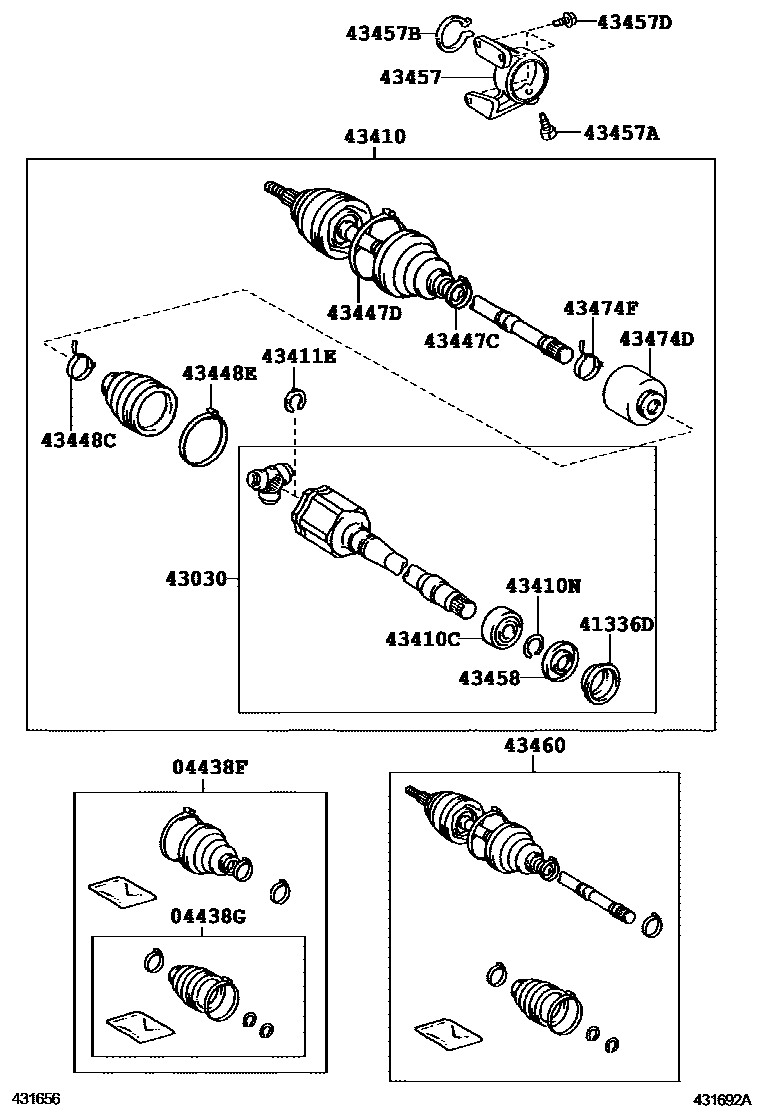

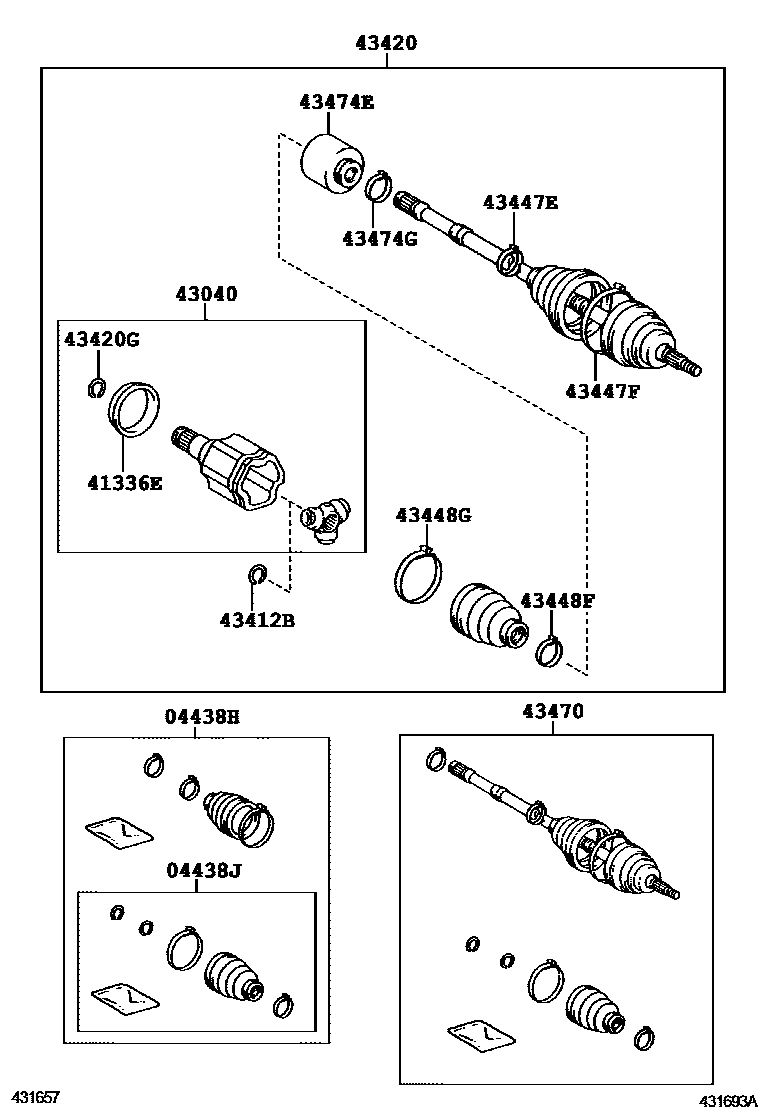

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06350 · 04427-06420 · 04427-06430 · 04427-06431 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06160 · 04437-06190 · 04437-06200 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06390 · 04428-06500 · 04428-06510 · 04428-06511 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06300 · 04438-06310 · 04438-06580 |
| 41336D | Right front driveshaft dust cover | 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-28020 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06190 · 43030-06200 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06190 · 43040-0R020 |
| 43410 | Right front driveshaft assembly | 43410-06670 · 43410-06710 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 · 90363-C0001 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-06700 · 43420-06730 · 43420-06790 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42010 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-42010 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-06030 · 43457-06070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-C0014 |
| 43458 | Front drive shaft dust cover | 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09U30 · 43470-09P80 · 43470-A9010 · 43470-A9011 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09P80 · 43470-09Z80 · 43470-A9020 · 43470-A9021 |
| 43474D | Right front driveshaft shock absorber | 43474-06140 |
| 43474E | Left front driveshaft shock absorber | 43474-06150 · 43474-06260 · 43474-0R010 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06420 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 |
