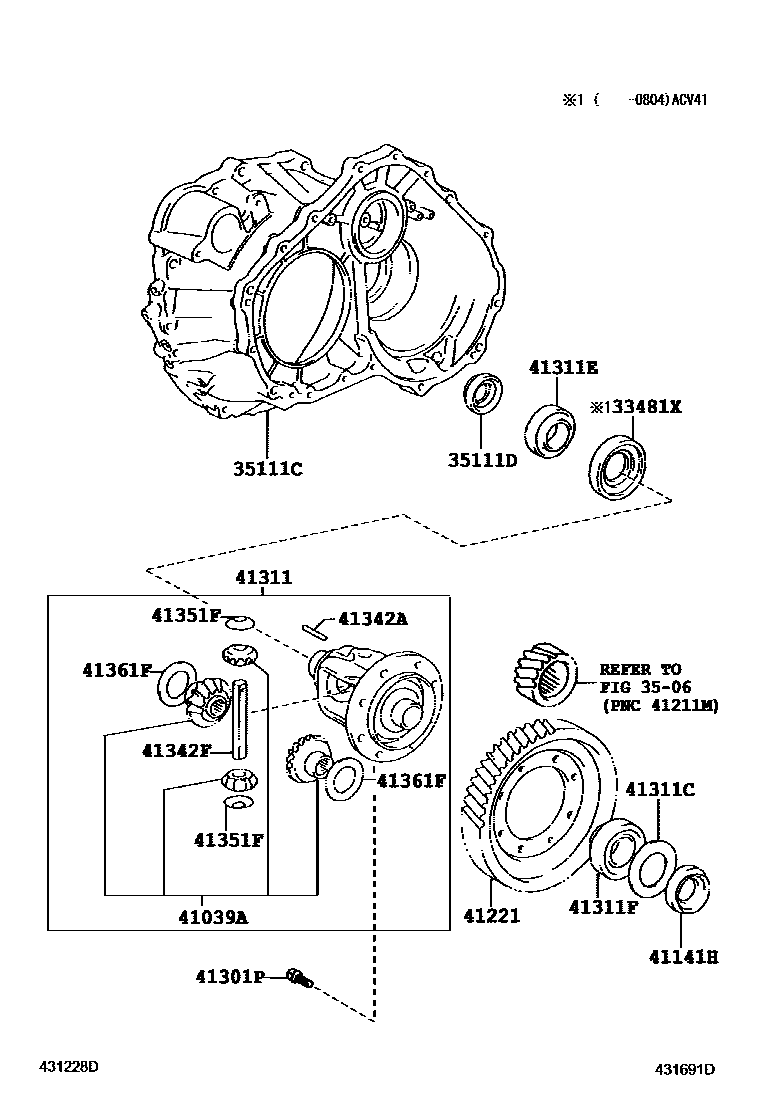

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33481X | speedometer drive gear | 33481-28060 |
| 35111C | Transmission axle housing | 35105-28032 · 35105-44011 · 35105-44061 |
| 35111D | Oil seal (for transaxle housing) | 90311-40031 |
| 41039A | Differential gear assembly | 41039-28020 · 41039-33080 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50033 · 90311-50036 · 90311-50045 |
| 41221 | Front differential ring gear | 41221-32160 · 41221-33140 · 41221-33170 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-28090 · 41301-33110 |
| 41311C | Rear gasket (for front differential case) | 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50075 · 90366-50084 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50078 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28030 · 41342-33040 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-28270 · 41361-28280 · 41361-28290 · 41361-28300 · 41361-28310 |
