Toyota CAMRY 车轮和车轮盖 — Figure 4103

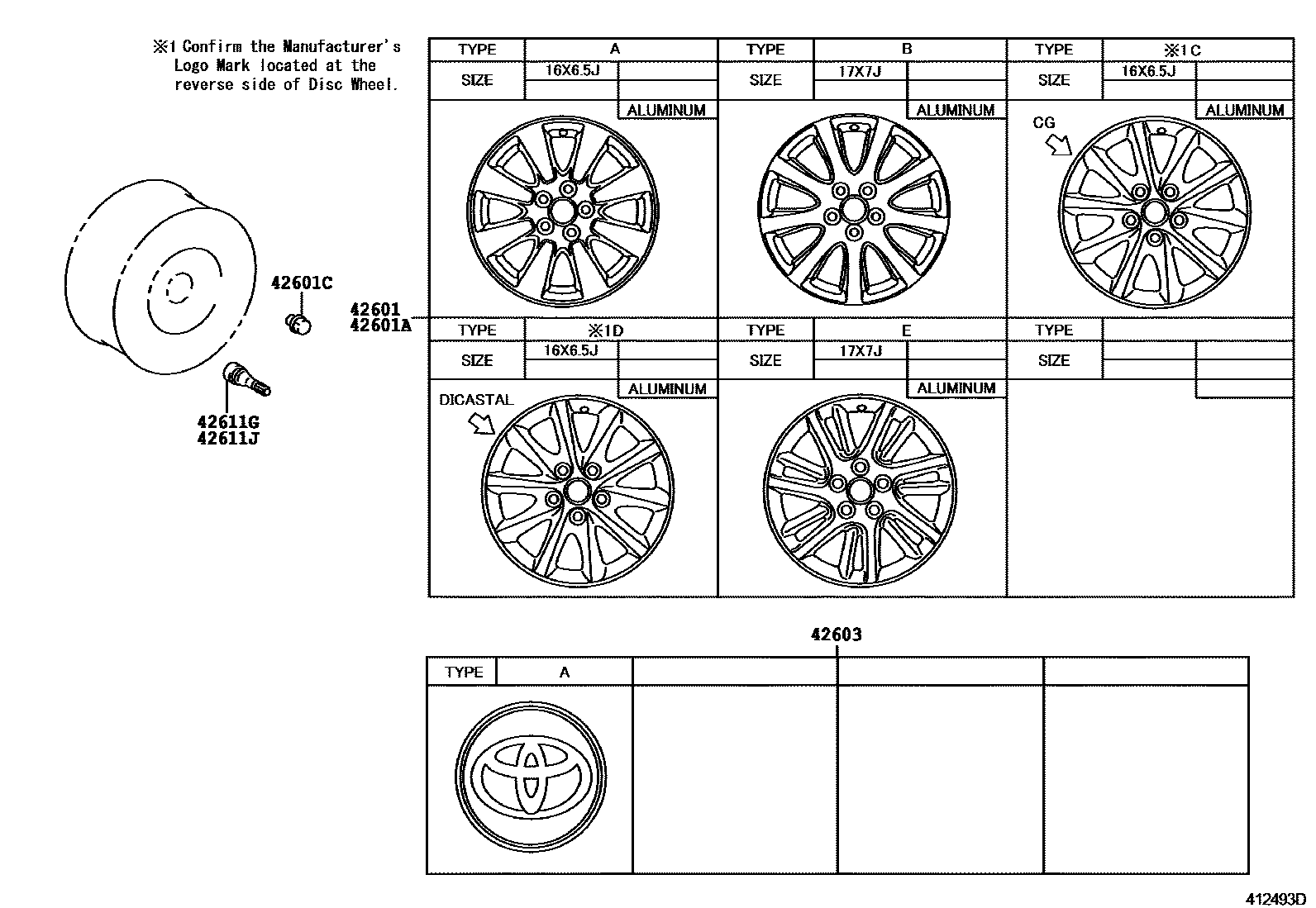

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-06530 · 42611-06620 · 42611-06690 · 42611-06700 · 42611-06710 |
| 42601A | Spoke wheel (for spare tire) | 42611-06530 · 42611-06620 · 42611-06690 · 42611-06700 · 42611-06710 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06130 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
