Toyota CAMRY Alternator — Figure 1903

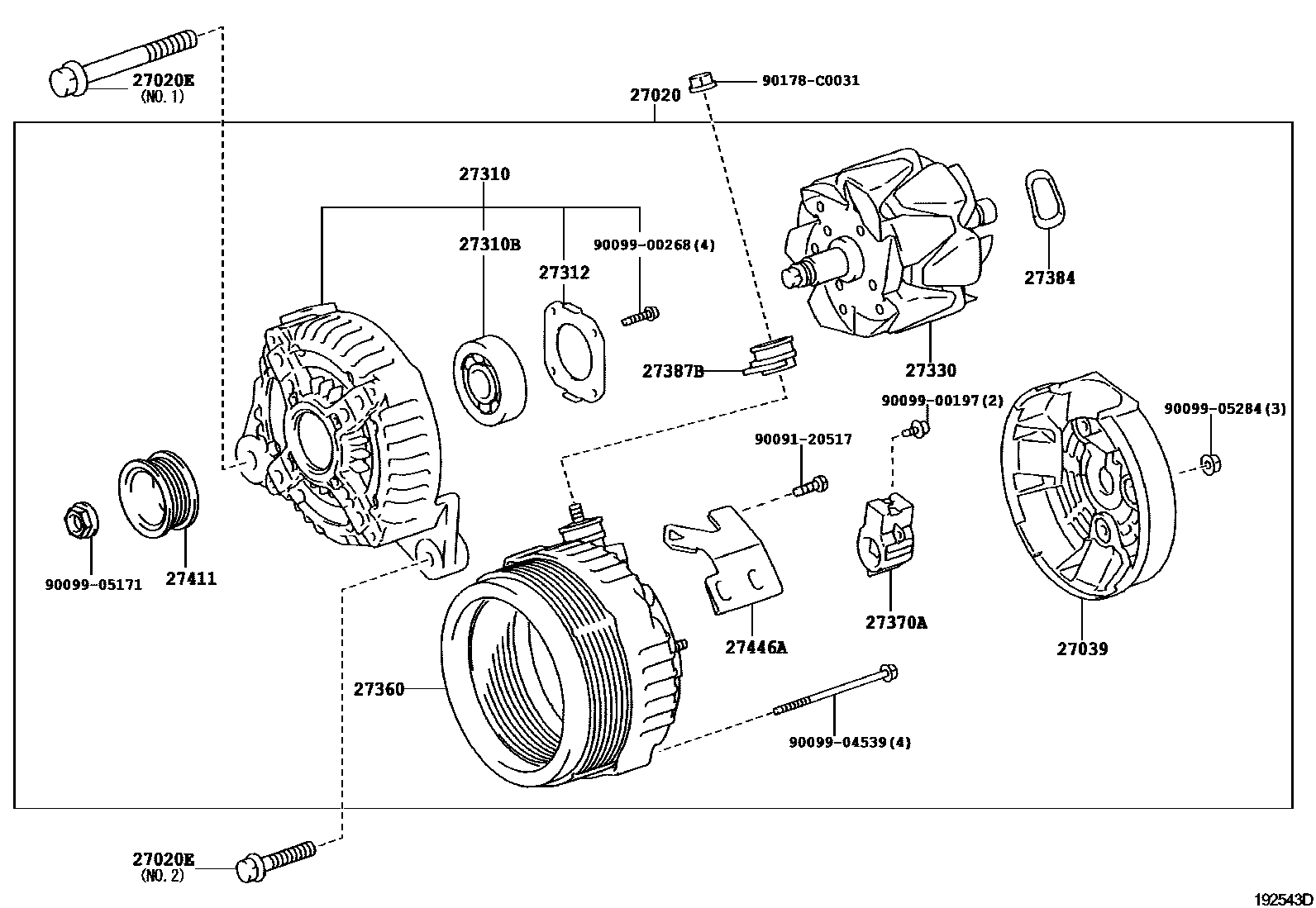

Toyota CAMRY EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H140 · 27060-0H141 · 27060-0H170 · 27060-0H171 |
| 27020E | Bolts (for generator) | 90105-C0028 · 90105-C0034 |
| 27039 | Alternator Rear End Cover | 27039-0H110 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H110 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10014 · 90068-10029 · 90068-10036 · 90068-10047 |
| 27312 | Retainer Plate | 27312-0M070 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0H110 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H110 · 27360-0H111 · 27360-0H130 · 27360-0H131 |
| 27370A | Alternator Brush Holder Assembly | 27370-0H110 |
| 27384 | Washer | 27384-16380 |
| 27387B | Generator terminal insulation pad | 27387-0H110 |
| 27411 | Alternator Pulley | 27411-0H110 |
| 27446A | card holder | 27446-28120 |
