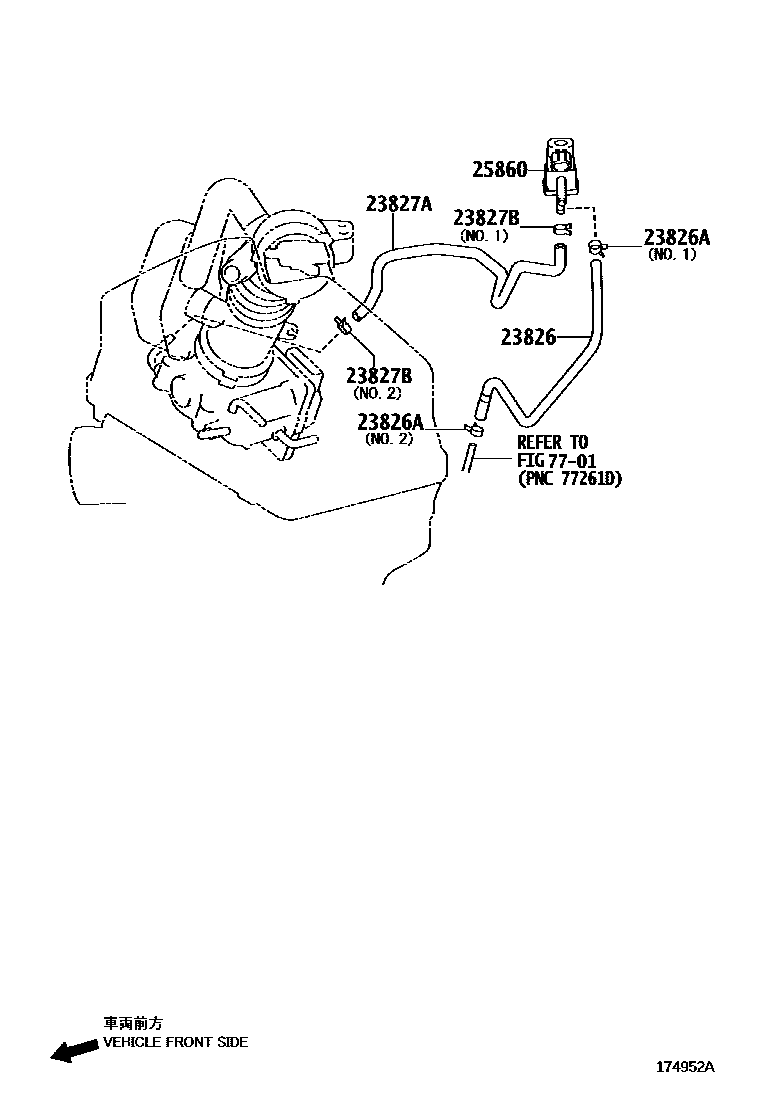

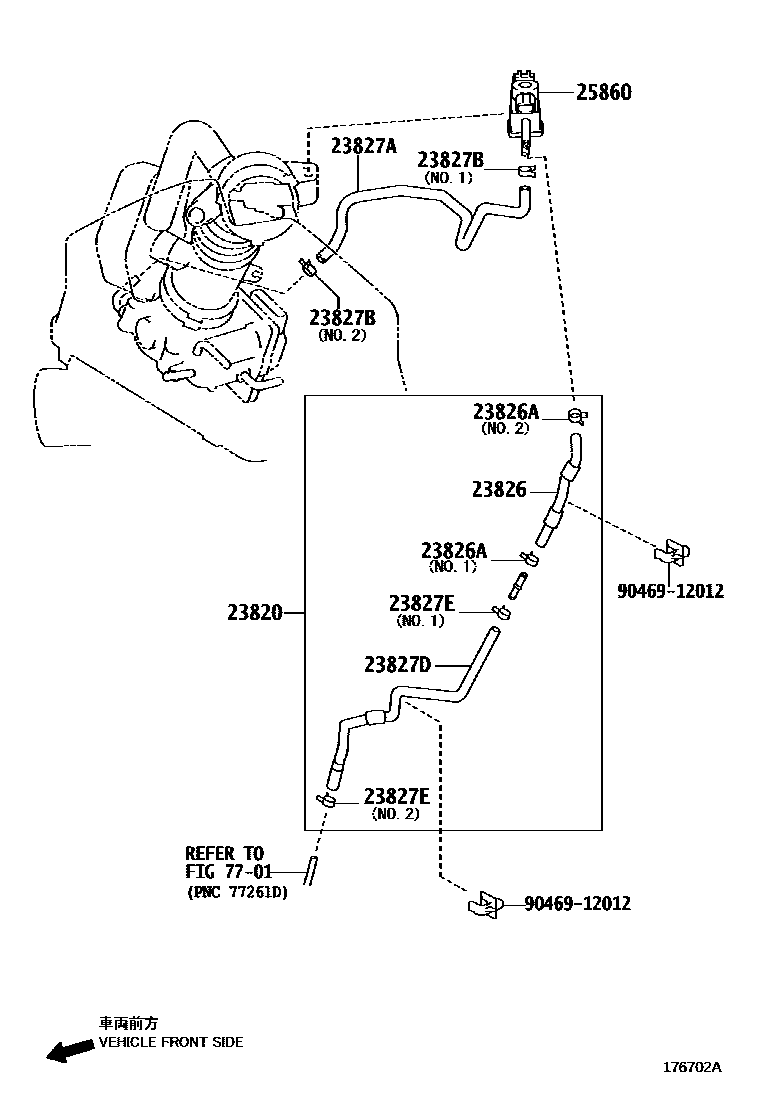

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-0H190 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0H210 · 23826-0H320 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 · 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23826-0H220 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-51000 |
| 23827D | No. 2 fuel vapor supply hose | 23827-0H140 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 96132-51100 · 96132-51300 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H130 · 25860-28160 |
