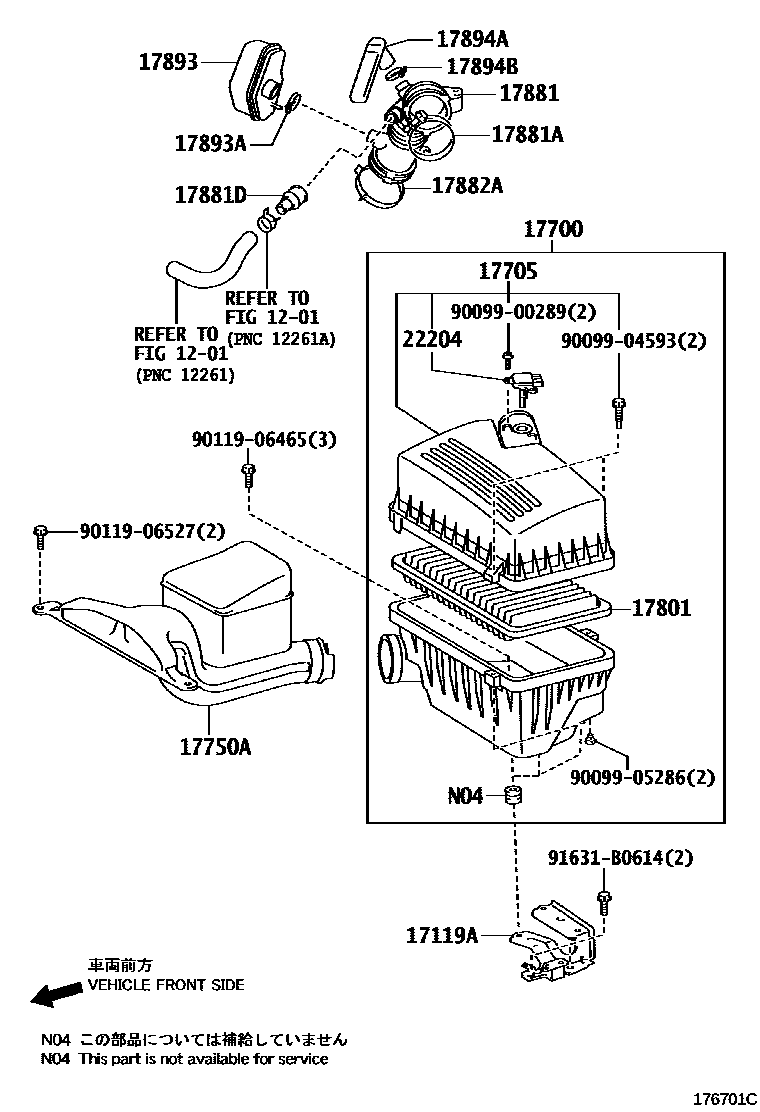

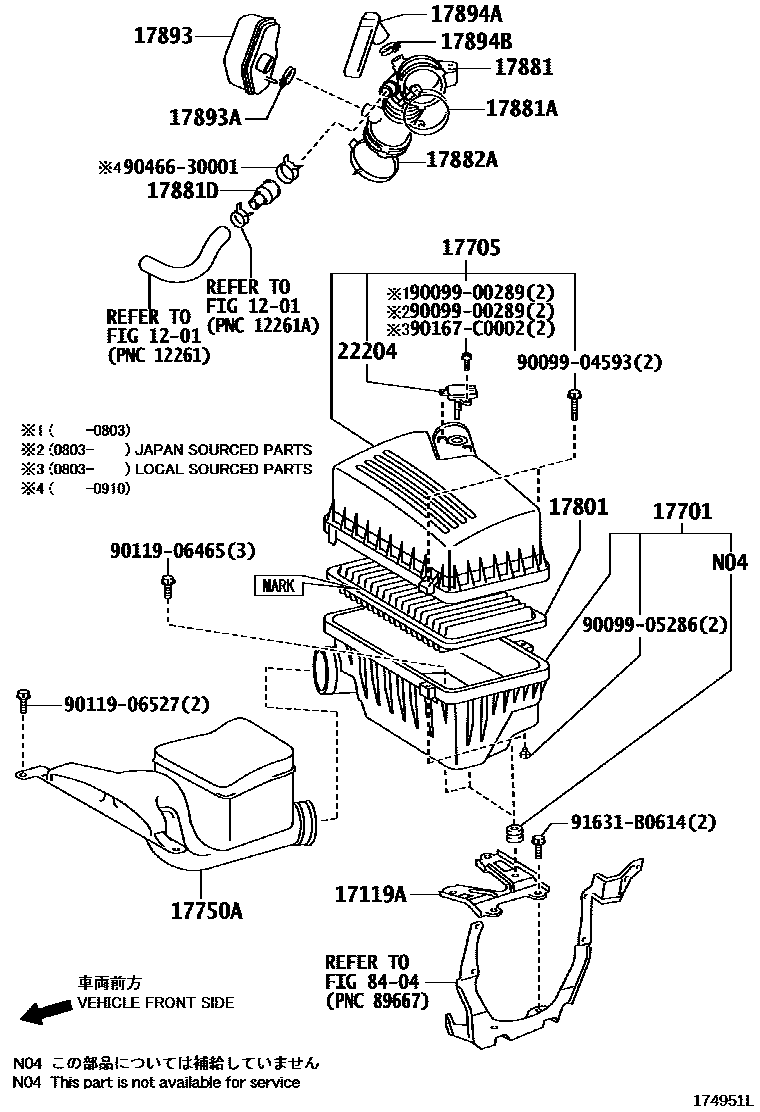

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-0H100 · 17119-28060 · 17119-31050 |
| 17700 | air filter assembly | 17700-28271 · 17700-28272 |
| 17701 | Air filter housing sub-assembly | 17701-0H120 · 17701-0H160 |
| 17705 | Air filter cover sub-assembly | 17705-0H140 · 17705-0H141 · 17705-0H170 · 17705-0H171 · 17705-28231 · 17705-28232 |
| 17750A | Air filter air inlet assembly | 17750-0H090 · 17750-28040 |
| 17801 | Air filter element sub-assembly | 17801-0H060 · 17801-0H080 · 17801-20040 · 17801-28030 |
| 17881 | No. 1 air cleaner hose | 17881-0H120 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V030 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-C0019 |
| 17893 | Intake resonator | 17893-0H090 |
| 17893A | hose clamp | 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-0H090 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 |
| 22204 | Intake air flow meter assembly | 22204-0T010 · 22204-31010 · 22204-31020 |
