Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 3 images and 14 PNC and OE references.

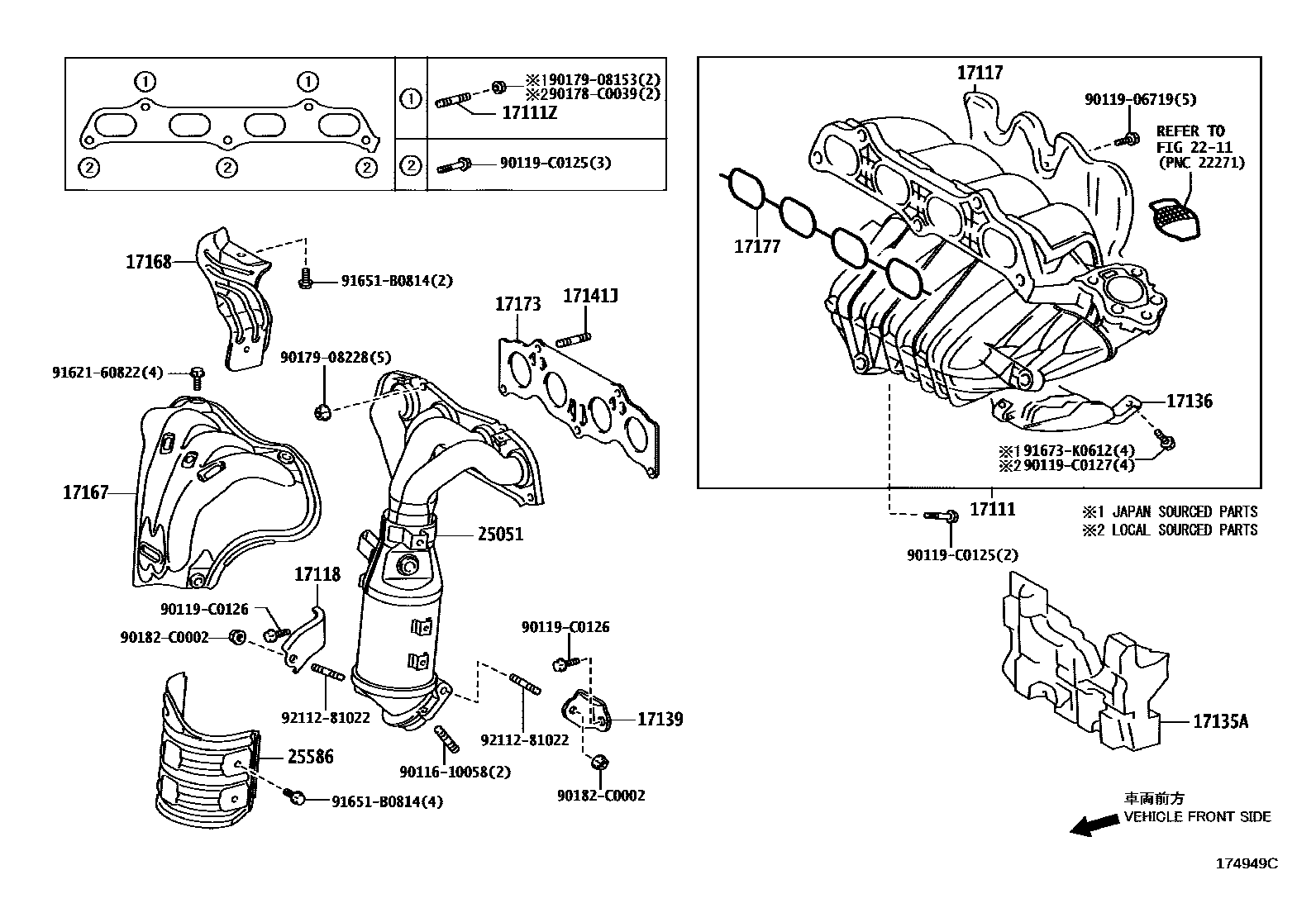

Toyota CAMRY Manifold EPC diagram — 174949C
Manifold — 174949C (200605 – 999999)

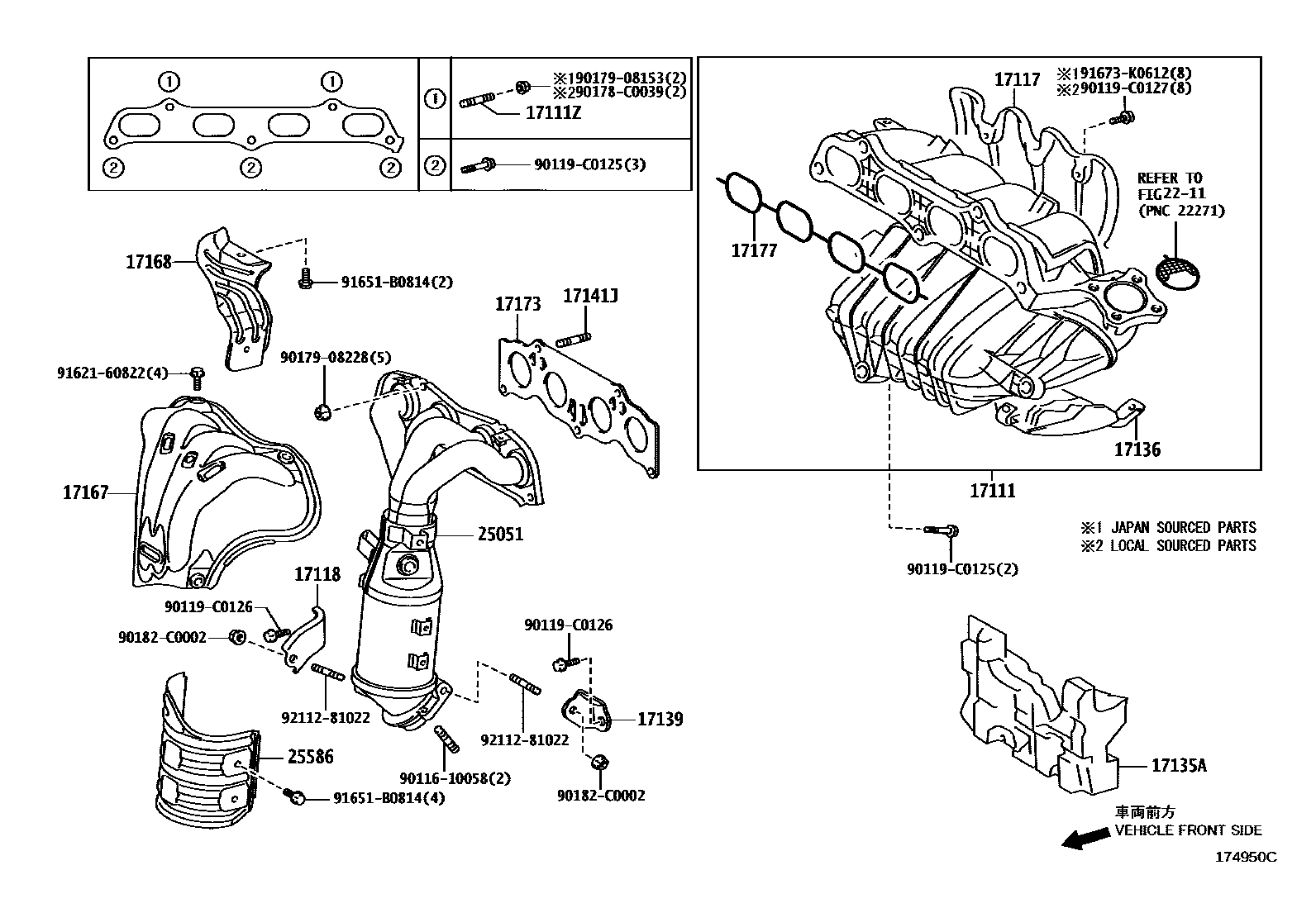

Toyota CAMRY Manifold EPC diagram — 174950C
Manifold — 174950C (200605 – 999999)

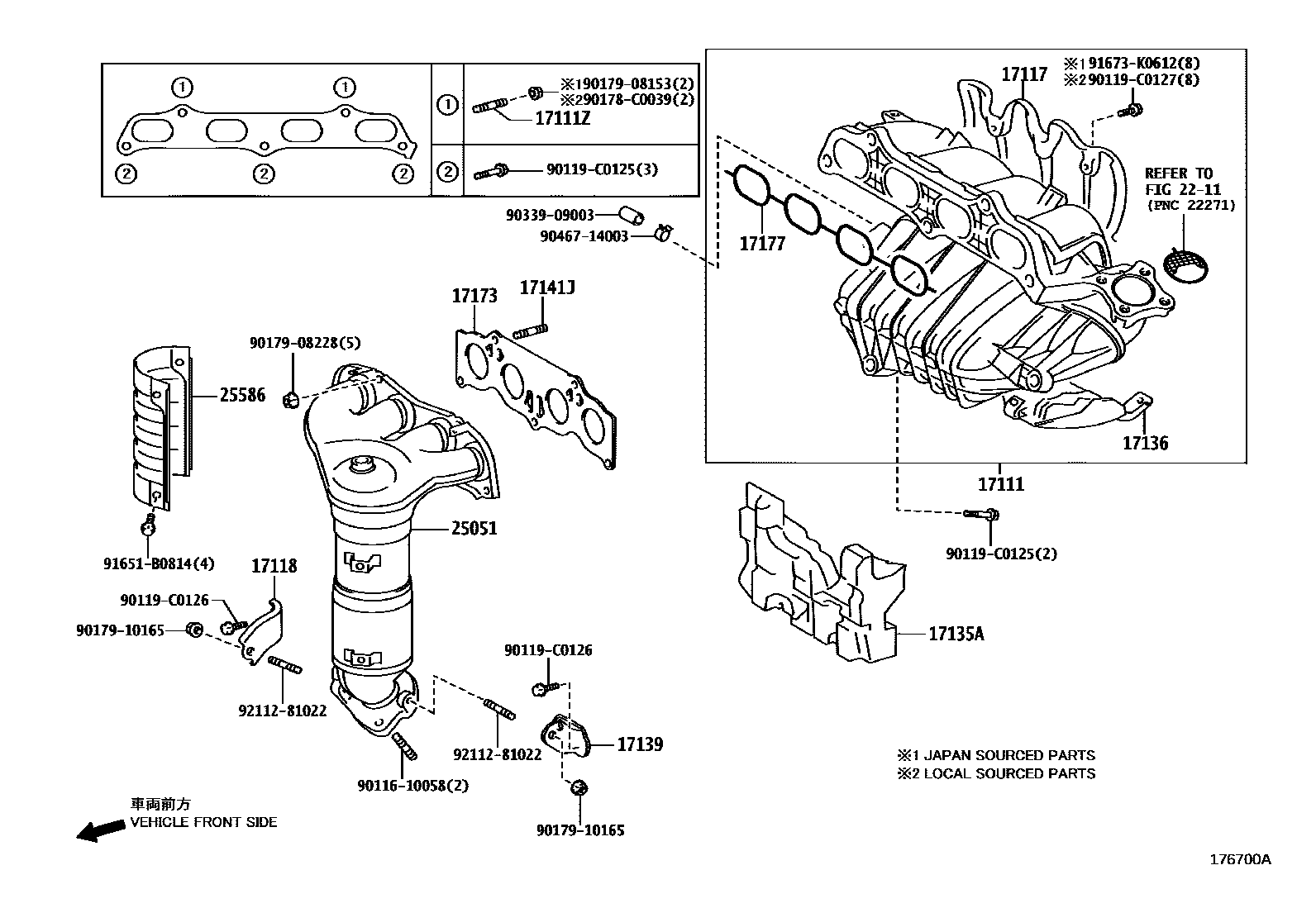

Toyota CAMRY Manifold EPC diagram — 176700A
Manifold — 176700A (201003 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-0H060 · 17120-0H070 · 17120-0H071 · 17120-0H072 · 17120-28070 · 17120-28140
17111ZStud bolts (for intake manifold to cylinder head)90126-08026
17117Intake pipe insulation pad17117-0H020 · 17117-28020 · 17117-28040
17118Manifold stays17118-28070 · 17118-28080
17135AIntake manifold No. 1 heat shield17135-28011
17136Intake manifold No. 2 heat shield17136-28020
17139No. 2 manifold stay17139-28050
17141JStuds (for right exhaust manifold)90126-08037
17167Exhaust manifold No. 1 heat shield17167-0H050
17168Exhaust manifold No.2 insulation pad17168-0H050
17173Gasket (exhaust manifold to cylinder head)17173-0H040 · 17173-28010
17177No. 1 gasket (intake manifold to cylinder head)17177-28010 · 17177-28031
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0H060 · 25051-0H150 · 25051-28310
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0H050 · 25586-28110
