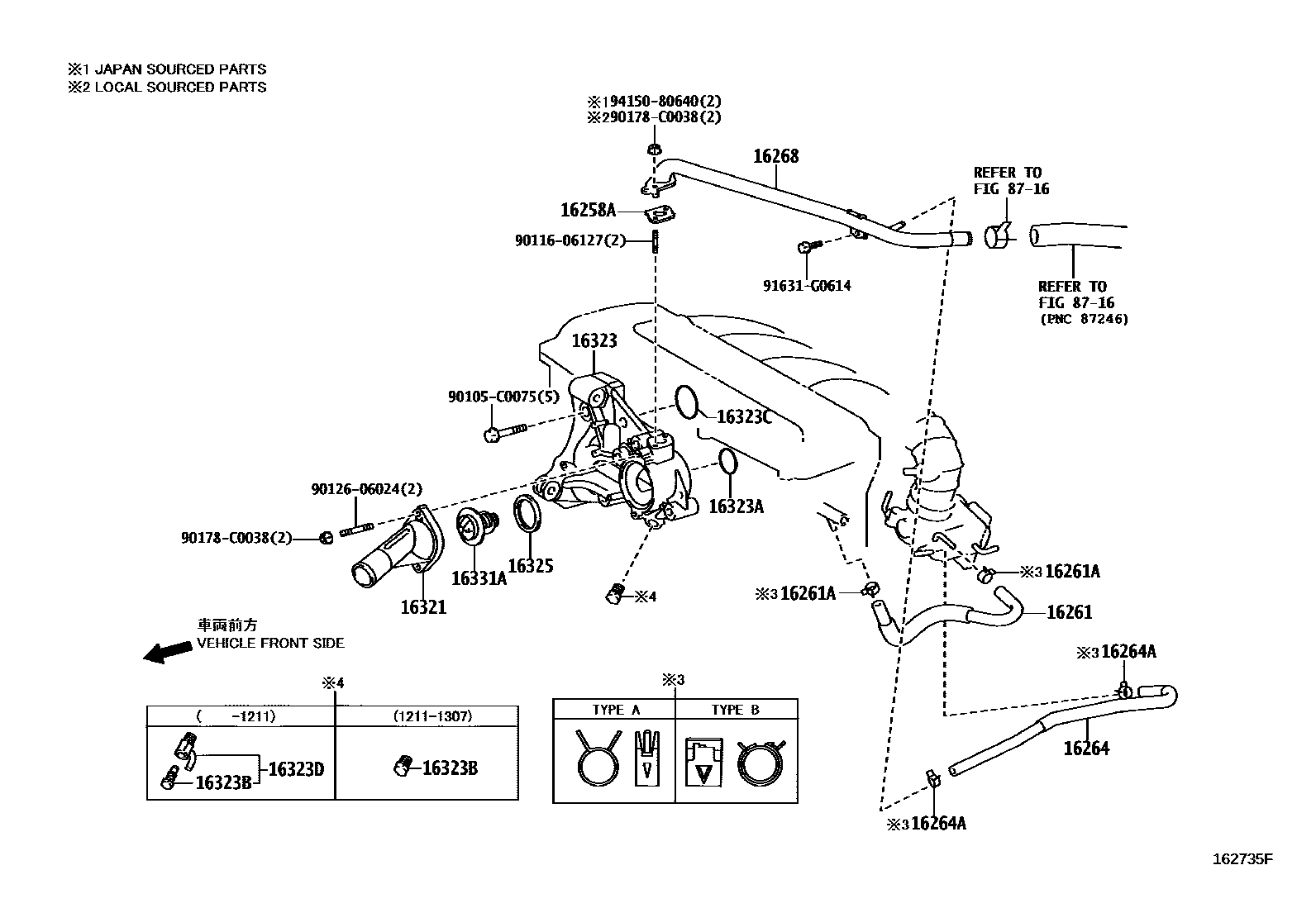

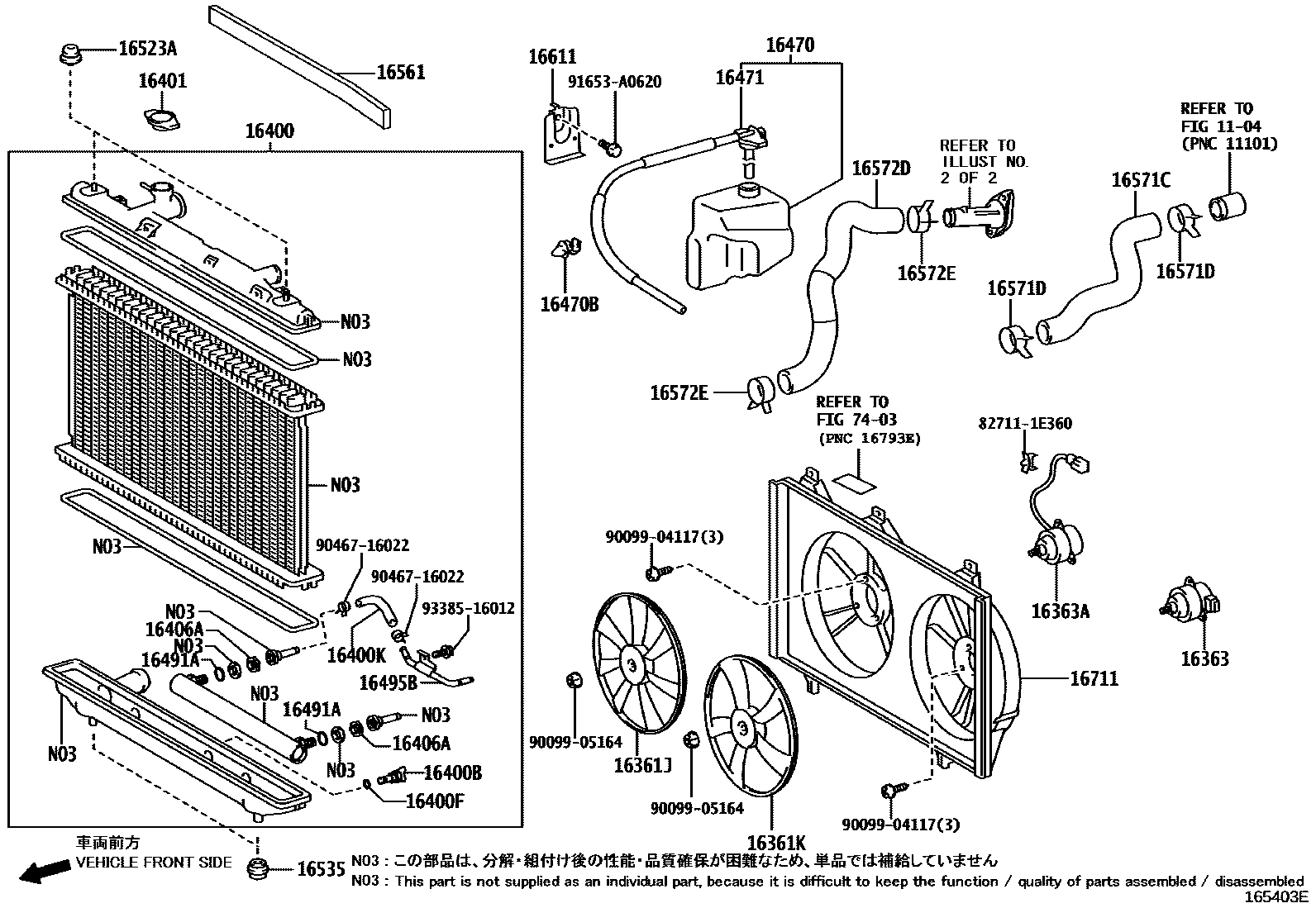

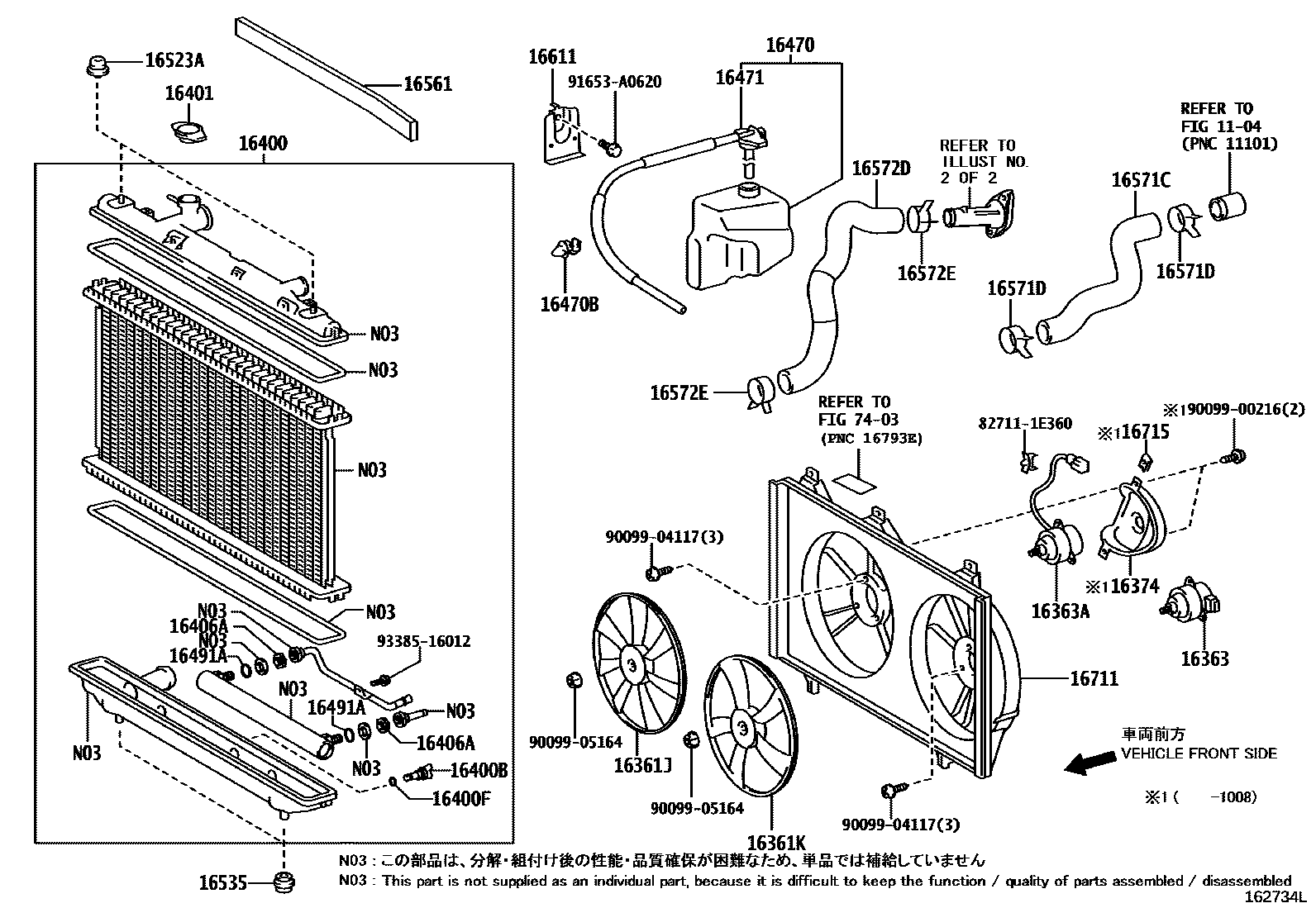

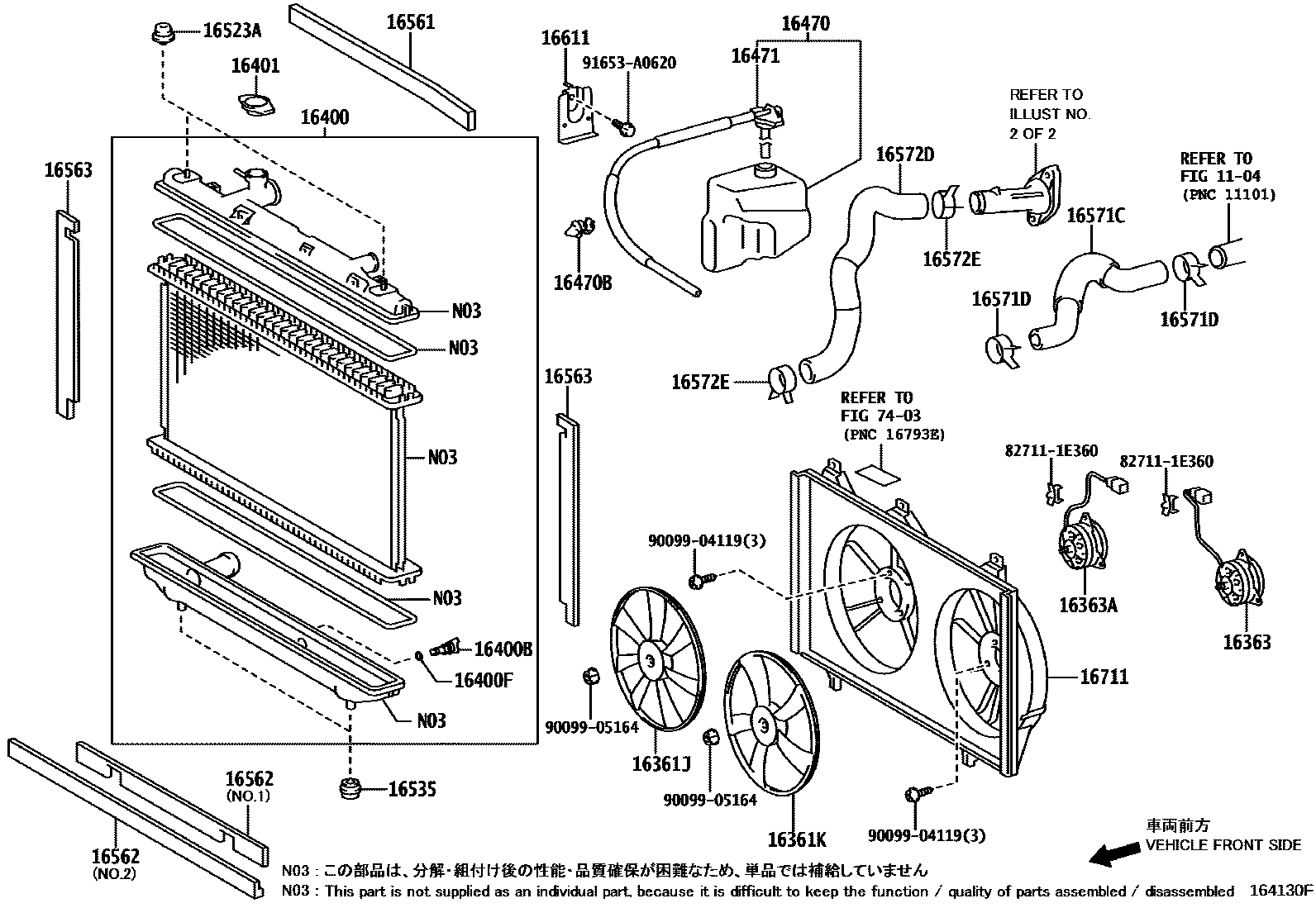

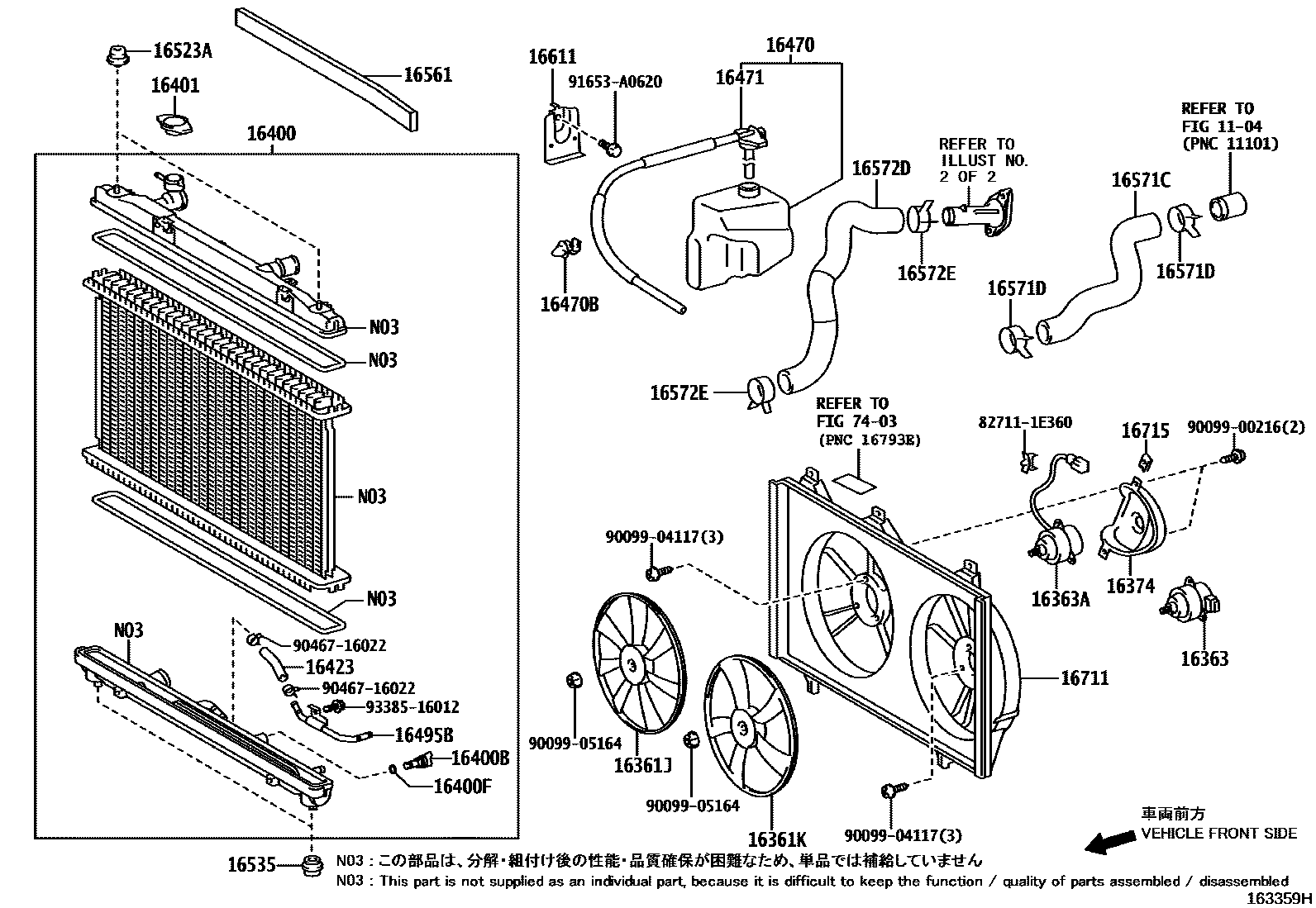

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H040 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-0H080 · 16261-28050 · 16261-28090 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0H080 · 16264-28060 · 16264-28110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28070 · 16268-28150 |
| 16321 | water inlet | 16321-0H060 |
| 16323 | HOUSING, WATER INLET | 16323-0H010 · 16323-0H011 · 16323-0H020 |
| 16323A | Gasket (for inlet housing) | 90301-24019 · 90301-C0029 |
| 16323B | Screw plug (for water inlet housing) | 90345-52001 · 90910-09087 |
| 16323C | O-ring (for water inlet housing) | 90301-37005 · 90301-C0030 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-28010 |
| 16331A | thermostat | 90916-03136 · 90916-C3001 |
| 16361J | Right fan | 16361-0H200 · 16361-28270 |
| 16361K | left fan | 16361-0H190 · 16361-28280 |
| 16363 | cooling fan motor | 16363-02120 · 16363-23010 · 16363-28280 |
| 16363A | Cooling fan motor No. 2 | 16363-0H170 · 16363-28230 · 16363-28280 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28130 |
| 16400 | Radiator assembly | 16400-0H290 · 16400-0H291 · 16400-0H370 · 16400-28550 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16400K | No. 1 water hose | 32943-53070 |
| 16401 | Radiator cover sub-assembly | 16401-0Y060 · 16401-28430 · 16401-31480 |
| 16406A | Bracket (for transmission oil cooler) | 16406-62060 |
| 16423 | Radiator tank hose | 16492-31470 |
| 16470 | Radiator reservoir assembly | 16470-0H090 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90469-12014 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0H080 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-50020 |
| 16495B | Tube (for automatic transmission oil cooler) | 16495-31470 |
| 16523A | Radiator bracket cushion | 16523-0H040 |
| 16535 | Radiator lower support | 16535-0H040 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H040 · 16561-28031 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-28010 · 16562-28020 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-28010 |
| 16571C | Radiator hose No. 1 | 16571-0H160 · 16571-28350 |
| 16571D | No. 1 radiator hose clip | 90466-35001 · 90466-C0009 |
| 16572D | Radiator hose No. 2 | 16572-0H140 |
| 16572E | No. 2 radiator hose clip | 90466-35001 · 90466-C0009 |
| 16611 | Radiator reservoir bracket | 16611-0H030 |
| 16711 | fan cover | 16711-0H150 · 16711-28310 |
| 16715 | fan cover bracket | 88688-18030 |
