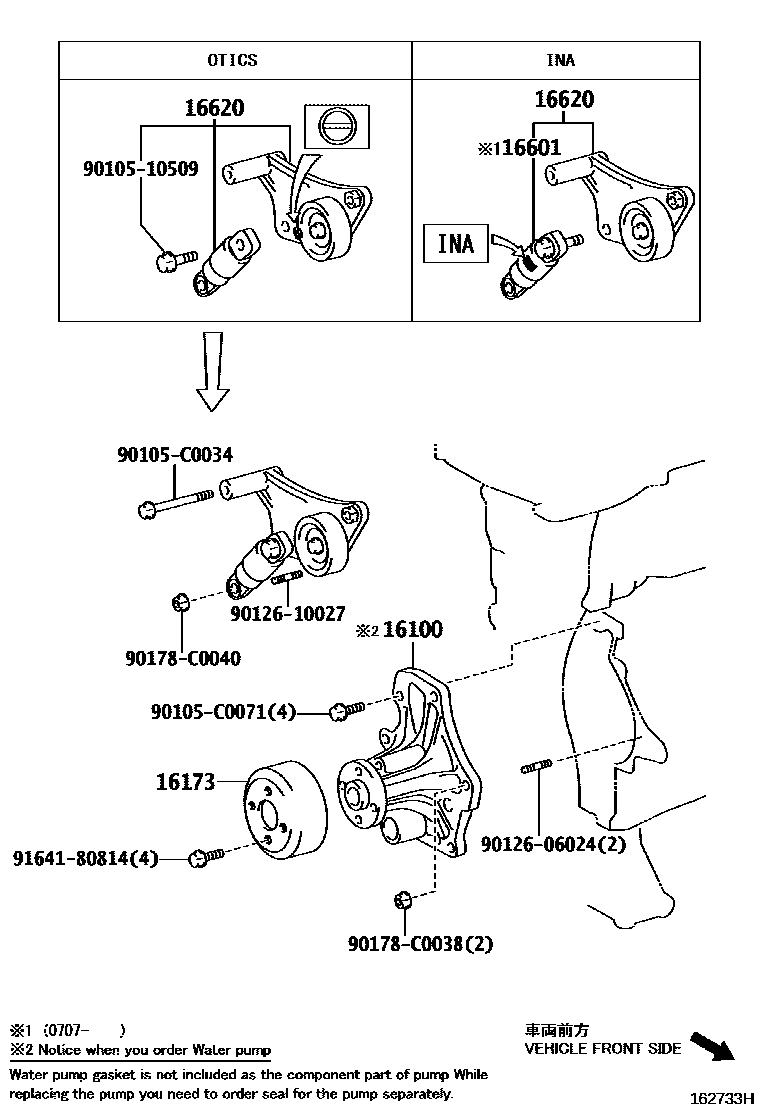

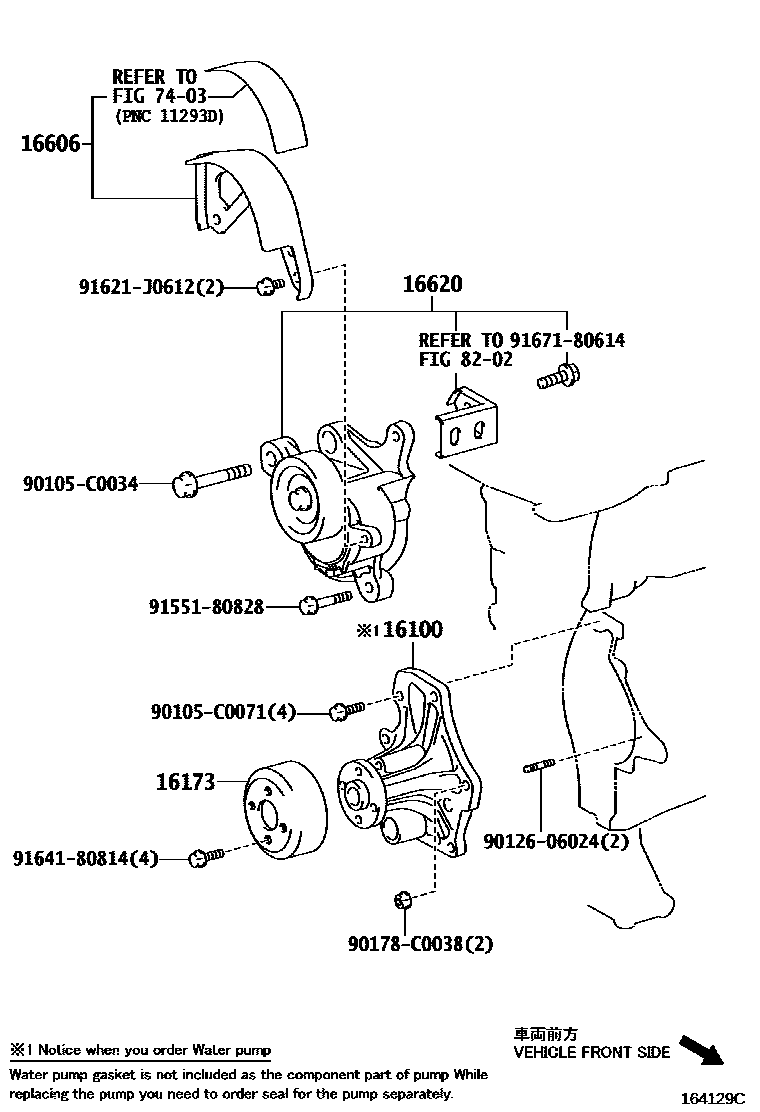

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-0H040 |
| 16173 | water pump pulley | 16173-0H040 · 16173-28020 |
| 16601 | Poly V-belt tensioner sub-assembly | 16601-28041 · 16601-28050 |
| 16606 | Poly V-belt tensioner cover sub-assembly | 16606-28040 |
| 16620 | Poly V-belt tensioner assembly | 16620-0W110 · 16620-28070 · 16620-28071 · 16620-28080 · 16620-28090 |
