Toyota CAMRY Crankshaft & Piston — Figure 1301

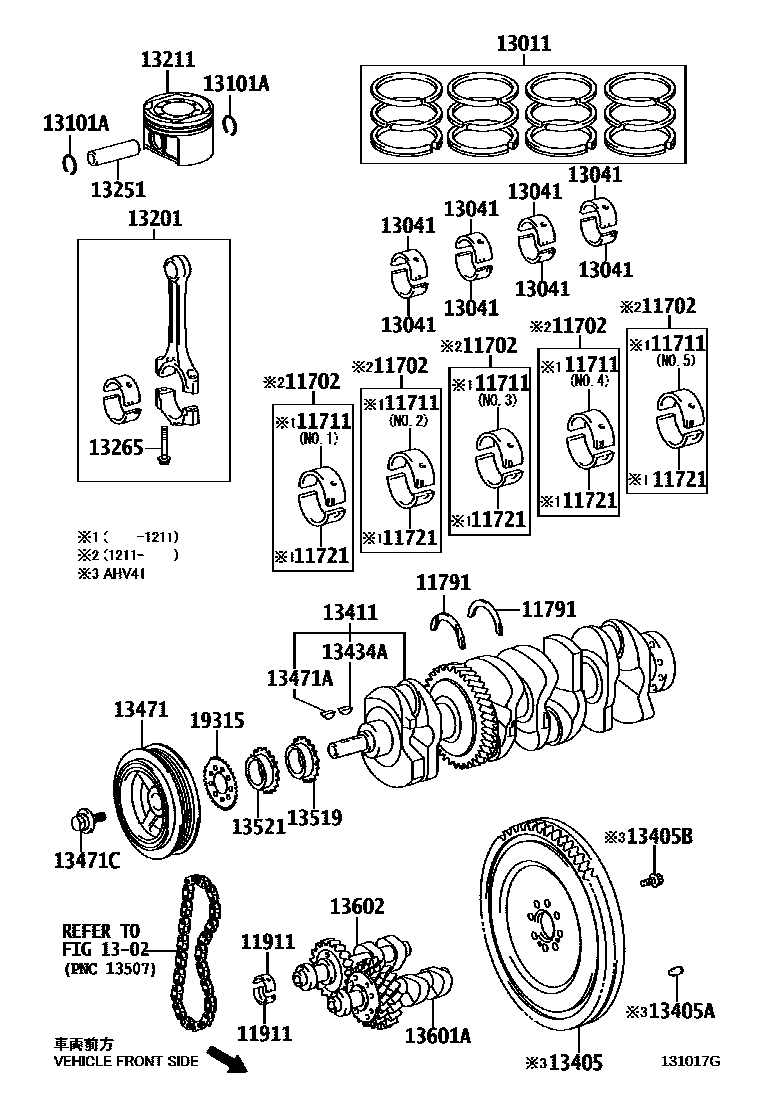

Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0H030 |
| 13011 | Piston ring assembly | 13011-0H080 · 13011-28160 · 13011-28161 · 13011-28210 |
| 13101A | Bore snap ring (for piston pin) | 90520-22025 |
| 13265 | Connecting rod bolts | 13265-28010 |
| 13405 | Flywheel sub-assembly | 13405-28050 |
| 13405A | Direct sales (for flywheel) | 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-12184 |
| 13411 | crankshaft | 13401-0H020 · 13401-0H050 · 13401-28010 · 13401-28030 |
| 13434A | Key (for oil pump active spline) | 95161-30416 |
| 13471 | crankshaft pulley | 13470-0H030 · 13470-28020 · 13470-28040 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 · 90119-C0124 |
| 13519 | Oil pump driving gear | 13519-0H050 · 13519-28010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0H050 · 13521-28030 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-0H030 · 13601-0H031 · 13601-28020 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-0H030 · 13602-28020 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-28010 |
