Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

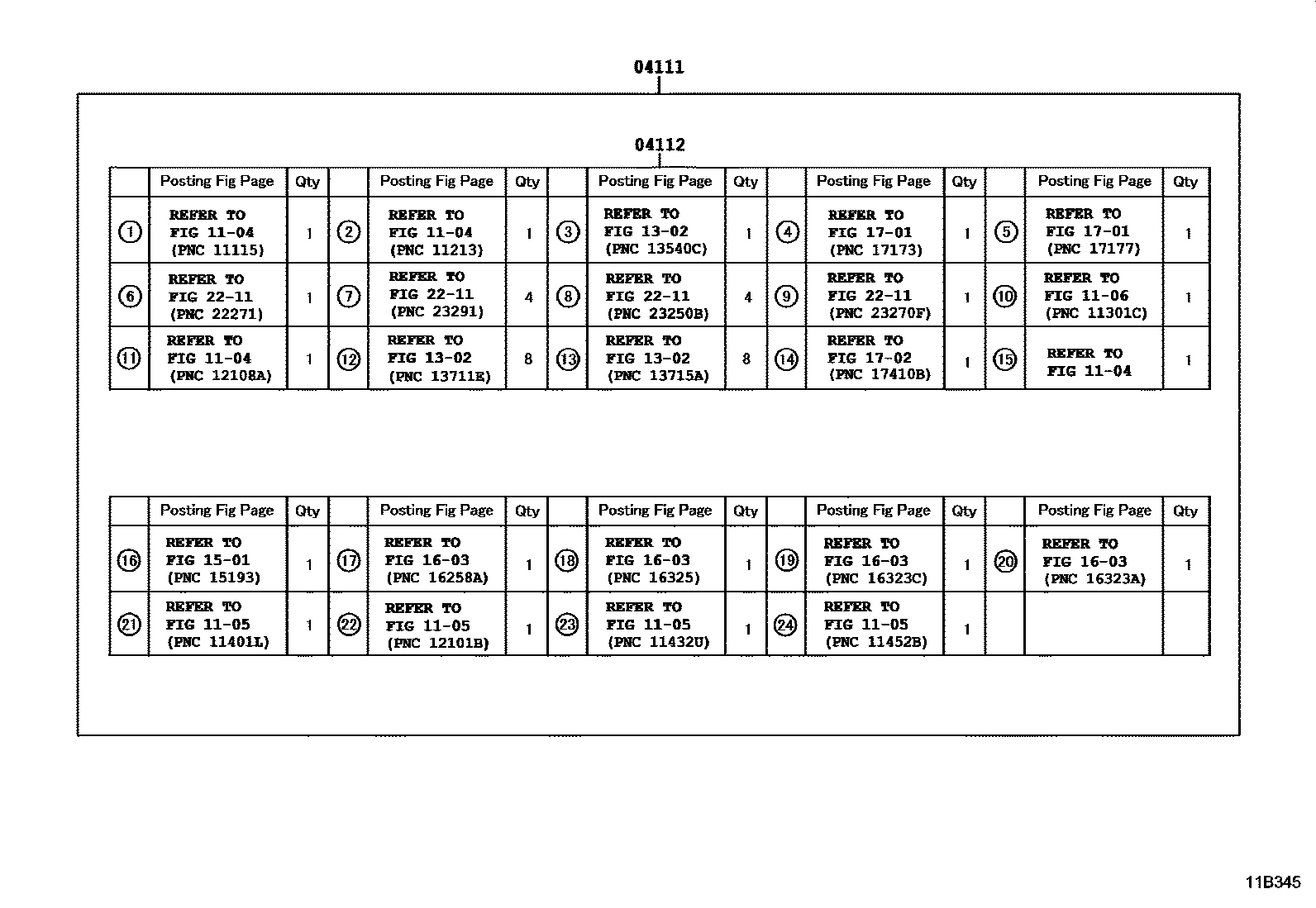

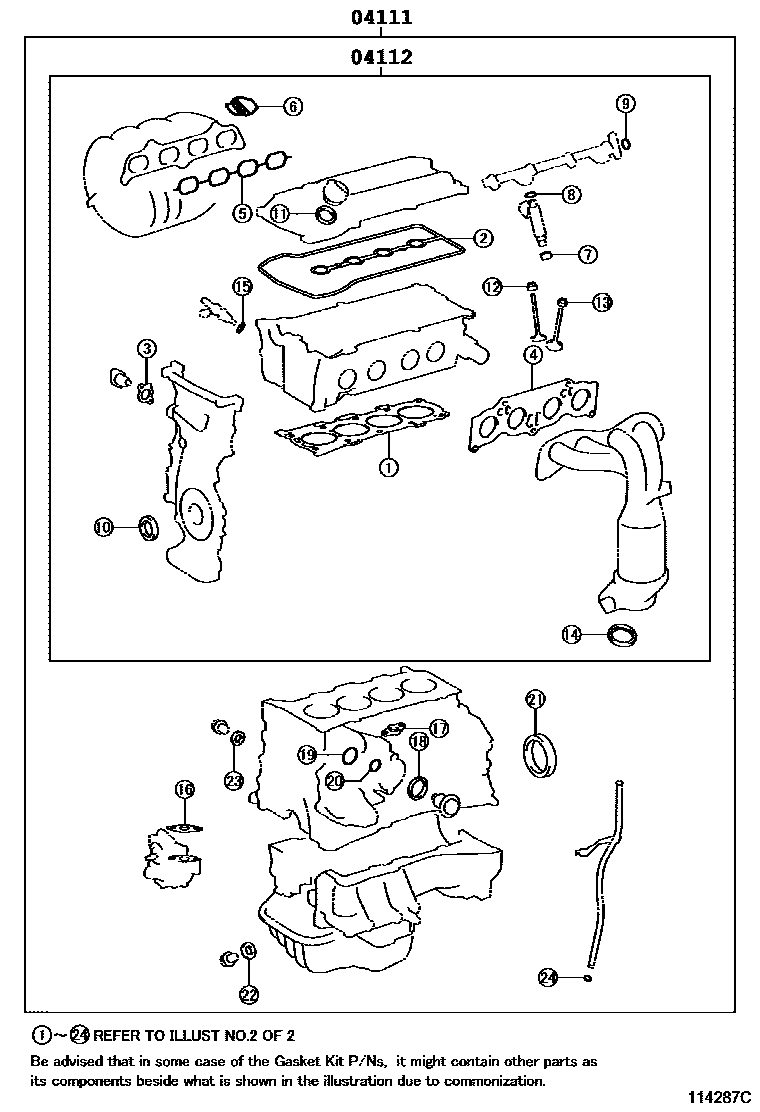

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0H300 · 04111-0H301 · 04111-0H302 · 04111-0H310 · 04111-0H311 · 04111-0H312 · 04111-0H313 · 04111-0H314 · 04111-0H411 |
| 04112 | Engine valve grinding pad assembly | 04112-0H280 · 04112-0H281 · 04112-0H282 · 04112-0H290 · 04112-0H291 · 04112-0H292 · 04112-0H293 · 04112-0H294 · 04112-0H371 |
