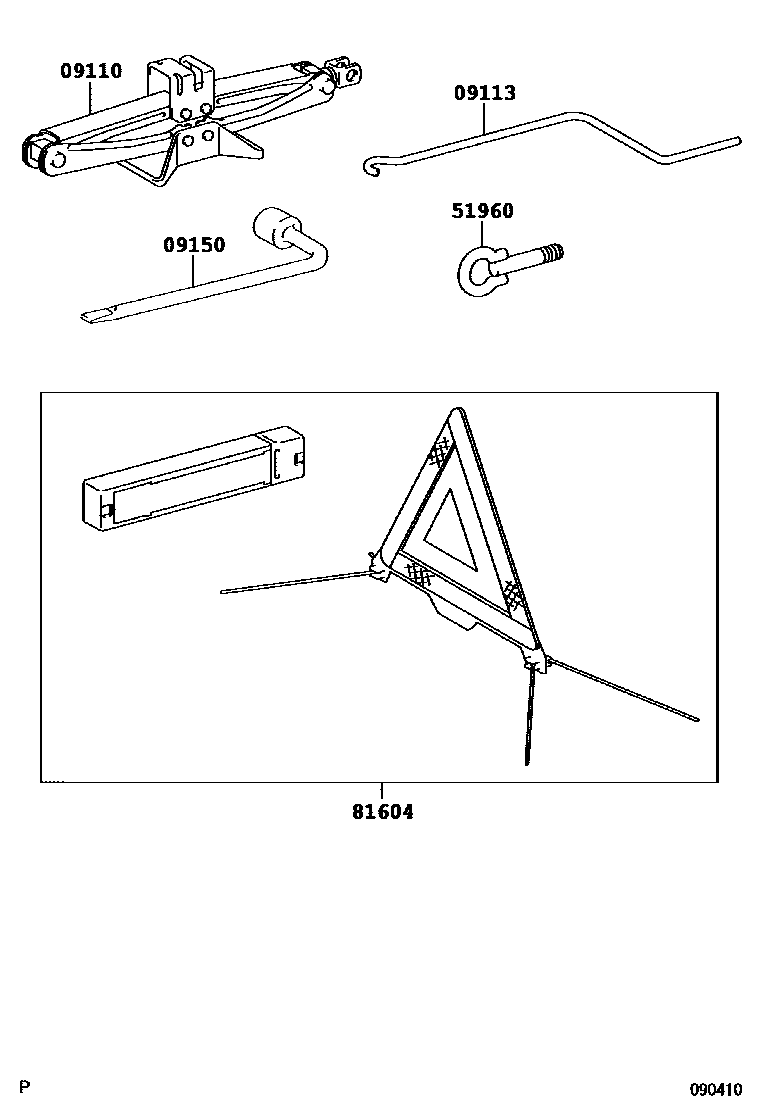

Toyota CAMRY Standard Tools — Figure 0901
Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0N010 · 09111-0N011 |
| 09113 | Jack Handle | 09113-06120 |
| 09150 | Wheel Nut Wrench Case | 09150-0D010 · 09150-0D020 · 09150-40010 |
| 51960 | Front Towing Hook Assembly | 51960-06050 · 51960-52050 |
| 81604 | Triangular reflector assembly | 81604-06010 |
