Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

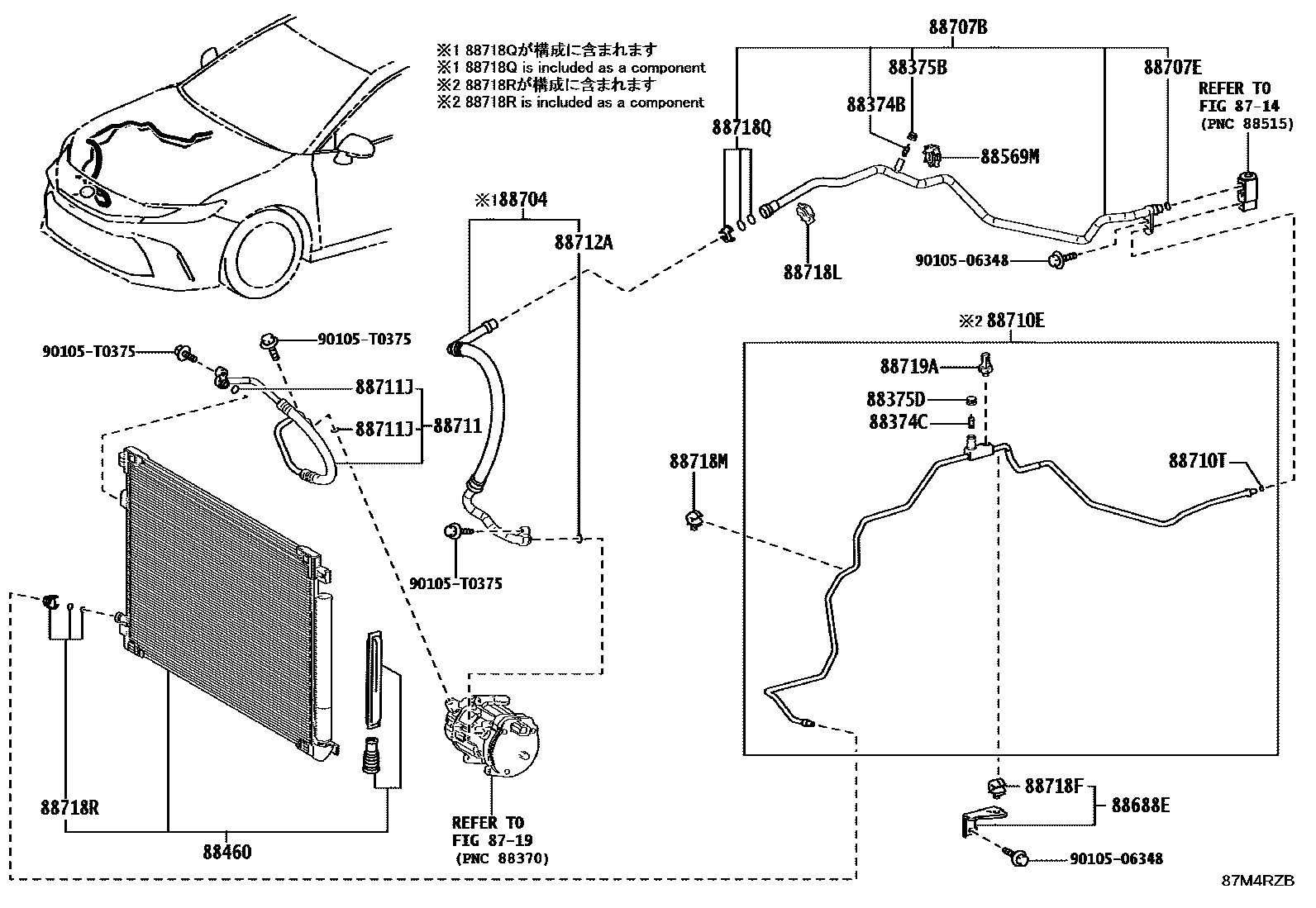

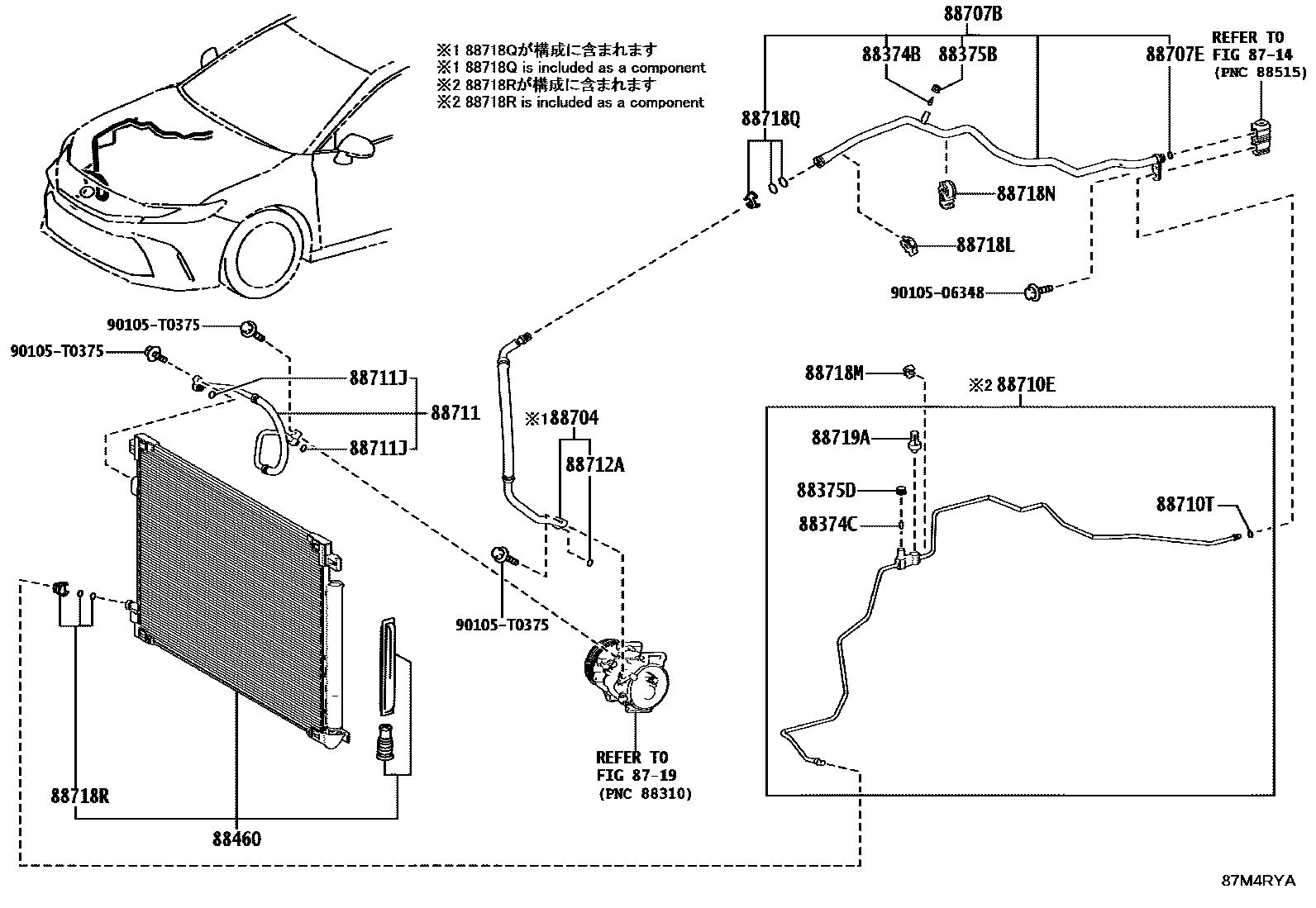

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 884A0-06120 · 884A0-06130 |
| 88569M | COLLIER, TUYAUTERIE, NO.1 | 88718-33550 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-06380 |
| 88704 | Oil suction hose sub-assembly | 88704-06520 · 88704-06660 · 88704-06670 |
| 88707B | Suction pipe B sub-assembly | 88707-06400 · 88707-06450 · 88707-06460 · 88707-06470 |
| 88707E | JOINT, TORIQUE(POUR TUYAU ASPIRATION) NO.2 | 90068-14043 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06760 · 88710-06770 · 88710-06780 · 88710-06790 |
| 88710T | JOINT, TORIQUE, NO.3(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90068-14042 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06680 · 88711-06770 · 88711-06780 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90068-14044 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90068-14043 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-58050 |
| 88718L | Pipe clamp | 88718-42110 |
| 88718M | FIXATION, TUYAUTERIE | 88718-33560 |
| 88718N | FIXATION, TUYAUTERIE | 88718-60C10 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-52280 |
| 88718R | COLLIER, CONDUITE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
