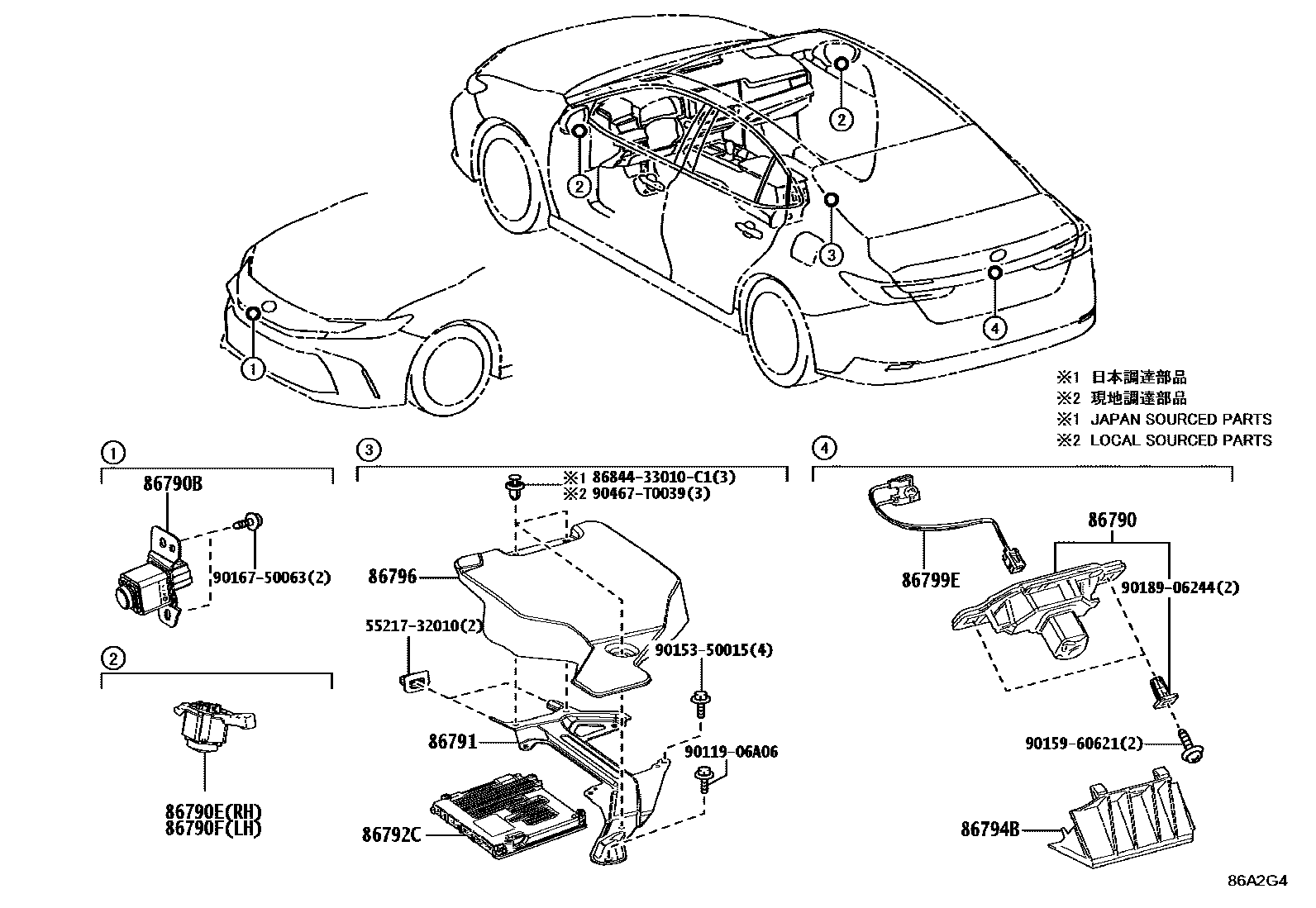

Toyota CAMRY 倒车影像和摄像头 — Figure 8606
Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-33420 · 86790-33470 · 86790-33530 · 867B0-33390 |
| 86790B | Front image camera assembly | 86790-33440 · 86790-33490 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-33460 · 86790-33510 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-33450 · 86790-33500 |
| 86791 | Reversing camera bracket | 86791-33100 |
| 86792C | Parking assist ECU | 86792-33820 · 86792-33830 |
| 86794B | CACHE, CAMERA TELEVISION | 86794-33010 |
| 86799E | CABLE, CAMERA TELEVISION, ARRIERE | 86799-33220 · 86799-33230 · 86799-33260 |
