Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

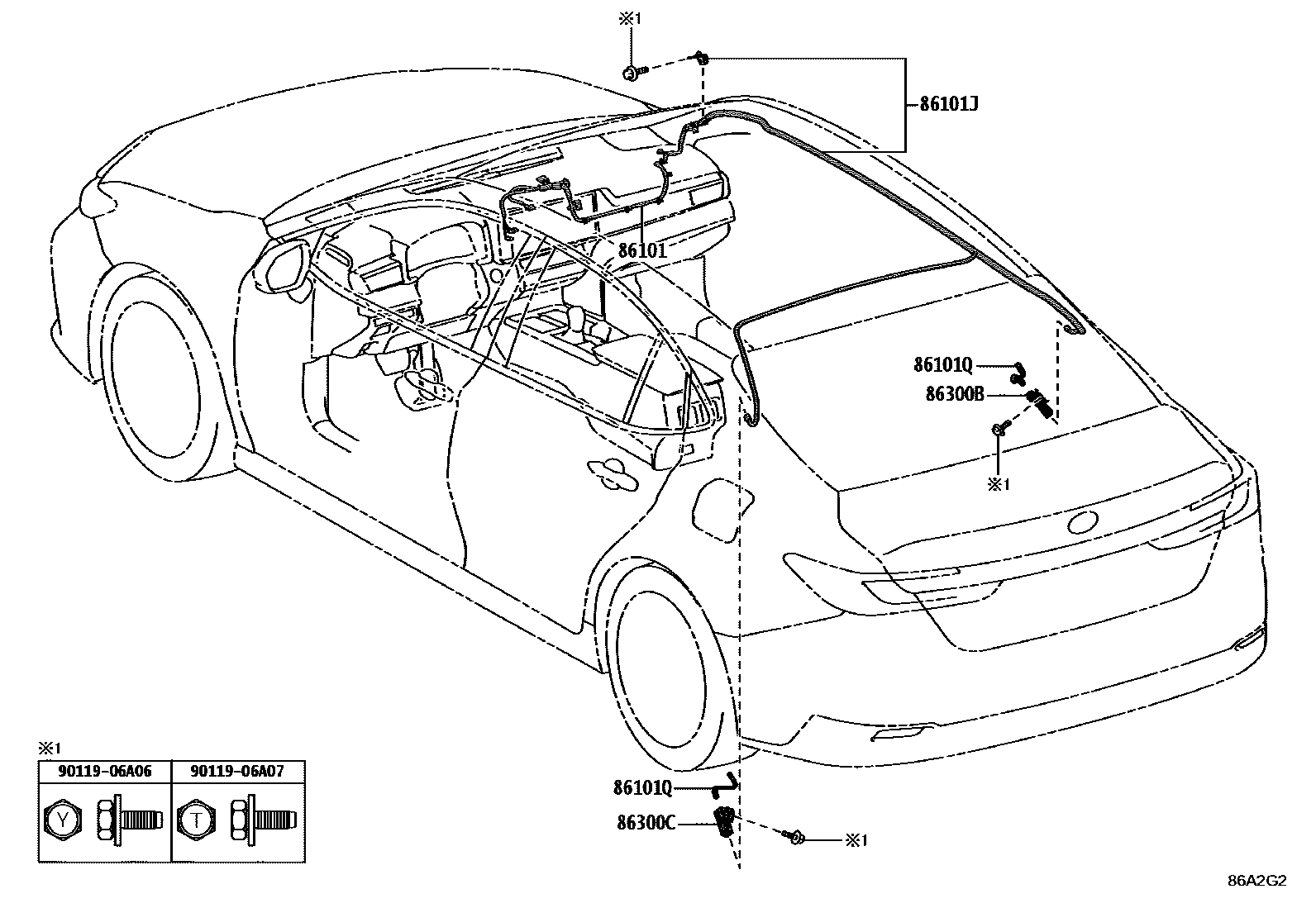

Toyota CAMRY antenna EPC diagram — 86A2G2
antenna — 86A2G2 (202410 – 999999)

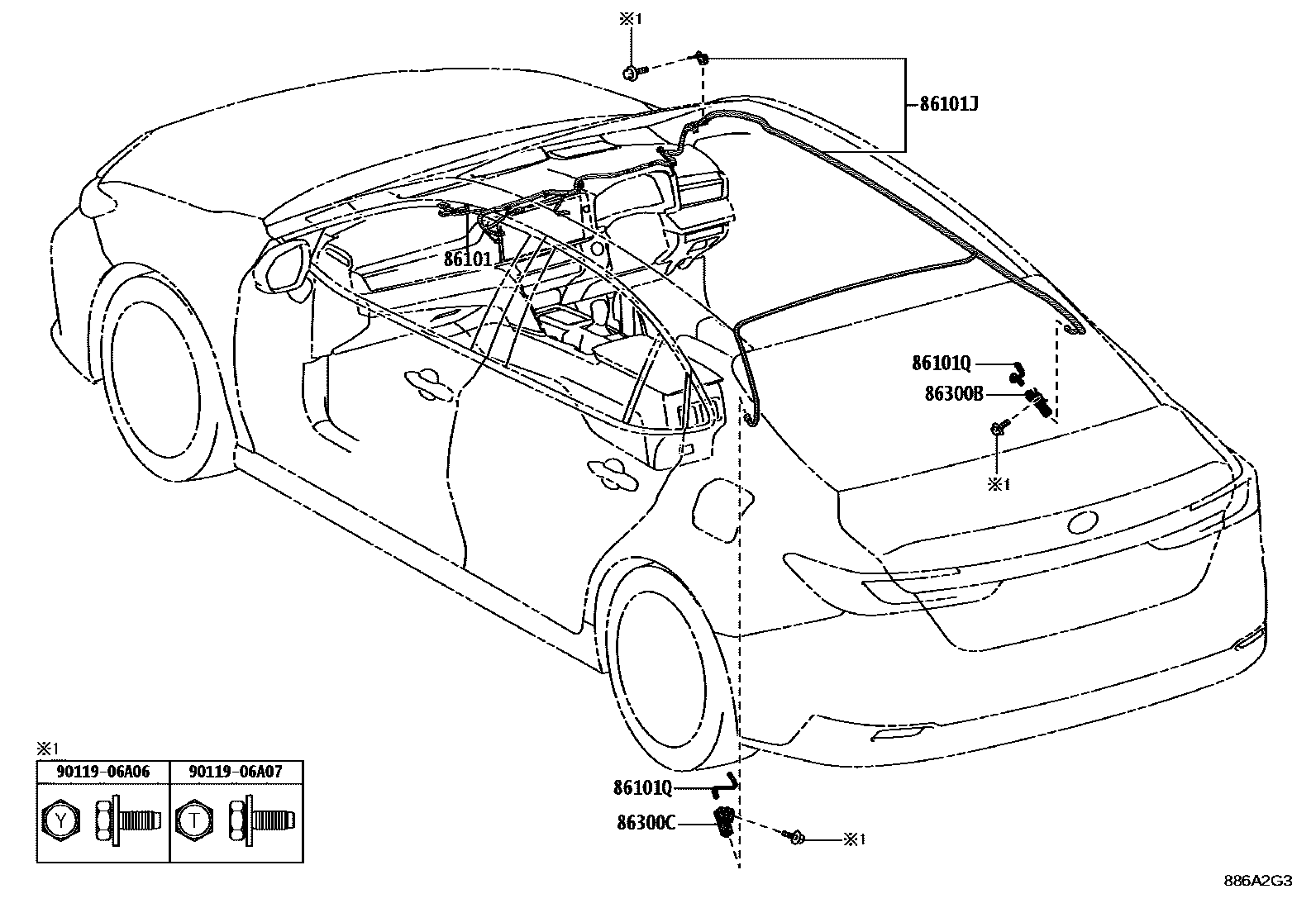

Toyota CAMRY antenna EPC diagram — 86A2G3
antenna — 86A2G3 (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-06P40 · 86101-06P50 · 86101-06P60 · 86101-06P70
86101JNo. 2 antenna wire sub-assembly86101-06P00 · 86101-06P10 · 86101-06P20 · 86101-06P30
86101QNo. 4 antenna wire sub-assembly86101-06N90
86300BAmplifier antenna assembly86300-06270
86300CAmplifier antenna assembly86300-06280
