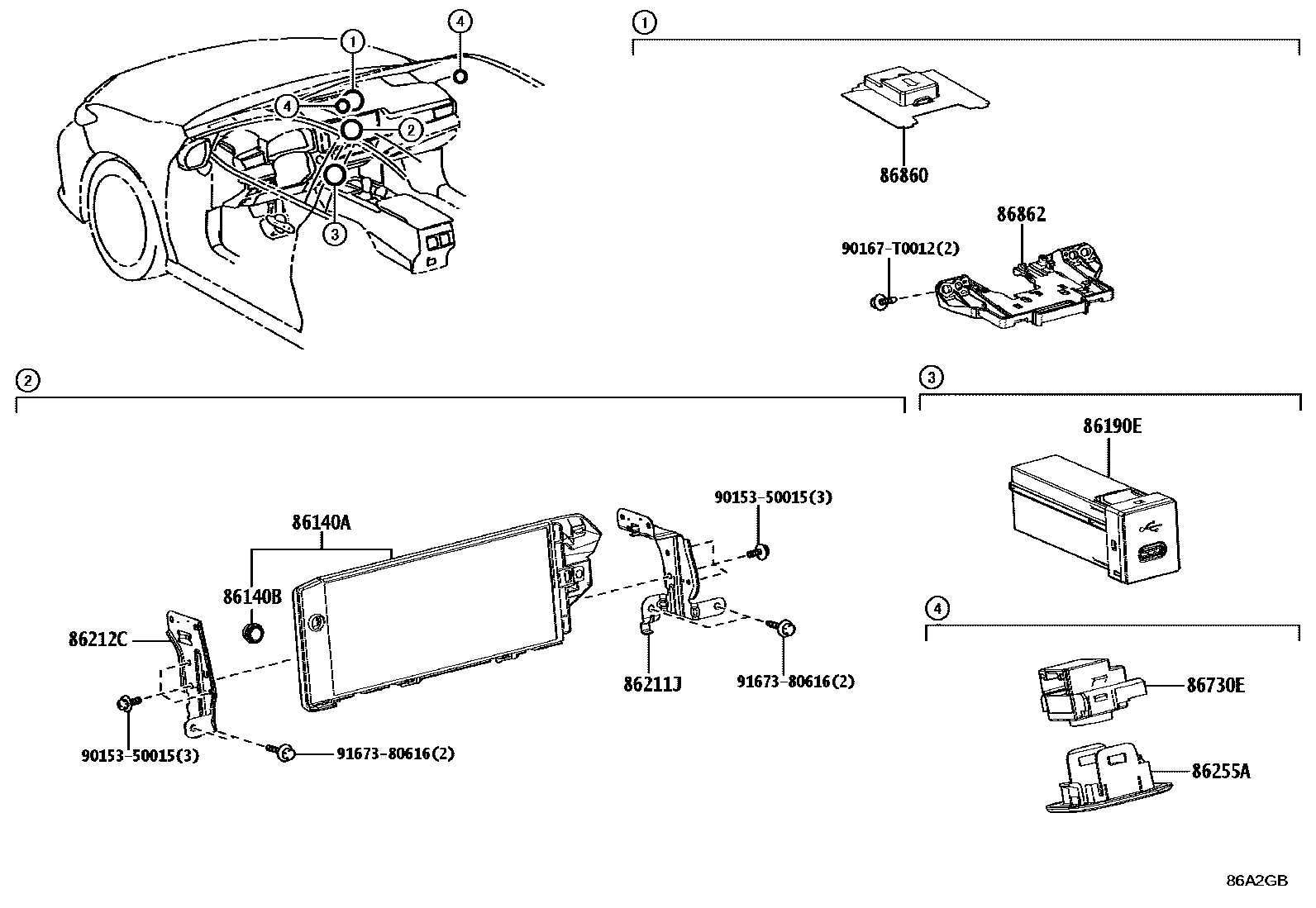

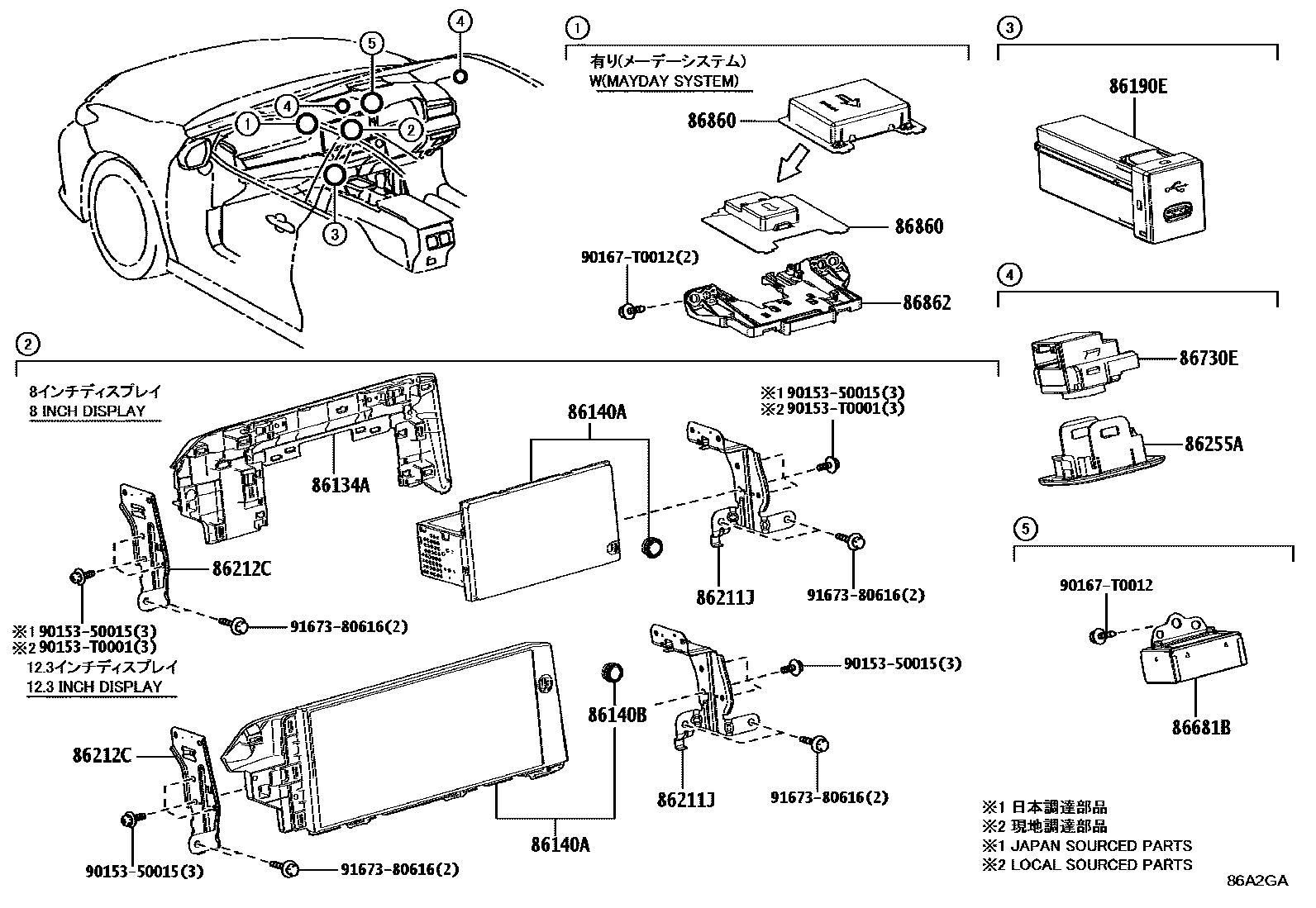

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86134A | PIECES DETACHEES, AFFICHAGE MULTIPLE | 86134-33060 |
| 86140A | Radio and display receiver assembly | 86100-33C50 · 86100-33C60 · 86100-33C70 · 86100-33C80 · 86100-33C90 · 86100-33D00 · 86140-06F40 |
| 86140B | Radio and display receiver switch button | 90010-23064 · 90010-24202 |
| 86190E | Stereo socket adapter assembly | 86190-12080 |
| 86211J | No. 1 radio bracket | 86211-06420 |
| 86212C | No. 2 radio bracket | 86212-06420 |
| 86681B | Antenna splitter | 86681-11010 |
| 86730E | ENS. MICROPHONE | 86730-0D010 · 86730-16010 |
| 86860 | Navigation antenna assembly | 86860-06130 · 86880-48020 |
| 86862 | Navigation antenna bracket | 86862-42010 |
