Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

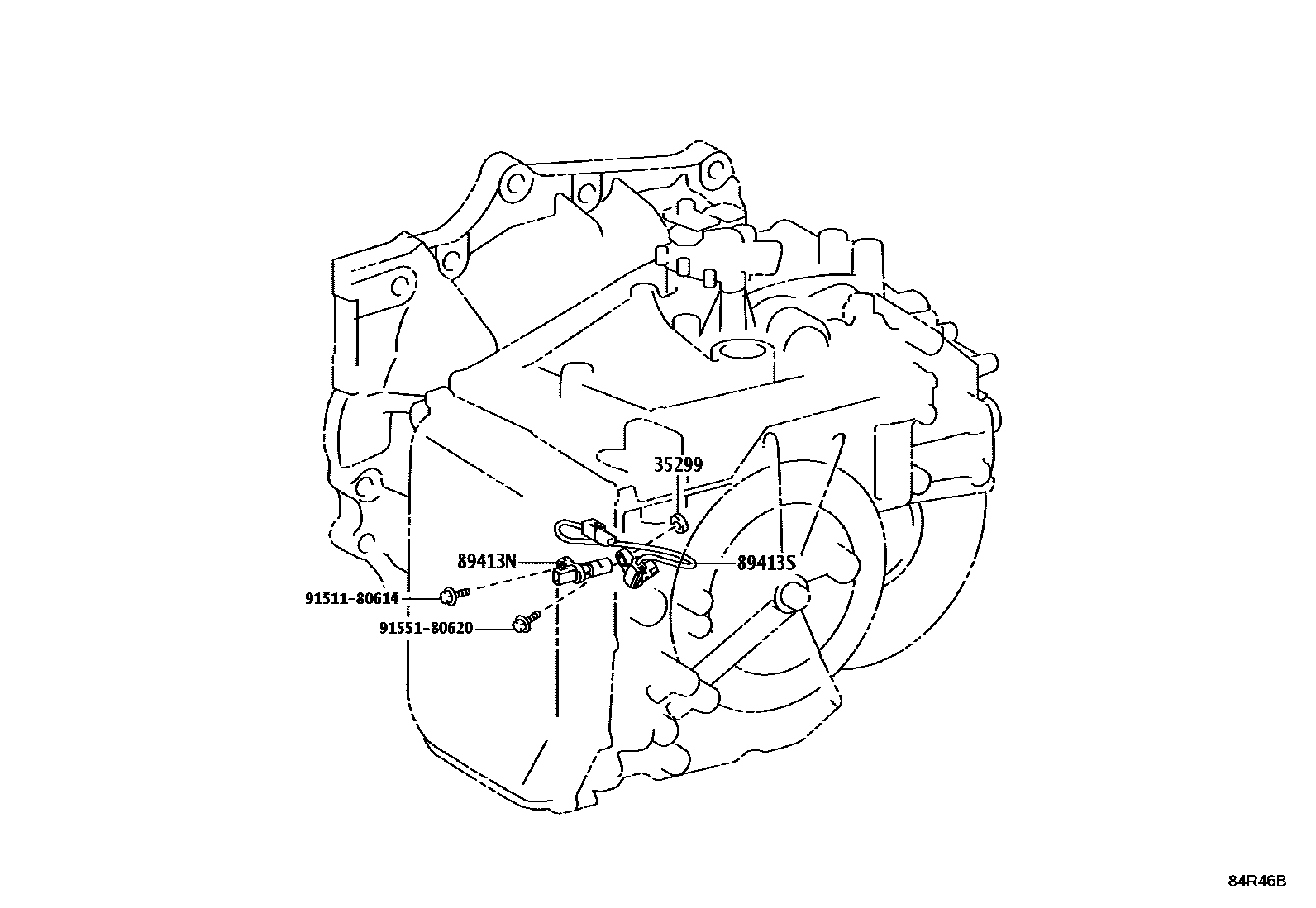

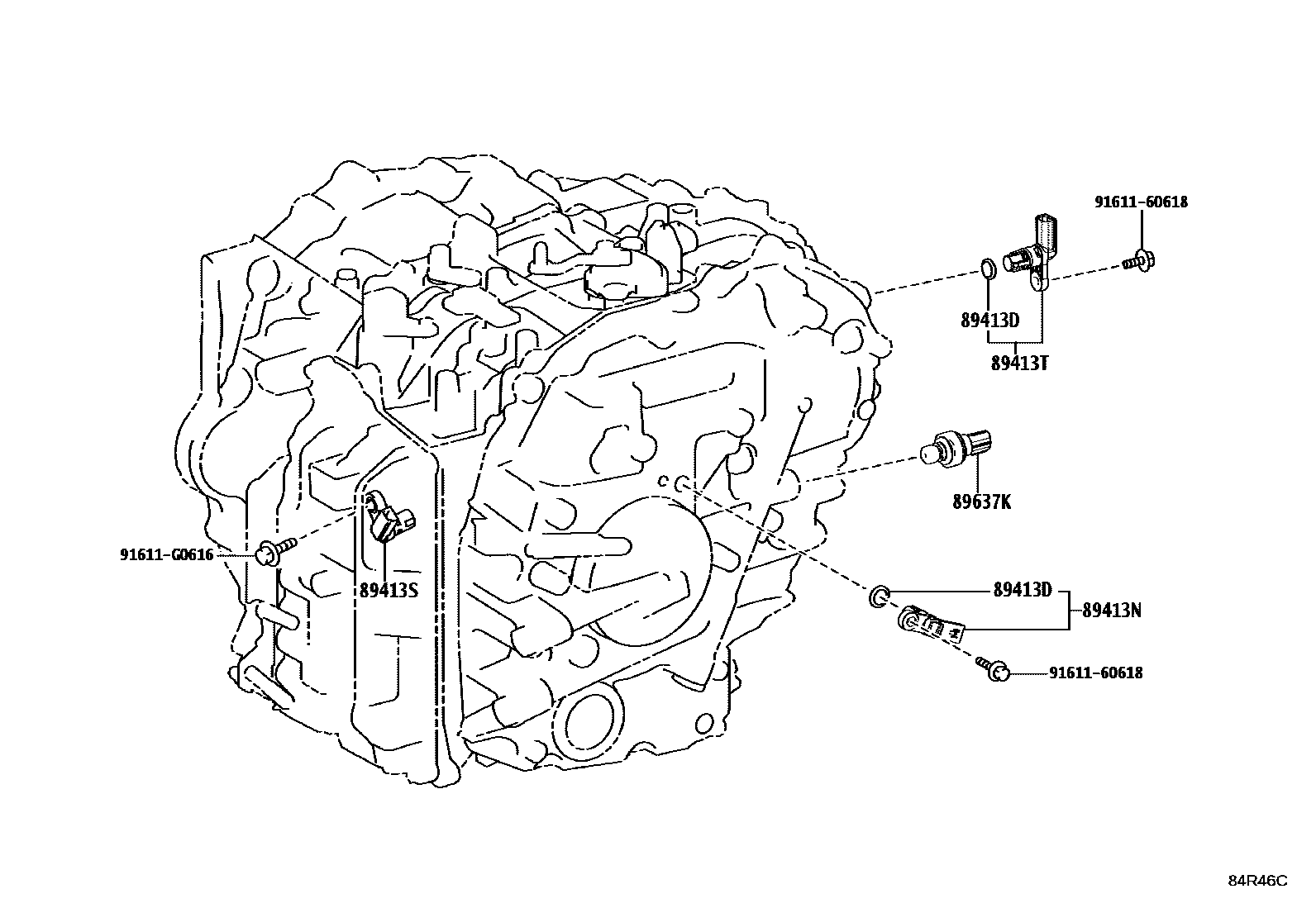

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35299 | Transmission speed sensor spacer | 35469-48010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413N | CAPTEUR, REVOLUTION DE LA TRANSMISSION, (NT) | 89413-12010 · 89413-33041 |
| 89413S | CAPTEUR, REVOLUTION DE LA TRANSMISSION, (NC) | 89413-11021 · 89413-33051 |
| 89413T | CAPTEUR, TOURS TRANSMISSION (NSS) | 89413-12010 |
| 89637K | oil pressure sensor | 89637-12040 |
