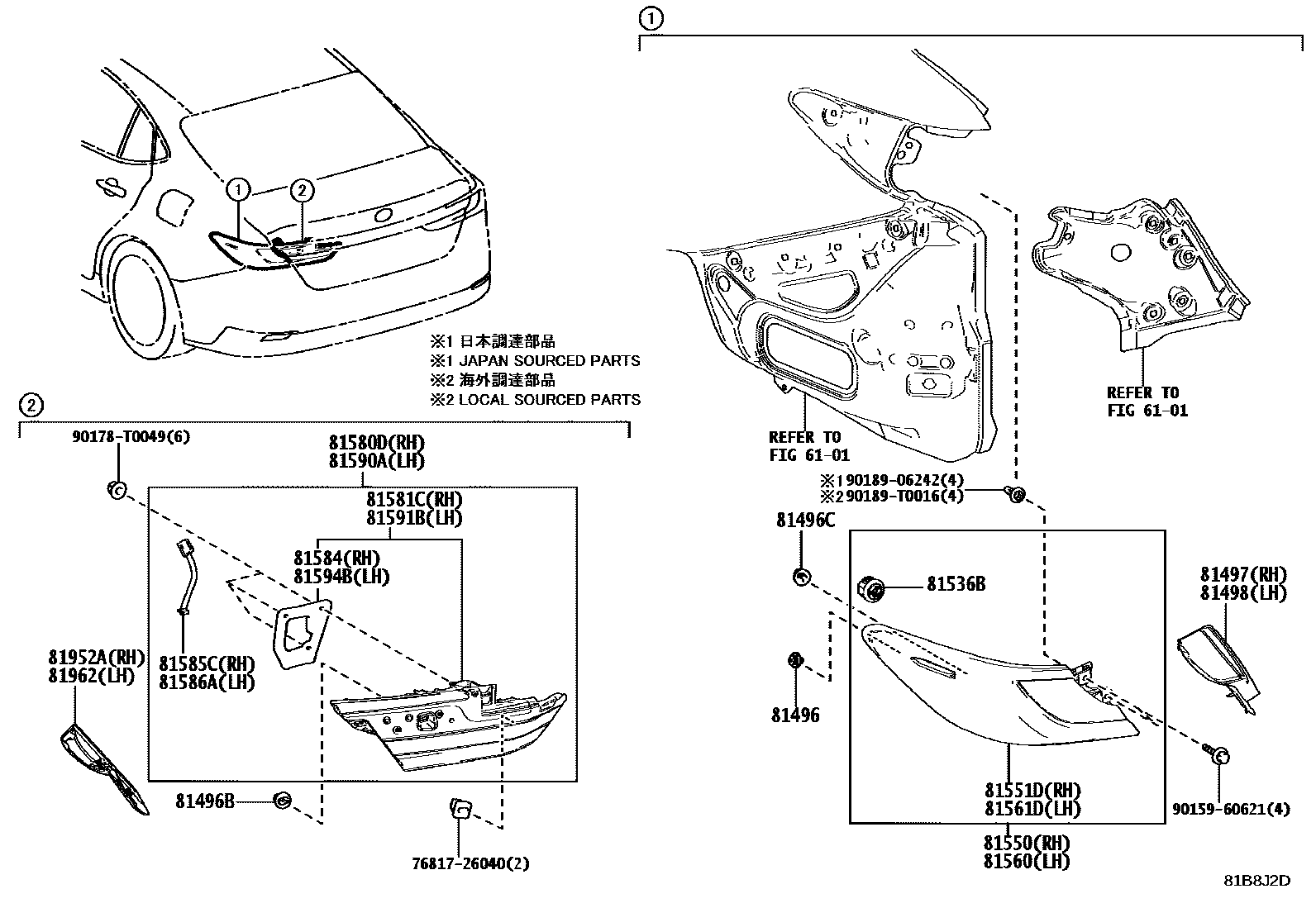

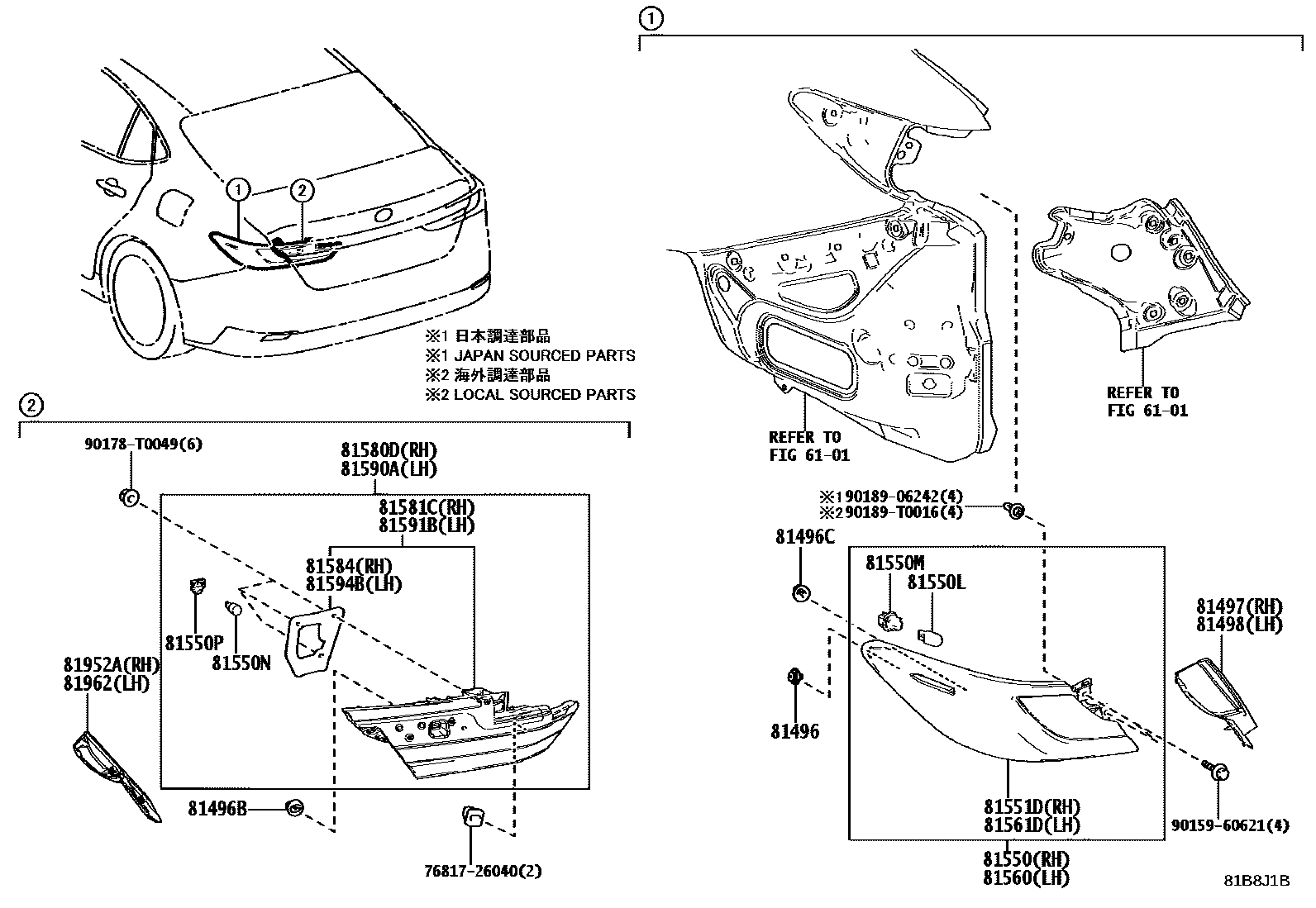

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81496B | Rear light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-06080 |
| 81498 | Left rear combination lamp cover | 81498-06080 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81965-48030 |
| 81550 | Right rear combination light assembly | 81550-06B50 · 81550-06B60 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60028 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-99005 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06B50 · 81551-06B60 |
| 81560 | Left rear combination light assembly | 81560-06B50 · 81560-06B60 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06B50 · 81561-06B60 |
| 81580D | Right rear light assembly | 81580-06A60 · 81580-06A70 · 81580-06A90 |
| 81581C | Right rear light lampshade and lamp body | 81581-06A60 · 81581-06A70 · 81581-06A90 |
| 81584 | Right rear light seal | 81582-06A60 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-06A70 · 81585-06A90 |
| 81586A | DOUILLE CABLE, PROJECTEUR D'ECLAIR. ARR., GAUCHE | 81585-06A70 |
| 81590A | Left rear light assembly | 81590-06A60 · 81590-06A70 |
| 81591B | Left rear light shade and body | 81591-06A60 · 81591-06A70 |
| 81594B | Left rear light seal | 81592-06A60 |
| 81952A | Right rear light cover | 81952-06010 |
| 81962 | Left rear light cover | 81962-06010 |
