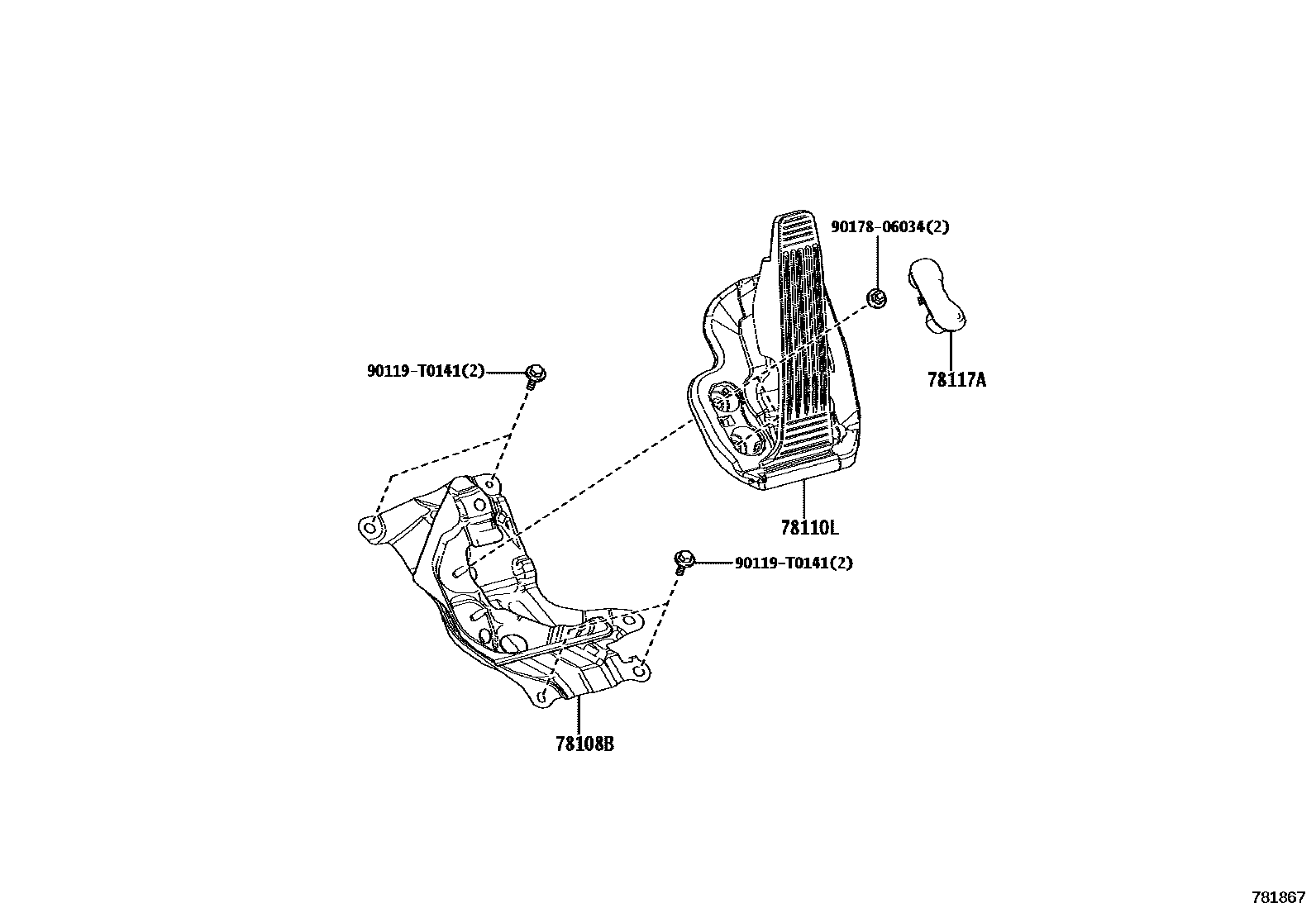

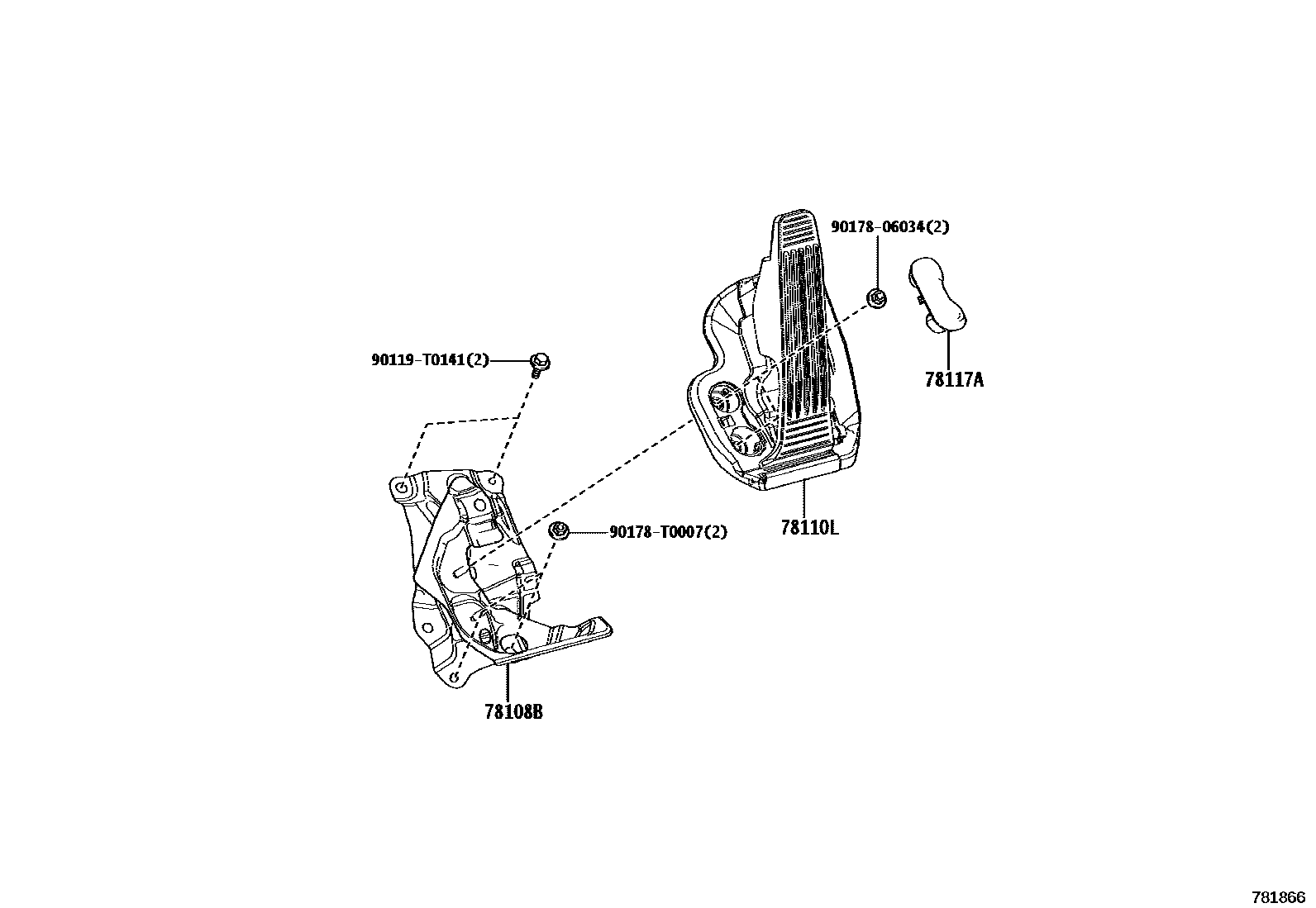

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78108B | SOUS-ENS. DE CONSOLE DE BIELLE DE TORQUE D'ACCELERATEUR | 78108-06030 · 78108-06040 |
| 78110L | ENS. CAPTEUR, PEDALE ACCELERATEUR | 78110-33190 · 78110-33200 |
| 78117A | CACHE, PEDALE D'ACCELERATEUR | 78117-42010 |
