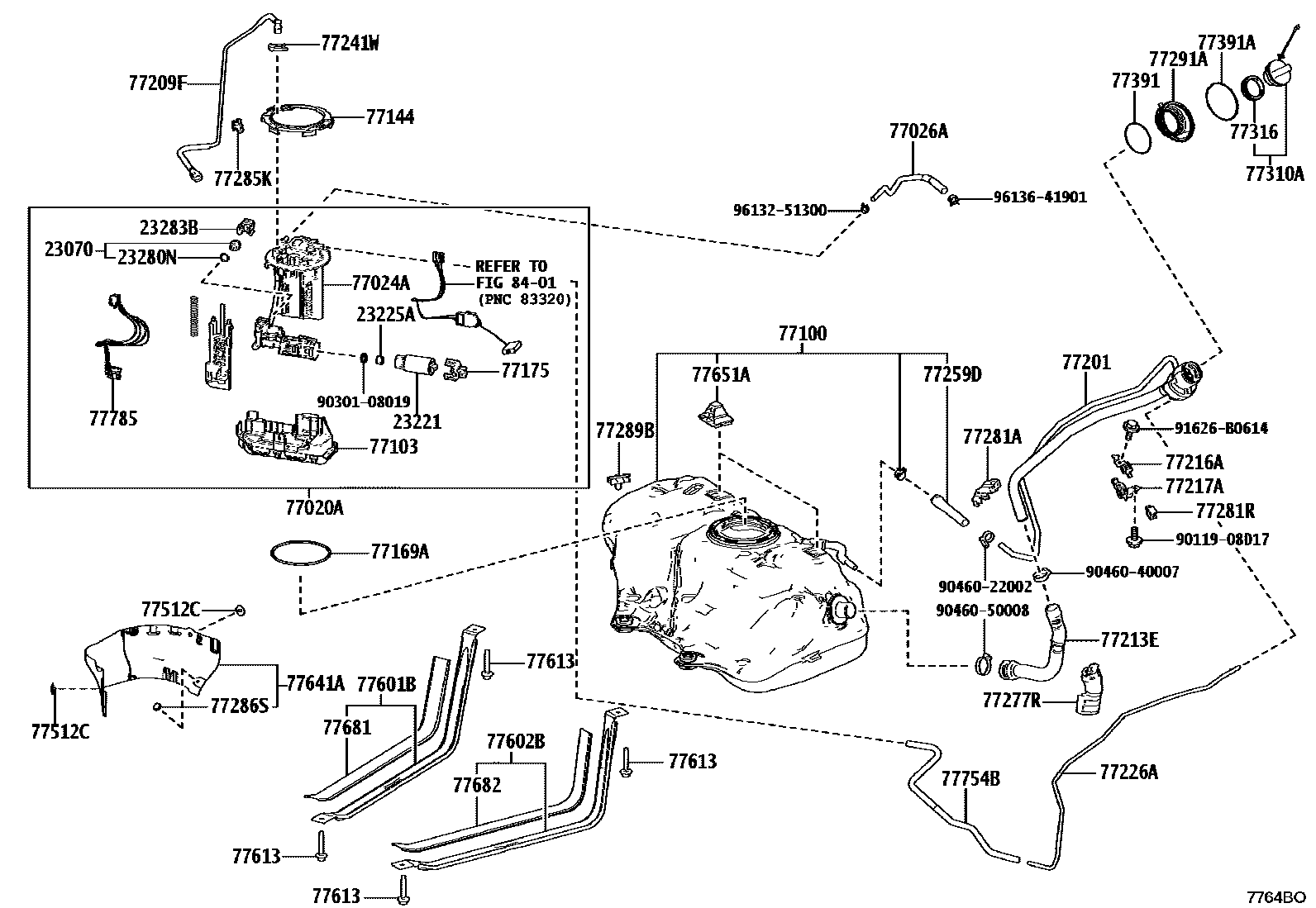

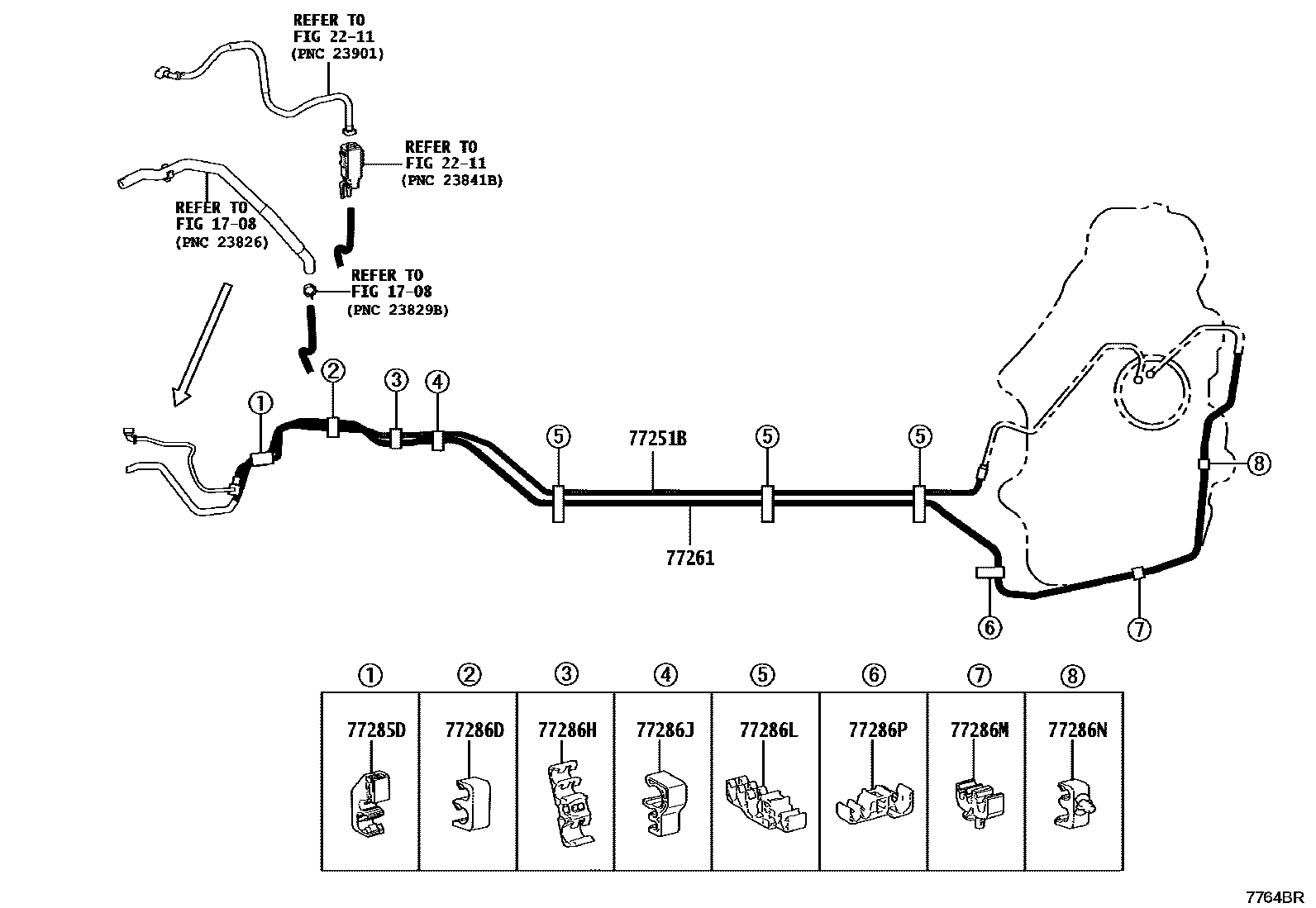

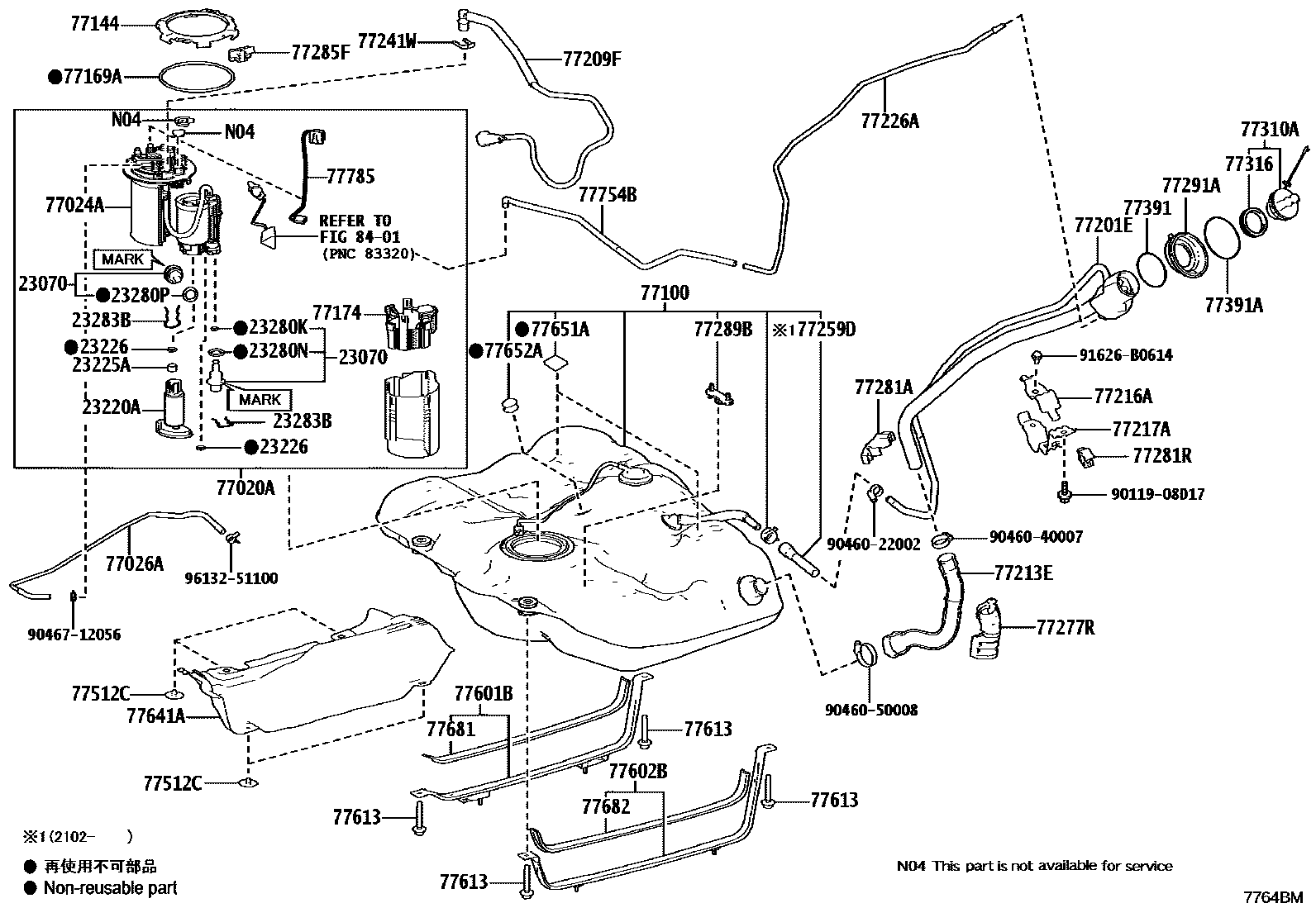

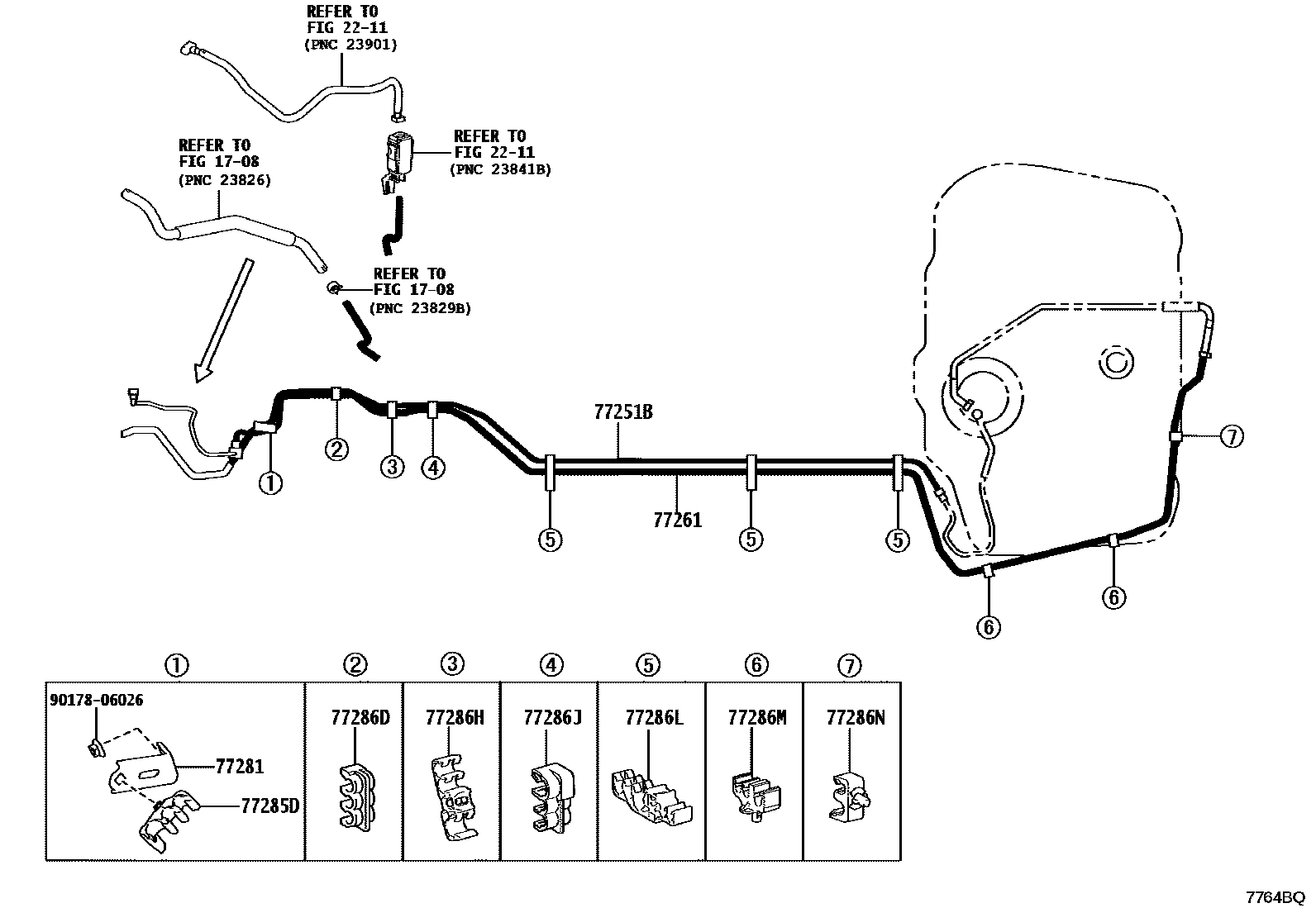

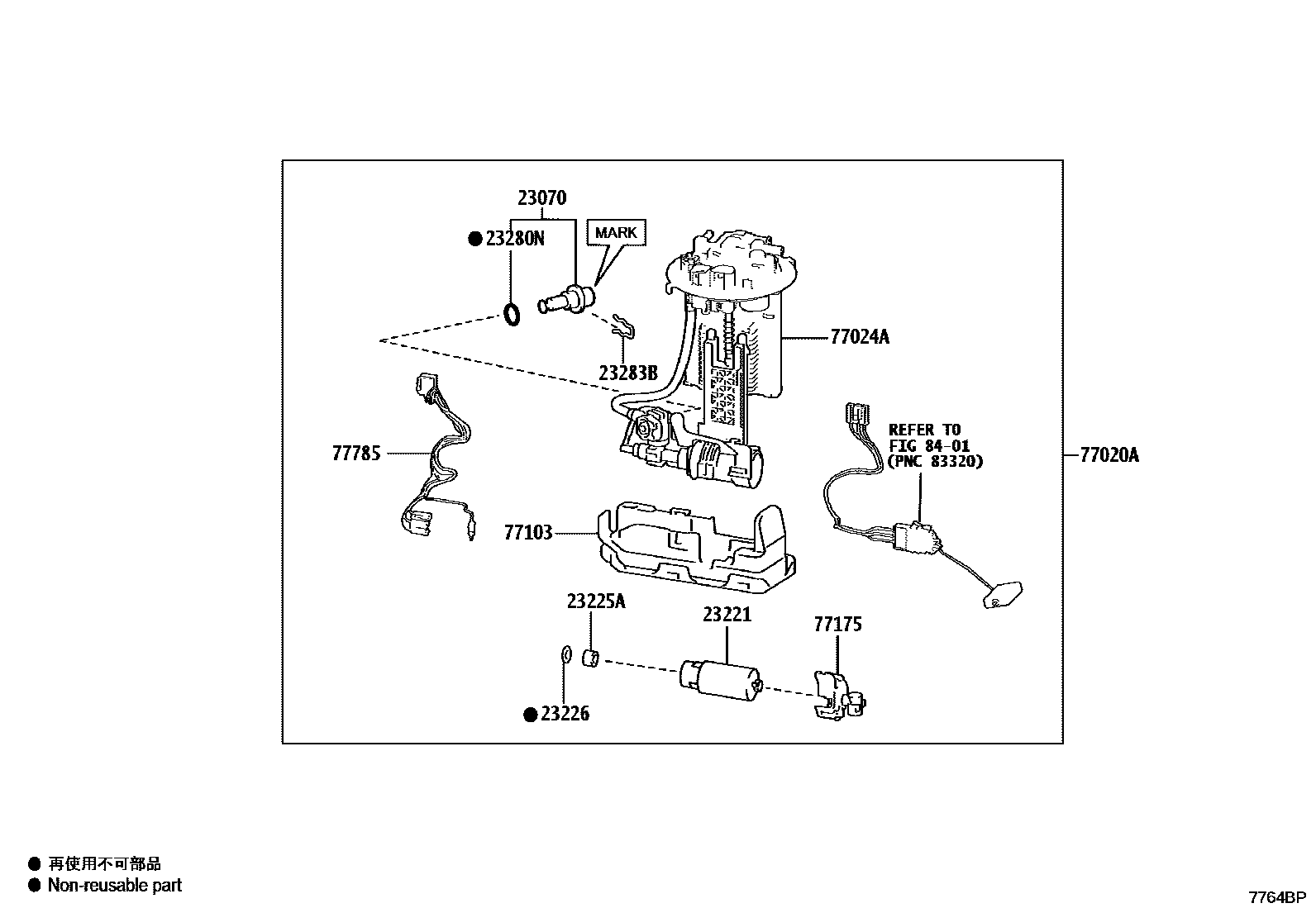

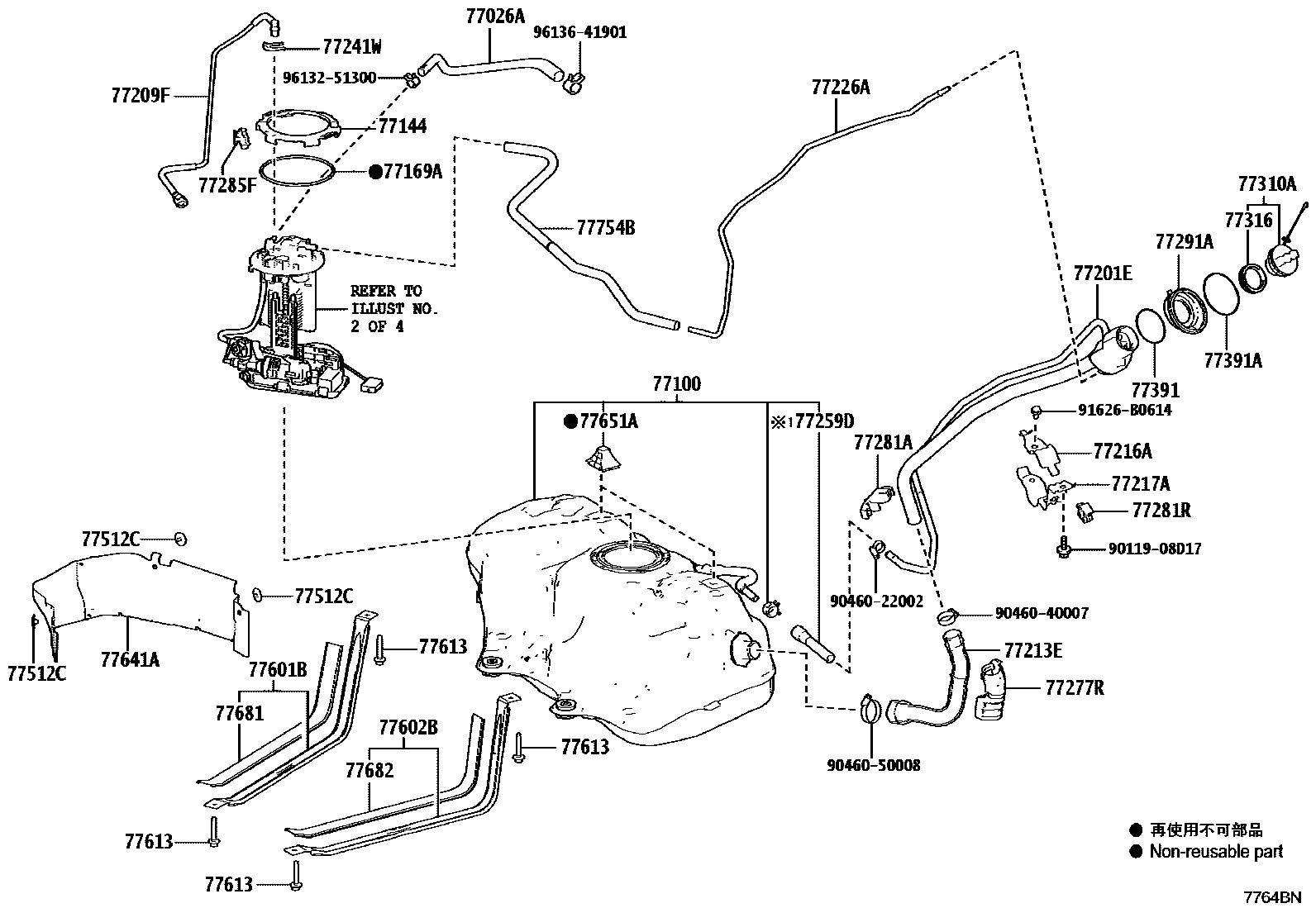

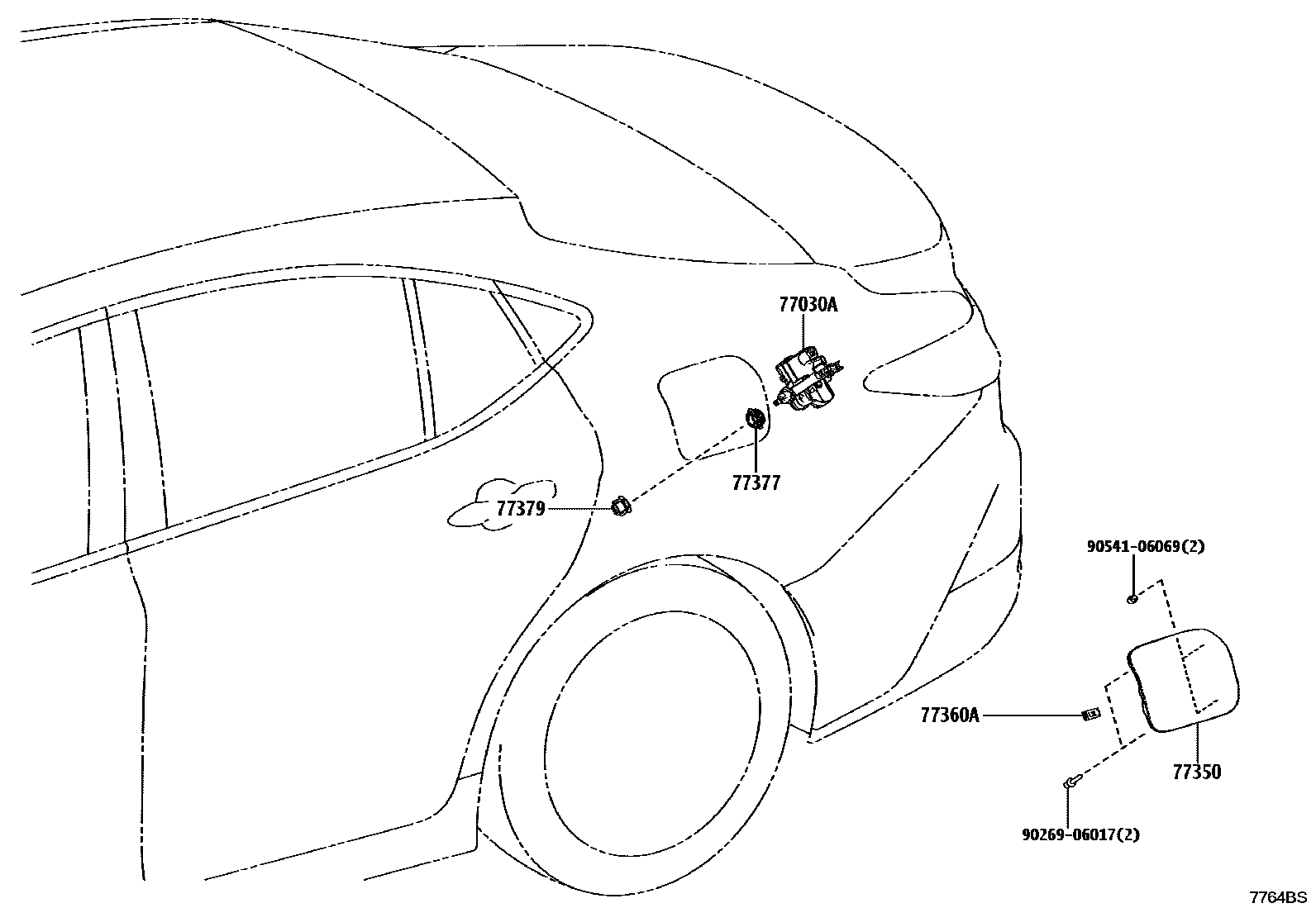

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 7 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31030 |
| 23220A | Fuel pump assembly with filter | 23220-25020 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 |
| 23226 | O-ring (for fuel pump) | 90301-08019 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.2 | 90301-15024 |
| 23280P | JOINT TORIQUE (DE REGULATEUR PRESSION ESSENCE), NO.3 | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-24011 · 23283-36010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06582 · 77020-06691 · 77020-33512 |
| 77024A | Fuel absorber sub-assembly | 77024-33321 · 77024-33421 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-06090 · 77026-06100 · 77026-33100 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-33110 |
| 77100 | fuel tank assembly | 77001-06270 · 77001-06300 · 77001-33311 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-12151 |
| 77144 | Fuel pump instrument fixture | 77144-0K040 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12031 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-33560 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06270 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06120 · 77209-06140 · 77209-33171 |
| 77213E | Fuel tank to filler pipe hose | 77213-06130 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06170 · 77216-33190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06160 · 77217-33130 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06210 · 77226-33250 |
| 77241W | Pipe joint clip | 77241-0K010 · 77241-60550 |
| 77251B | main fuel pipe | 77251-06390 · 77251-06520 · 77251-06590 |
| 77259D | No. 1 fuel hose | 77259-06020 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06630 · 77261-06640 · 77261-06650 |
| 77277R | Fuel tank filler pipe protection device | 77277-33110 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06270 |
| 77281A | Fuel filler pipe clamp | 77281-06220 · 77281-33050 |
| 77281R | PINCE, GOULOT DE REMPLISSAGE DU CARBURANT, NO.2 | 77281-30110 |
| 77285D | No. 1 fuel pipe clamp | 77285-33140 · 77285-33210 |
| 77285F | No. 1 fuel pipe clamp | 77285-06570 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77286-11070 · 77286-20170 |
| 77286H | No. 3 fuel pipe clamp | 77298-33110 · 77298-33160 |
| 77286J | No. 4 fuel pipe clamp | 77295-42030 · 77298-48190 |
| 77286L | No. 5 fuel pipe clamp | 77298-33040 · 77298-33130 |
| 77286M | No. 6 fuel pipe clamp | 77285-33180 · 77286-47050 |
| 77286N | No. 7 fuel pipe clamp | 77286-33110 · 77286-33120 |
| 77286P | No. 8 fuel pipe clamp | 77298-33100 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289B | No. 3 fuel pipe clamp | 77289-33080 · 77289-33090 |
| 77291A | Fuel tank filler pipe cover | 77291-06230 |
| 77310A | Fuel tank cap assembly | 77300-0K010 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-06160 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-78010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-06020 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33060 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06200 · 77601-06220 · 77601-33150 · 77601-33180 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06210 · 77602-06230 · 77602-33160 · 77602-33190 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77606-06050 · 77606-33050 · 77641-06060 |
| 77651A | No. 1 fuel tank liner | 77651-06140 · 77651-33060 |
| 77652A | No. 2 fuel tank liner | 77656-33010 |
| 77681 | Fuel tank right side strap seat | 77681-47020 · 77682-47020 |
| 77682 | Fuel tank left side strap seat | 77681-47020 · 77682-75010 |
| 77754B | Carbon canister outlet hose | 77754-06070 · 77754-06080 · 77754-33080 |
| 77785 | fuel pump wiring harness | 77785-33140 · 77785-33181 |
