Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

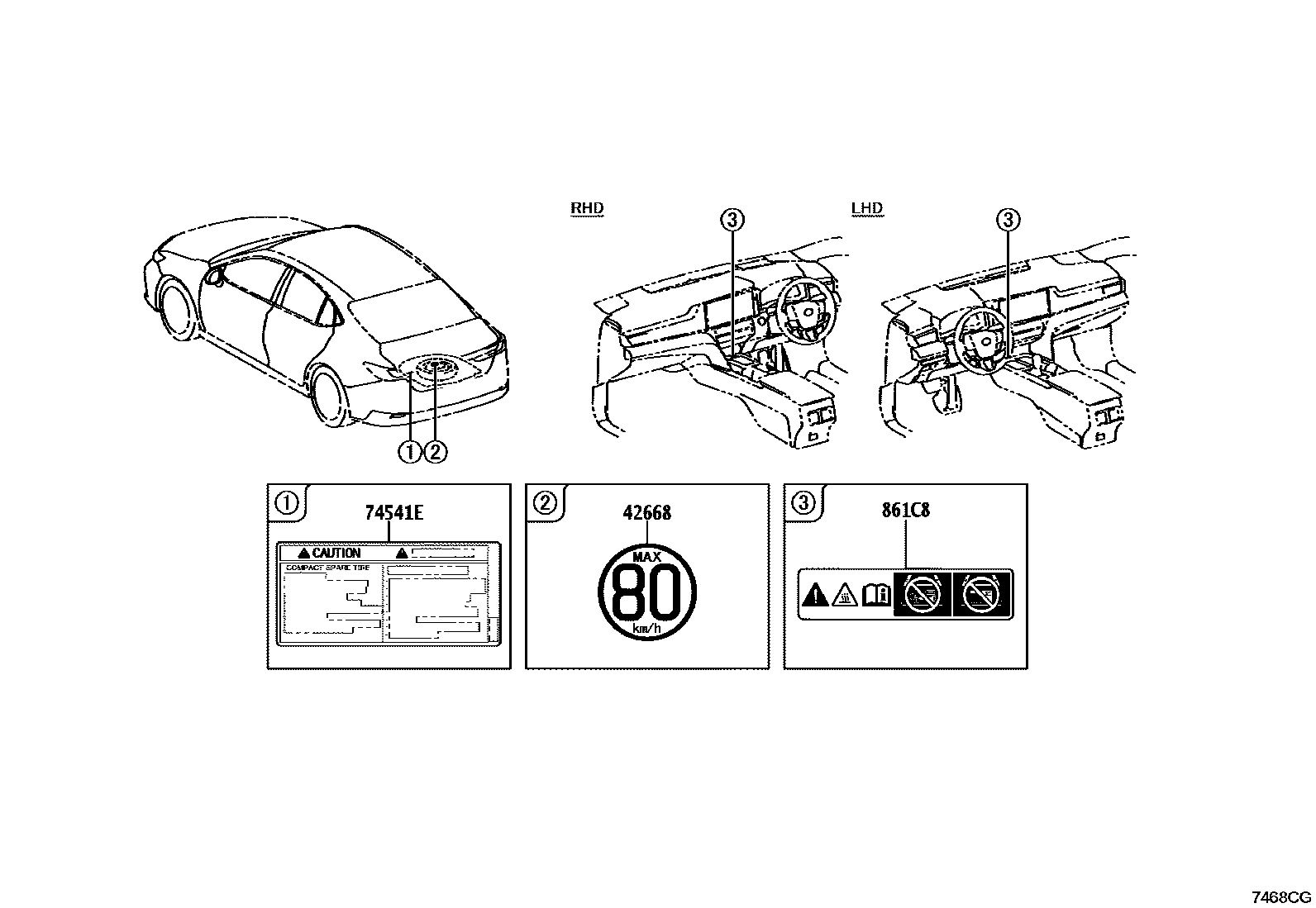

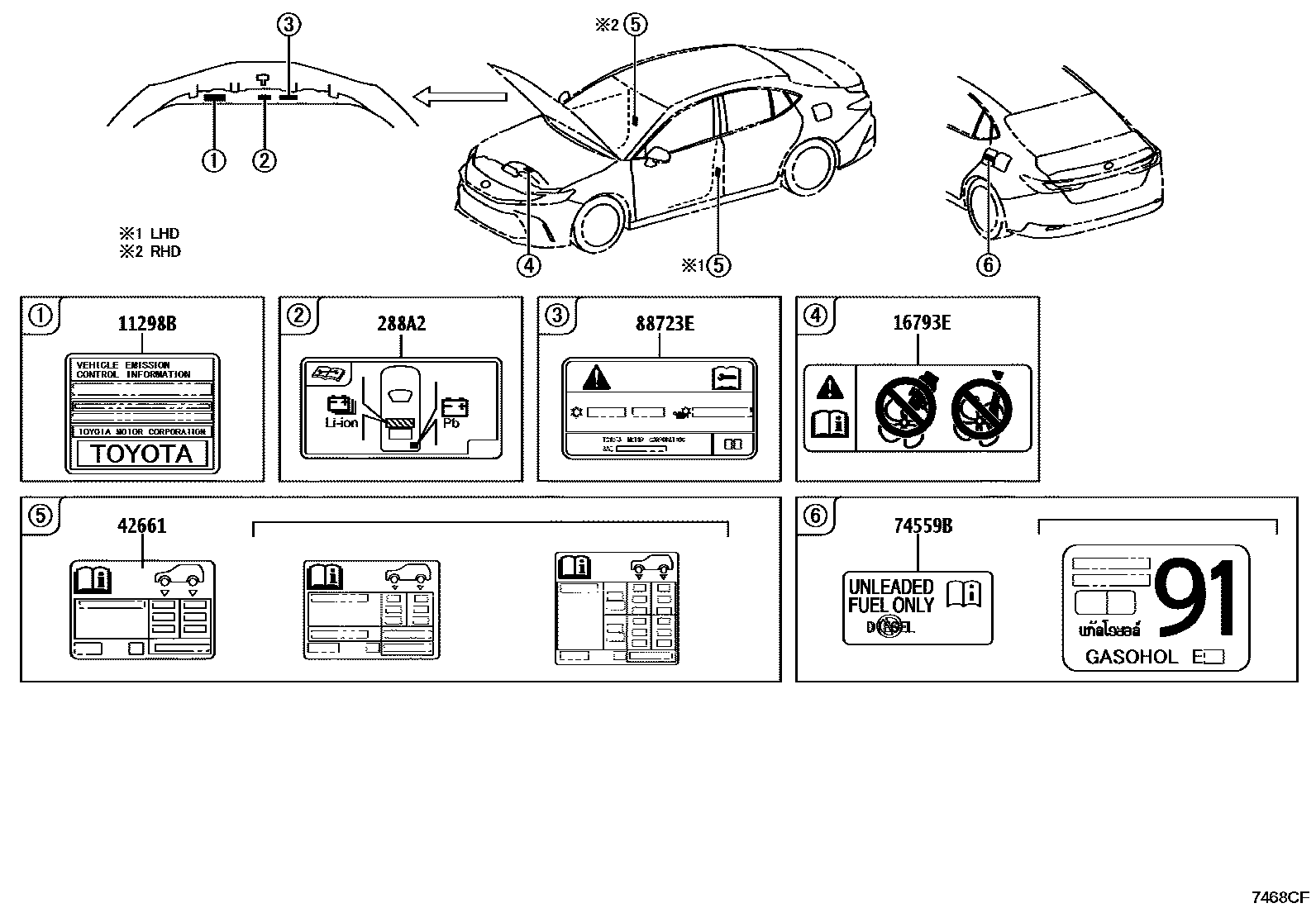

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-25181 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-24020 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-06C10 · 42661-06D70 · 42661-06D80 · 42661-06E00 · 42661-33J70 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 74541E | Small spare tire warning plate | 42668-02060 |
| 74559B | fuel information label | 74559-02050 · 74559-20140 |
| 861C8 | ETIQUETTE, AVERTISSEMENT CHARGEUR SANS FIL MOBILE | 861C8-48010 |
| 88723E | Cooler maintenance warning label | 88723-06270 · 88723-06280 |
