Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

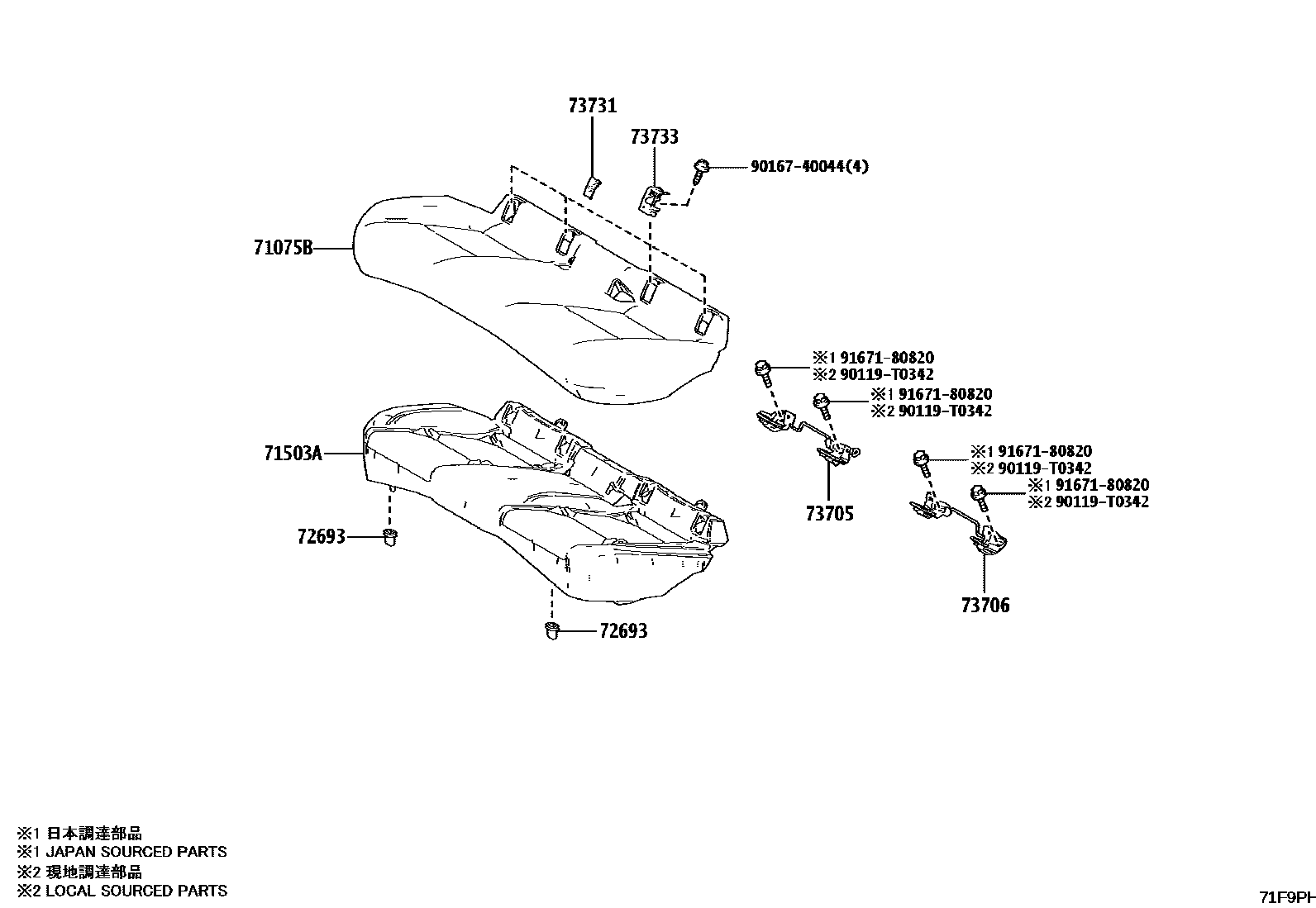

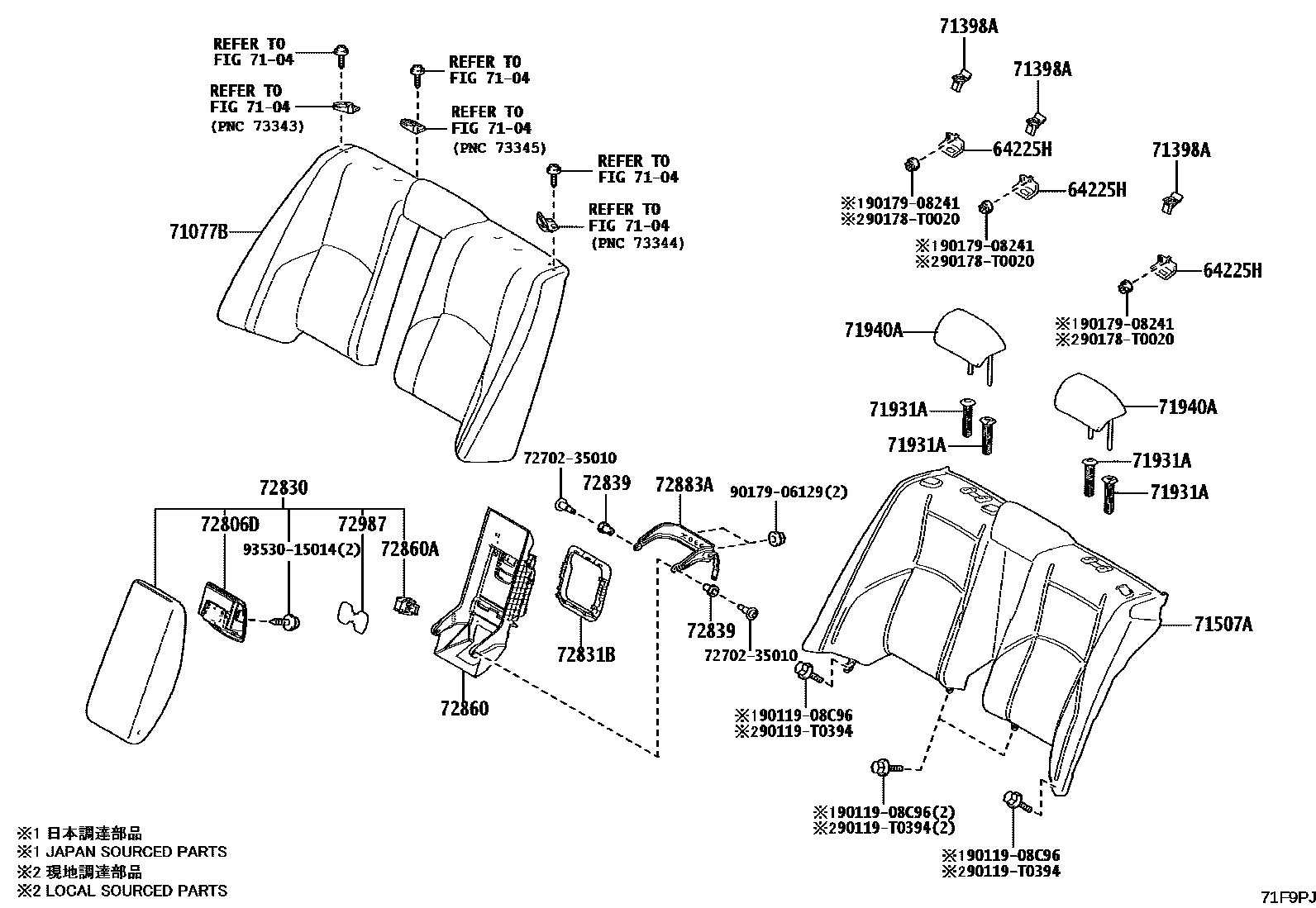

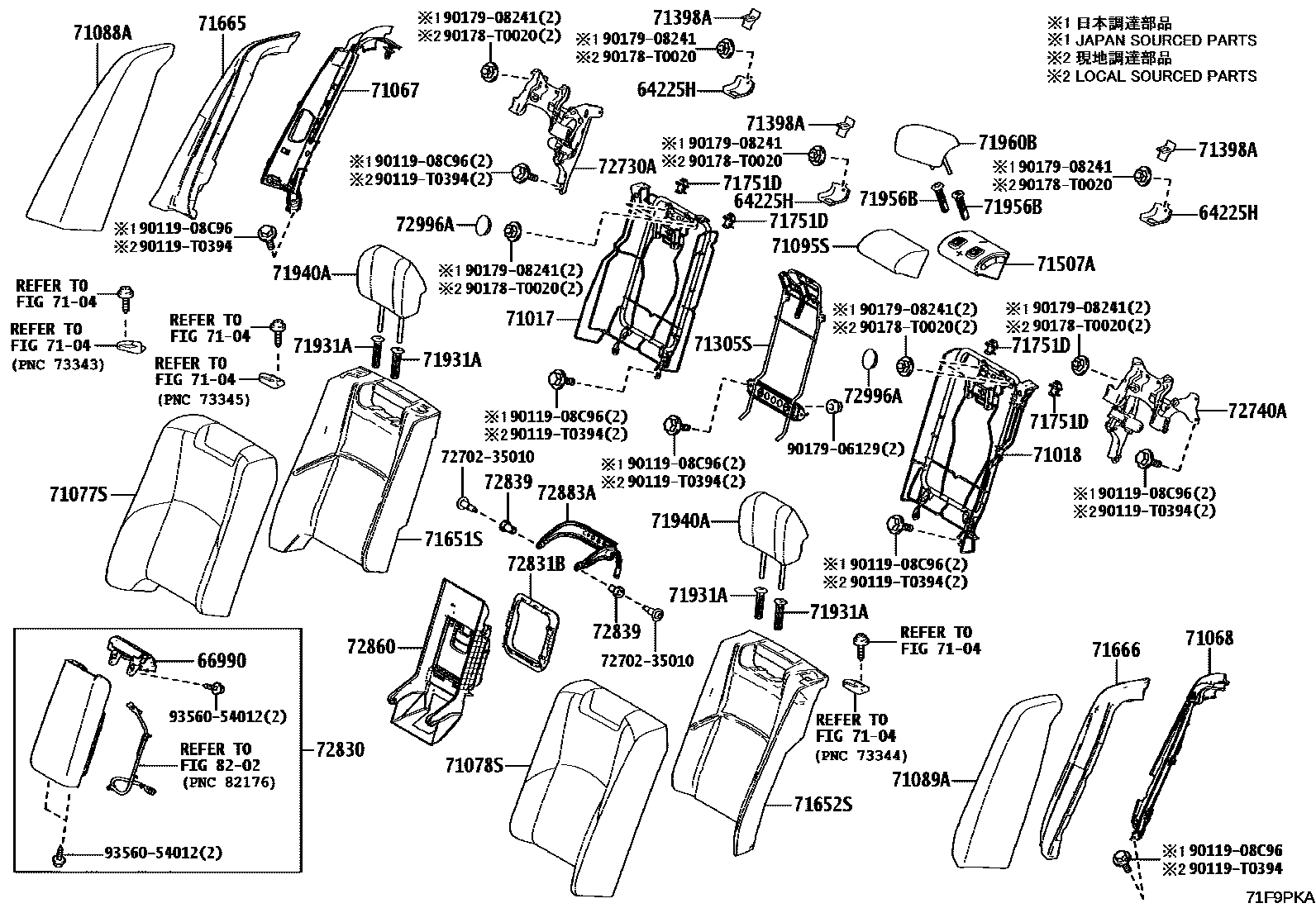

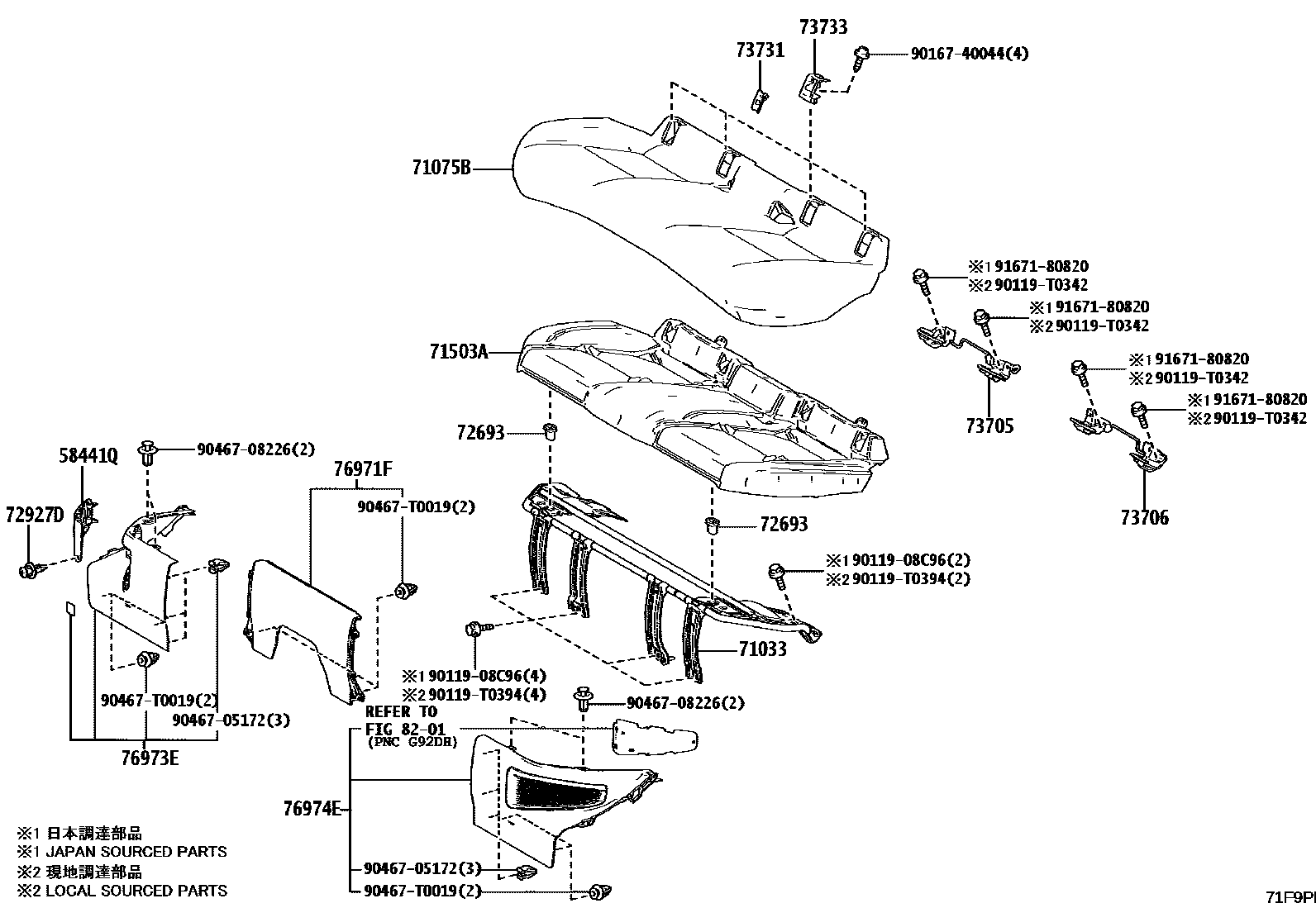

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64225H | CROCHET SUPPORT COUSSIN BANQUETTE ARRIERE | 64225-06090 |
| 71017 | Right rear seat back frame sub-assembly | 71017-06460 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06260 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-06080 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-06080 · 71067-06150 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-06090 · 71068-06160 |
| 71305S | Center seat back frame sub-assembly | 71305-06150 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-06530 · 71503-06560 |
| 71507A | SOUS-ENS. REMB. DOSSIER SIEGE ARR | 71507-06180 · 71507-06240 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06740 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06440 |
| 71665 | Rear right seat backrest side cushion | 71665-06170 |
| 71666 | Rear left seat backrest side cushion | 71666-06190 |
| 71751D | Rear seat cover hanger | 71751-06050 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33070 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33060 |
| 72831B | No. 1 rear seat center armrest panel | 72831-06140 |
| 72839 | Rear seat armrest hinge gasket | 72839-12010 |
| 72883A | Center armrest bracket for rear seat No. 1 | 72883-06160 · 72883-06220 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06170 · 73705-06180 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06170 · 73706-06180 |
