Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

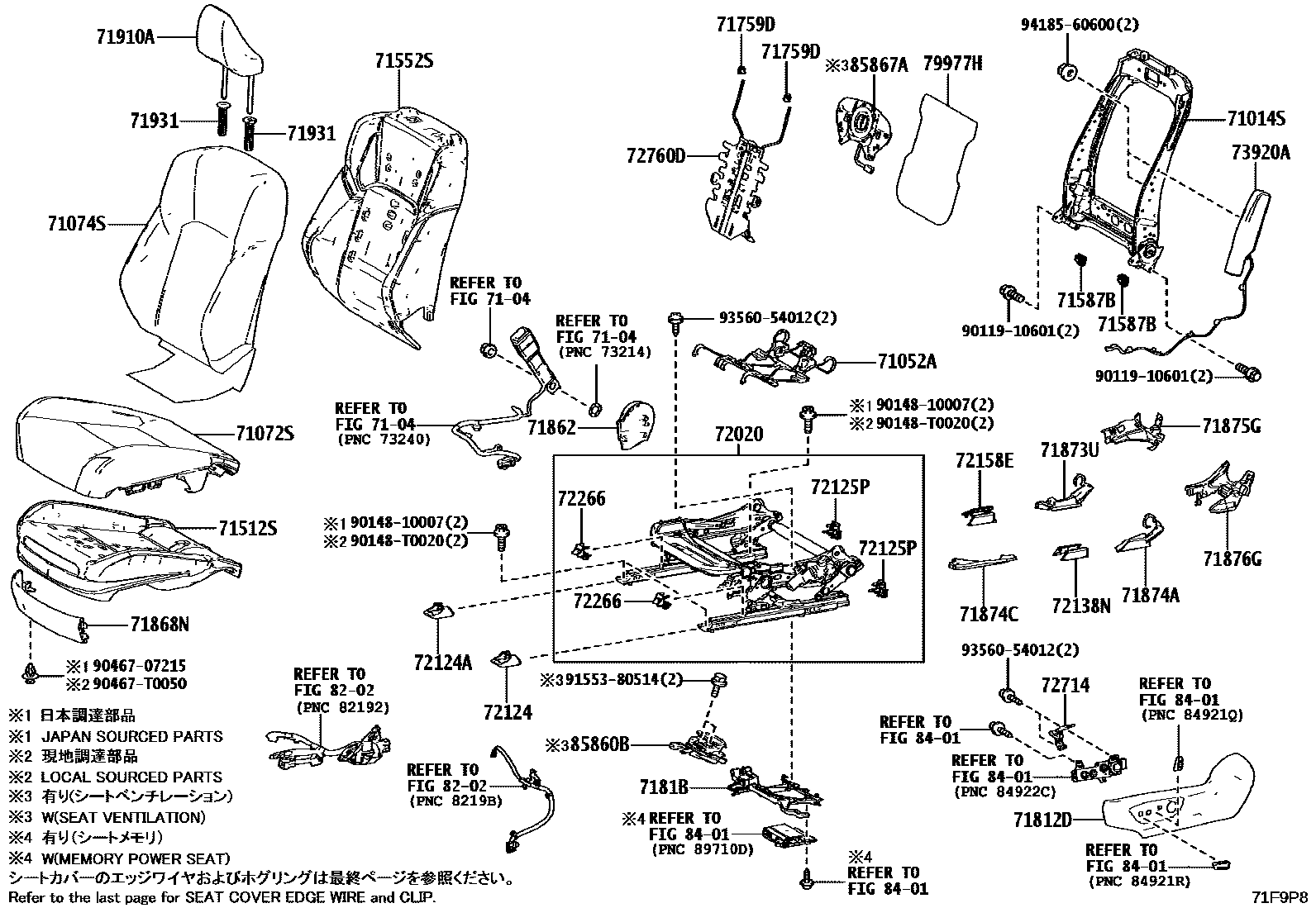

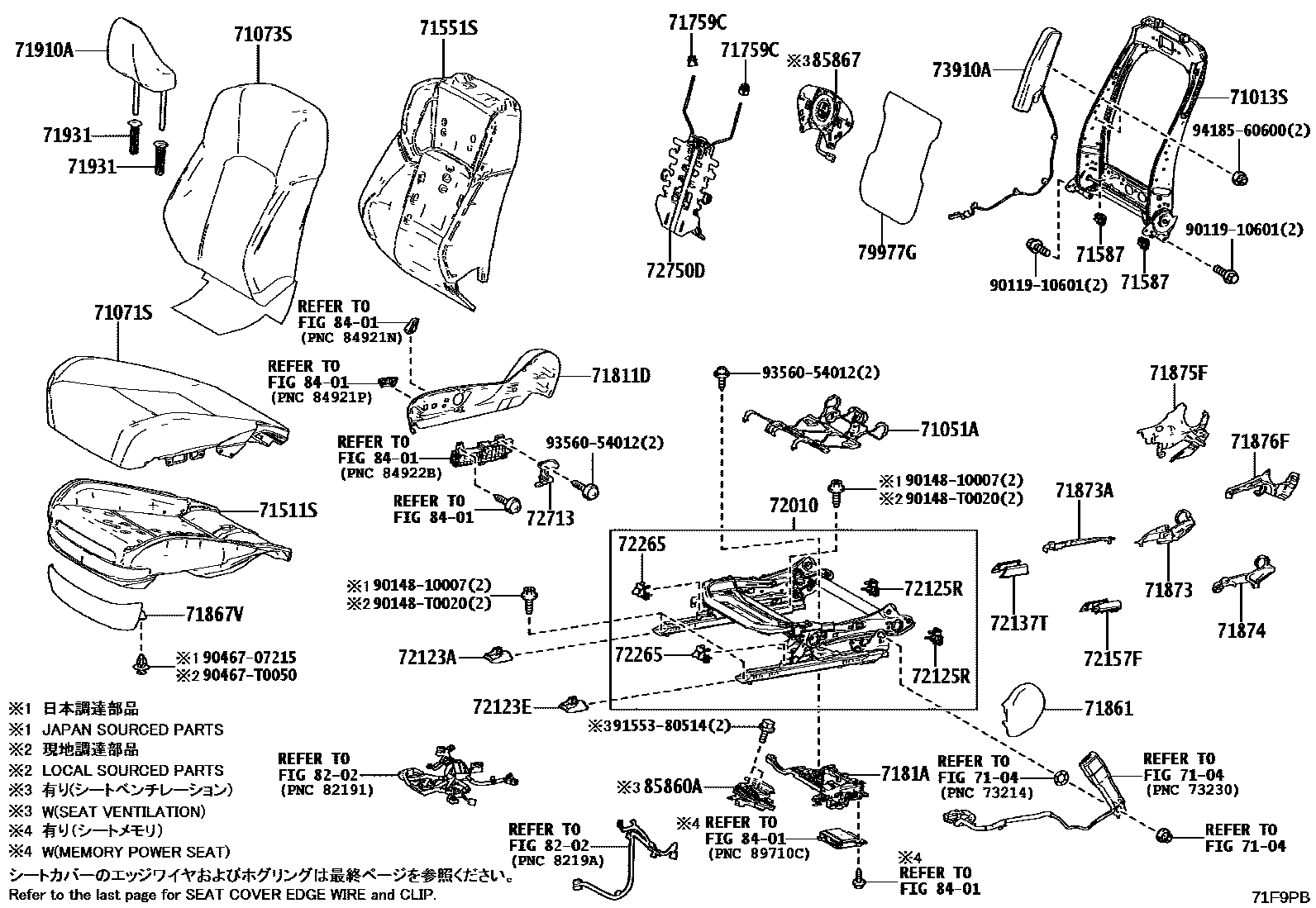

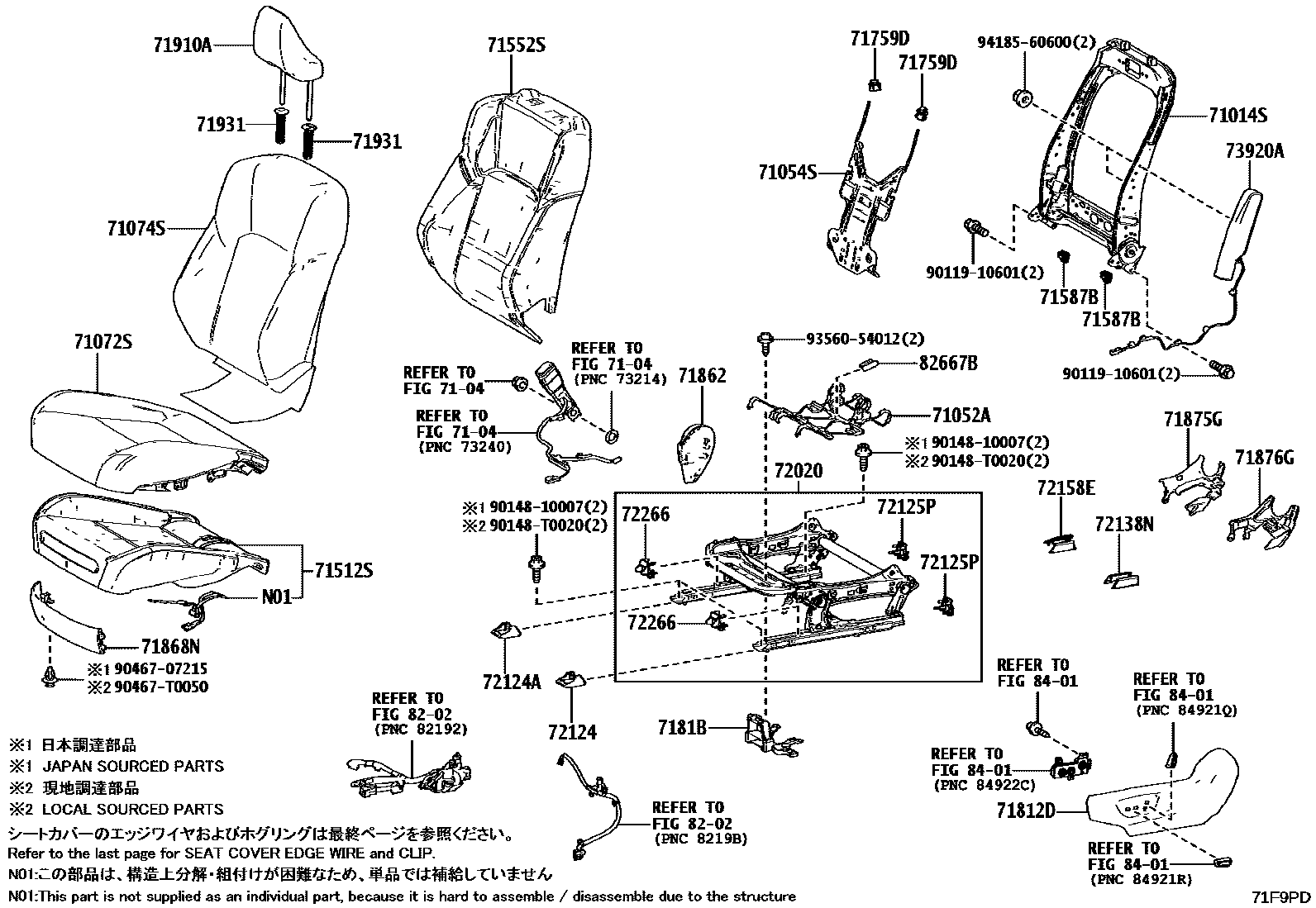

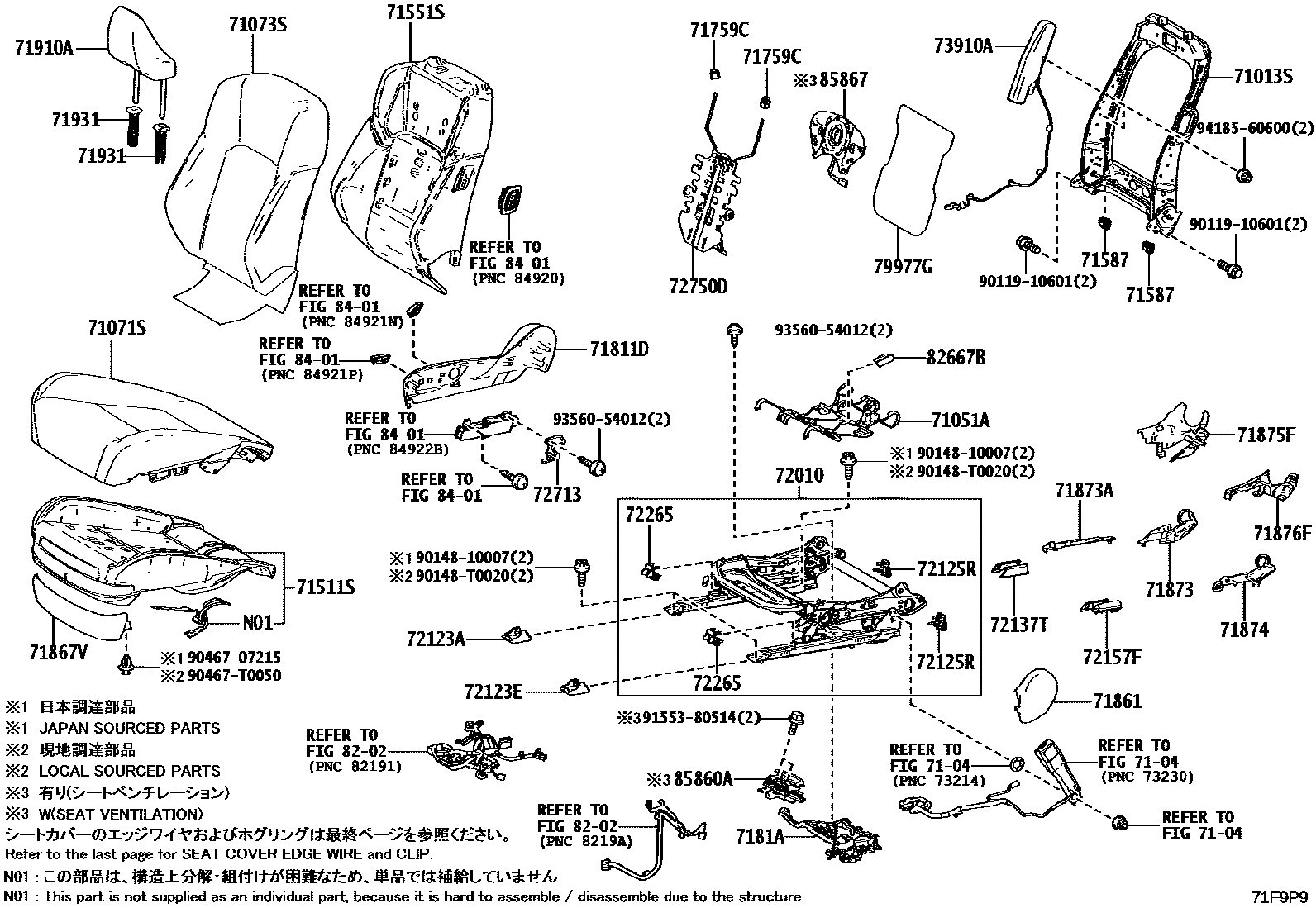

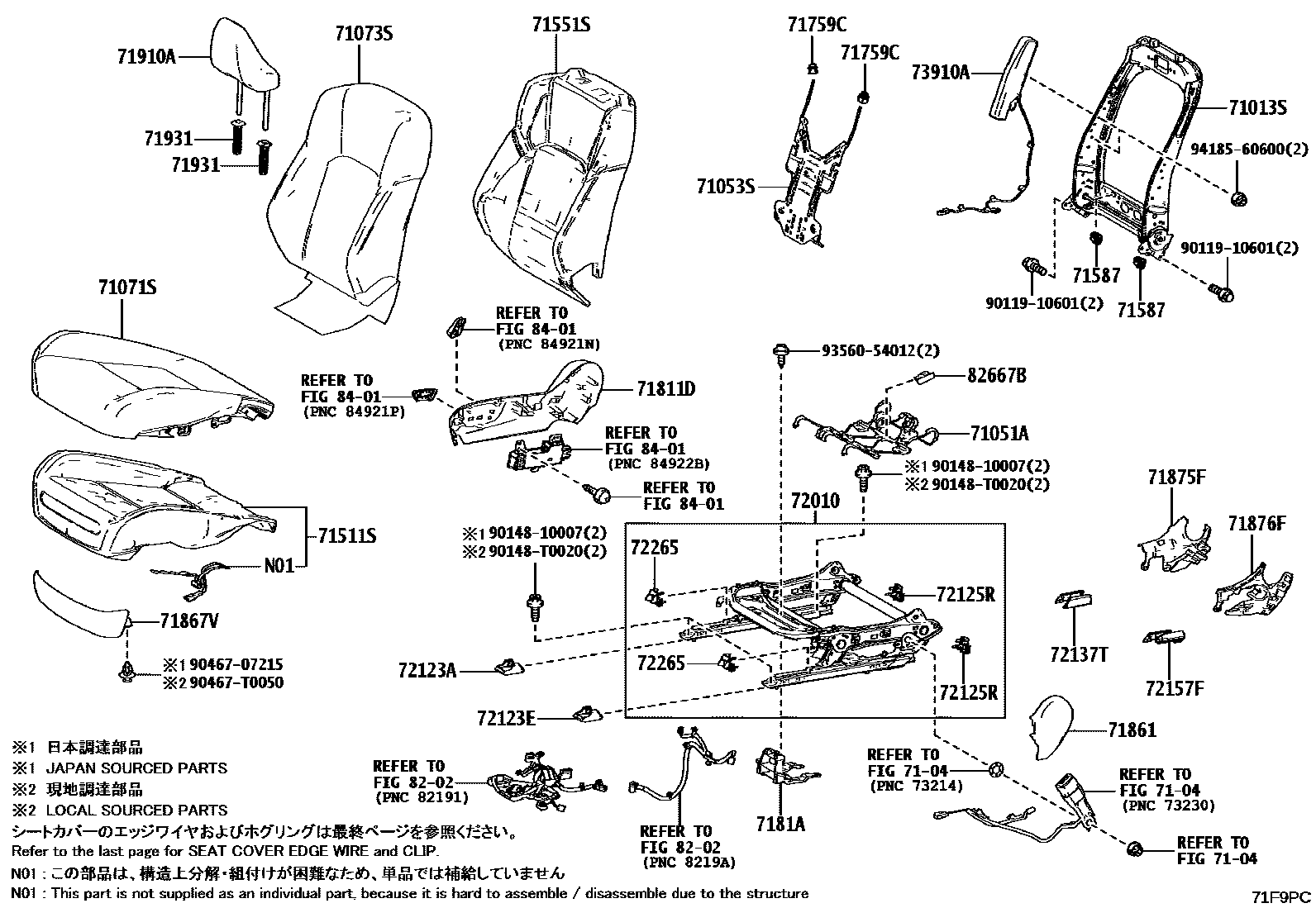

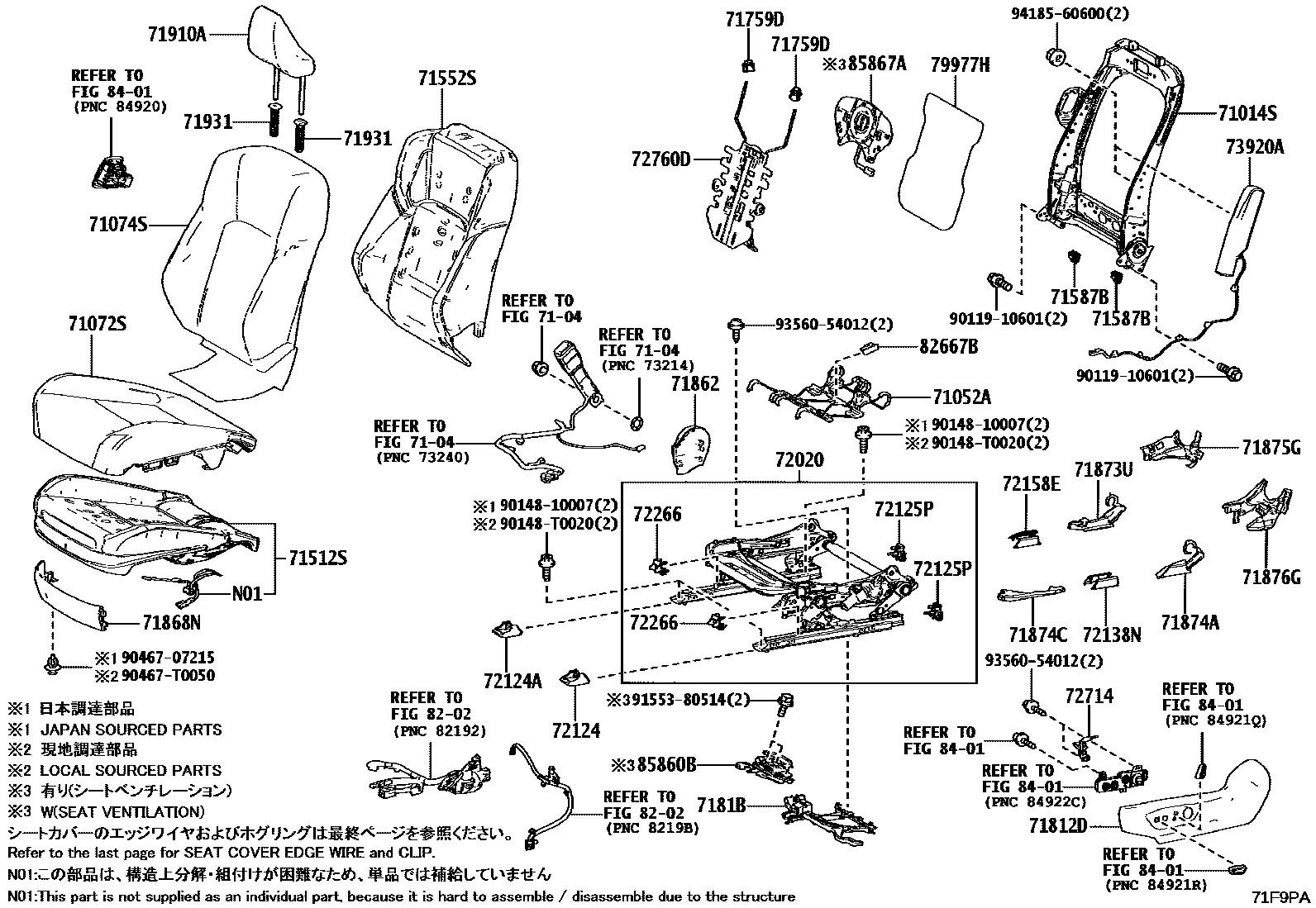

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06810 · 71013-06860 · 71013-06870 |
| 71014S | Front left seat back frame sub-assembly | 71014-06830 · 71014-06A00 · 71014-06A10 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06120 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06120 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06460 · 71501-06480 · 71511-06C00 · 71511-06C10 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06340 · 71502-06350 · 71512-06B30 · 71512-06B50 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06B10 · 71551-06B20 · 71551-06B30 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06A10 · 71552-06A20 · 71552-06A40 |
| 71587 | Front seat back edge protective cover | 71587-F4030 |
| 71587B | Front seat back edge protective cover | 71587-F4030 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 |
| 71759D | Front seat back hook 2 | 71759-0K060 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-06030 · 7181A-F4020 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-06030 · 7181B-F4020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06430 |
| 71873A | Front seat cushion lower guard | 71873-06550 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-06640 |
| 71874 | Front left seat cushion lower guard | 71873-06620 |
| 71874A | Front left seat cushion lower guard | 71874-06420 |
| 71874C | Front seat cushion lower guard | 71874-06570 |
| 72010 | Front right seat adjuster assembly | 72010-06610 · 72010-06620 · 72010-06630 · 72010-06640 |
| 72020 | Front left seat adjuster assembly | 72020-06580 · 72020-06660 · 72020-06670 · 72020-06680 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06130 |
| 72123E | COUV. EXT. ARRIERE DROIT PLATINE FIX. GLISSIERE SIEGE | 72123-06130 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-06130 |
| 72124A | COUV. EXT. ARRIERE GAUCHE PLATINE FIX. GLISSIERE SIEGE | 72123-06130 |
| 72125P | COUVERCLE AR. SUPERIEUR NO. 3 GLISSIERE SIEGE | 72125-06100 |
| 72125R | CACHE, RAIL SIEGE, SUP ARR NO.1 | 72125-06100 |
| 72137T | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MD | 72137-06150 |
| 72138N | CACHE, SUPPORT GLISSIERE SIEGE, ARR EXT MG | 72137-06150 |
| 72157F | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MD | 72157-06210 |
| 72158E | CACHE, SUPPORT GLISSIERE SIEGE, ARR INT MG | 72158-06210 |
| 72265 | Right seat rail upper rail cover | 72265-06040 |
| 72266 | Left seat rail upper rail cover | 72265-06040 |
| 72713 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD | 72713-06020 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-06020 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 · 72750-33150 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 · 72750-33150 |
| 73910A | Front right seat airbag assembly | 73910-06220 |
| 73920A | Front left seat airbag assembly | 73920-06230 |
| 79977G | FEUTRE, DOSSIER DE SIEGE AVANT, MD | 79977-06040 |
| 79977H | FEUTRE, DOSSIER DE SIEGE AVANT, MG | 79977-06040 |
| 82667B | Connector holder | 82666-47630 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-42040 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-42020 |
| 85867 | Right seat back temperature control blower | 85867-30040 |
| 85867A | Left-hand seat back temperature control blower | 85867-30040 |
