Toyota CAMRY 中央扶手箱和支架 — Figure 5806

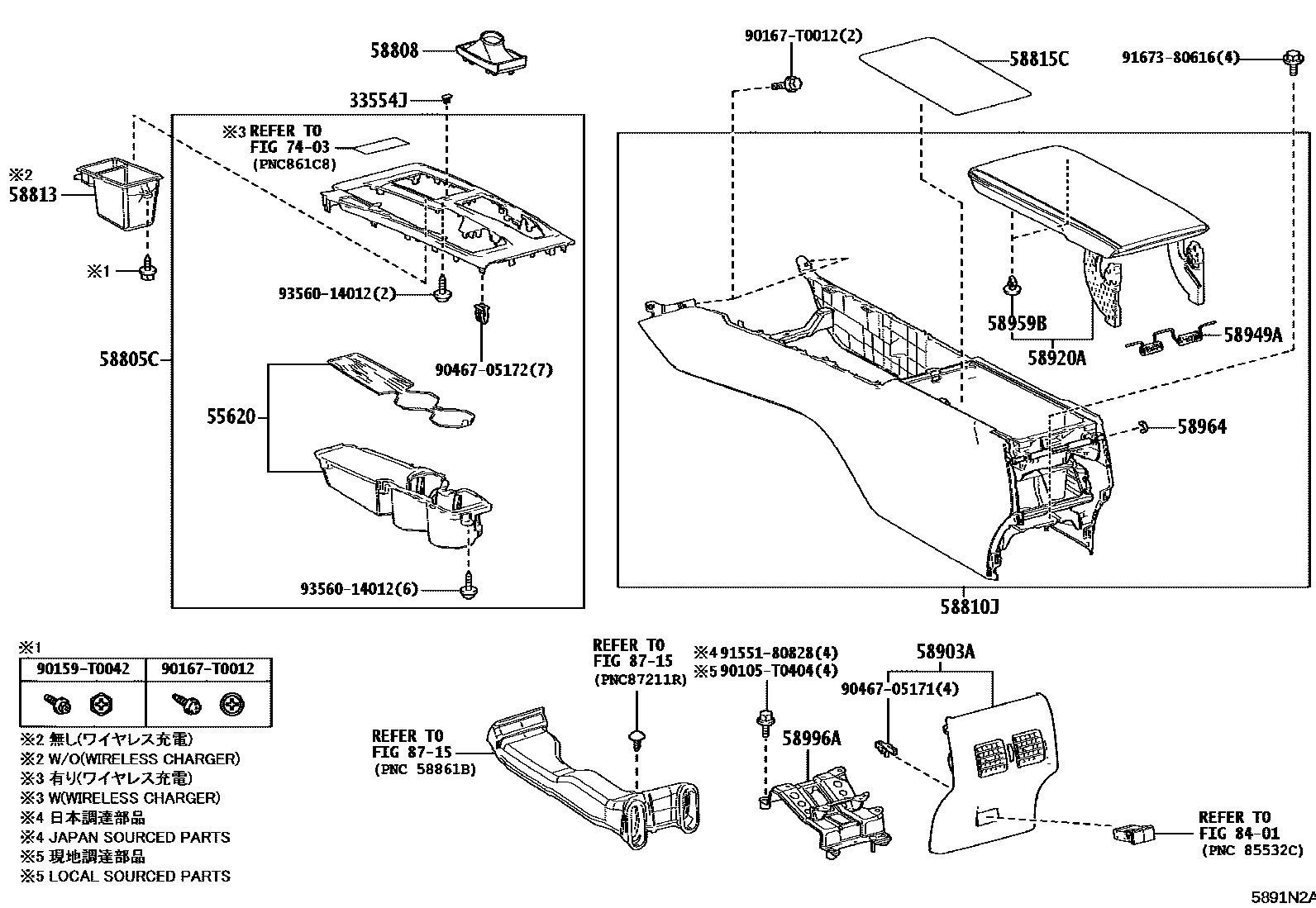

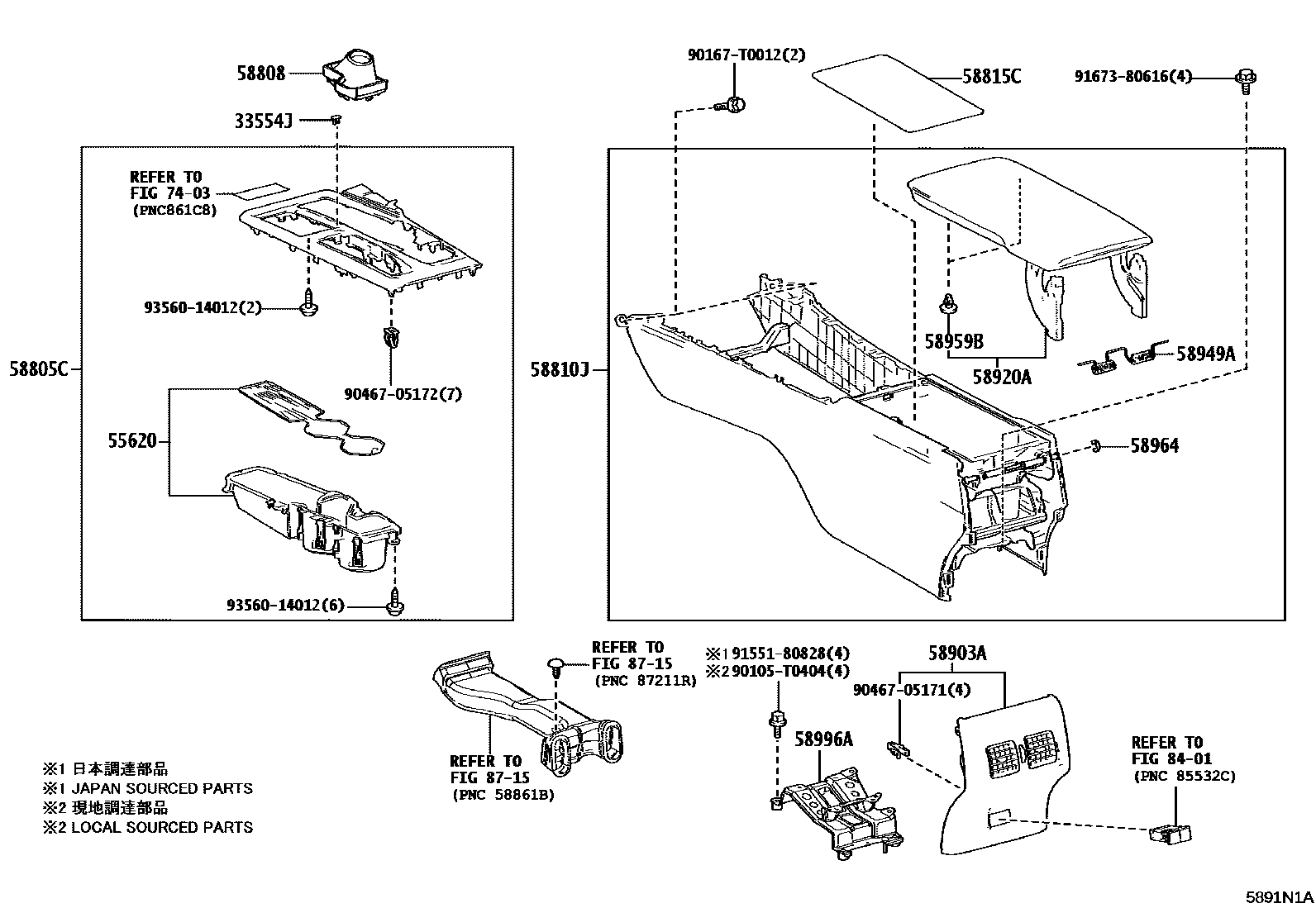

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554J | COUV, BOUTON DE DEVERROUILLAGE DE SELECTION | 33554-06180 · 33554-06190 |
| 55620 | Dashboard cup holder assembly | 55620-06710 · 55620-06720 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06D90 · 58805-06J10 · 58805-06J30 · 58805-06J40 |
| 58813 | Upper armrest box | 58813-33090 |
| 58815C | Armrest box felt pad | 58815-06330 |
| 58949A | RESSORT, SUPPORT FIX BOITE DE CONSOLE | 58949-06040 |
| 58959B | Armrest box cover cushion | 58959-35010 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06121 · 58996-33101 |
