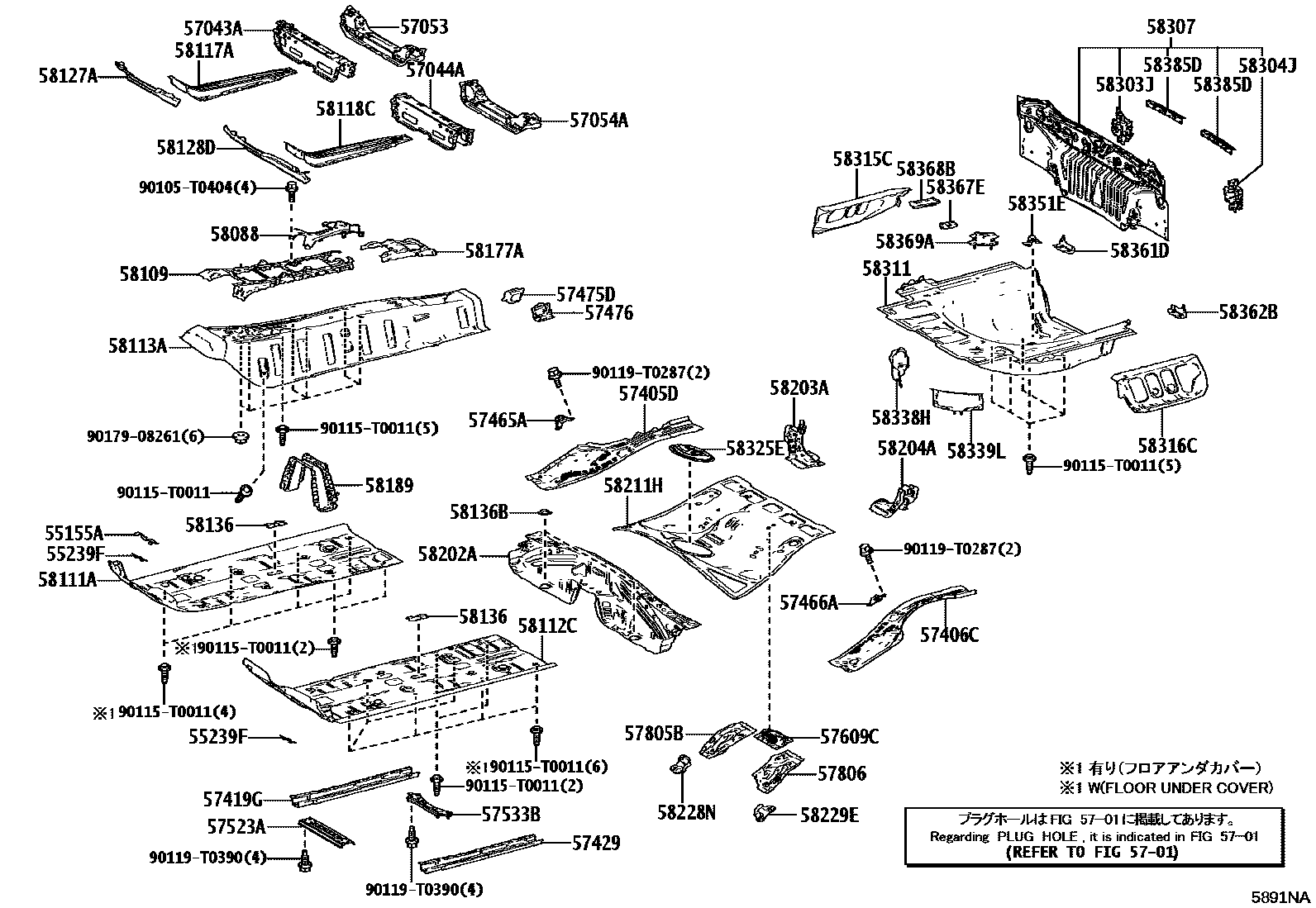

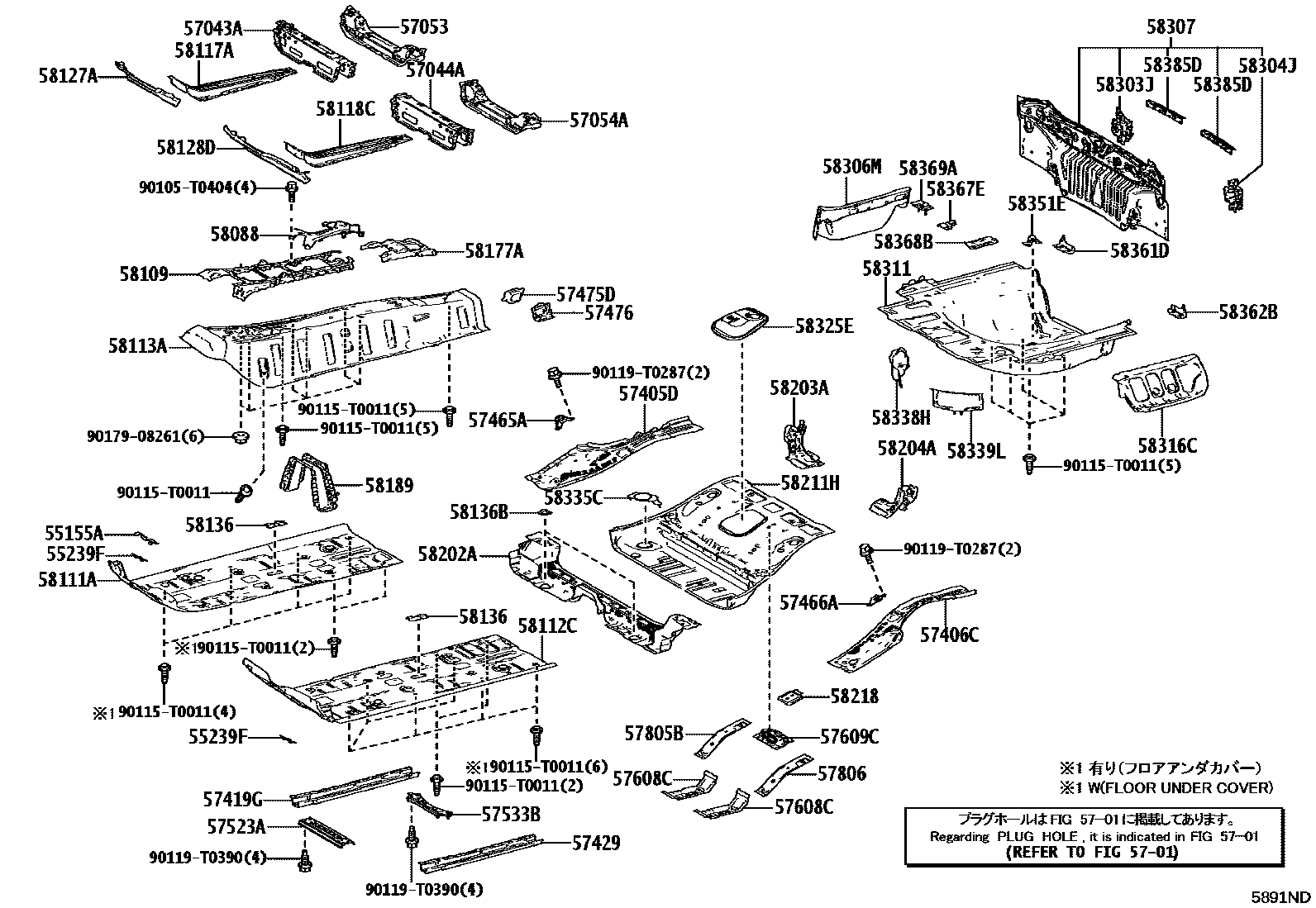

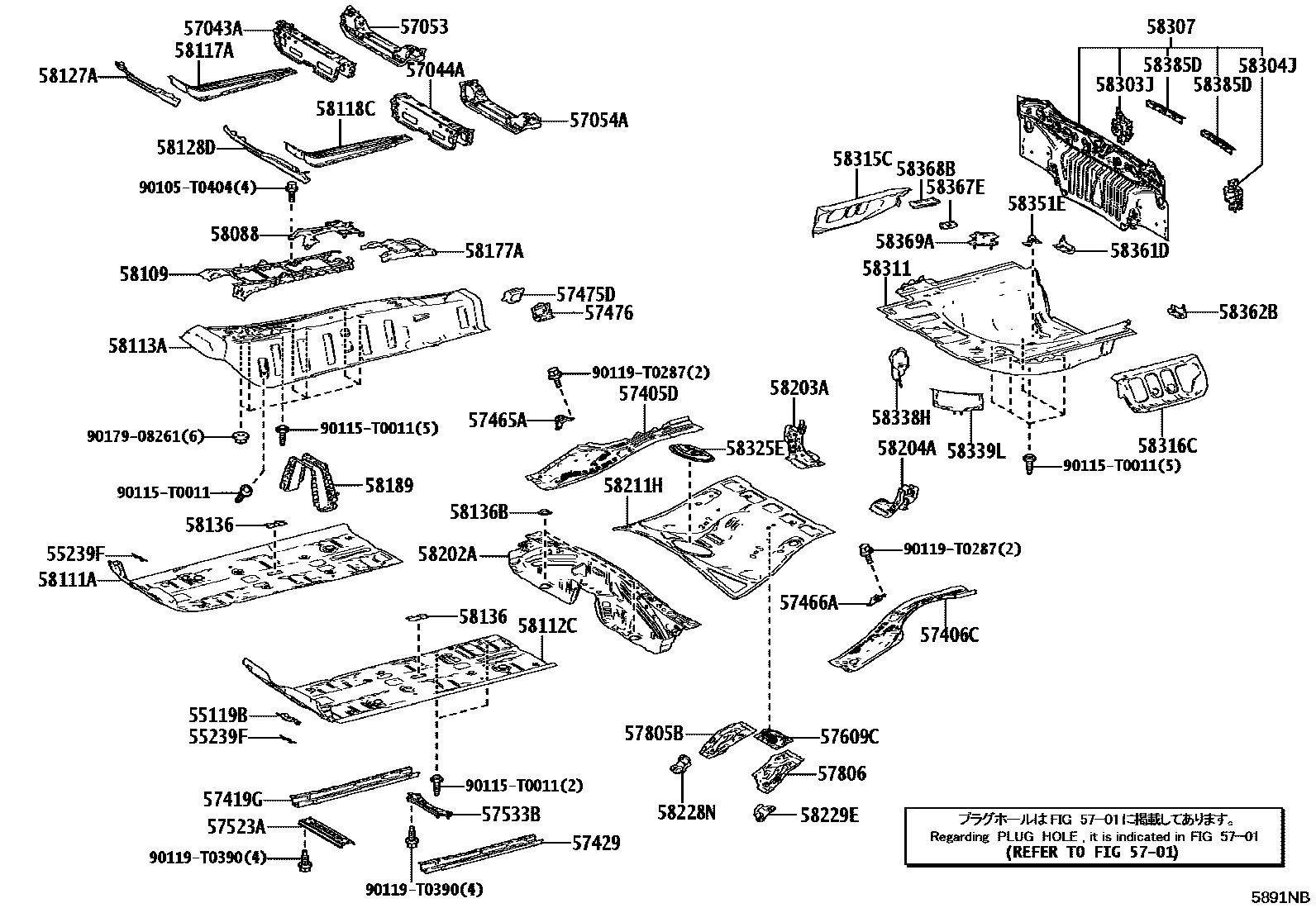

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55119B | PROLONGEMENT, TABLIER, GAUCHE | 55119-06070 |
| 55155A | PLAT. FIX., PEDALE D'ACCELERATEUR | 55155-06040 |
| 55239F | PLAQUE, ISOLANT DE TABLEAU DE BORD, NO.3 | 55239-06070 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-06090 · 57043-33060 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-06090 · 57044-33050 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-06080 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-06130 |
| 57405D | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MD | 57405-06060 |
| 57406C | SOUS-ENS. RAIL, COTE PLANCHER, CENTRAL MG | 57406-06070 |
| 57419G | Front floor right rear lower reinforcement | 57419-06140 · 57419-33080 |
| 57429 | Left rear reinforcement under front floor | 57419-06140 · 57419-33080 |
| 57465A | Center floor right beam corner panel | 57465-06040 |
| 57466A | Center floor left transom corner panel | 57466-06040 |
| 57475D | Front floor right cross member panel | 57475-06080 · 57475-33020 |
| 57476 | Front floor left cross member panel | 57476-06070 · 57476-33020 |
| 57523A | TIRANT DE TRAVERSE DE PLANCHER CENTRAL | 57523-06040 |
| 57533B | Front floor center bracket | 57533-06080 · 57533-33040 |
| 57608C | Fuel tank mounting bracket sub-assembly | 57608-06150 · 57608-33060 |
| 57609C | Rear floor No. 5 cross member sub-assembly | 57609-06090 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-06090 · 57805-06100 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57805-06100 · 57806-06050 |
| 58088 | SOUS-ENS. SUPPORT, TRINGL CHG VIT PLANCHER | 58088-06090 · 58088-06100 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-06040 |
| 58111A | Front floor right bottom panel | 58111-06170 |
| 58112C | Front floor left bottom panel | 58112-06050 |
| 58113A | front floor center panel | 58113-06050 |
| 58117A | Front floor right reinforcement | 58117-06040 |
| 58118C | Front floor left reinforcement | 58117-06060 · 58117-33020 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-06090 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-06020 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58136B | Center floor hole cover | 58136-06080 |
| 58177A | Front floor right extension | 58177-06040 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-06170 · 58189-33080 |
| 58202A | Center floor front floor sub-assembly | 58202-06090 · 58202-06130 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-06050 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-06080 |
| 58211H | central floor base | 58211-06301 · 58211-33201 |
| 58218 | seat floor | 58218-06100 |
| 58228N | RENFORT, PANNEAU PLANCHER CENTRAL, NO.1 | 58228-06040 |
| 58229E | RENFORT, PANNEAU PLANCHER CENTRAL, NO.2 | 58229-06040 |
| 58303J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE DROIT | 58303-06070 |
| 58304J | SOUS-ENS. RENFORT SUP. BRAS PARE-CHOCS ARRIERE GAUCHE | 58304-06080 |
| 58306M | Rear floor side panel sub-assembly | 58306-06150 |
| 58307 | Body lower back panel sub-assembly | 58307-06250 |
| 58311 | rear floor pan | 58311-06220 |
| 58315C | Rear floor right side panel extension | 58315-06070 |
| 58316C | Rear floor left side panel extension | 58316-06070 |
| 58325E | Rear floor access hole cover | 58325-06150 · 58325-06160 |
| 58335C | Front floor right panel | 58335-06080 |
| 58338H | Rear floor bottom plate No. 2 right reinforcement | 58338-06080 |
| 58339L | Rear floor bottom plate No. 2 left reinforcement | 58339-06090 |
| 58351E | Spare tire clip bracket | 58351-06070 |
| 58361D | Rear floor No. 1 right reinforcement | 58361-06040 |
| 58362B | Rear floor No. 1 left reinforcement | 58362-06040 |
| 58367E | SUPPORT, TUBE D'ALIMENTATION, NO.1 | 58367-06050 |
| 58368B | No. 2 fuel pipe bracket | 58368-06060 |
| 58369A | No. 3 fuel pipe bracket | 58369-06120 · 58369-06130 |
| 58385D | Rear bumper cover bracket | 58385-06180 |
