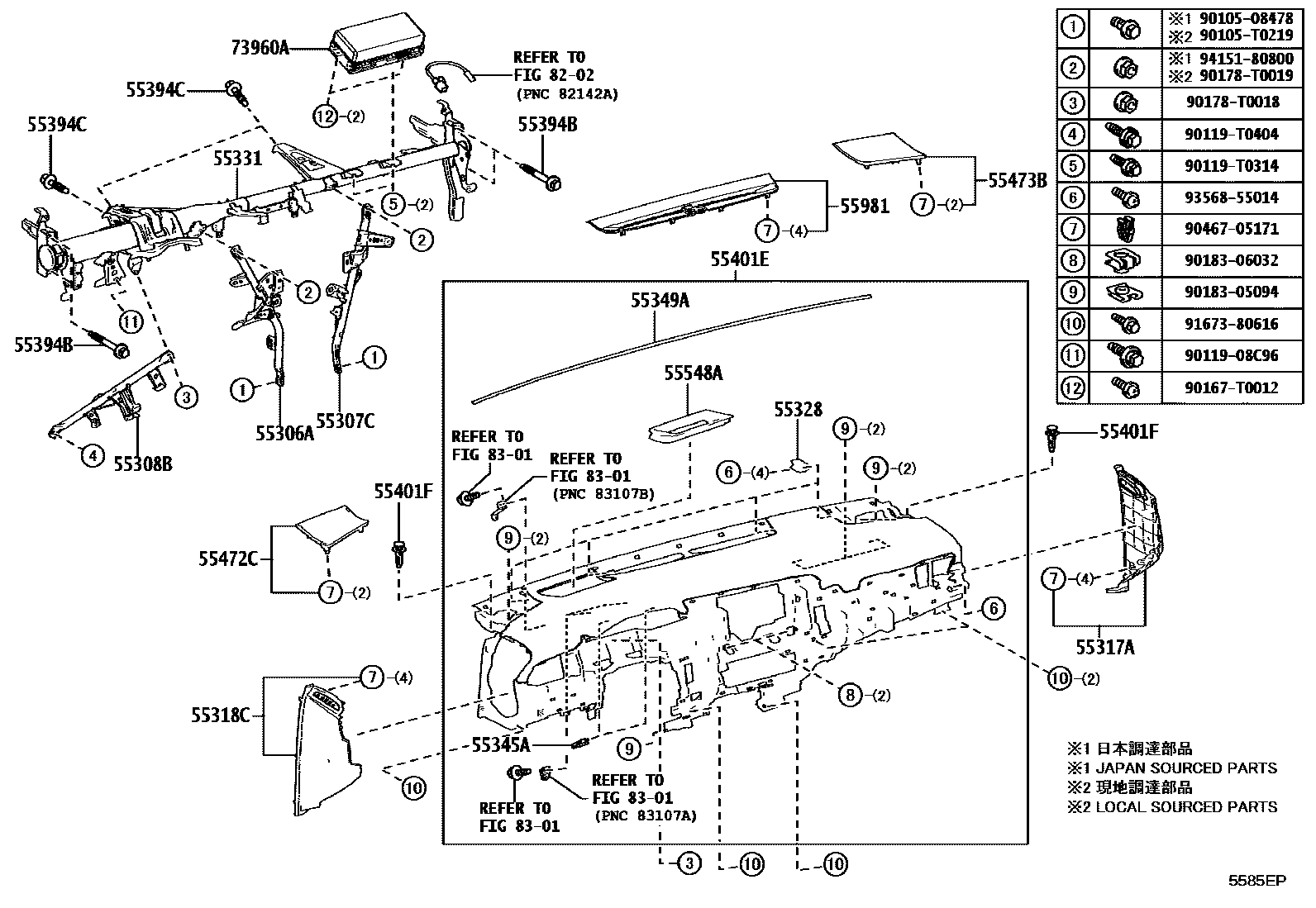

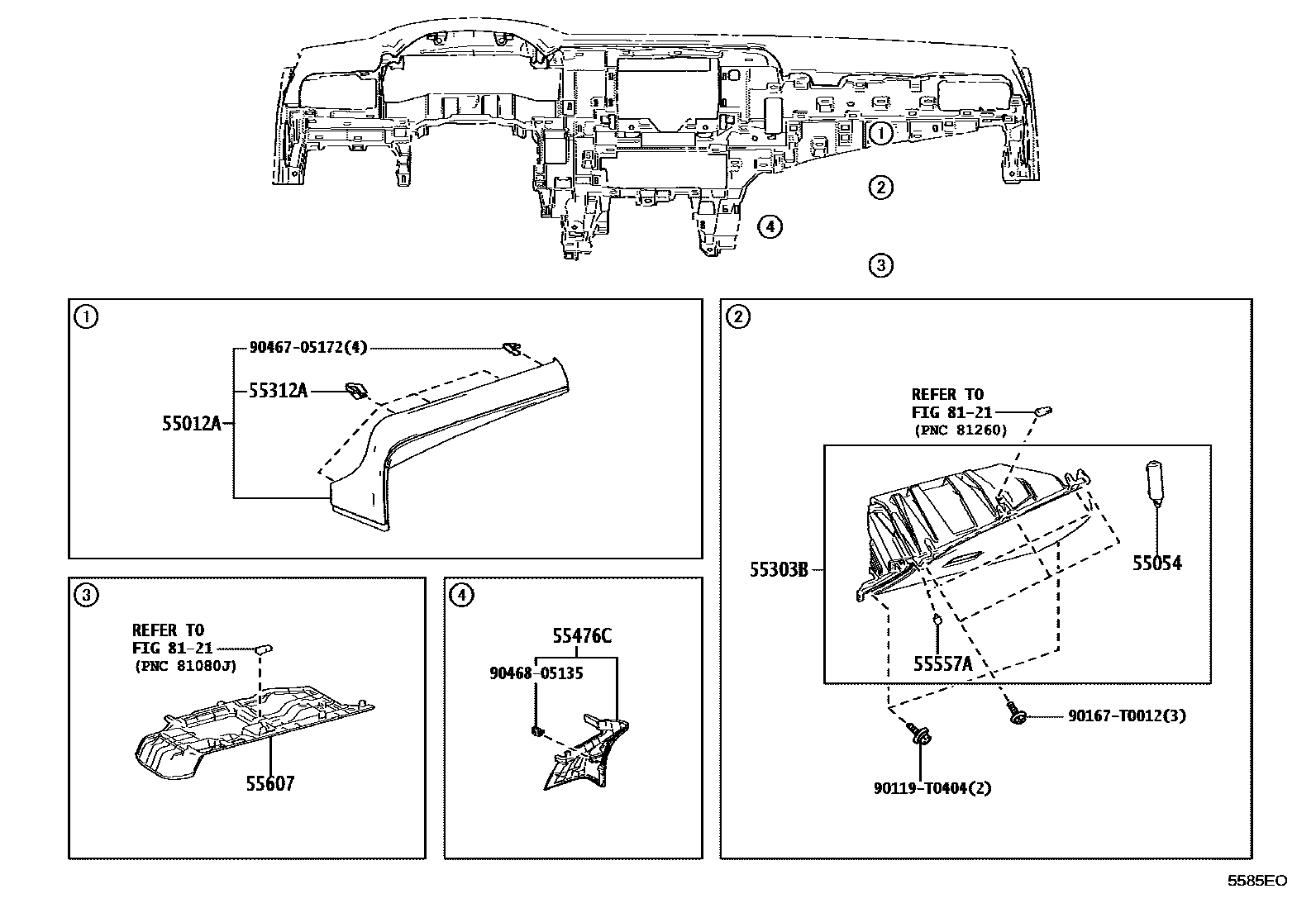

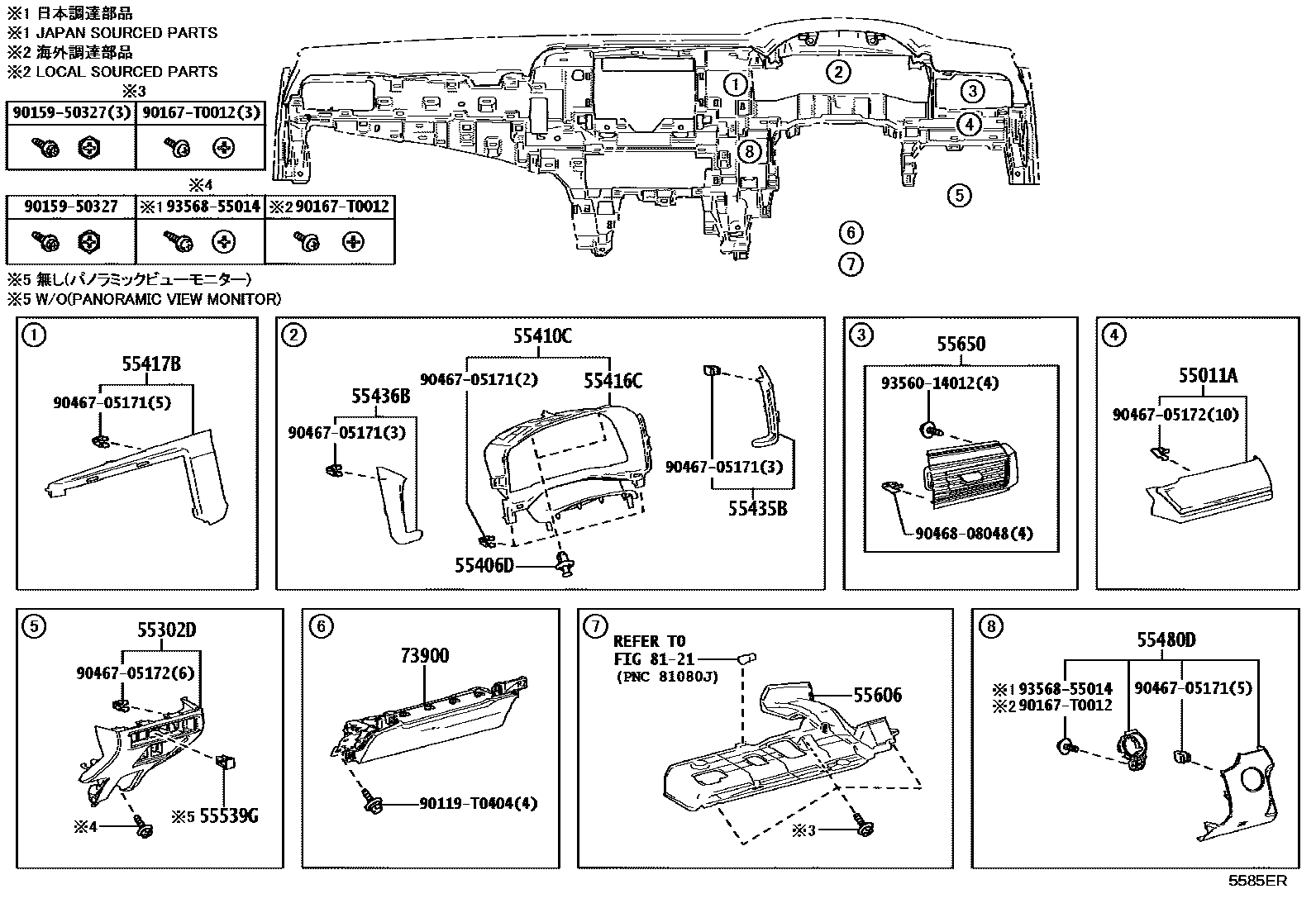

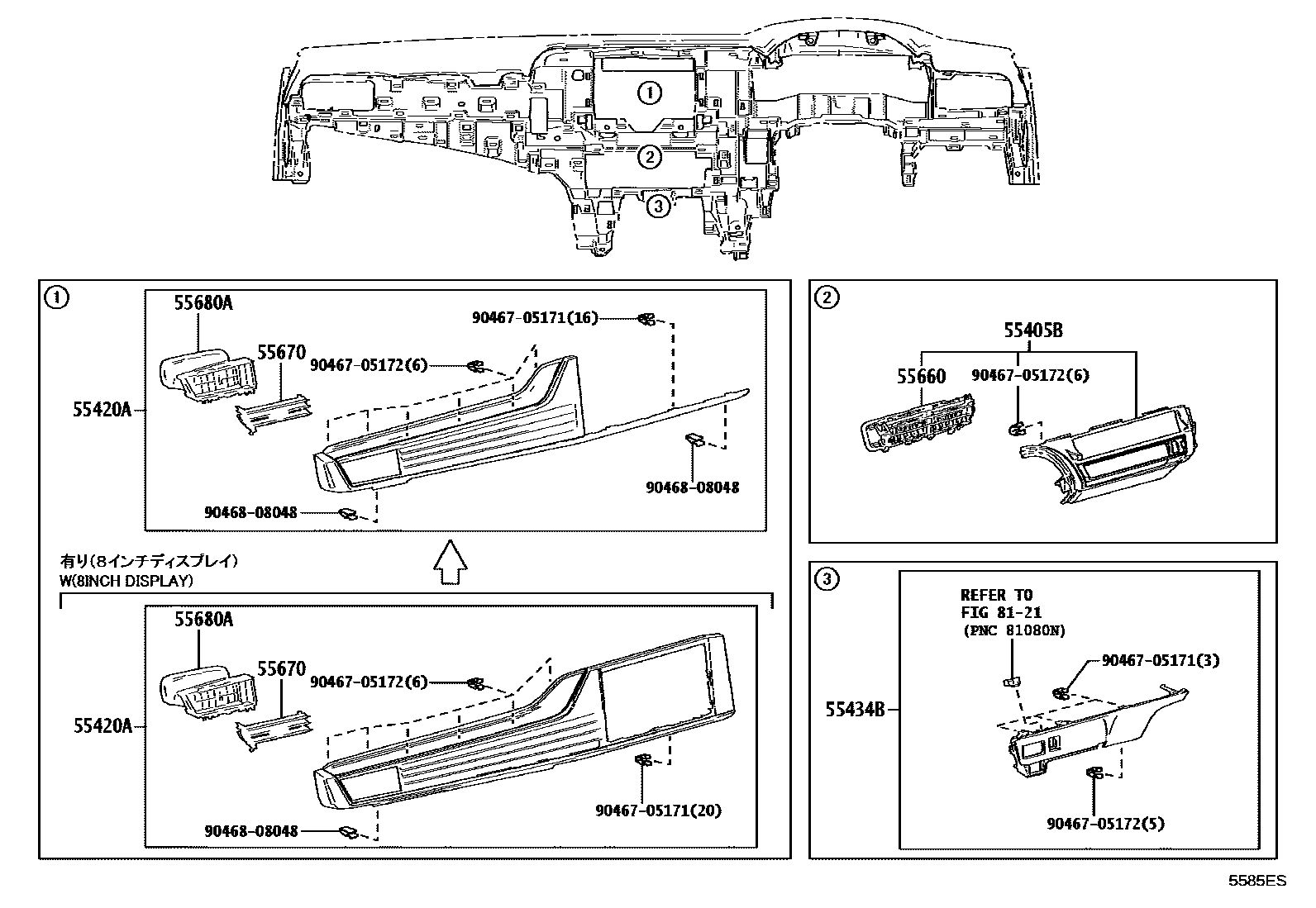

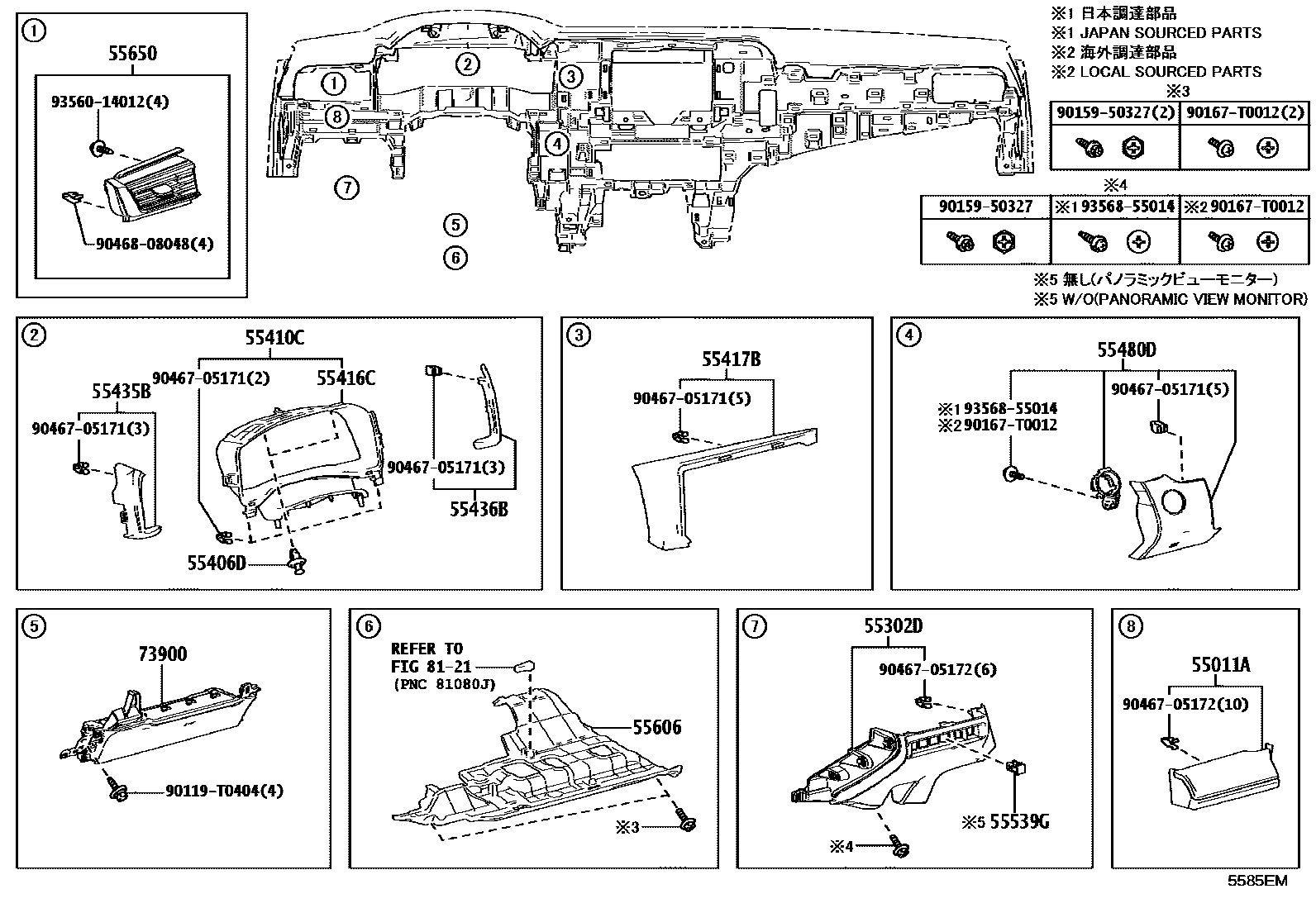

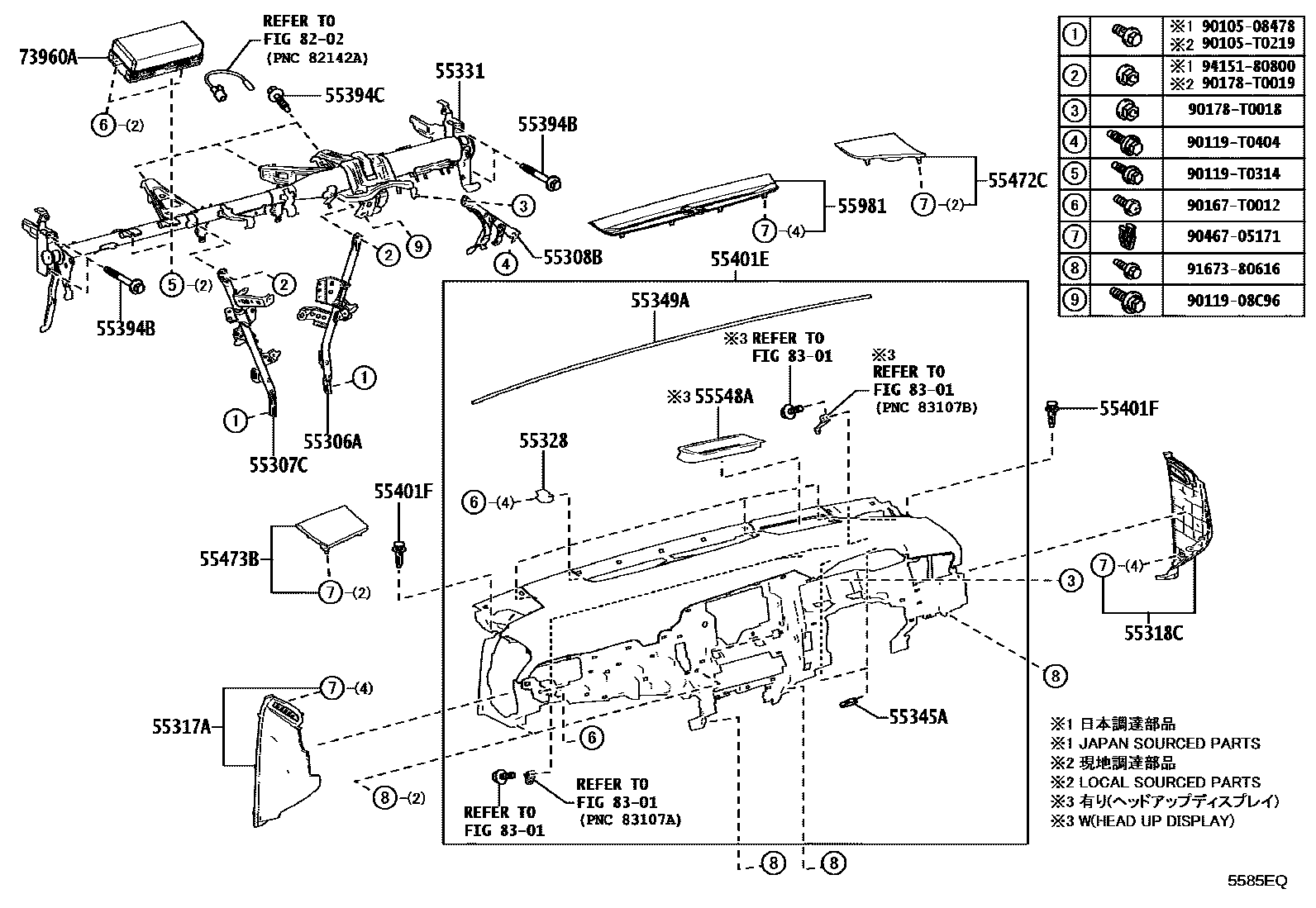

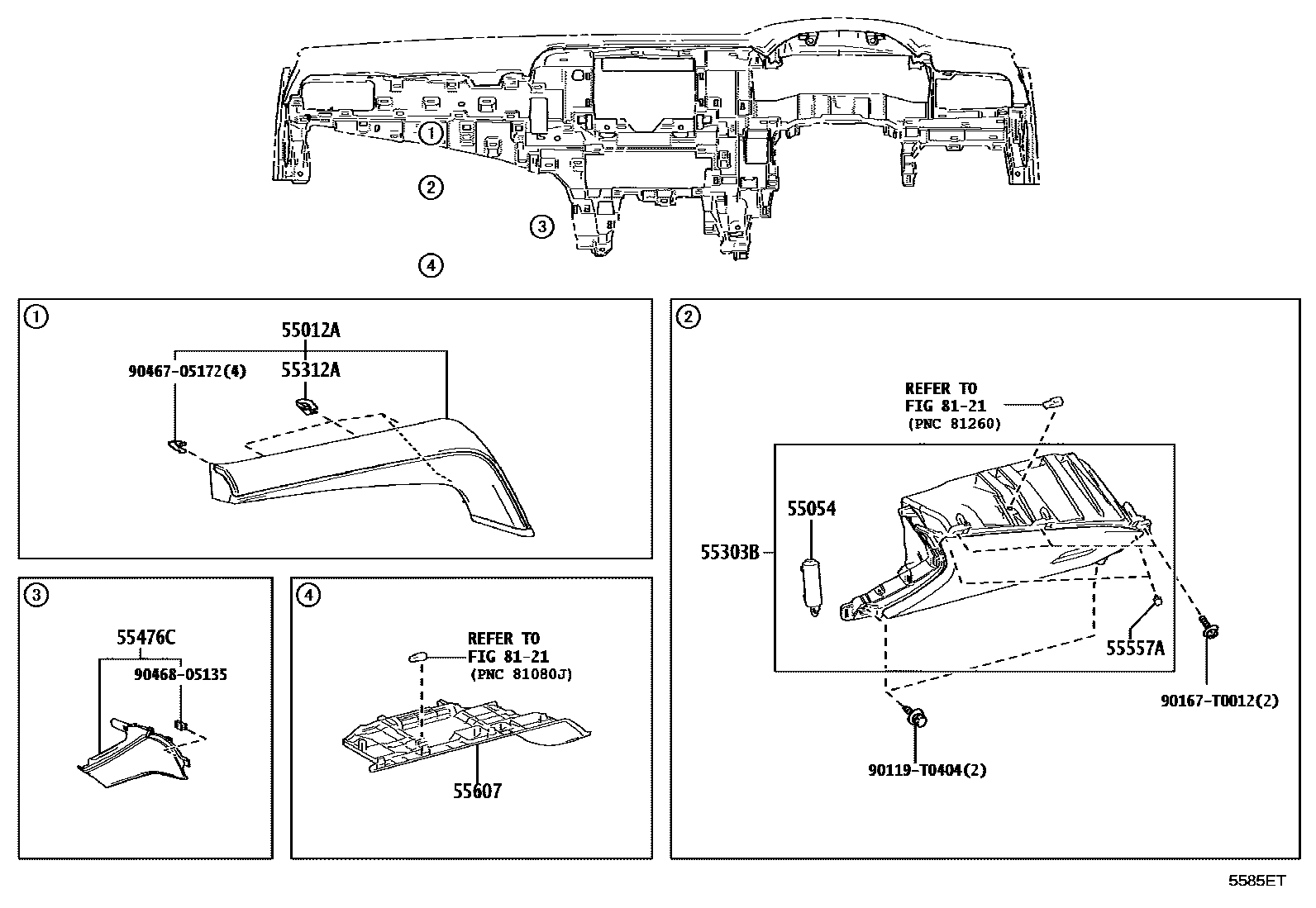

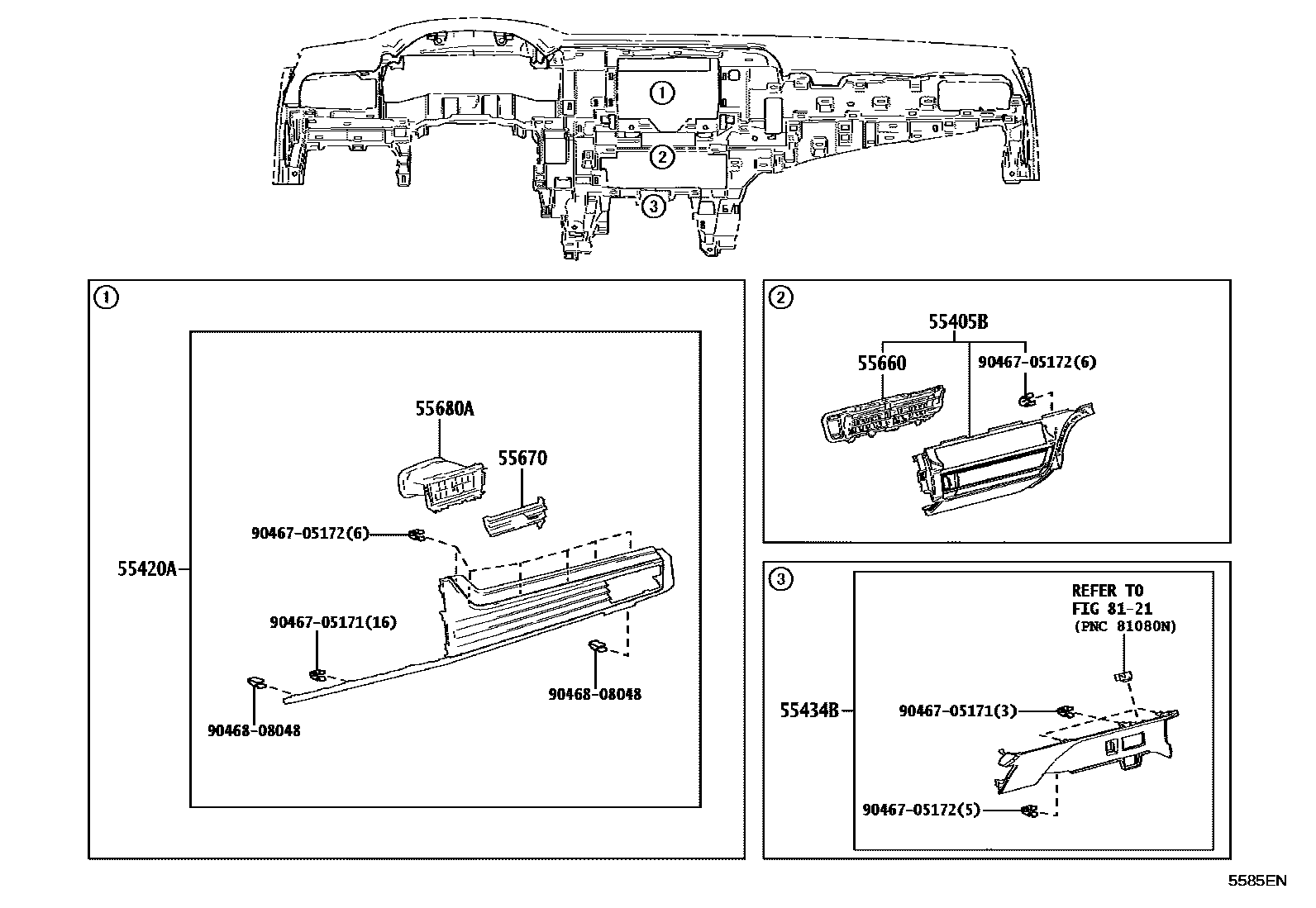

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06300 · 55306-06310 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-06290 · 55307-06300 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-06090 · 55308-06120 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-06600 · 55330-06610 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-06190 · 55349-33060 |
| 55394B | Dashboard bolts | 90105-08473 · 90105-T0220 |
| 55394C | Dashboard bolts | 90119-T0527 |
| 55401F | Clip (for safety mat) | 52161-0K040 |
| 55410C | Instrument cluster decorative panel assembly | 55404-06140 · 55404-06150 · 55404-06160 |
| 55416C | Instrument cluster decorative panel fixings | 55416-06260 · 55416-06270 · 55416-06280 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06140 · 55420-06150 · 55420-06160 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-06400 · 55435-06410 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-06360 · 55436-06370 |
| 55539G | Spare switch hole cover | 55539-06130 |
| 55548A | Dashboard hole cover | 55548-33130 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06040 · 55606-06050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06460 · 55607-06521 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-06740 · 55650-06750 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-06410 · 55660-06420 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-06A90 · 55670-06B00 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-06100 · 55680-06110 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-06120 · 55981-06140 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06340 |
