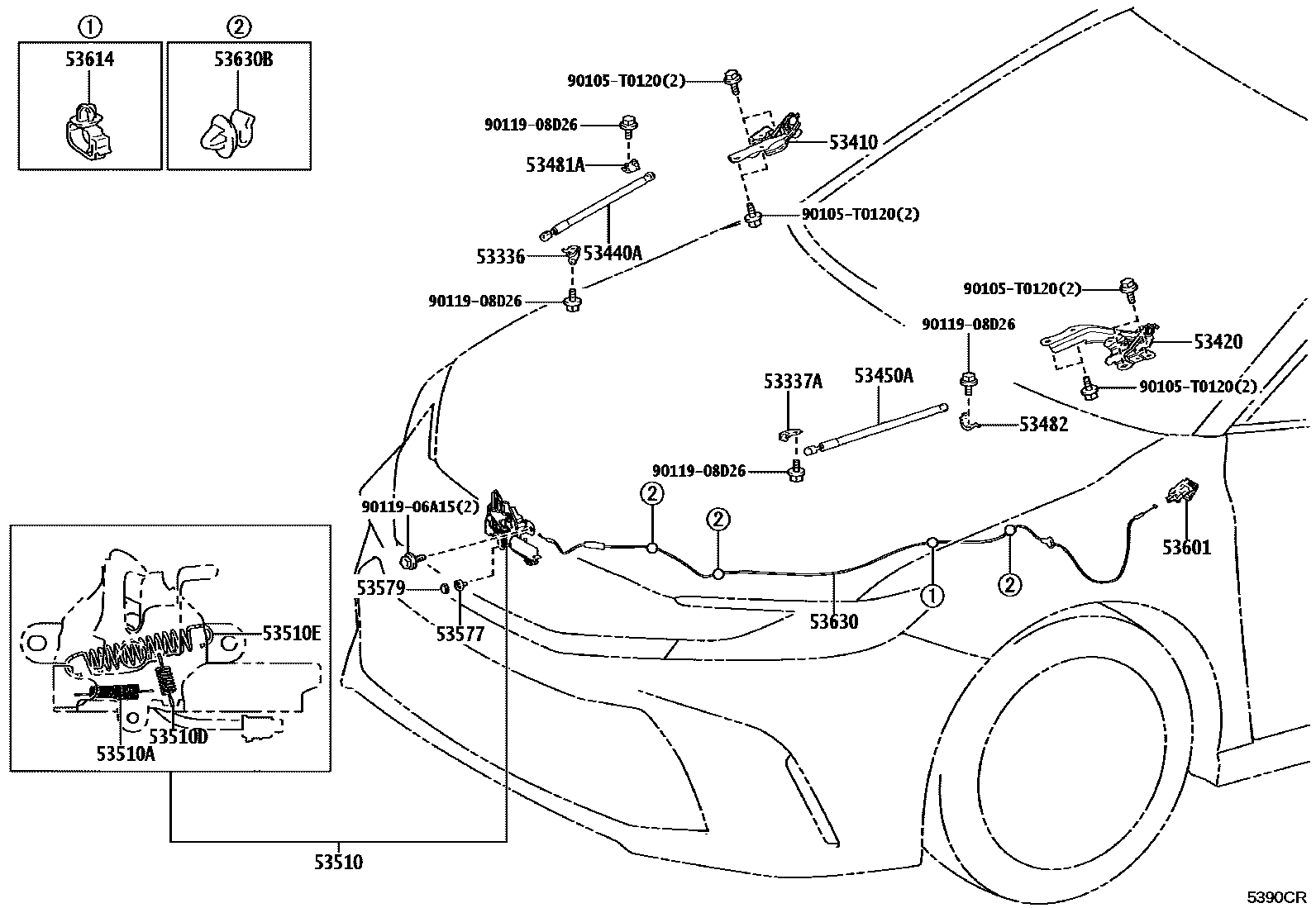

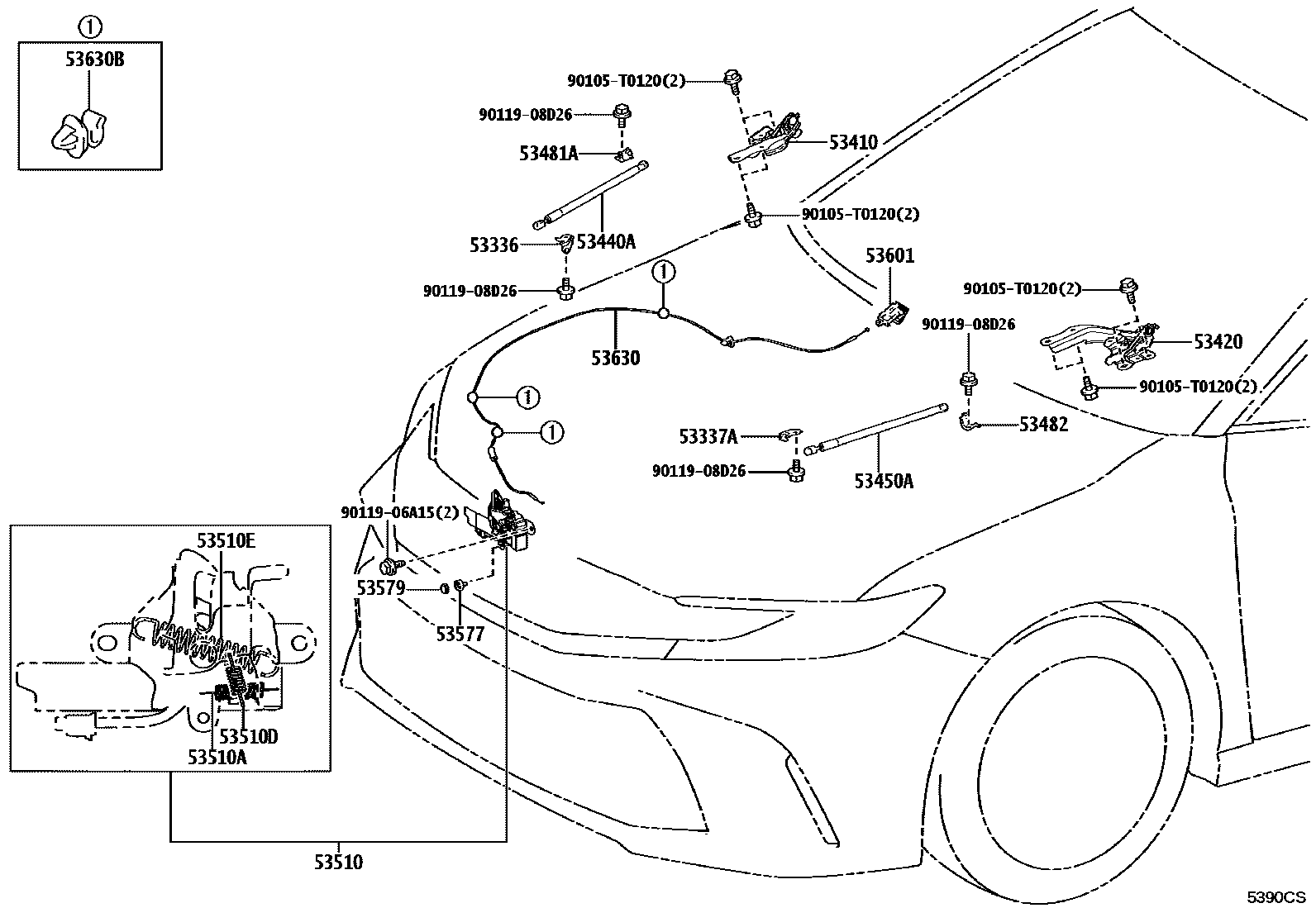

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53336 | Engine cover right side support rod bracket | 53336-06090 · 53336-33070 |
| 53337A | Engine cover left side strut bracket | 53337-06080 · 53337-33050 |
| 53410 | Engine cover right hinge assembly | 53410-06460 |
| 53420 | Engine cover left hinge assembly | 53420-06460 |
| 53440A | Engine cover right support rod assembly | 53440-06190 |
| 53450A | Engine cover left support rod assembly | 53450-06160 |
| 53481A | Engine cover right support rod bracket | 53481-06170 |
| 53482 | Engine cover left support rod bracket | 53482-06150 |
| 53510 | Engine cover lock assembly | 53510-06370 · 53510-06440 |
| 53510A | Tension spring (for hood lock) | 90506-T0005 |
| 53510D | Tension spring (for hood lock) | 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53614 | Engine hood lock control cable clip | 82711-1E340 |
| 53630 | Engine hood lock control cable assembly | 53630-06261 · 53630-06271 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
