Toyota CAMRY radiator grille — Figure 5301

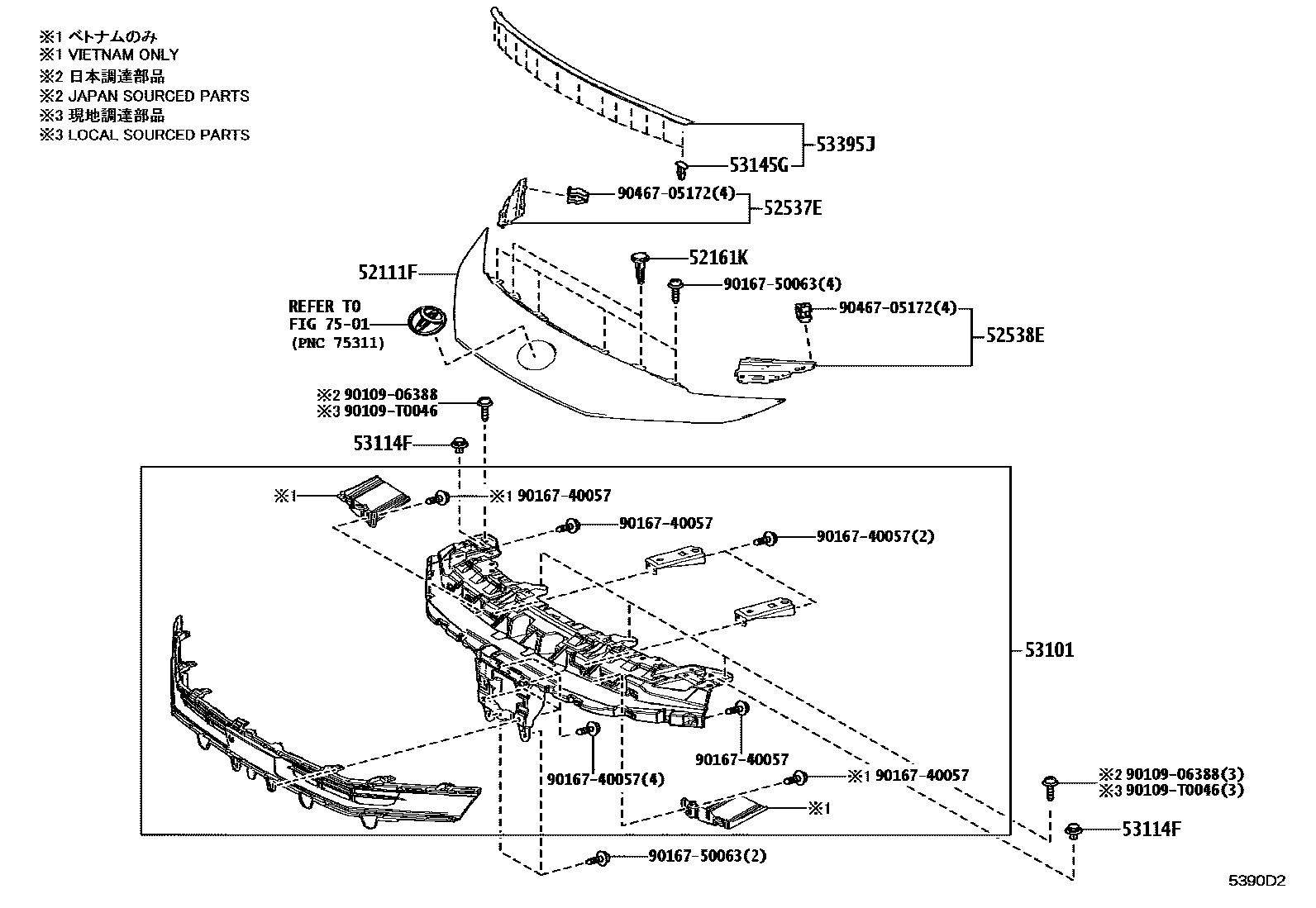

Toyota CAMRY EPC diagram 5301, radiator grille, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111F | BARRE, PARE-CHOCS AVANT, CENTRALE | 52111-06905 |
| 52161K | front bumper insert | 52161-0K040 |
| 52537E | ARRETOIR, EXTR PARE-CHOCS AV, MD | 52537-06040 |
| 52538E | ARRETOIR, EXTR PARE-CHOCS AV, MG | 52538-06040 |
| 53101 | Radiator grille sub-assembly | 53101-06E80 · 53101-06G20 · 53101-06J50 · 53101-06J60 · 53101-06J70 · 53101-06J80 |
| 53114F | ATTACHE, GRILLE RADIATEUR | 90467-07215 · 90467-T0050 |
| 53145G | Radiator grille clip | 53145-0K010 |
| 53395J | JOINT ETANCH., CAPOT A PANNEAU EN BOUT AVANT | 53395-06180 |
